Full HD1080p video (up to 2 megapixel high resolution)
Fixed lens options 2.8mm (FoV 115°), 4 mm (FoV 90°), 6mm (FoV 53.9°)
Automatic day/night mode
Built-in IR LEDs, range up to 30m
120dB Wide Dynamic Range
3D Digital Noise Reduction
Built-in Wi-Fi
Support H.264/MJPEG/H.264+
IP66 weather-proof protection Vandal resistant IK08
DC12V & PoE
No matter where you are, you can watch live and recorded video from your smart device, as well as control your entire Pyronix security system with the same app.

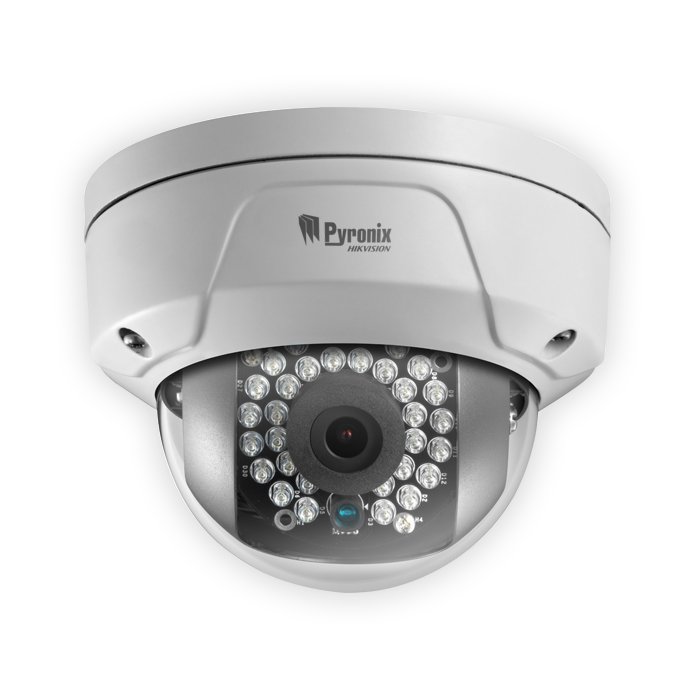

The Mini Dome camera boasts IP66 weatherproof rating, which means that it is capable of withstanding severe weather conditions. It is dust tight and even protected against multi-directional high pressure water jets.
The 3-axis system of the Mini Dome camera allows it to be mounted in any orientation with full control over the viewing angle. Fit the camera and then pan, tilt and rotate the camera module to deliver a straight and level image with every installation.
Simply connect the Mini Dome camera to the wireless network and login to it via the smart device app and it’s ready to go.
The Mini Dome camera utilises invisible IR light via its in-built IR LED to deliver optimum and discreet coverage of indoor spaces up to 10m, even in complete darkness.
WDR handles a wide range of lighting conditions to deliver clear video in any scene. If there is heavy contrasting light, WDR balances the lighting conditions of both the foreground and background to deliver clear images throughout.
The Mini Dome camera’s IK10 resistance rating makes it highly resilient to impacts, such as a
swing from a baseball bat or a hammer.
A lens option to provide the perfect angle:
• 2.8mm: A smaller focal length to widen the image and provide ideal coverage of large spaces such as gardens. (Horizontal angle of view 115°)
• 4mm: A slightly bigger focal length to narrow the image and provide ideal coverage of smaller sub-spaces such as entrances or patios. (Horizontal angle of view 90°)
• 6mm: An even bigger focal length to narrow the image further and provide ideal coverage of tighter spaces, such as driveways, pathways or along perimeter walls. (Horizontal angle of view 53.9°)
Resolution |
2 Megapixel |
Lens Options |
2.8mm (DOME-CAM/28), angle of view: 115° 4mm (DOME-CAM/4), angle of view 90° 6mm (DOME-CAM/6), angle of view 53.9° |
Day & Night |
IR cut filter with auto switch |
Digital Noise Reduction (DNR) |
3D DNR |
Wide Dynamic Range (WDR) |
120dB |
Video Compression |
H.264 / MJPEG / H.264+ |
Dual Streams |
Yes |
Max. Resolution |
1920 x 1080p (25 fps) |
Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Back Light Compensation (BLC) |
Support, zone configurable |
Network Storage |
NAS (Support NFS, SMB/CIFS), ANR |
Alarm Trigger |
Motion Detection, Tampering Alarm, Network Disconnect, IP Address Conflict, Storage Exception |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Standard |
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
General Function |
One-key reset, Flash Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filtering, Anonymous Access |
Communication Interface |
1 RJ45 10M/100M Ethernet port |
On-Board Storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
Wireless Standards |
IEEE802.11b, 802.11g, 802.11n |
Frequency Range |
2.4GHz ~ 2.4835 GHz |
Operating Conditions |
-30ºC to 60ºC |
Power Supply |
DC12V or PoE (803.3af ) |
Power Consumption |
Max. 5W |
IR Range |
Up to 30 meters |
Ingress Protection |
IP66 |
Dimensions |
Φ111 x 82 (4.4” x 3”) |
Weight |
500g (1.1Ibs) |
Warranty |
1 year |
