EURO 46 V10

Description

The EURO 46 V10 is a versatile hybrid control panel with 76 zones, offering reliable monitoring through PSTN, GSM, and IP communication. It suits various security needs with large and small options for grade 2 and 3 installations.

Key Features
  • Hybrid 76 zone, 6 area control panel
  • Up to 75 unique users, 32 maximum wireless keyfobs
  • Code, pin, remote keyfob, and app arming/disarming options

Product Features

Ultimate flexibility

Supercharge your hybrid installations

The EURO 46 V10 offers a comprehensive security solution for any property, thanks to its wide range of wired and wireless security and life safety peripherals.

HomeControl2.0 control

Users can securely control the system, check its status, and receive customised push notifications from any location via our easy-to-use HomeControl2.0 smart device application.

Seamless wireless integration

By incorporating a wireless zone expander, the EURO 46 V10 achieves complete compatibility with our wireless devices. These devices offer smooth connectivity through a user-friendly one-button learning feature, facilitate optimal device placement during installation via SSI, and incorporate ITDC for effective power management.

Programming options

Offering programming options via the InSite desktop application or keypad, the EURO 46 V10 allows engineers to choose their preferred method for seamless menu navigation.

IP Ready

The EURO 46 V10 effectively addresses the challenges caused by the PSTN shut off, as it integrates with IP-based alternatives like GPRS, Wi-Fi, and LAN modules, ensuring users won’t encounter PSTN-related issues.

Easy IT configuration

Connecting via a cloud server, The EURO 46 V10 avoids the need for difficult on-site IP or network setup. Users connect through PyronixCloud.com for hassle-free access.

InSite compatible

With our InSite UDL software, the system can undergo remote programming and diagnostics. Additionally, this software facilitates the remote execution of one of the compulsory bi-annual system maintenance checks, using ARM maintenance, saving you time and money.

What’s in the box

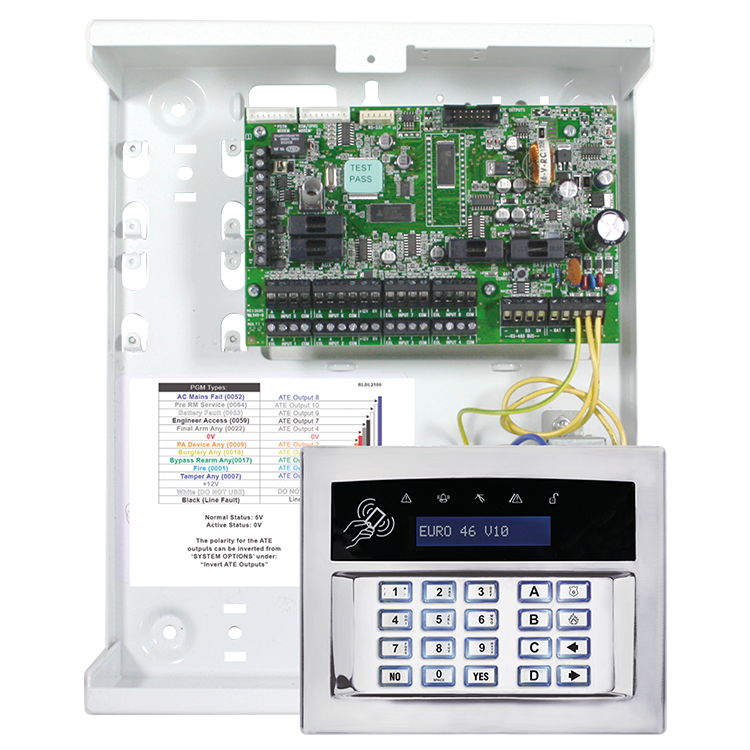

The EURO 46 V10 control panel is supplied with a EUR-064 contemporary keypad, and a User Guide.

*Please Note: PyronixCloud is FREE for the first 12 months, after which subscription charges will apply. For more information please contact your installer.

Control panel technical characteristics

Two-way wireless technology

Requires EURO-ZEM32-WE

Independent areas

6

Tamper protection

Front and back

LCD keypad with intergrated prox reader

EUR-064

User codes and prox tags

75

Guard codes

10

Reporting formats

Contact ID (standard and IP) | Fast Format (standard and IP) | SIA3 (standard and IP)

System logs

1250 events (EEPROM)

Areas

6

Inputs & outputs

Input type

Double pole, DEOL and 3EOL | Wireless with additional EURO-ZEM32-WE

Two-way wireless inputs

64 (with 2 x EURO-ZEM32-WE)

Onboard wired inputs

8 (10 including keypad inputs)

Total inputs

76

Outputs on board

1 relay | 4 transistor | 10 low power ATE outputs

Two-Way Wireless Keypads

4 (requires EURO-ZEM32-WE)

Output modules

2

Wired automation outputs

30

Maximum outputs

85

Two-way wireless keyfobs

32 (requires EURO-ZEM32-WE)

Two-way wireless sirens

2 (requires EURO-ZEM32-WE)

Wired keypads

6

Readers and entry control

5

Communications and modems

GPRS modem (optional)

Yes

GSM modem (optional)

Yes

PSTN modem (optional)

Yes

LAN modem (optional)

Yes

WiFi modem (optional)

Yes

Supports PyronixCloud & HomeControl+ App

Yes

SMS numbers

10

Remote speaker and microphone

16 ohms speaker wired to endstation

Event Signalling to Insite

Yes

ARC compatibility

Yes

Compatible with UDL software

Yes

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Physical dimensions (H x W x D)

PCB 110 x 170 x 40 mm | Small case 297 x 250 x 82 mm | Large case 390 x 305 x 100 mm

Weight

Small case 4.8kg inc. battery | Large case 11.5kg inc. battery

Electrical & battery

Battery capacity

Small case 7Ah maximum | Large case 17Ah maximum

Battery voltage

~13.8VDC

Battery low voltage protection

~10.5VDC

Low battery threshold

~10.5VDC

Recharge time

<24 hours

Mains supply

~230VAC at 50Hz | -15% +10 %

Quiescent current consumption

80mA (PCB)

Transformer

Power Supply Type A.

Fuse (battery)

T 1.5A anti-surge slow blow 250V

Fuse (12v outlets)

F800mA quick blow 250V

Fuse (mains)

T500mA H anti-surge slow blow 250V

Fuse (RS485 data BUS)

F800mA quick blow 250V

Relay outputs

3A, max 30V

Resistance (wired inputs)

Normal

1k4 to 2k9

Intruder

4k2 to 7k8

Tamper

<1k4 or >22k

Fault

8k to 11k3

Masking

11k6 to 22k

Certifications and warranty

Security Grade

Small case 2 | Large case 3

Environmental class

II

EN Certificate

PD6662:2017+IA501:2015 | EN50131-1:2008+A1:2009 | EN50131-3:2009

Warranty

2 Years

Product Codes & Options

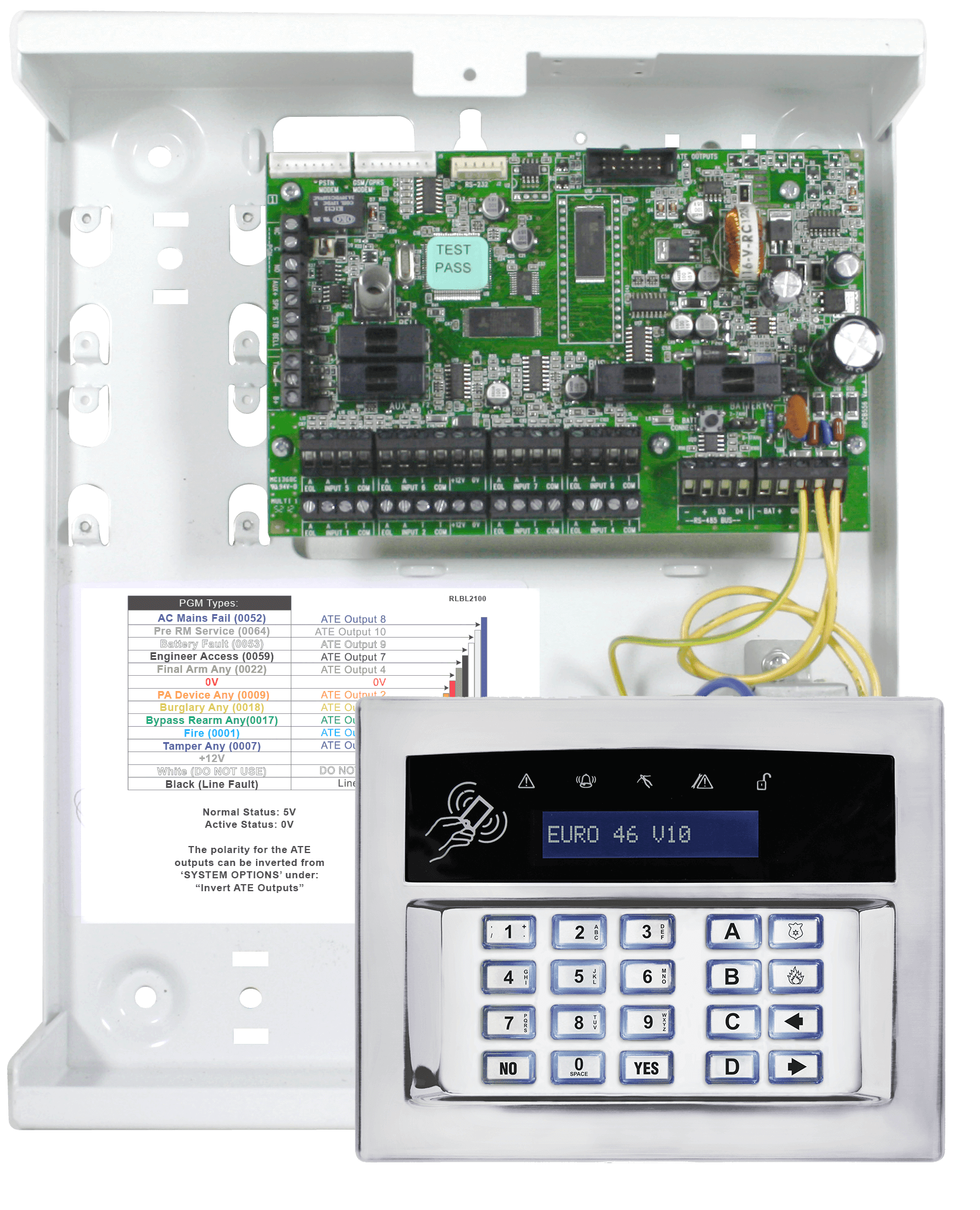

Euro 46 V10 Small Metal
EURO46/S-UK SAP:361301384

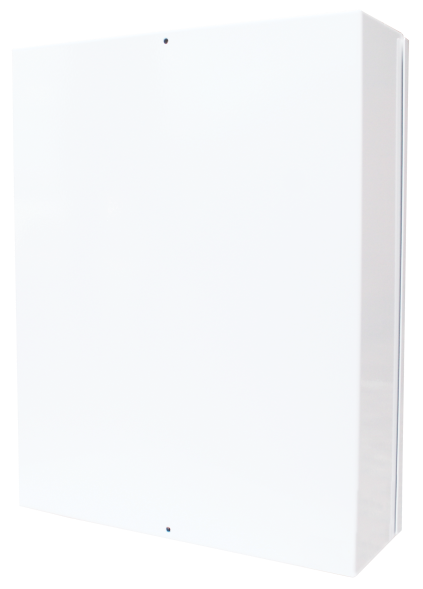

Euro 46 V10 Large metal box
Euro 46 V10 Large Metal
EURO46/L-UK SAP:361301385
