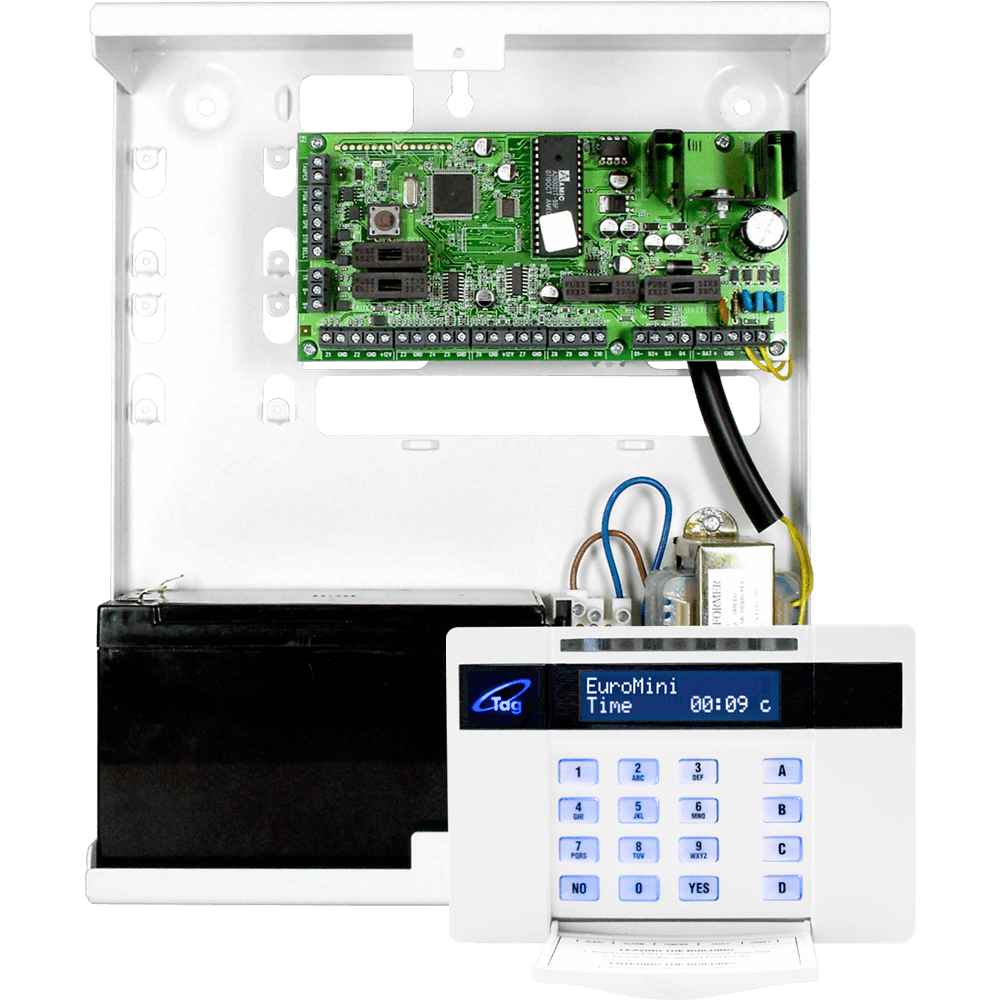

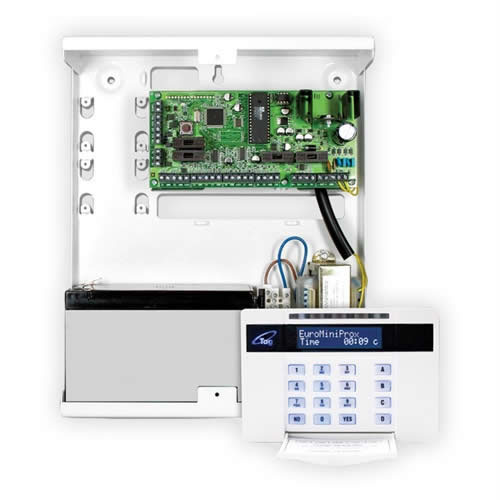

EURO Mini Prox
Product Features
-
Proximity Tag Enabled
-
4 Arm modes (4 Partition version optional)
-
700 event memory log
-
Intelligent Arming
-
30 User Codes
-
10 EoL Inputs or 9 Double Pole
-
Up to 4 Full English Text Keypads
-
Grade 2x
-
4 Programmable Outputs including Speaker Output
Compliance
The EURO Mini Prox is the EURO ranges’ entry level panel, designed to meet all the requirements of EN50131-3 and is suitable for use in systems designed to comply with PD6662:2017 at Grade 2x.
Proximity tags
The EURO Mini Prox supports proximity tags as well as the conventional pin code for quick and simple setting and unsetting of the system.
10 fully programmable inputs
10 inputs available in EoL mode (or 9 double pole inputs + 1 tamper input) programmable as ten different types including pulsed and latched keyswitches.
4 setting modes
4 different home and away combinations can be programmed.
700 event memory log
Record up to 700 events in memory, all time and date stamped.
Intelligent Set
This involves the EURO panel automatically recognising home and away modes. It operates by recognising if a user has walked out of the main entrance for a ‘full’ set or walked upstairs for a ‘part’ set.
User codes
Maximum number of user codes (30 [including pin codes and prox tags]).
Wireless Flexibility
With a host of wired accessories and now using the UR2-WE, the Enforcer two-way wireless detectors and sensors, the EURO Mini Prox offers maximum flexibility, ensuring that each EURO Mini system can be individually tailored to the required application.
Arming Devices
Detectors & Sensors
Sounders & Bells
Expanders
Speech Diallers
Control panel technical characteristics
Two-way wireless technology |
Using the UR2-WE |
Part sets |
4 |
Tamper protection |
Case tamper |
LCD keypad with intergrated prox reader |
LCD Keypad with Prox |
User codes and prox tags |
30 |
System logs |
700 |
Inputs & outputs
Input type |
Wired and | wireless (with UR2-WE) |
Two-way wireless inputs |
10 per channel, 2 (each can support either keyfobs or detectors, not mixture) |
Onboard wired inputs |
10 |
Wired EOL inputs |
10 DEOL on end station |
Wired double pole inputs |
9 DP on end station with global tamper |
Two-way wireless keyfobs |
6 per channel, 2 (each can support either keyfobs or detectors, not mixture) |
Wired keypads |
Max 4 |
Readers and entry control |
Max 3 |
Environmental and operating features
Storage temperature |
-20C to +60C |
Nominal operating temperature |
-20C to +60C |
Physical dimensions (H x W x D) |
250 x 297 x 82mm |
Weight |
3.07 kg |
Electrical & battery
Intergrated power supply |
1A Regulated |
Battery supply protection |
Reverse polarity protected |
Internal battery charger |
800mA continous, 13.68V nominal (fold-back current limited) |
Operating voltage |
18VAC Nominal (+-20%), 50Hz (+-10%) | 12VDC Nominal (10-15 Volt DC Range) |
Quiescent current consumption |
<80mA |
Fuse (battery) |
1.6A Slow Blow, 20mm |
Fuse (12v outlets) |
800mA Quick Blow |
Fuse (mains) |
315mA Anti-Surge, 20mm |
Certifications and warranty
Security Grade |
1 or 2 |
Environmental class |
II |
EN Certificate |
EN50131-3:2009 | EN50131-1:2006+A1:2009 |PD6662:2017 |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
Euro Mini Control Panel and Keypad
EUR-MINIP
SAP: 361300204
