COLT10DL

Product Features
  • Indoor PIR with 10m detection range

  • Volumetric coverage 90°

  • 56 zones and 5 planes

  • Small inconspicuous design

  • Digi-logic Technology

  • Auto Temperature Compensation

  • Pet Immune up to 10kg

  • Sealed optics

  • ABS plastics

  • Security Grade 2, Environmental class II

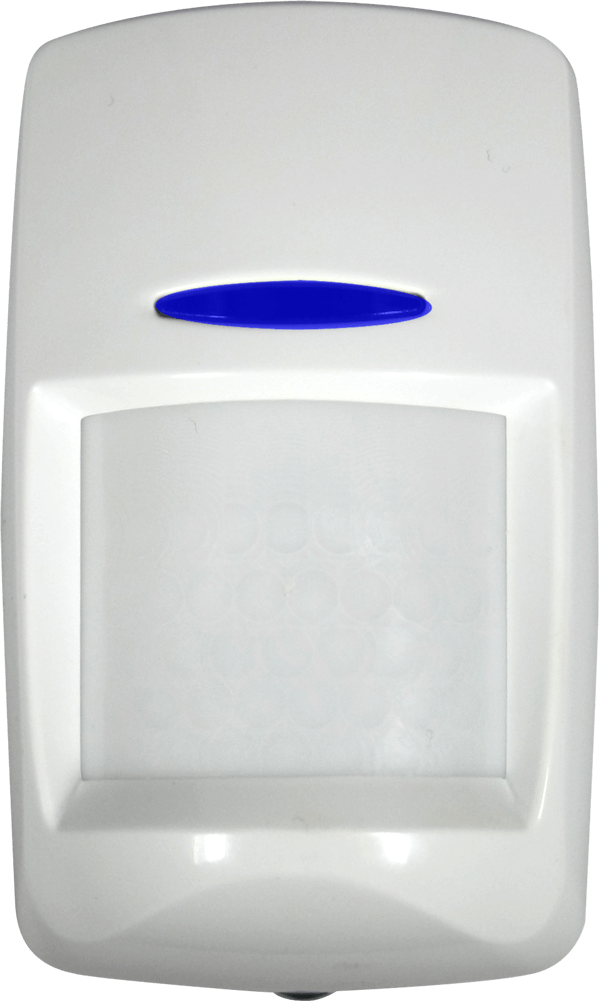

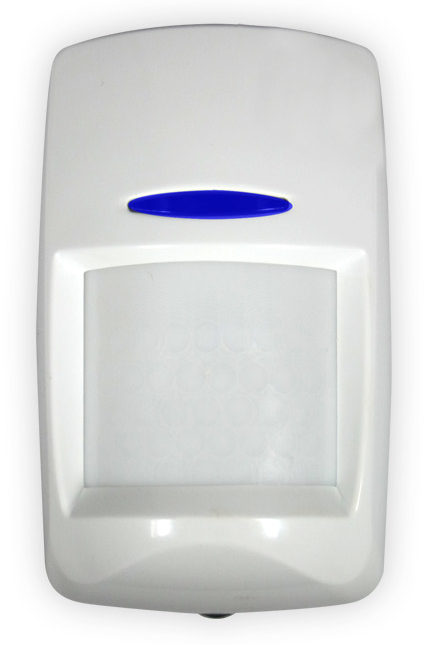

The COLT10DL

The COLT10DL is a compact pet immune security detector ideal for residential applications. Its small unobtrusive style will allow it to fit inconspicuously in the corner of your room while giving you great protection.The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet, with pet immunity up to 10kg.Digi Logic is a newly developed digital type of signal processing where the signal rise time is digitally analysed from its normal quiescent state, comparing the rise and fall times of the PIR signal. The detector can differentiate between slow meandering signals which are received through slow moving air currents or pets, and fast rising signals which are received through true intruder movement.

Automatic temperature compensation.

When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32c. Adjustable sensitivity settings for installations in a any environment.

Auto sensitivity.

Depending on the environment condition, the detector will automatically adjust the sensitivity.

ABS plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

Sealed optics.

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

Detectors technical characteristics

Digi logic technology

Yes

Set sensitivity

PC1, PC2 & pet

Detectors technical characteristics

Maximum range

10m

Volumetric coverage

Yes

Animal immunity

10kg

Detection speed

0.3 - 3.0 m/s

Coverage angle

90°

Detection zones

56

Detection planes

5

Detection method

Low noise Dual Element Pyroelectric sensor

Mounting

Wall mounted

Additional bracket available (KXBRACKET)

Ceiling mounted

Bracket available (KXBRACKET)

Optimum coverage height

2m - 2.4m standard, 2.4m PI

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40°C to 80°C

Certified operating temperature

-30°C to +60°C

Nominal operating temperature

-30°C to 70°C

Physical dimensions (H x W x D)

82 x 50 x 41mm

Weight

58g without bracket

Electrical & battery

Operating voltage

9 - 16V DC

Quiescent current consumption

15mA at 12V

Relay outputs

SELV limits, 60Vdc, 50mA (42.4VAC peak)

Tamper switch

12V 50mA

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-2-2:2008 | EN50131-1:2006+A1:2009 | PD6662:2010

Certification type

Self-certified

Environmental class

II

Warranty

5 years

Security Grade

Grade 2

Product Codes & Options

COLT10DL
FPCOLT10DL-200
SAP: 361300163
