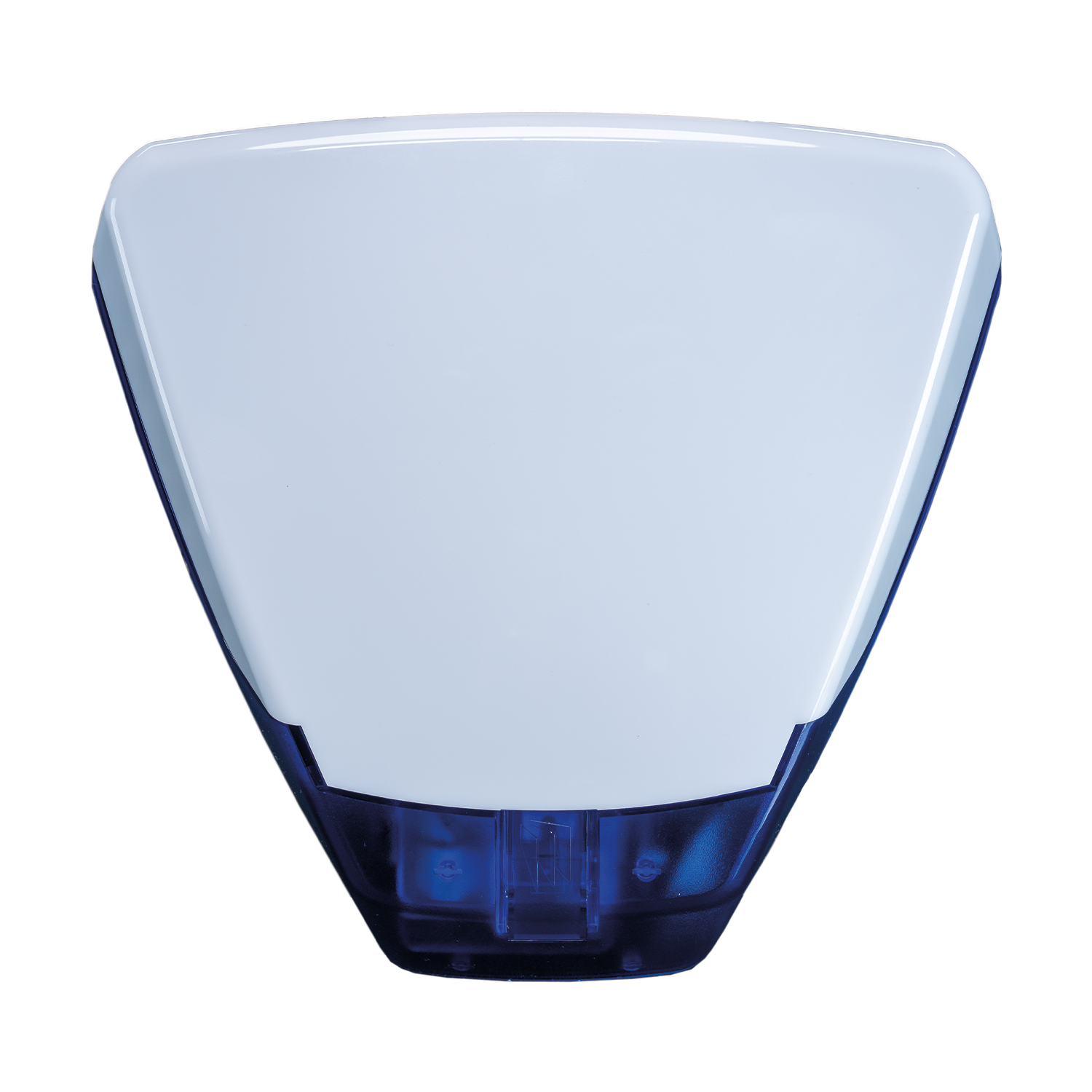

Deltabell-WE

Description

The Deltabell-WE is a wireless warning device serving a dual purpose by delivering both audible and visual deterrence. In the event of an alarm, this device effectively notifies nearby individuals through its low-power, high-performance piezo and a flashing strobe, ensuring that both auditory and visual warnings are provided simultaneously.

Key Features
  • Audible and visual deterrent
  • Lid, base, and power tamper protected

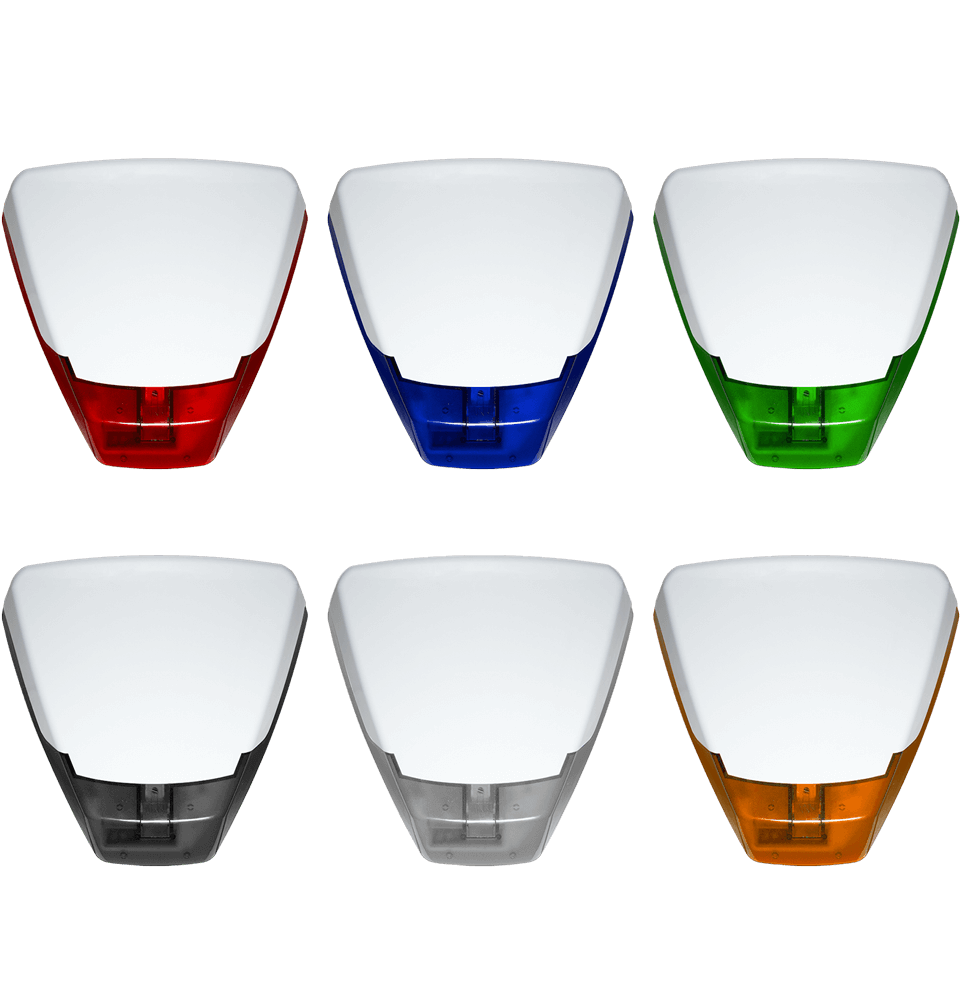

  • Various colour combinations available

Product Features

Streamlined connectivity

Enjoy the convenience of a user-friendly one-button learning feature for seamless connectivity, easily identify the optimal device placement during installation using SSI, and achieve efficient power management with ITDC.

Fully tamper protected

With lid, base, and power tamper protection, any attempts to disable the bell will trigger an alert.

Weatherproof

Polycarbonate plastics offer a weather resistant housing with an elegant design.

Levelling mechanism

The unique levelling mechanism incorporates a built-in spirit level and four rotating dogs to assist in ensuring the bell is perfectly level during installation.

Cut-off timer

To comply with industry noise pollution regulations, the bell will automatically cease ringing after 15 minutes, even if the alarm panel remains activated. After 15 minutes, the strobe will continue to flash until the system resets.

Engineer hold off facility

When first powered with the tamper switch open, the sounder will not activate. Once the tamper switch has been closed, the lid and back tamper become operational.

Deltabell-WE updated with 4x CR123A batteries

Opting for standard CR123A batteries instead of custom-designed ones ensures convenient future access and replacement. Our Varta CR123A multipacks, accessible through distribution channels, facilitate easy procurement for a hassle-free battery replacement experience.

Sounders technical characteristics

Loudness

100 dB(A) @ 1m

Optional comfort LED

1

Sound and light indication on alarm

Yes

Engineer hold off

Yes

Flashing LED

Yes

Comfort LED

Yes

Back-lit

No

Tamper protection

Yes

Strobe duration and frequency

10ms, 1Hz

Sounder maximum duration

15 mins

SAC (self actuating bell) / SAB (self activating bell) option

Yes

Self levelling

Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Transmission range

300m in open space

Communications and modems

Supports PyronixCloud & ProControl+ App

If used with ProControl+ Panel (UK) or Enforcer 32-WE App (Export)

Environmental and operating features

Certified operating temperature

-25°C to 60°C

Nominal operating temperature

-30°C to 60°C

Physical dimensions (H x W x D)

290 x 285 x 50 mm

Electrical & battery

Battery type

4 x CR123A

Battery life

Up to 2 Years

Battery low voltage protection

Yes

Operating voltage

9-16V

Certifications and warranty

Security Grade

Grade 2

Environmental class

IV

EN Certificate

EN 50131-5-3: 2005 + A1: 2008 EN 50130-4: 1995 + A1: 1998 + A2: 2003 EN 61000-6-3: 2007

Certification type

IMQ

Certificate number

CA12.01330

Electrical conformity

CE and UKCA

Warranty

2 Years

Product Codes & Options

Deltabell-WE Module
DELTA/MOD-WE2

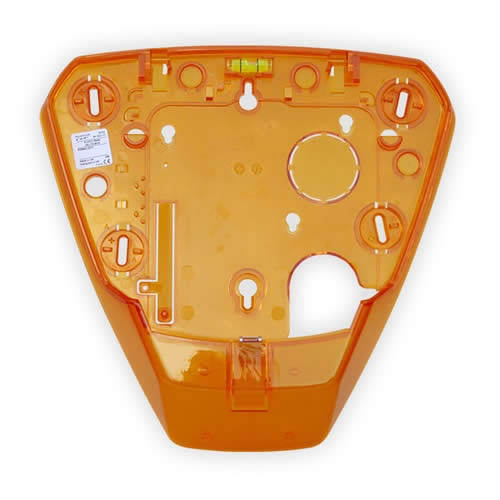

Deltabell Amber Dummy Base
DELTA-BDA
SAP:361301906

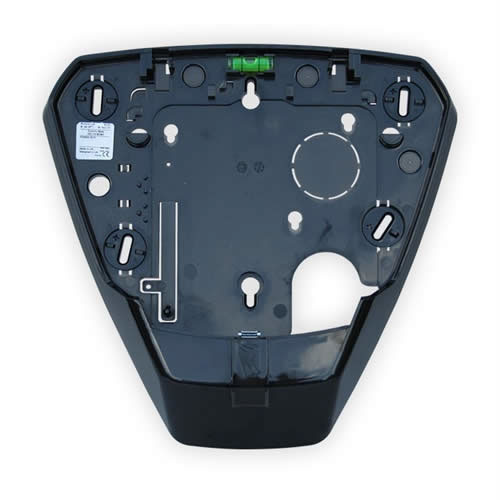

Deltabell Black Dummy Base
DELTA-BDBK
SAP:361301907

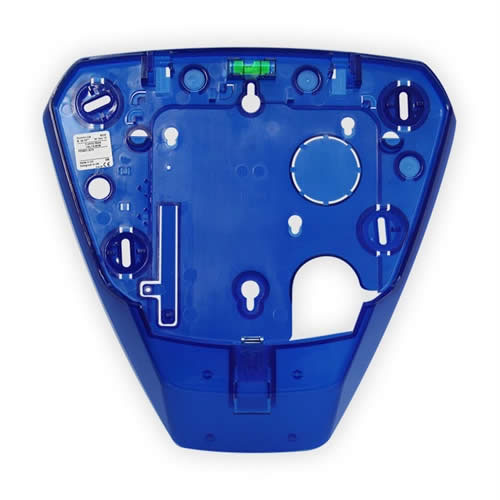

Deltabell Blue Dummy Base
DELTA-BDB
SAP:361301902

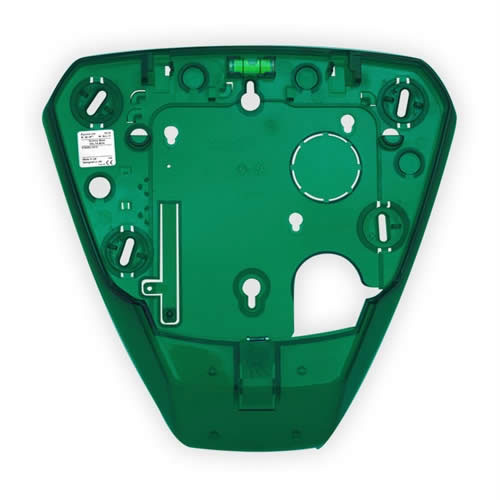

Deltabell Green Dummy Base
DELTA-BDG
SAP:361301904

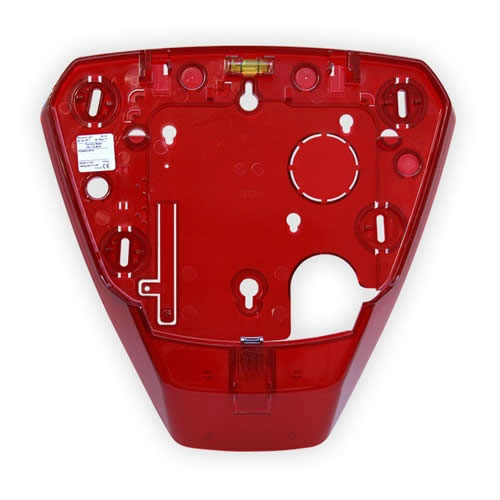

Deltabell Red Dummy Base
DELTA-BDR
SAP:361301903

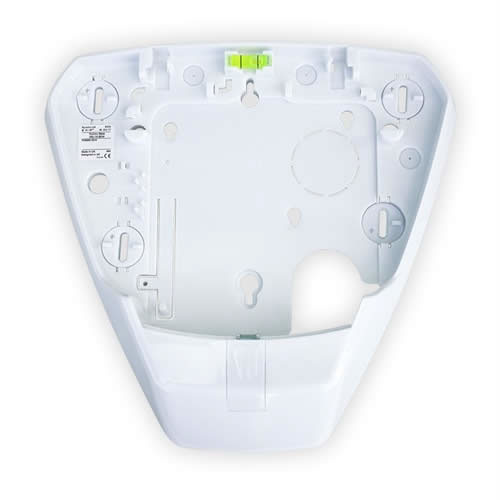

Deltabell White Dummy Base
DELTA-BDW
SAP:361301905
Black Deltabell Cover
FPDELTA-CBK
Blue Deltabell Cover
FPDELTA-CB

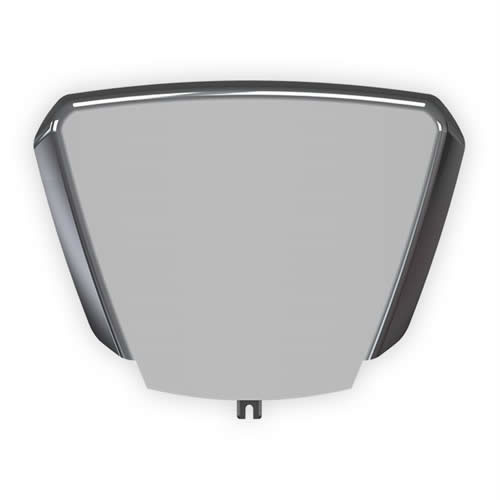

Chrome Deltabell Cover
FPDELTA-CC

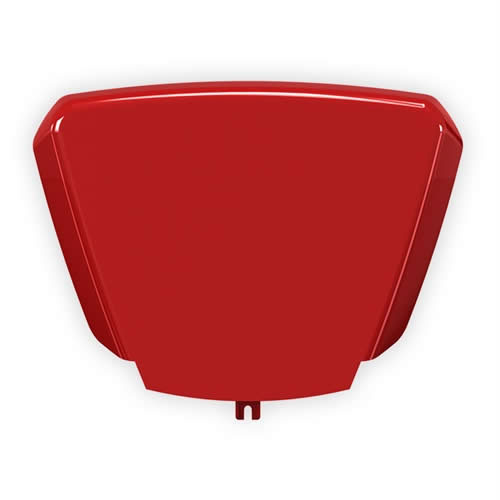

Red Deltabell Cover
FPDELTA-CR

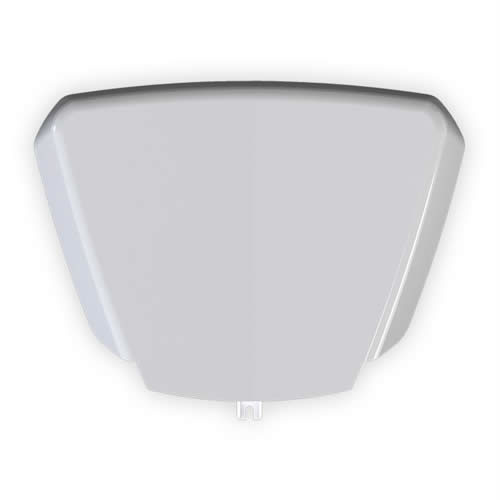

White Deltabell Cover
FPDELTA-CW

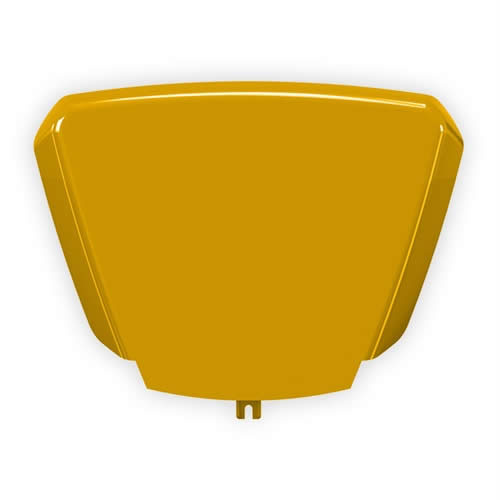

Yellow Deltabell Cover
FPDELTA-CY
