ENIP Server

Product Features
  • ATS level SP5

  • High encryption standard

  • Manage multiple alarms through the monitoring station

  • Programmable polling frequency

  • Output events to automation/central station management software

  • 5000 alarm control panels using suggested hardware

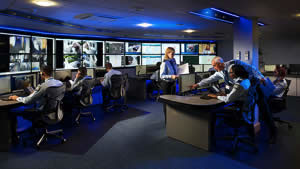

The Pyronix ENIP server software is used to create an IP receiver that will act as a gateway between the Pyronix IP control panels and the Alarm Receiving Centre (ARC) monitoring software.

IP Protocol: The European TS IP protocol approved by CENELEC is used for alarm transmission CLC/ TS 50131-9: 2013 Part 9.

ATS Security Level: The IP protocol is specified to ATS level SP5.

DIGI-GPRS and DIGI-LAN: SP5-ITSEC-01/15

Encryption: All communications are encrypted to the highest standard.

Registration module

This module is used to register the Pyronix IP control panels onto the Pyronix EN IP server.

The security initial key exchange is created either automatically or manually.

Programmable polling frequency.

Automation server module

This module enables the connection of the Pyronix ENIP server to the software used by the monitoring station for managing alarms.

The IP server can output events to automation/central station management software over a serial port or LAN connection using Surgard, Ademco 685 and Silent Knight protocols.

Software & Application details

Processor

Intel or AMD 2GHz (minimum)

RAM

2GB (minimum)

Hard disk

100MB (minimum)

Operating system

Windows 7 Professional/Ultimate 32 or 64 bit (minimum)

Internet connection

Open

Fixed IP

Yes

Server

Microsoft SQL Server Express 2008 or later (Windows Server 2012 optional)
