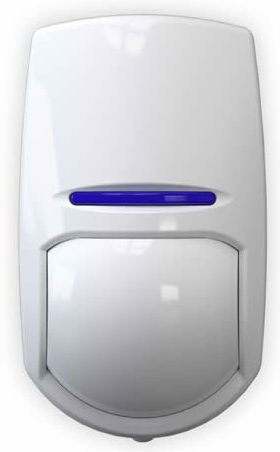

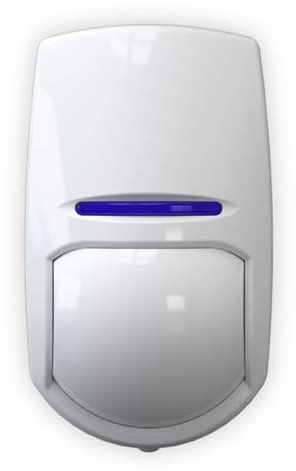

With Blue Wave Technology, and digital temperature compensation the KX15DQ will automatically recognise any environmental changes and adjust accordingly.
15m Volumetric detector
15m Volumetric detection coverage. Ideal for protection of rooms, offices etc.
Selectable EOL resistors
The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.
Blue Wave Technology (BWT)
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:
The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.
Auto Sensitivity Feature
Depending on the environment condition, the detector will automatically adjust the sensitivity.
Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC).
Tamper proof brackets
Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.
3mm polished finish, reduces electrostatic interference on the PIR sensor.
