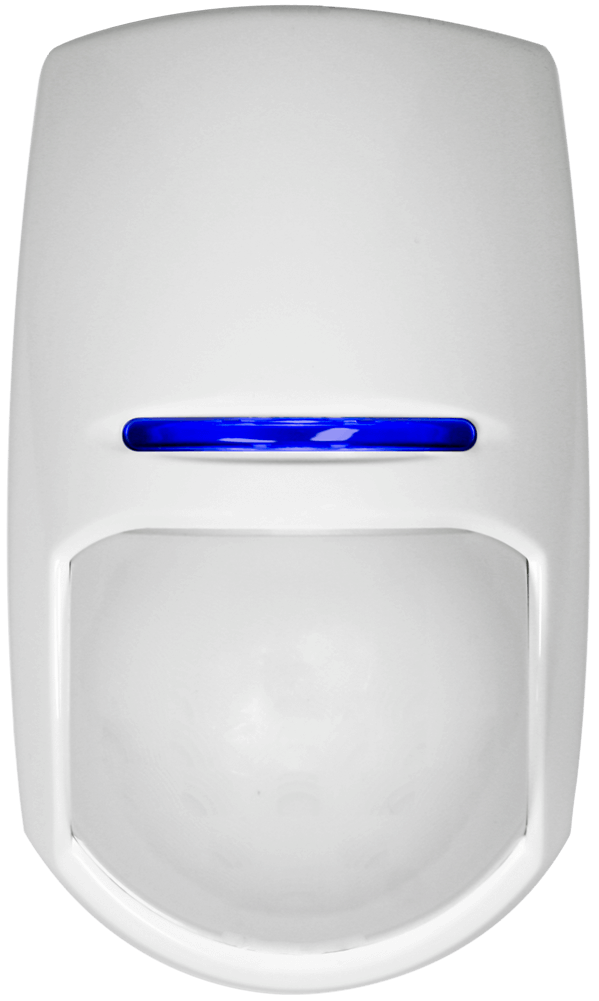

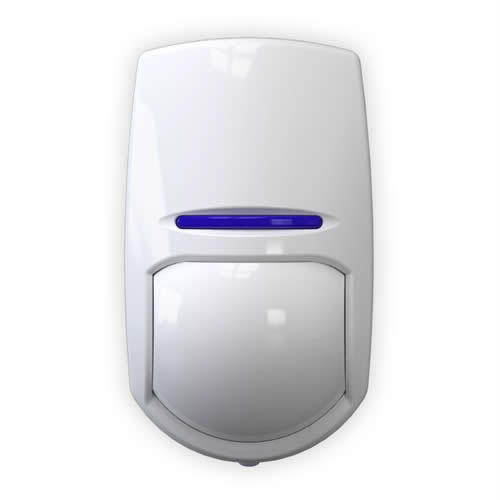

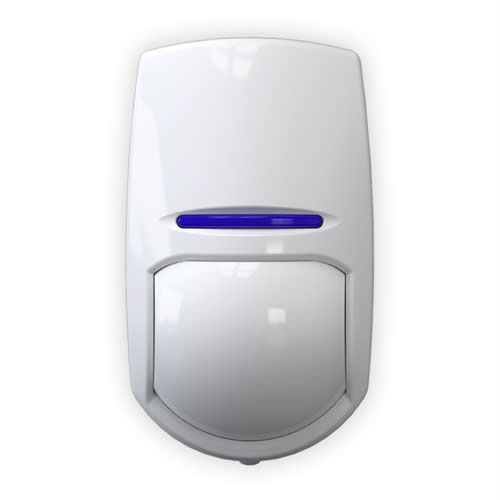

KX15DT

Description

The dual technology KX15DT combines both PIR and microwave detection to allow for more accurate and reliable detection while minimising the risk of false alarms. With adjustable settings like sensitivity and pulse count, the KX15DT is ideally suited for different environments and security requirements.

Key Features
  • 15m, 85° volumetric coverage
  • Selectable EOL resistors
  • Auto sensitivity feature

Product Features

The KX15DT features Dual element pyro-electric sensor with X-band DRO based microwave both of which need to be triggered to set off the Alarm, this reduces the risk of false alarms.

With Blue Wave Technology (BWT) and digital temperature compensation the detector will adjust its sensitivity, further enhancing the detectors immunity to false alarms and environmental disturbance.

15m Volumetric detector

15m Volumetric detection coverage. Ideal for protection of rooms and offices in commercial environments.

Selectable EOL resistors

The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

AND/OR technology

‘AND’ mode operates as a standard dual technology detector, where both technologies need to active to cause the alarm. ‘OR’ mode will switch the sensors activation of the alarm input to be either the PIR ‘OR’ Microwave. This can be useful in  environments where there is a risk of PIR detection being blocked.

Auto Sensitivity Feature

Depending on the environment condition, the detector will automatically adjust the sensitivity.

Triple LED indication

Microwave – orange, PIR – green, alarm – blue

Microwave Frequencies Bands

3 different frequency bands to avoid interference between detectors are installed in the same room.

Active self test

If there is no activation after a 5 hour period it will actually self test both the PIR and microwave.

Blue Wave Technology (BWT)

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detectors sensitivity to ensure performance is maintained
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Detectors technical characteristics

Blue Wave technology

Yes

Automatic sensitivity

Yes

Set sensitivity

Auto or high

Digital temperature compensation

Yes

DEOL resistor on board

Yes

Tamper protection

Front and rear

3 microwave frequencies to avoid interference

Yes

Optical, lens and detection characteristics

Maximum range

15m

Volumetric coverage

Yes

Dual technology

Yes

Detection speed

0.3 - 3.0 m/s

Coverage angle

85 degree

Detection zones

74

Detection planes

7

Anticloaking technology

Yes

Protection of area under the detector (creep zone)

Yes

White light filter

6500 Lux

Protection

Ultraviolet light filter

Lens

3 dimensional

Optics

Sealed optics

Detection method

Low noise dual element pyroelectric sensor and Microwave Doppler Sensor

Mounting

Wall mounted

Bracket included

Ceiling mounted

Bracket included

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-30C to +60C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Weight

125g without bracket

Electrical & battery

Operating voltage

9-16V DC 13.8V DC typical

Quiescent current consumption

24mA @ 12V (Min), 30mA @ 12V (Max)

Contact Resistance

<10 ohms

Relay outputs

50mA 60 VDC, 42 VAC (RMS)

Tamper switch

12V 50mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-4:2008, EN50131-1, PD6662:2017

Electrical conformity

CE

Warranty

5 years

Product Codes & Options

KX15DT - 10.587GHz
FPKX15DT3
SAP: 361301731
KX15DT - 10.587GHz - Configured (UK only)
FPKX15DT3C
SAP: 361301088
