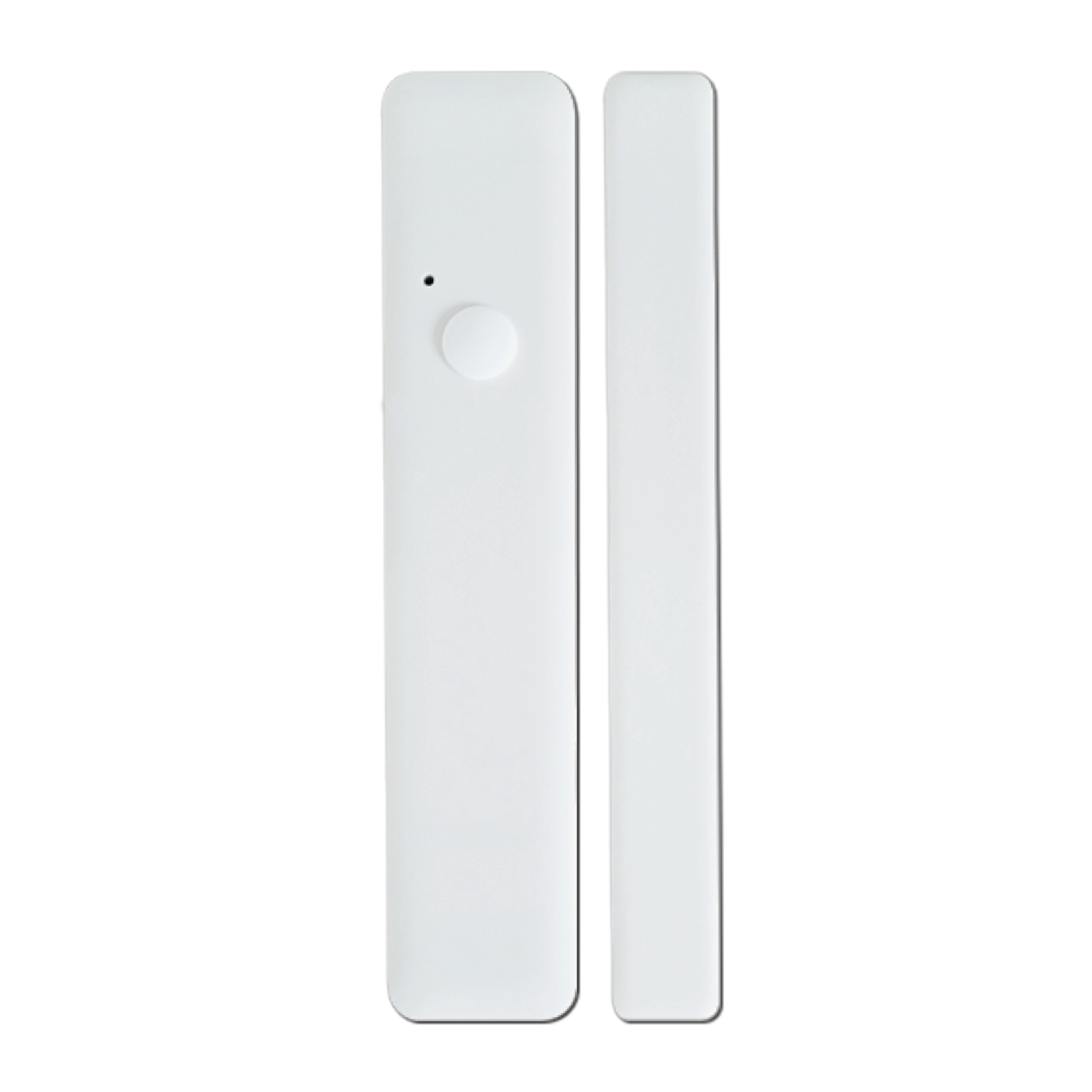

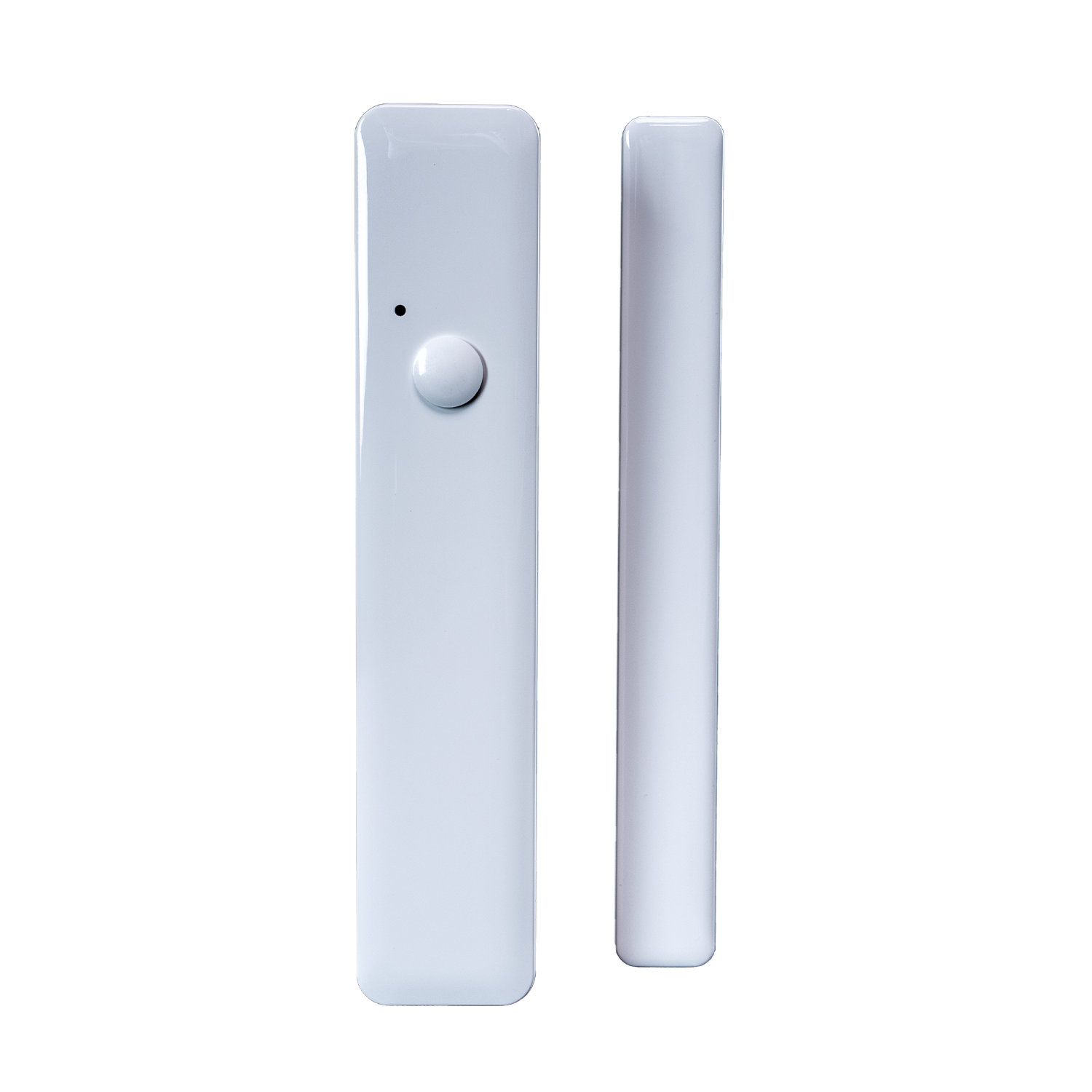

MC1Z1-WE

Description

The easy-to-install, Grade 2 MC1Z1-WE is our surface-mounted, compact wireless magnetic contact with additional zone and tamper inputs for external device connection. Its central reed location optimises installation by removing any chance of mispositioning the magnet.

Key Features
  • Compatible with Enforcer or EURO (with a ZEM)
  • External tamper input terminal
  • External zone input terminal

Product Features

The wireless contact with zone and tamper inputs

Introducing the Z1Contact; our new, compact wireless magnetic contact with additional zone and tamper inputs for added flexibility.

The easy-to-install Grade 2 device is designed to work with Enforcer or EURO (with a ZEM). Designed for internal use, the MC1Z1-WE is available in white, brown and anthracite for an aesthetically pleasing finish.

Central reed location

The new, central location of the reed optimises installation by removing any chance of mispositioning the magnet.

Universal Transmitter

The device features an additional zone and a tamper terminal for external device connection via double pole wiring, when not using the device as a magnetic contact. The MC1Z1-WE is compatible with any device that has a volt free relay that switches state when the device is triggered or tampered. External devices could include anything from water leak sensor to wired alarm devices, like a wired roller shutter contact or panic alarm buttons.

300m Transmission Range

The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

Two-way Wireless Technology

The MC1Z1-WE features two-way wireless technology, offering a highly secure and reliable wireless system, using 128-bit wireless protocol encryption and advanced jamming detection.

Signal Strength Indicator (SSI)

The MC1Z1-WE can be optimally positioned during installation, without the need to refer back to the panel, using our SSI technology. View the wireless transmission signal strength on both the control panel and wireless devices in real time.

Product Features

Physical

Dimensions (W x H x D)

Main Housing: 125 x 25.5 x 28mm Magnet: 125 x 15 x 16mm

Weight

Main housing 65g. Magnet housing 30g

Casing

2.5mm ABS

Colour

White

Tamper switches

Passive, Closed Contact

Electrical

Transmission method

Fully encrypted rolling code

Transmission frequency

868MHz FM transceiver narrow band

Transmission range

300m

Battery type

3.0V CR123A Lithium Battery

Low battery threshold

2.5V ± 5% @ 25°C

Battery life

2 years

Environmental

Storage temperature

-20°C to 50°C

Operating temperature

-10°C to 40°C

Certifications

Security grade

2

Security standards

EN50131-1:2006+A3:2020 , EN50131-2-6:2008,EN50130-5:2011, EN50131-5-3:2017, PD6662:2017

Environmental class

ll

Emissions

EN 55032:2015+A1:2020

Immunity compliance

EN 50130-4:2011+A1:2014

Product Codes & Options

MC1Z1-WE
SAP: 361301861

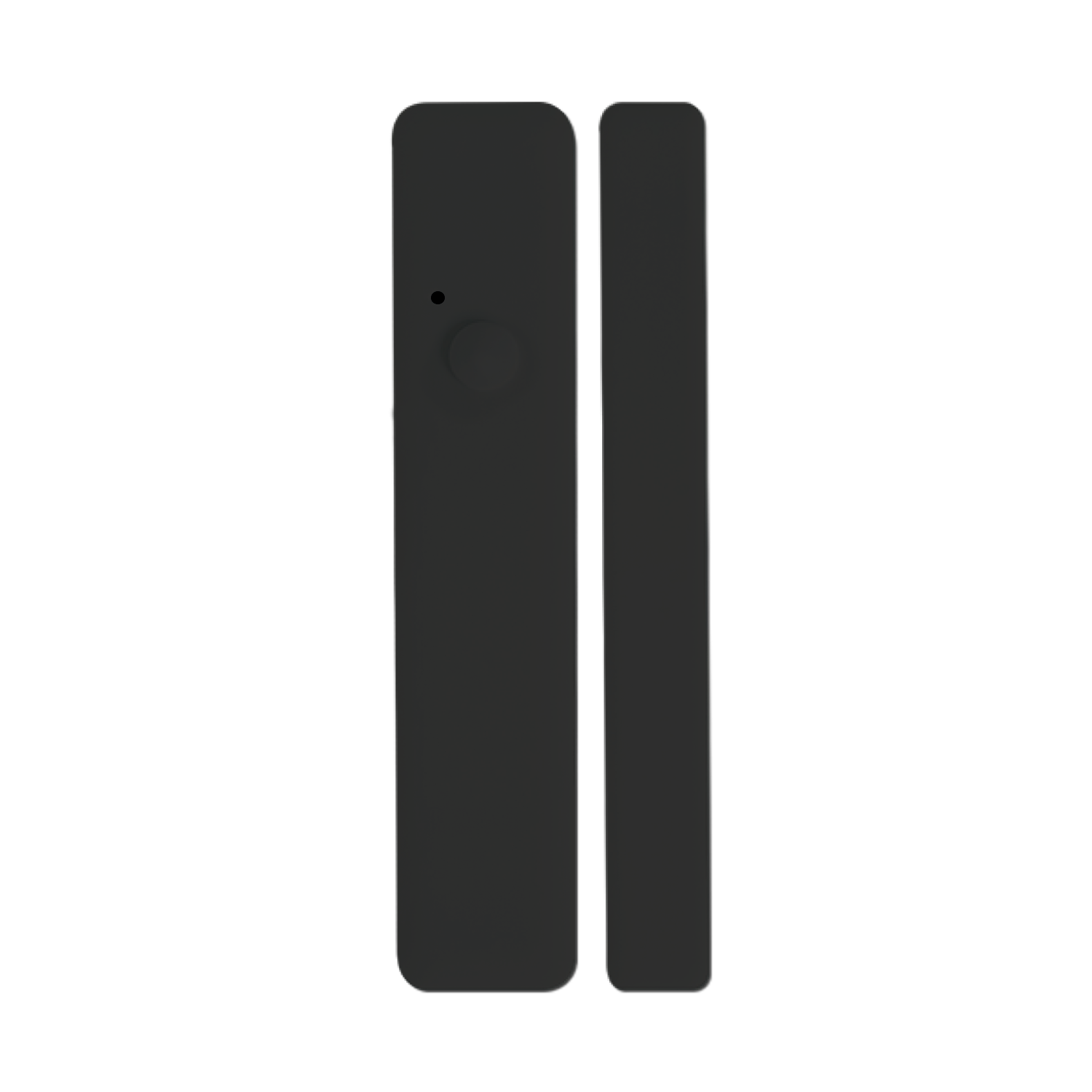

MC1Z/GR-KIT
SAP: 361301878

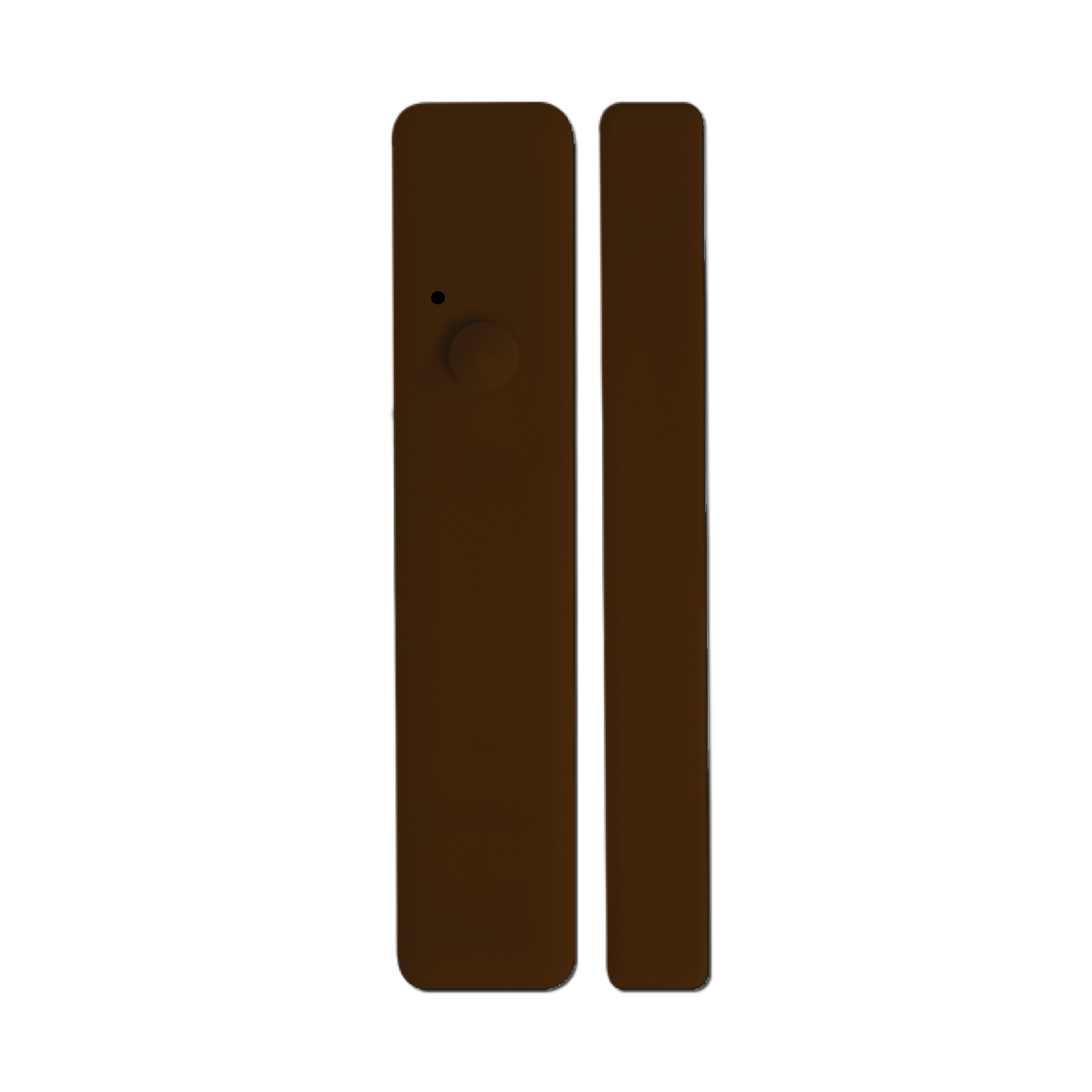

MC1Z/BR-KIT
SAP: 361301877
MC1Z/SPACER-GR
SAP: 361301876

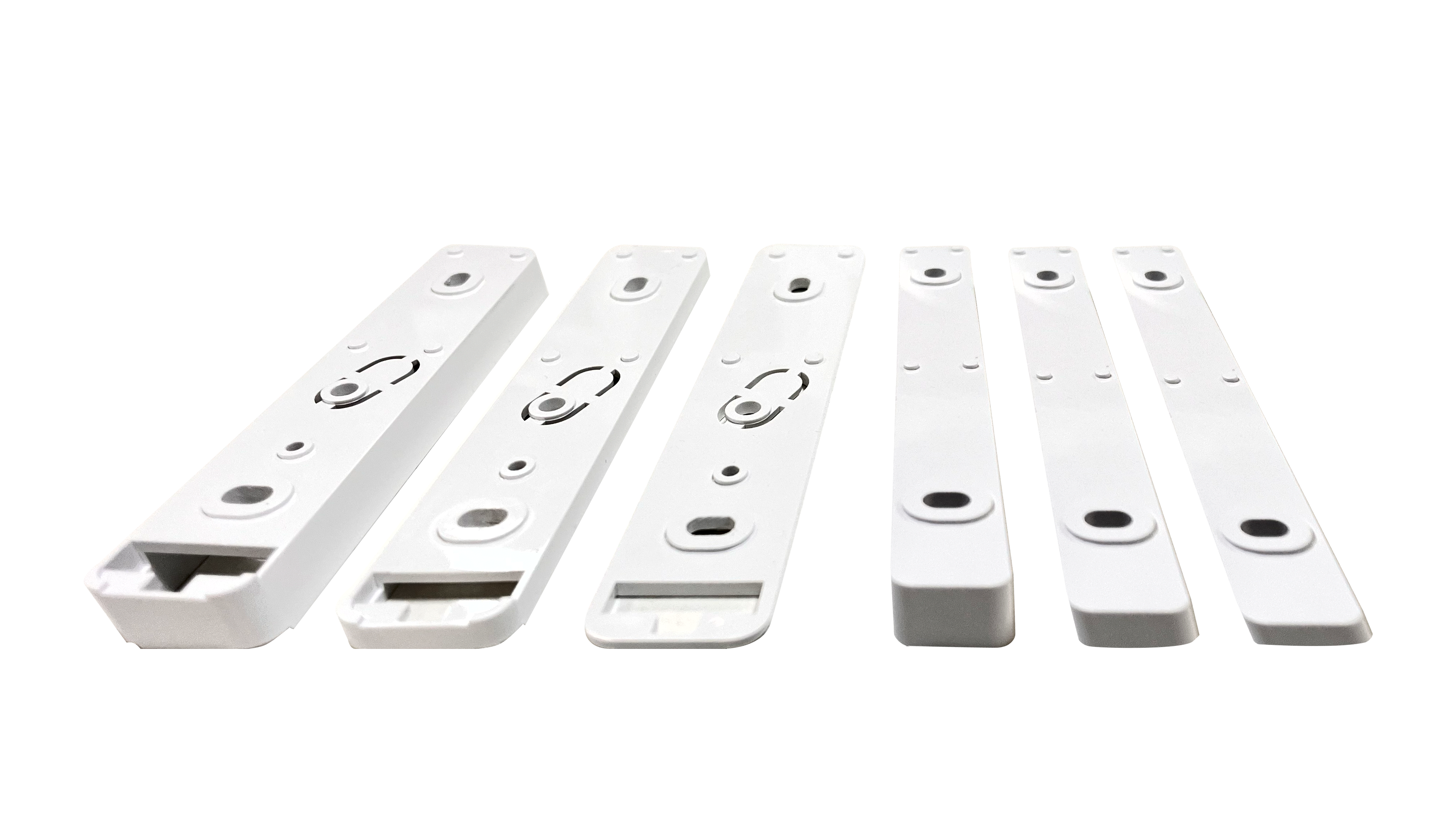

MC1Z/SPACER-W
SAP: 361301873
MC1Z/SPACER-BR
SAP: 361301875
