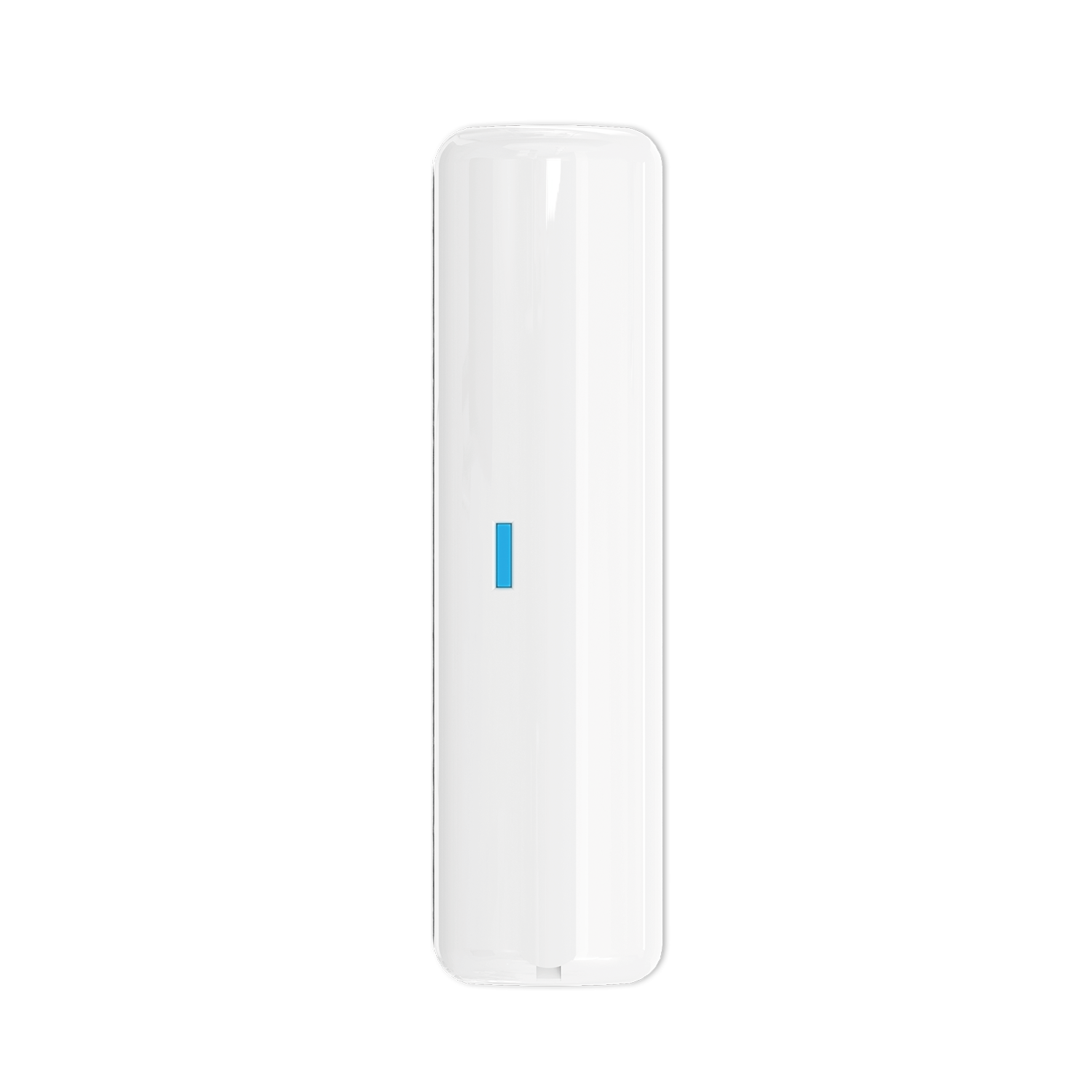

Crafted from durable, high-grade ABS plastics, the SHOCK/W is perfect for places that need a shock sensor, such as walls, ceilings, door frames, and window frames. As the detector does not contain any moving parts, it is non-gravity dependent and can be installed in any plane or orientation.

Key Features
  • Piezo electric sensor detection
  • Adjustable sensitivity
  • Reverse polarity protection

Product Features

Sleek and stylish design

Made with robust, high quality ABS plastics, the SHOCK/W is specifically designed to be placed in positions where it is necessary for a shock sensor to be present, such as walls, ceilings, door and window frames.

Piezoelectric sensor detection

The detector does not contain any moving parts and is therefore non-gravity dependent – the SHOCK/W can be installed in any plane or orientation.

Adjustable sensitivity

The pulse count is selectable and can be set to 1, 2, 4 or 6.

Latch functionality included

When this feature is activated and the sensor is triggered, the LED on the sensor will stay on in order to display that it has been activated. To reset, the power must be removed from the device.

Reverse polarity protection

Connecting power with incorrect polarity is an easy mistake to make. Fortunately, the shock sensor is protected with reverse polarity protection.

Gross attack detection

A vibration higher than the calibrated sensitivity will override the pulse count feature and directly activate the alarm output.

Security and safety sensors technical characteristics

Detection method

Piezoelectric sensor


2.5m radius (nominal), Sensitivity adjustable

Digital Signal Processing


Sensitivity settings

High or low range

Potentiometer fine tuning


Pulse count

1, 2, 4 or 6

LED enable

By jumper

Latching feature

By jumper

Front and rear tamper protection


Removable eletronics


Gross attack activation



ABS plastics

Environmental and operating features

Operating temperature

-10ºC to +40ºC

Dimensions (W x H x D)

29 x 107 x 21.5 mm

Electrical & battery

Power supply

~9-16VDC (12VDC nominal)

Quiescent current consumption

~16mA @ 12VDC

Maximum current consumption

~30mA @ 12VDC

Relay type

Solid state

Outputs relay

12VDC, 50mA protection

Tamper terminal

12VDC max, 50mA max

Certifications and warranty

Security Grade

Grade 2

Environmental class


Electrical conformity



5 years

Product Codes & Options

Wired Shock Sensor
SAP Code : 361301390
