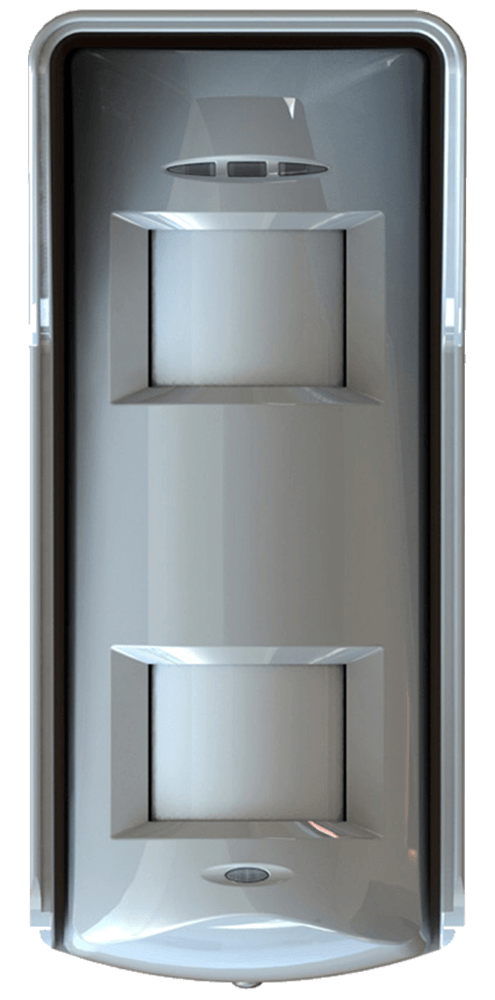

XDH10TT-WE

Product Features
  • Two-way wireless

  • Tri-signal detection logic

  • 10m volumetric coverage

  • 3 Microwave frequency bands

  • Built-in walk test buzzer

  • Heavy duty ultraviolet filter

  • Automatic temperature compensation

  • One-Push-To-Learn button

  • Weatherproof sealed optics

  • Optional heavy duty wall bracket

Two-way wireless external detection

The XDH10TT-WE is an external detector that combines advanced technologies such as Tri-technology detection and the Enforcer two-way wireless protocol.

Tri-signal detection logic

Tri-signal detection logic enhances the detector’s immunity to environmental disturbances. The detection of human presence is based on the analysis of the activation sequence of the microwave movement sensor and the two independent digital PIR sensors. All three sensors are required to activate at the same time in a particular time window to create an alarm.

Digital Temperature Compensation

The XD detector will automatically adjust itself to maintain detection range in hot and humid environments where the environmental temperature is similar to the external body temperature.

Heavy duty ultraviolet filter

Ultraviolet light is always present in our environment. Exposure to high radiation reduces performance and can fully blind the PIR lenses. This is why Pyronix XD lenses are manufactured to the highest standards and coated with a heavy duty ultraviolet filter to ensure protection from UV radiation.

Built in walk test buzzer

Where bright sunlight is present, it may be difficult to see the detector’s alarm LEDs from a distance. To enable the installer to perform an easy and quick walk test during the installation, the XD is equipped with a built in buzzer. This will create a buzzing noise to indicate an alarm activation. The buzzer can be disabled if not required.

Weatherproof housing

The housing of the XD detectors is made from 3mm thick polycarbonate plastic, providing protection from the effects of adverse weather conditions. The hood provides protection from snow, rain and any other environmental disturbances, while the UV coating stops the yellowing of the plastic over time.

Microwave frequencies bands

The XD is supplied with three different frequency bands. Each of them is indicated with a different colour label. This feature allows the installation of multiple detectors in close proximity without the danger of frequency interference.

Optional heavy duty bracket

The optional heavy duty bracket includes a cable-through feature, enhancing security and easing installation as the wires are hidden away within the bracket. The XDH10TT-WE moves 45 degrees left and right allowing a total area coverage of up to 90 degrees when two detectors are installed next to each other. If for any reason the wire can not be hidden within the bracket a conduit may be be installed to protect the cables.

Related products & accessories

Detectors technical characteristics

Two-way wireless technology

Yes

Tamper protection

Yes

Detectors technical characteristics

Automatic sensitivity

No

Intergrated walk test buzzer

Yes

3 microwave frequencies to avoid interference

Yes

Digital independent floating threshold (IFT) technology

Yes

BreakGlass technical characteristics

Plastic housing

Polycarbonate

BreakGlass technical characteristics

Maximum range

10m

Volumetric coverage

Yes

Animal immunity

10kg

Optics

Sealed

Environmental and operating features

Storage temperature

-40C/+80C

Certified operating temperature

-30C/+70C

Physical dimensions (H x W x D)

180mm x 80mm x 105mm

Weight

500g

Electrical & battery

Battery type

3V Lithium battery (included)

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131

Environmental class

lV

Warranty

2 years

Security Grade

Grade 2

Product Codes & Options

XDH10TT-WE 9.9GHz
XDH10TT1-WE
SAP: 361300010
