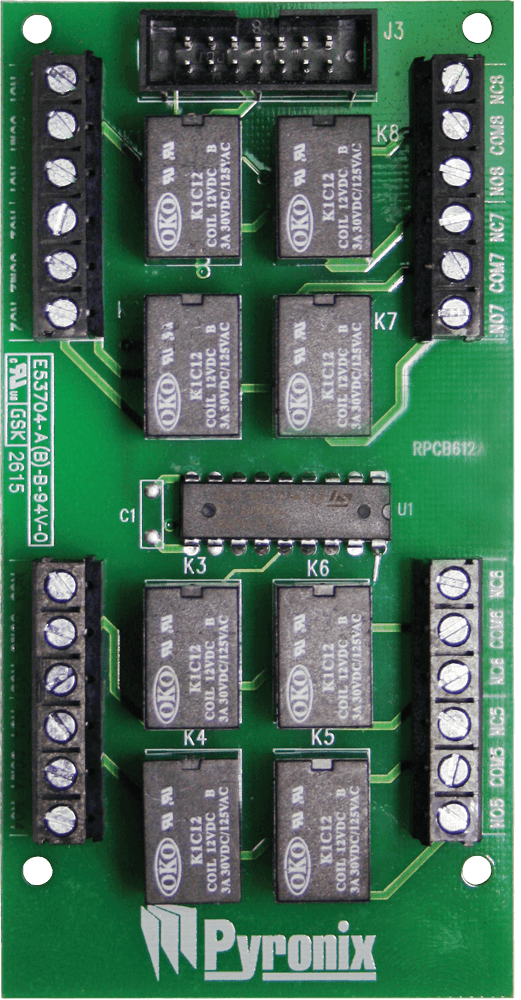

PCX-ATE8R
Description
Key Features
- Compatible with PCX control panels
- PCX output expansion module
- 8 relay outputs
Hover over images to zoom
Product Features
Expand your control panel options
The PCX-ATE8R allows you to add an additional 8 relay outputs to your control panel, providing more options and greater flexibility.
The 8 relay output expansion module is compatible with PCX control panels.
Inputs & outputs
Relay outputs |
8 |
Environmental and operating features
Storage temperature |
-10'C+50'C |-20'C to 60'C |
Physical dimensions (H x W x D) |
109 x 56 x 14mm |
Weight |
68g |
Electrical & battery
Supply Voltage Ripple Rejection |
1305V |
Current consumption |
Quiescent, No relays active 10mA. Maximum all relays active: 220mA |
Certifications and warranty
Security Grade |
3 |
Electrical conformity |
CE |
Warranty |
2 years |
