PCX 46 APP

Product Features
  • Control your security system from anywhere in the world with the HomeControl+ App

  • 8 independent areas

  • Connect up to 46 wired and 32 wireless devices and up to 69 programmable outputs

  • GPRS, GSM and LAN modems

  • Communication: ARC: Contact ID IP, SIA Level 3 IP - User alarms: SMS and push notifications

  • User remote control: SMS control commands and HomeControl+ App

  • Fully electrical and wireless devices remote diagnostics

Control security from anywhere in the world

Now you can have a hybrid security system which you can control from anywhere in the world. Setting and unsetting, checking the system status and setting up notifications, you can now have ultimate control of your home security whenever required.

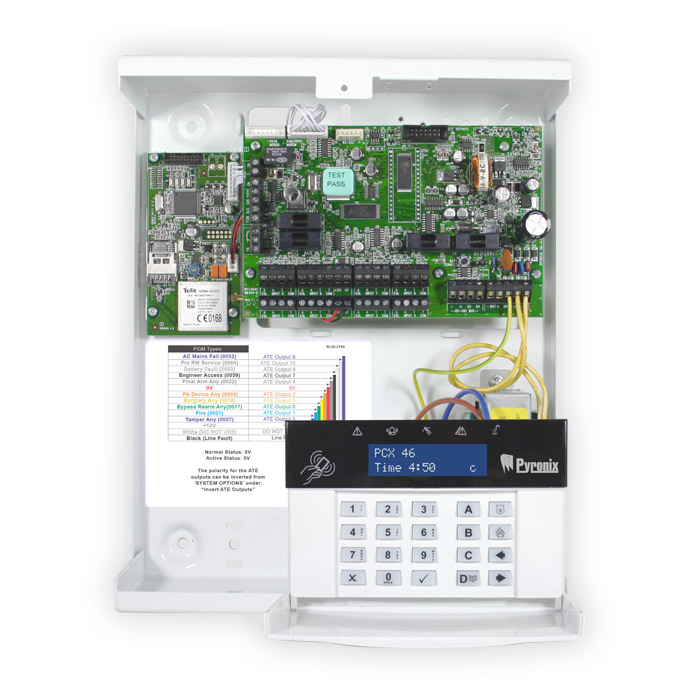

The versatile PCX 46 APP panel has all the features of the standard PCX 46 and more. Connect up to 46 wired devices such as detectors, sounders and sensors, along with 32 wireless devices including magnetic contacts, smoke and CO sensors using the RIX32-WE, providing new levels of flexibility.

And with the on-board and expandable outputs you can also control automation outputs such as shutters, garage doors and gates – all from the palm of your hand.

No on-site IT configuration

The HomeControl+ App is connected through a cloud server, so there’s no need to set up static IP addresses or configure the network connection on-site. Instead, simply set up an account on PyronixCloud.com.

Highly secure connection

The HomeControl+ App and PyronixCloud communications are fully encrypted to the highest standard and no sensitive user data is stored on the PyronixCloud.

Easy installation

Program panel, create account, download app, connect to cloud and the app is ready to use.

Independent and sub-areas

Any input can be allocated to up to 8 areas and using proximity readers, the sub-areas can be armed/disarmed independently from main areas (5).

Inputs and outputs

The PCX 46APP has 8 onboard outputs and up to 46 fully programmable inputs, including inertia inputs (fast zones). The onboard outputs can be expanded to 69.

Control panel technical characteristics

Two-way wireless technology

Using the RIX32-WE wireless input expander

Independent areas

8

Tamper protection

Case tamper & back tamper

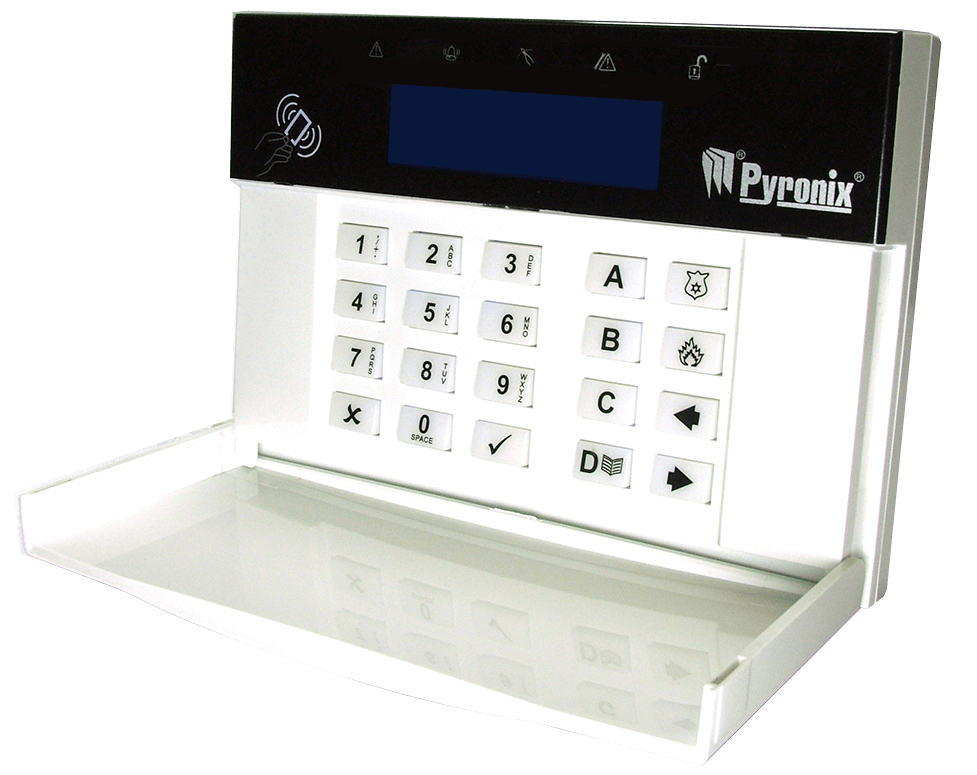

LCD keypad with integrated prox reader

PCX LCD Keypad

User codes and prox tags

100

Guard codes

20

Reporting formats

Fast format, SIA3 and Contact ID

System logs

1250

Inputs & outputs

Input type

Wired & Wireless (with RIX32-WE)

Two-way wireless inputs

32 (with a RIX32-WE)

Onboard wired inputs

8

Wired EOL inputs

46 (with 4 RIXs, 3 Keypads)

Wired double pole inputs

40 (with 4 RIXs)

Total inputs

46

Outputs on board

13

Output modules

2

Maximum outputs

69

Two-way wireless keyfobs

32 (with a RIX32-WE)

Two-way wireless sirens

2 (with a RIX32-WE)

Wired keypads

Max 6

Readers and entry control

Max 5

Communications and modems

Modem type (included)

GPRS

LAN modem (optional)

Yes

Supports PyronixCloud & HomeControl+ App

Yes

Event Signalling to Insite

Yes

Formats

Contact ID IP, SIA Level 3 IP

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (H x W x D)

250 x 297 x 82mm (small case)
390 x 305 x 100mm (large case)
PCB: 170 x 90 x 3mm

Weight

Small case 4.8kg inc. battery
Large case 11.5kg inc. battery

Electrical & battery

Integrated power supply

1.5A (small casing)

Battery capacity

7.0Ah

Battery supply protection

Reverse polarity protected

Battery low voltage protection

10v low voltage cut off

Internal battery charger

750mA Continuous

Recharge time

<24 hours

Mains supply

230v (220-240v) AC Max 250mA

Operating voltage

22V AC Nominal (20%), 50Hz (10%)

Quiescent current consumption

<90mA

Fuse (battery)

1.6A slow blow, 20mm

Fuse (12v outlets)

800mA fast blow, 20mm

Fuse (mains)

315mA Anti-surge, 20mm

Fuse (RS485 data BUS)

800mA fast blow, 20mm

Resistance (wired inputs)

Normal

0k5 to 8k3

Intruder

1k5 to 5k9

Tamper

<0k5 or >17k

Fault

6k to 8k1

Masking

8k2 to 17k

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-3:2009 | EN50131-1:2006+A1:2009 | EN50131-6:2008 | PD6662:2010

Certification type

IMQ

Certificate number

CA12.01494

Environmental class

II

Warranty

2 years

Security Grade

Grade 2

Product Codes & Options

PCX 46 S APP Small metal casing
FPPCX46S-APP/AM
SAP: 361300121
PCX 46 L APP Large metal casing
FPPCX46L-APP/AM
SAP: 361300171
