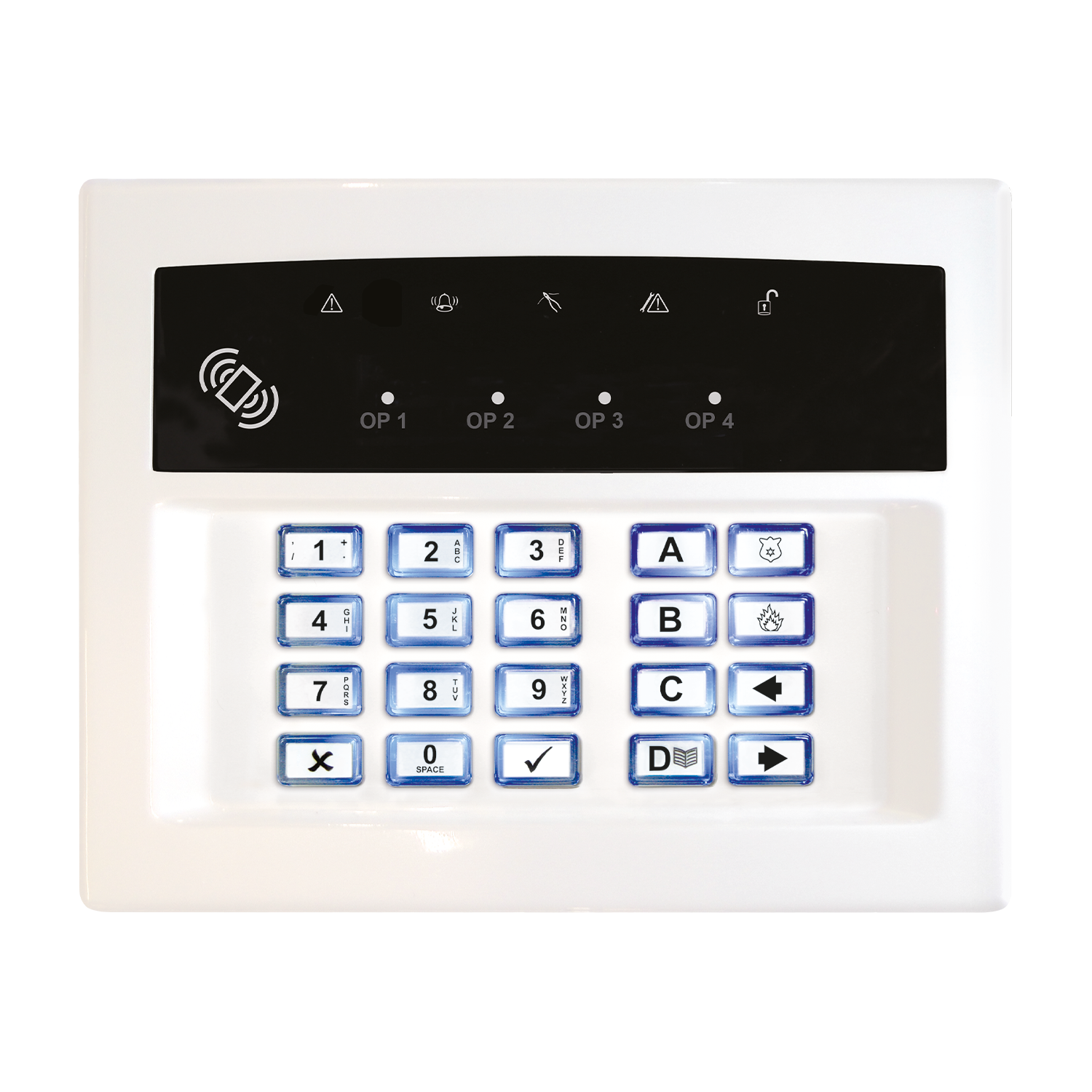

Wireless Arming Station


The wireless arming station keypad offers convenience and simplicity. It features system status indicators, allowing users to check the system status without accessing the panel. Clear audible tones confirm entry or exit, and it supports wired automation outputs from the keypad, such as opening gates, lighting, and garage doors.

Key Features
  • Wireless set/unset control
  • Activate home automation outputs
  • Backlight option

Product Features

Convenient, wireless and easy to use

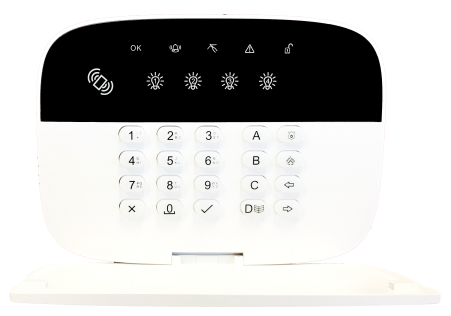

The wireless arming keypad comes complete with system status indicators, allowing you to see the status of your system without having to go to the panel. The LEDP/R-WE has an integrated proximity tag reader, making setting and unsetting the system even easier.


LEDP/R-WE is only compatible with Enforcer: V9.5 and above (Non-APP), V2.1 and above (APP), Enforcer v10 and above, and EURO: V9.5 and above (Non-APP), V2.1 and above (APP), and EURO v10 and above.

Enforcer two-way wireless technology with high security encryption

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

Entry and exit tones

Clear, audible tones give confirmation of entry to, or exit from the property.

Keypad controlled outputs

Wired automation outputs can be triggered on the panel, for example opening electrical gates, lighting, garage doors.

Instant two way device control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices whilst preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system:

  • Ensuring that all wireless detection devices know when the system is armed and disarmed
  • Ensuring that they are awake as soon as the system is armed

Signal strength indicator

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

3V lithium battery included

Battery included for extra convenience.

Setting devices technical characteristics

Activate output automation


Entry and exit tones


Backlit keys


LED keypad with icon display


Enforcer two-way wireless technology

Signal Strength Indicators (SSI)


Instant two way device control (ITDC)


Pyronix high security two way wireless data encryption protocol (TDE)


Pyronix intelligent jamming detection


Programmable wireless supervision time


868MHz transceiver FM technology


One push to learn


Transmission method

Fully encrypted rolling code

Transmission range

Up to 1.6 km in open space

Environmental and operating features

Physical dimensions (H x W x D)

100 x 145 x 30mm

Electrical & battery

Battery type

1 x BATT-ES1

Battery life

2 years

Certifications and warranty

Security Grade

Grade 2

Environmental class


EN Certificate


Certification type



2 years

Product Codes & Options

Wireless Arming Station
SAP: 361301782
