DIGI-GPRS

Description

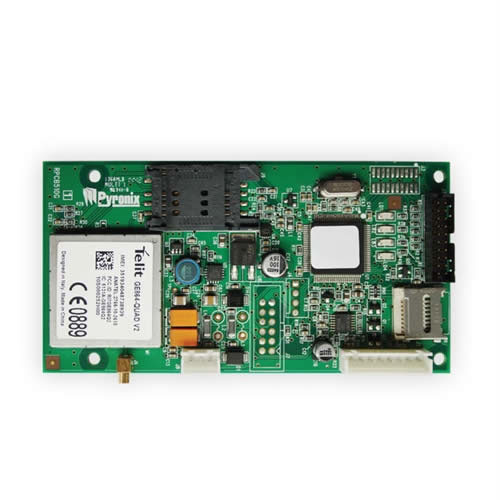

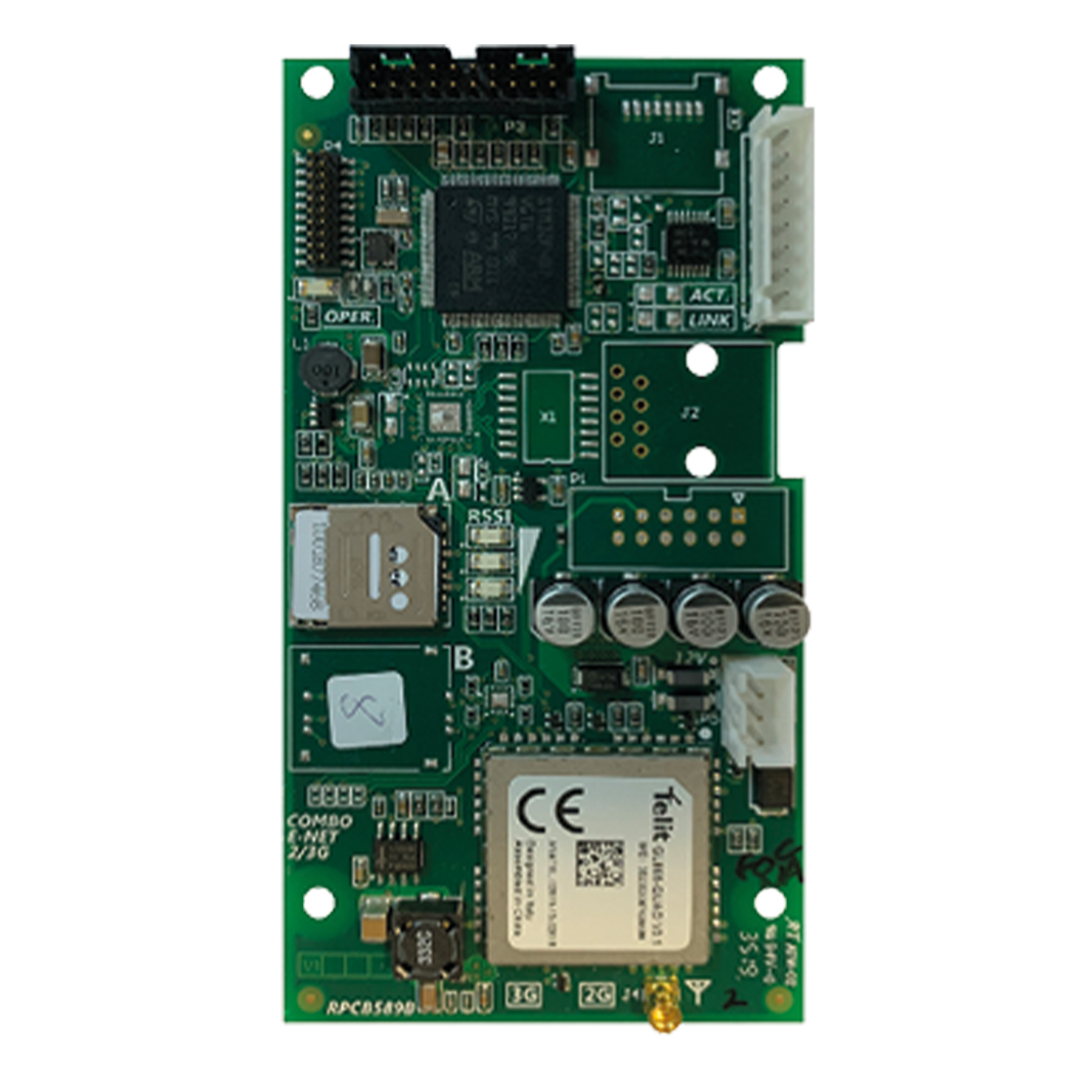

GPRS module for use with the Pyronix IP-enabled control panels, allowing up/download, ARC and SMS messaging. Using the GPRS modem is a reliable and consistent communication method for the Pyronix control panels.

Key Features
  • Signalling formats: Fast Format IP, Contact ID IP, SIA3 IP
  • SMS messaging
  • Supports upload/downloading

Product Features

GPRS communications

GPRS module for use with the Pyronix IP enabled control panels, allowing up/download, ARC and SMS messaging.

Reporting formats

The GPRS module is used to communicate either via Contact ID IP, Fast Format IP, SIA IP or SMS. It will also enable remote uploading/downloading via a PC to the control panel.

Reliable connection

Using the GPRS modem is a reliable and consistent communications method for the Pyronix control panels.

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Communications and modems

Formats

Fast Format IP, Contact ID IP, SIA IP, SMS , supports upload/downloading

Environmental and operating features

Physical dimensions (H x W x D)

110 x 56 x 10mm

Electrical & battery

Operating voltage

+12VDC

Quiescent current consumption

40mA (In use: 90mA)

Certifications and warranty

Security Grade

SP5

Environmental class

II

EN Certificate

EN 61000-6-3:2007 | EN 60950-1:2006 +A12: 2011 | ETSI EN 301 511:V9.0.2 | ETSI EN 301 489-1 V1.8.1/ -7 V1.3.1 | CLC/ TS 50136-9: 2013 | EN 50136-1: 2012

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

DIGI-GPRS
DIGI-GPRS
