Enforcer 32-WE APP

Product Features
  • Enforcer all in one two-way wireless panel

  • Maximum total zones 66
    - 32 wireless zones expandable to 64
    - 2 wired zones expandable to 34

  • 3 Programmable wired outputs expandable to 38

  • 80 User codes, 32 wireless keyfobs with individual user ID

  • In built proximity reader (set/unset with tag)

  • 4 Level sets or 4 independent areas

  • Wide range of two-way wireless peripherals available

  • Customisable push notifications

  • Complies with EN50131-1
    Security Grade 2, Environmental Class II

Control your home security from anywhere

Using the HomeControl+ App linked to the PyronixCloud, customers can control their security system from anywhere in the world. Arming or disarming, getting system status and receiving notifications from any event.

Superior security

Rest assured that your system is as secure as wired alternatives, with credit-card style encryption of wireless signals, fault reporting and long battery life of up to two years.

Highly secure connection

The HomeControl+ App and PyronixCloud communications are fully encrypted to the highest standard and no sensitive user data is stored on the PyronixCloud.

Easy to arm & disarm

Arm your system in a variety of ways with your smart device, codes, proximity tags or wireless key fobs.

One-push-to-learn

The one-push-to-learn feature in all Enforcer wireless devices means that learning devices onto the system can be done in seconds.

128-bit wireless protocol encryption

Pyronix two-way wireless protocol has been developed to protect the communications between all wireless system components with a very high security level. This ensures effective anti-code grabbing and multiple attempts at message delivery. It also provides a very high level of protection over the wireless bus, ensuring peace of mind.

Quicker installation with Signal Strength Indicators

Signal Strength Indicators (SSI) in all wireless devices means that you can position devices without the need to refer back to the panel.

Preserve battery power

Instant two-way device control enables immediate wake-up and sleep of devices; preserving battery power, while maintaining a highly secure system.

Easy to program and install

Fully menu driven programming with YES/NO questions allows for quick and simple installing; saving you time and money.

No wires, no fuss

As the system can be fully wireless, there is no need to run wiring which means fast, efficient installations with minimum mess.

A full range of peripherals

Including safety and security sensors and detectors, the Enforcer range has the products to cover the job.

Android & Apple compatible

The Pyronix HomeControl+ App is available in two versions: Android™ from the Google Play Store and iOS™ from the Apple App store.

Dual frequency

Advanced jamming detection with frequency hopping technology is used to prevent accidental or malicious attempts to disrupt the system.

Control panel technical characteristics

Two-way wireless technology

Yes

Independent areas

4

Part sets

4

Tamper protection

Front and rear

User codes and prox tags

80

Reporting formats

Digi GSM: SMS, Fast Format, CID | or Digi PSTN: SMS, Fast Format, CID, SIA 3, ARM

System logs

750

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

Tranmission method

Fully encrypted rolling code

Transmission range

1.6km in open space

Inputs & outputs

Input type

Wireless and wired

Two-way wireless inputs

32

Onboard wired inputs

2

Total inputs

66

Outputs on board

2

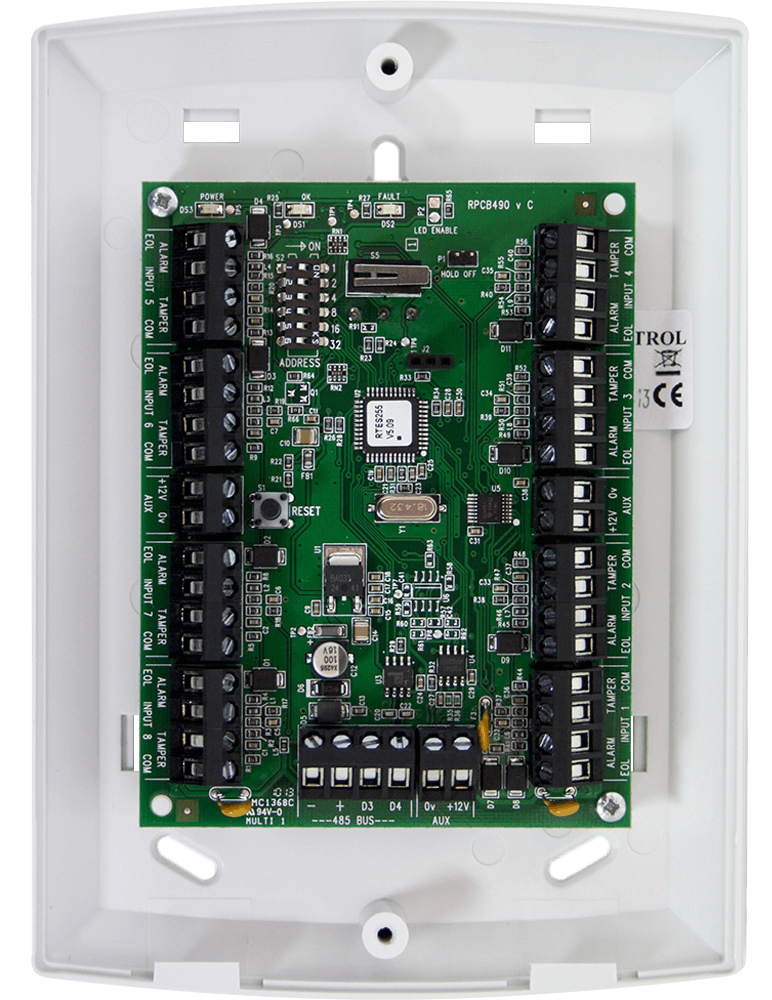

Output modules

1

Maximum outputs

38

Two-way wireless keyfobs

32

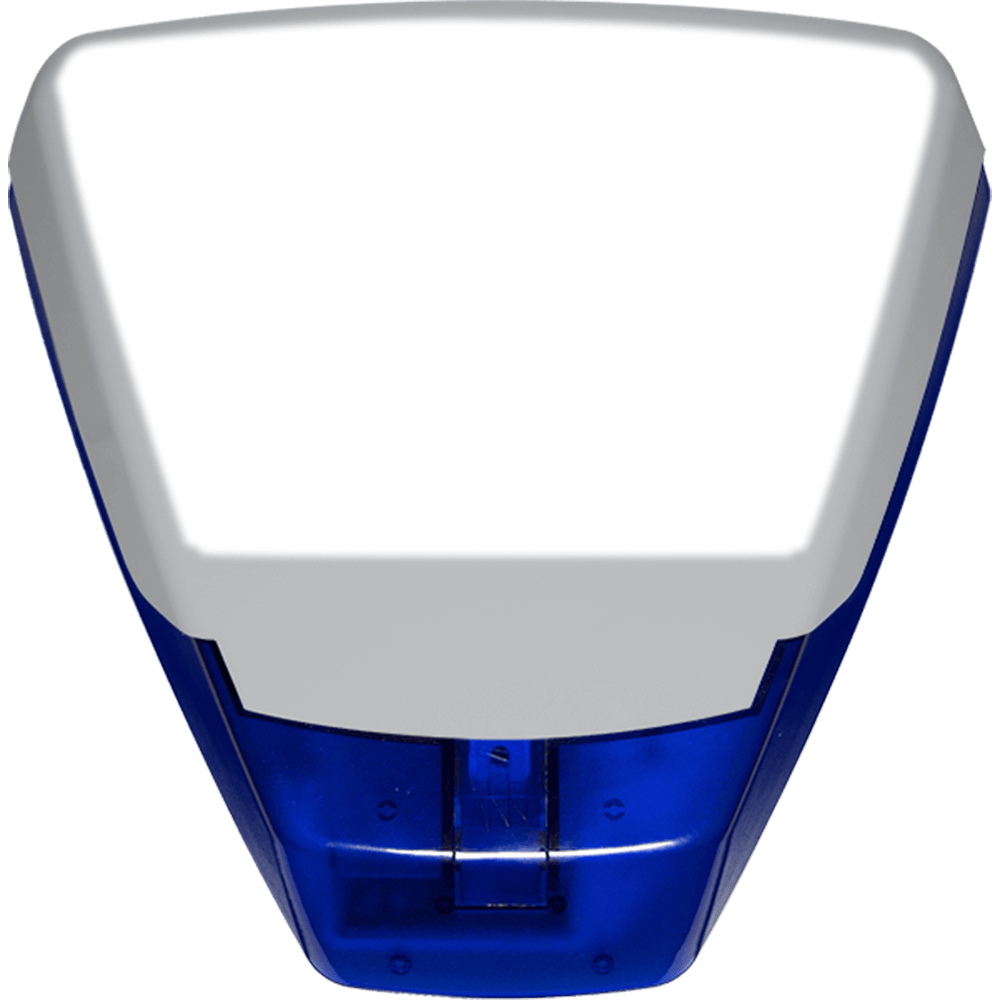

Two-way wireless sirens

2

Wired keypads

3

Readers and entry control

3

Communications and modems

Modem type (included)

None included

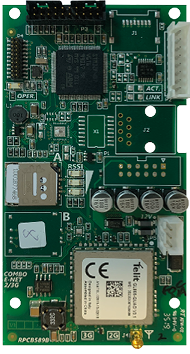

GPRS modem (optional)

Yes

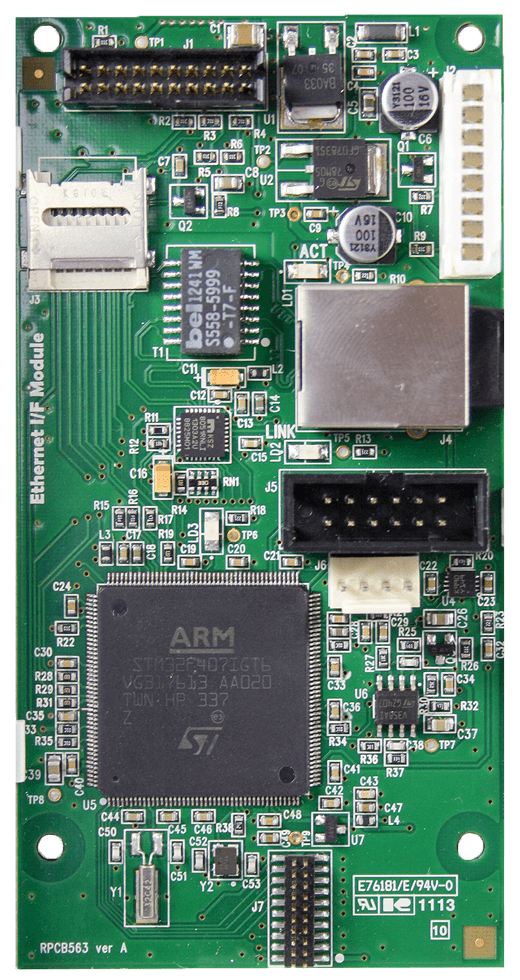

LAN modem (optional)

Yes

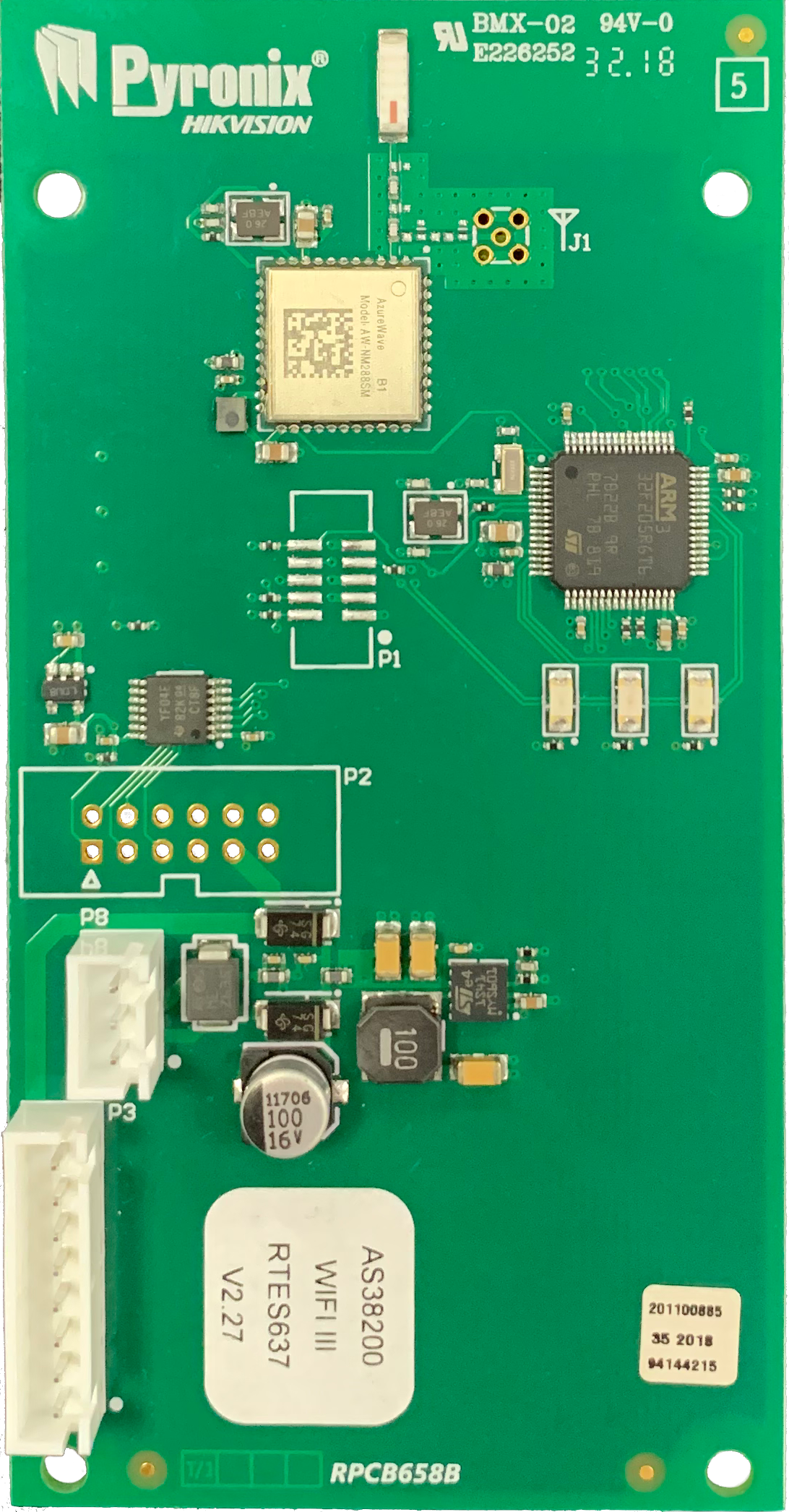

WiFi modem (optional)

Coming soon

Supports PyronixCloud & HomeControl+ App

Yes

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (H x W x D)

160 x 220 x 60mm

Weight

1025g

Electrical & battery

Battery type

NiMH 8 cell 2200mAh rechargeable battery

Battery voltage

12.71V (with no mains and battery fully charged)

Low battery threshold

8.9V

Mains supply

230V AC -15/+10%

Operating voltage

90 - 264V AC

Supply current

222 - 75 mA

Resistance (wired inputs)

Normal

3k7 or 8k3

Intruder

8k4 to 10k2

Tamper

<3k7 or >23k

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2010

Certification type

IMQ

Certificate number

CA12.01328

Environmental class

II

Warranty

2 years

Security Grade

Grade 2
