Network communication module for the IP connected control panels
Signalling formats: Fast Format IP (UK Only), Contact ID IP, SIA IP
Supports upload/downloading (via Insite UDL software)
Certified as SP5

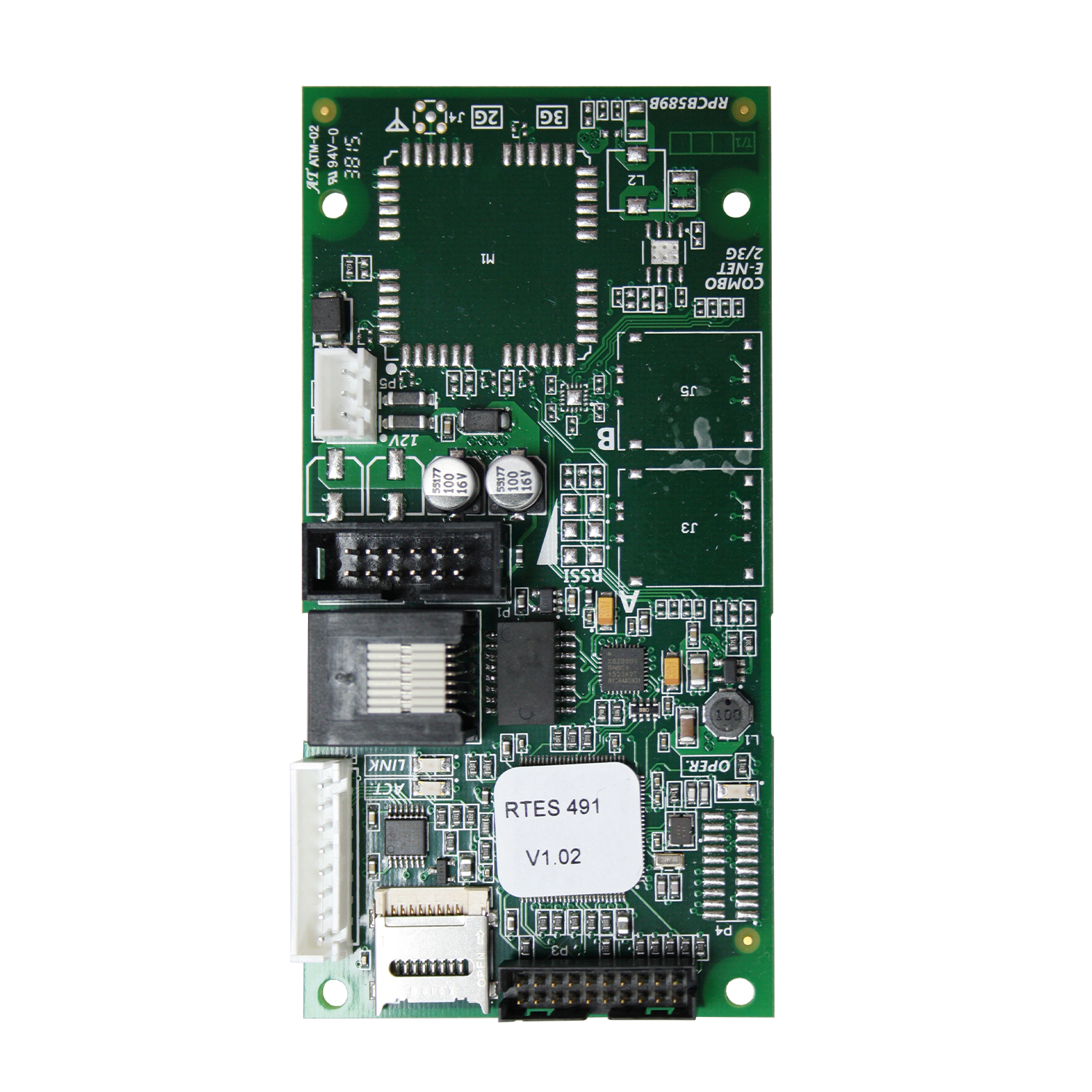

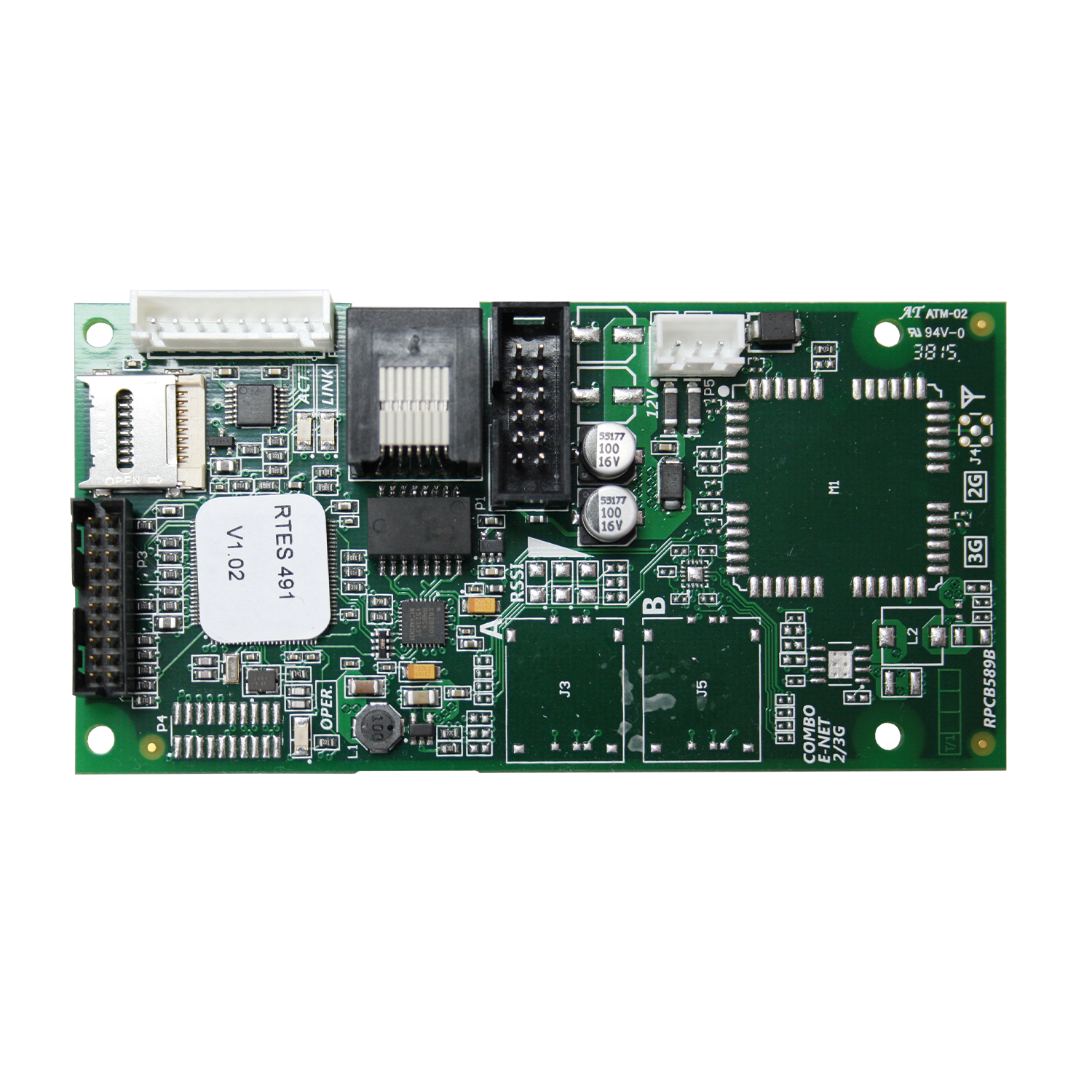

Utilising the established internet connection, the DIGI-LAN is a single path communication module that connects directly to the router.
Using a cabled connection to the router gives the most stable connection to existing internet.
As the DIGI-LAN utilises existing internet connection, there is no requirement for additional ongoing connectivity costs, and no need worry about keeping a SIM card topped up.
EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2010
DIGI-LAN - Declaration of Conformity
DIGI-LAN - EN Certification - Denmark - 10.212-13187
DIGI-LAN - IMQ Certificate - CA12.01661
DIGI-LAN - INCERT Certificate (D-R7F-0001)
FG Approved Products - EN Certification - FNO Finance Norway - NO
Fast format IP
SIA Level 1
1 RJ45 10M / 100M Ethernet interface
EN 50131-1: 2006
Communications modems Export Datasheet
DIGI-LAN - Installation Manual - English - RINS1754-2
DIGI-LAN - Installation Manual - Italian - RINS1805-1
Download manuals and InSite UDL.
