Product Features
  • RS485 Expander

  • 8 Double Pole or Double EoL Inputs

  • 4 Outputs

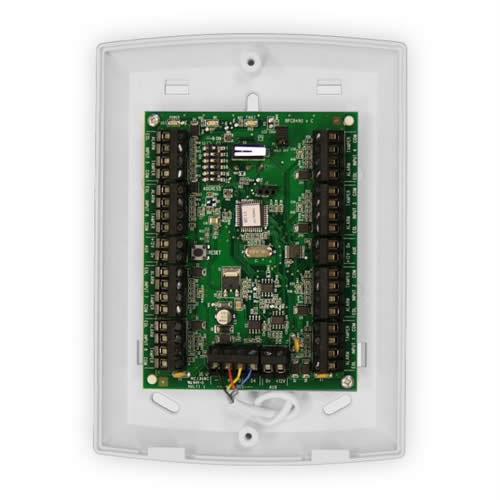

  • In polycarbonate box with window

Expand your systems potential

Expand your security system with the 8 input expander. With a further 8 wired devices to both existing or new PCX control panels, you can seamlessly adapt your security system to suit your needs.

Robust polycarbonate end station

The lightweight and strong polycarbonate casing has tamper protection for that extra peace of mind that you are protected.

Wiring options

The PCX-RIX8 DEOL / Double Pole expander will accept either Double Pole wiring or Double End-of Line wiring for each of the 8 inputs.

Resistor values

For Double Pole wiring you will need to set the control panel in 4K7/2K2 mode (4K7 resistor for alarm and 2K2 resistor for tamper).

PSU options

The expander is suitable for use with an Intelligent Power Supply.

Compact design

Lightweight, streamlined polycarbonate casing makes the PCX-RIX8 input expansion module easy to fit alongside the existing system without taking up too much room.

Related products & accessories

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010

Input and output expanders technical characteristics

Plastic housing


Tamper protection

Case tamper

Inputs & outputs

Wired EOL inputs


Wired double pole inputs


Total inputs


Outputs on board


Environmental and operating features

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (H x W x D)

173 x 126 x 31mm | PCB 112 x 64 x 17mm



Electrical & battery

Operating voltage

10.5V to 15V DC

Quiescent current consumption


Certifications and warranty

Security Grade

Grade 3

Environmental class


EN Certificate

EN50131-1:2006 | PD6662:2010

Certification type


Electrical conformity



2 years

Product Codes & Options

PCX-RIX8 Input Expansion Module
