PCX-RIX8i

Product Features
  • 8 inertia inputs

  • Complies with EN50131

Expand your systems potential

The PCX-RIX8i lets you expand the security system with a further 8 wired inertia inputs (all of which can be used for roller shutters). This gives you the ability to seamlessly adapt your installation as required.

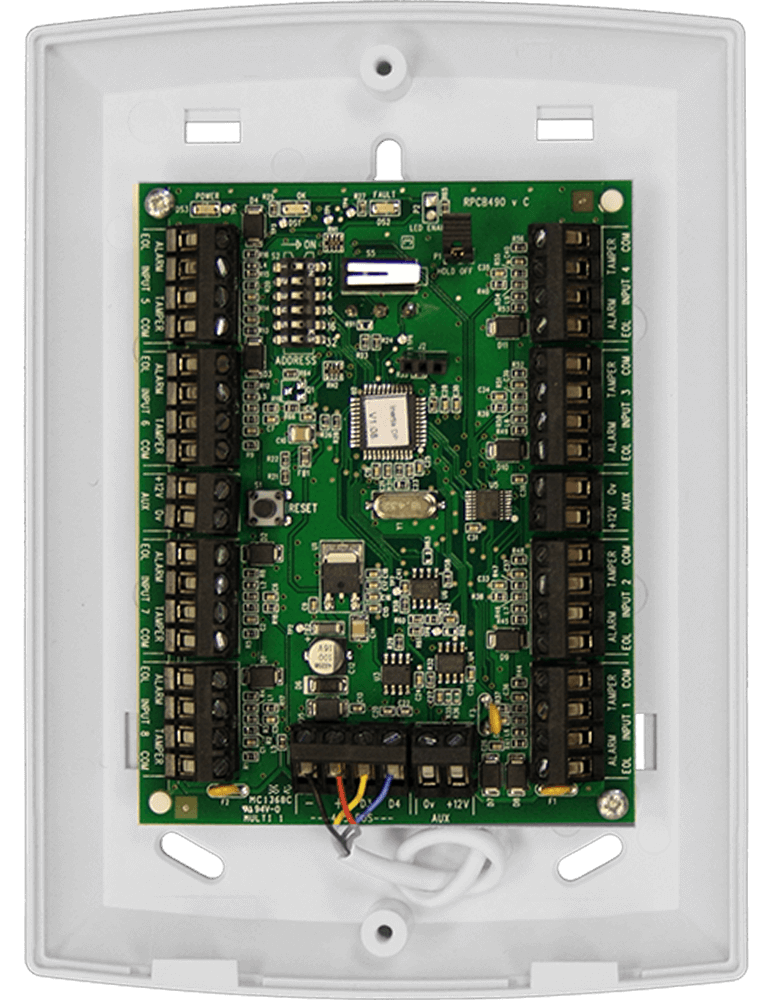

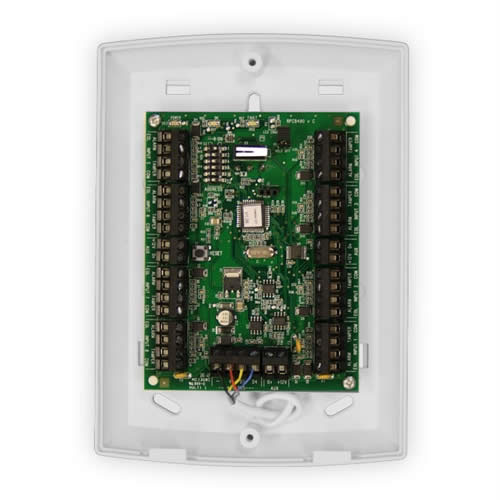

Robust polycarbonate end station

The lightweight and strong polycarbonate plastic housing of the RIX8i comes with both front and rear tamper protection for extra peace of mind that you are fully protected and conforming to EN50131 regulations.

Wiring options

The PCX-RIX8i can utilise DEOL, SEOL, NC, inertia inputs, or 8 roller shutter inputs.

Related products & accessories

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Input and output expanders technical characteristics

Plastic housing

Yes

Tamper protection

Front and rear

Inputs & outputs

Input type

DEOL, SEOL, NC, Inertia

Roller shutter inputs

8

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to +50C

Physical dimensions (H x W x D)

173 x 125 x 32mm | PCB; 128 x 87 x 16mm

Electrical & battery

Operating voltage

9-15V

Quiescent current consumption

45mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-3:2009 | EN50131-1:2006+A1:2009 | PD6662:2010

Certification type

IMQ

Certificate number

CA12.01433

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

PCX-RIX8i
FPPCX-RIX8I
