PCX-ROX 8R 8T
Description
Key Features
- 16 outputs comprising 8 relays (NO or NC) and 8 transistorised
- LED indications on each output
- Capable of being plugged onto Intelligent PSU
- Wired direct to RS-485 BUS
Hover over images to zoom
Product Features
Expand your systems potential

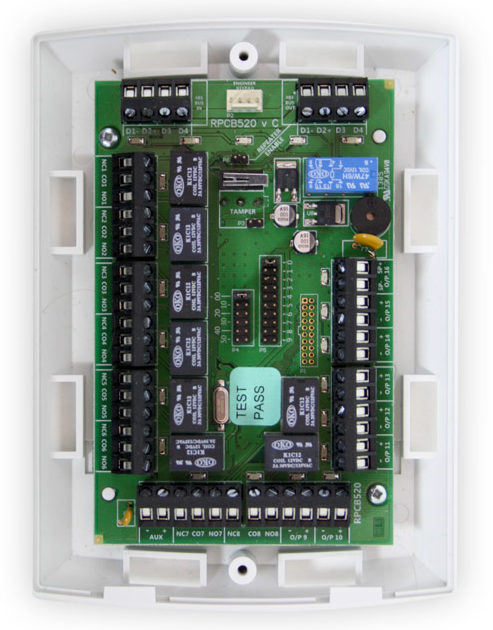

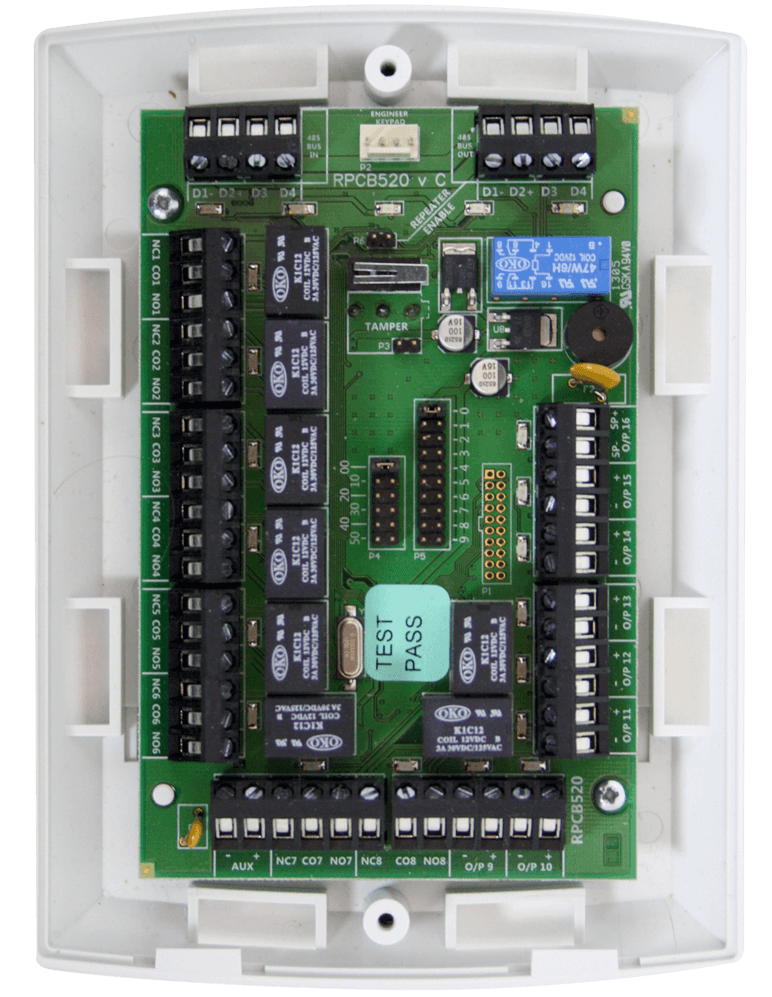

The 8R 8T is an output expansion module that allows you to add an extra 16 outputs to your system. These comprise of 8 relay outputs (NO or NC) and 8 transistorised outputs.
LED status
There are status LED indications for each output and you can connect an engineer keypad.
Intelligent PSU
Capable of being plugged onto Intelligent PSU, the 8R 8T is wired directly to the RS-485 BUS and has an adjustable rear tamper.
Input and output expanders technical characteristics
Plastic housing |
Yes |
Tamper protection |
Front and rear |
Inputs & outputs
Relay outputs |
8 |
Transistorised Outputs |
8 |
Environmental and operating features
Storage temperature |
-40C to +80C |
Certified operating temperature |
-10C to +50C |
Nominal operating temperature |
-10C to +50C |
Physical dimensions (H x W x D) |
173 x 125 x 32mm |
Electrical & battery
Operating voltage |
9-15V |

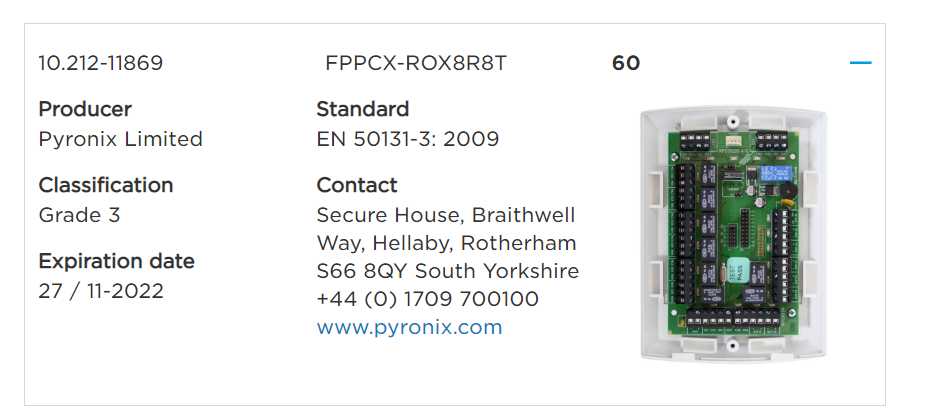

Certifications and warranty
Security Grade |
Grade 3 |
Environmental class |
II |
EN Certificate |
EN50131-1 | PD6662:2004 |
Certification type |
IMQ |
Certificate number |
CA12.01435 |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
PCX-8R8T
FPPCX-8R8T
