EURO 76

Description

The EURO 76 is a versatile hybrid control panel, offering 76 zones alongside effective monitoring through PSTN, GSM, and IP methods of communication. Designed to cater to diverse security requirements, it provides flexible options for both large and small installations, ensuring suitability for Grade 2 and 3 setups.

Key Features
  • Hybrid 76 zone, 6 area control panel
  • Up to 75 unique users, 32 maximum wireless keyfobs
  • Code, pin, remote keyfob, and app arming/disarming options

Product Features

Adaptable and flexible

With its extensive selection of wired and wireless security and life safety devices, the EURO 76 provides an all-encompassing security solution for any property .

App controlled security

Conveniently manage the system, monitor its status, and receive personalised push notifications from any location through our user-friendly smart device application, HomeControl2.0.

Programming choices

The EURO 76 can be programmed via keypad or through our InSite desktop application, offering you smooth menu navigation for different setup options.

Effortless integration

With the addition of a wireless zone expander, the EURO 76 is fully compatible with all our wireless devices. Seamlessly connect these devices with our user-friendly, one-button learning feature to simplify device placement during installation through SSI, combining ITDC for efficient power management.

Ready for IP Integration

The EURO 76 adeptly tackles the challenges arising from the PSTN switch-off by seamlessly integrating with IP-based alternatives such as GPRS, Wi-Fi, and LAN modules, solving any PSTN-related issues.

Simplified IT Configuration

By connecting through a cloud server, the EURO 76 eliminates the necessity for complex on-site IP or network setup. Simply connect through PyronixCloud.com for easy access.

InSite compatibility

With InSite UDL software, you can save time and money with remote programming and diagnostics. Additionally, the software facilitates for one of the compulsory annual system maintenance checks, using ARM (Automatic Remote Maintenance).

What’s in the box

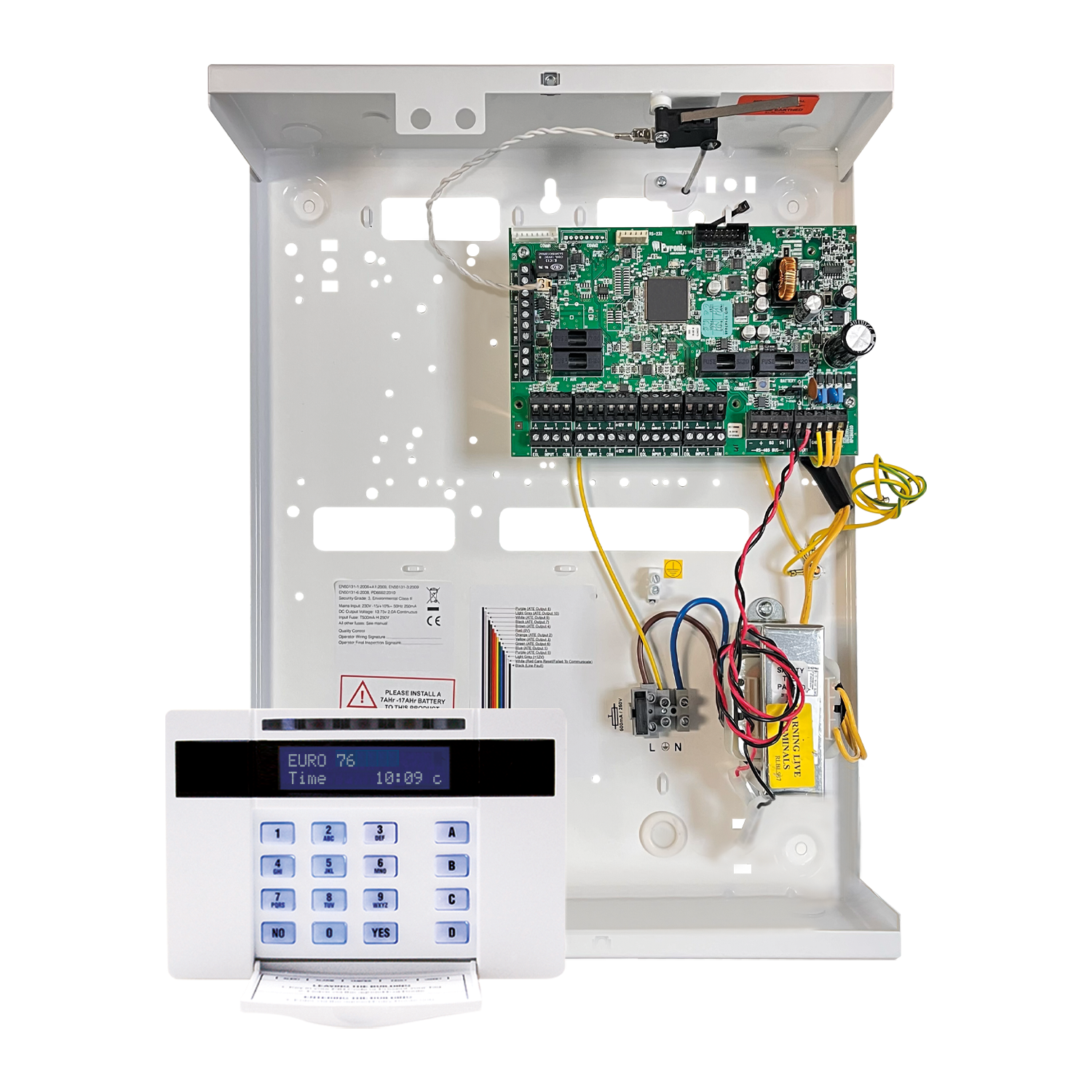

EURO 76 Zone Hybrid Control Panel
Contemporary Keypad
Quick Start Guide
User Guide

Control panel technical characteristics

Two-way wireless technology

Requires EURO-ZEM32-WE

Independent areas

6

Tamper protection

Front and back

LCD keypad with intergrated prox reader

EUR-064

User codes and prox tags

75

Guard codes

10

Reporting formats

Contact ID (standard and IP) | Fast Format (standard and IP) | SIA3 (standard and IP)

System logs

1250 events (EEPROM)

Areas

6

Inputs & outputs

Input type

Double pole, DEOL and 3EOL | Wireless with additional EURO-ZEM32-WE

Two-way wireless inputs

64 (with 2 x EURO-ZEM32-WE)

Onboard wired inputs

8 (10 including keypad inputs)

Total inputs

76

Outputs on board

1 relay | 4 transistor | 10 low power ATE outputs

Two-Way Wireless Keypads

4 (requires EURO-ZEM32-WE)

Output modules

2

Wired automation outputs

30

Maximum outputs

85

Two-way wireless keyfobs

32 (requires EURO-ZEM32-WE)

Two-way wireless sirens

2 (requires EURO-ZEM32-WE)

Wired keypads

6

Readers and entry control

5

Communications and modems

GPRS modem (optional)

Yes

GSM modem (optional)

Yes

PSTN modem (optional)

Yes

LAN modem (optional)

Yes

WiFi modem (optional)

Yes

Supports PyronixCloud & HomeControl+ App

Yes

SMS numbers

10

Remote speaker and microphone

16 ohms speaker wired to endstation

Event Signalling to Insite

Yes

ARC compatibility

Yes

Compatible with UDL software

Yes

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Physical dimensions (H x W x D)

PCB 110 x 170 x 40 mm | Small case 297 x 250 x 82 mm | Large case 390 x 305 x 100 mm

Weight

Small case 4.8kg inc. battery | Large case 11.5kg inc. battery

Electrical & battery

Battery capacity

Small case 7Ah maximum | Large case 17Ah maximum

Battery voltage

~13.8VDC

Battery low voltage protection

~10.5VDC

Low battery threshold

~10.5VDC

Recharge time

<24 hours

Mains supply

~230VAC at 50Hz | -15% +10 %

Quiescent current consumption

80mA (PCB)

Transformer

Power Supply Type A.

Fuse (battery)

T 1.5A anti-surge slow blow 250V

Fuse (12v outlets)

F800mA quick blow 250V

Fuse (mains)

T500mA H anti-surge slow blow 250V

Fuse (RS485 data BUS)

F800mA quick blow 250V

Relay outputs

3A, max 30V

Resistance (wired inputs)

Normal

1k4 to 2k9

Intruder

4k2 to 7k8

Tamper

<1k4 or >22k

Fault

8k to 11k3

Masking

11k6 to 22k

Certifications and warranty

Security Grade

Small case 2 | Large case 3

Environmental class

II

EN Certificate

PD6662:2017+IA501:2015 | EN50131-1:2008+A1:2009 | EN50131-3:2009

Warranty

2 Years

Product Codes & Options

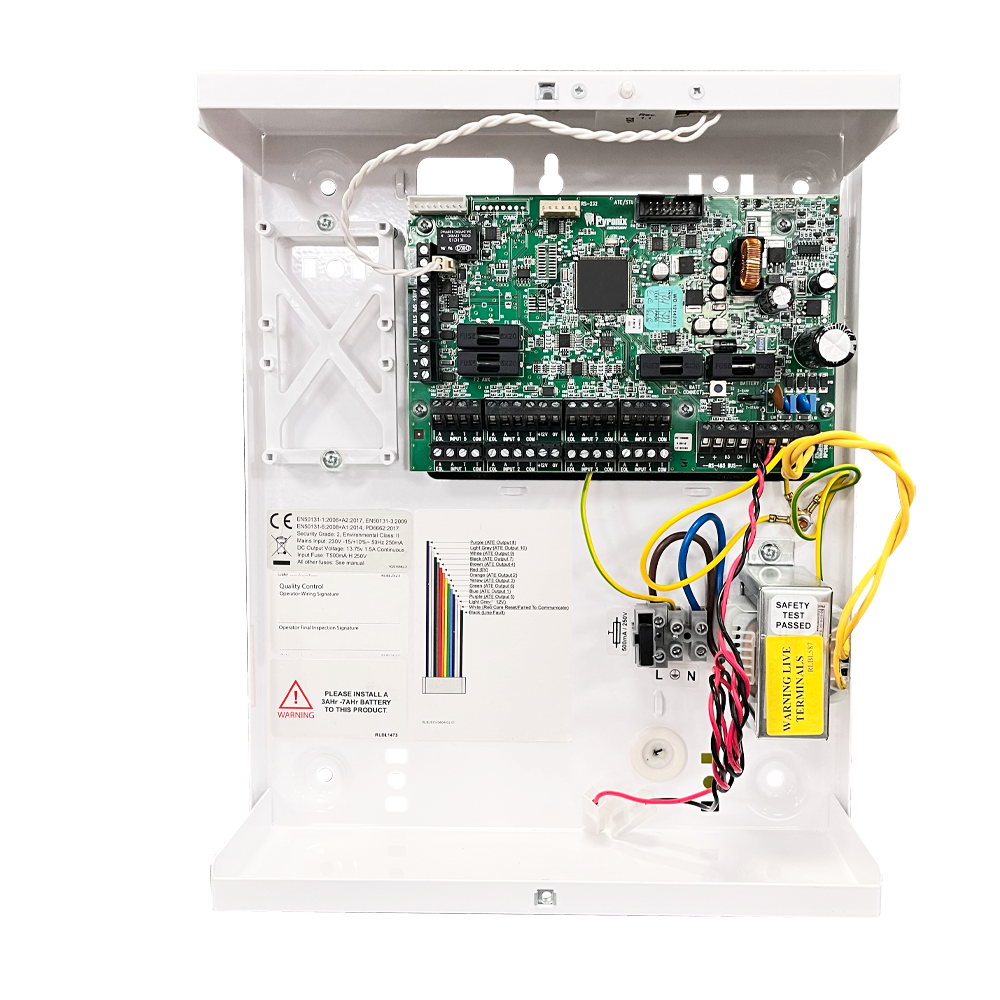

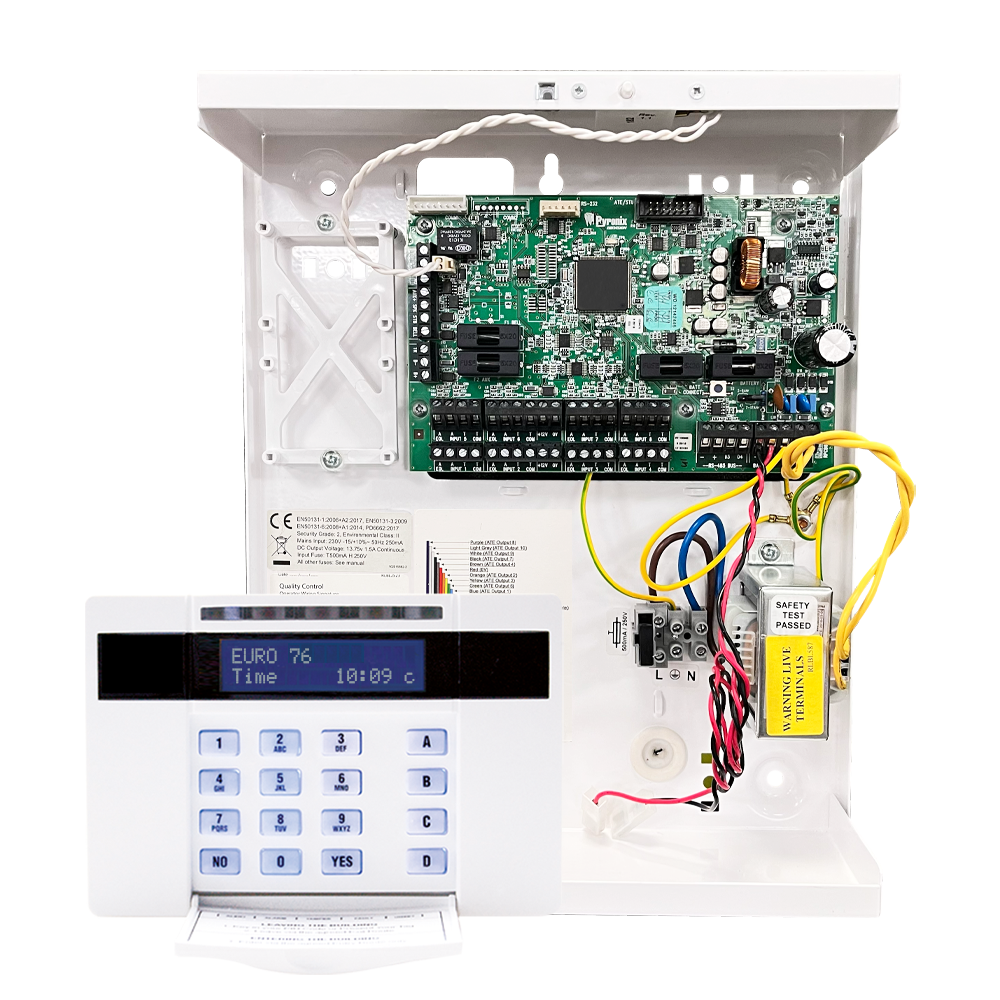

EURO 76 Zone Small Hybrid Control Panel Grade 2 with Keypad
EURO76/S-UK
EURO 76 Zone Large Hybrid Control Panel Grade 3 with Keypad
EURO76/L-UK

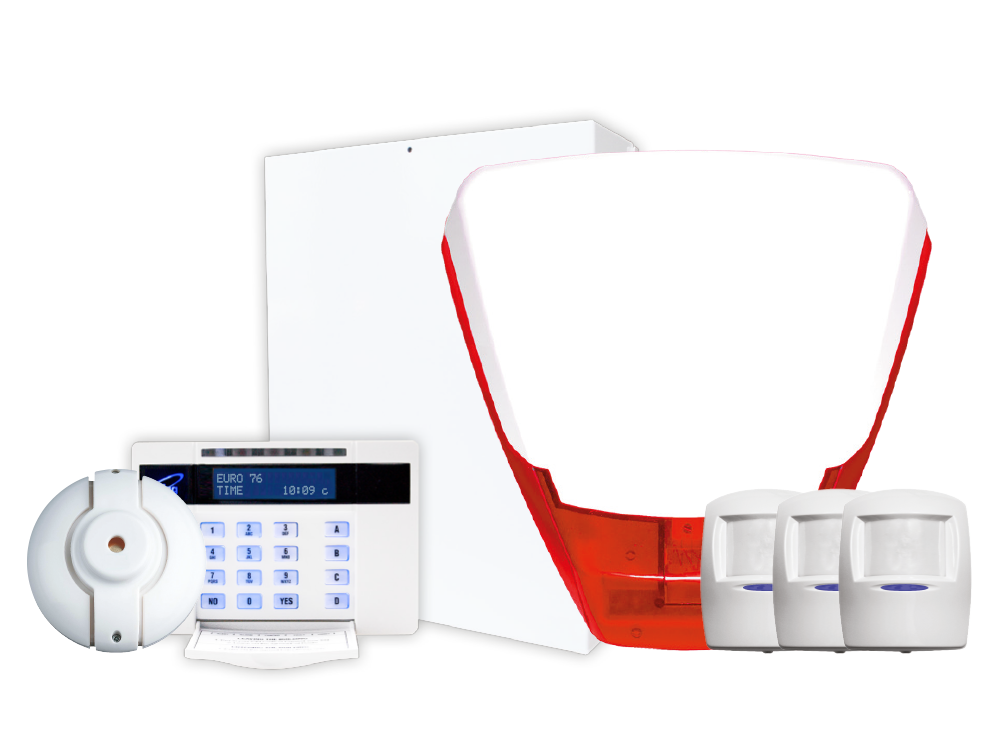

EURO 76 Kit
EURO76/S-KIT

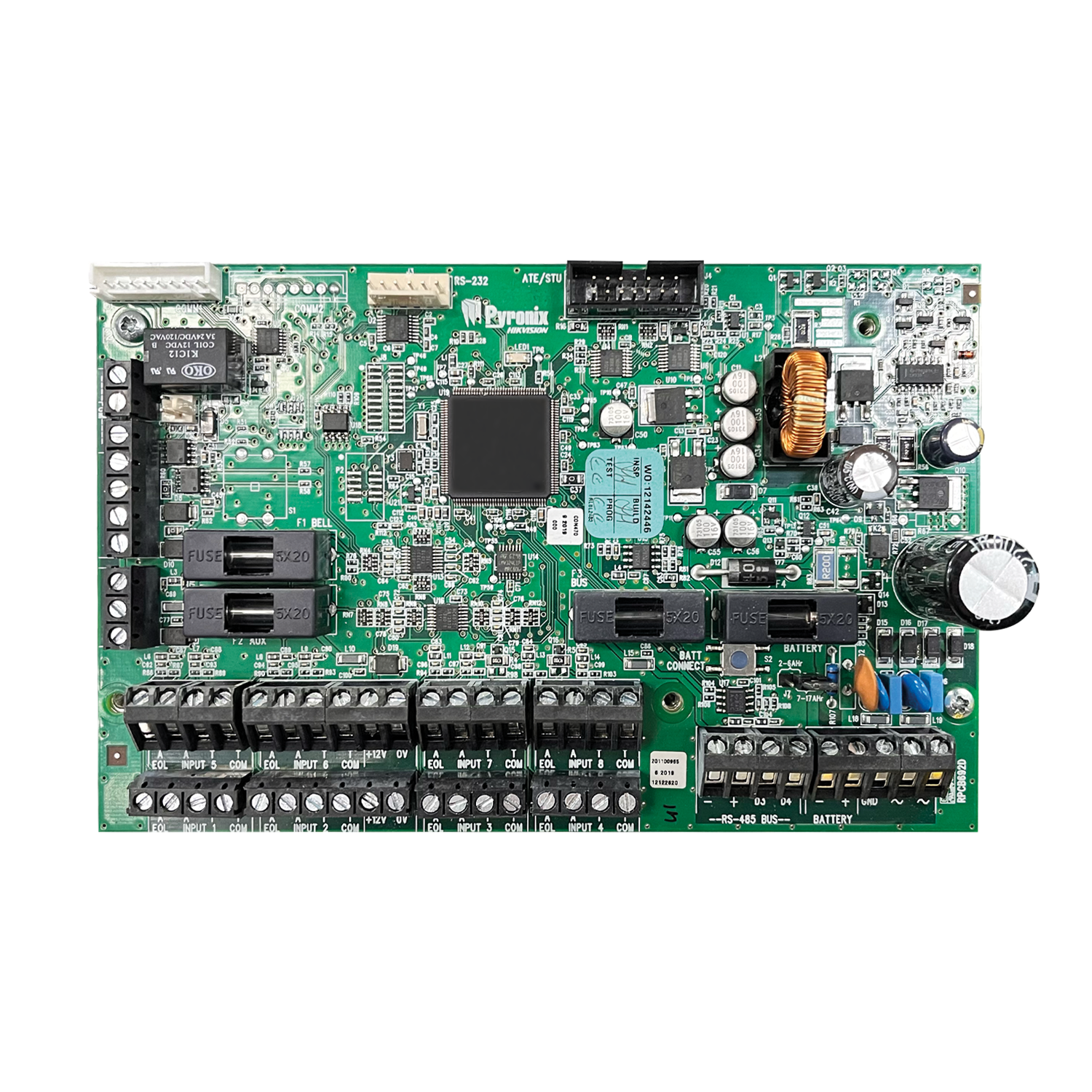

EURO 76 PCB
EURO-76PCB
