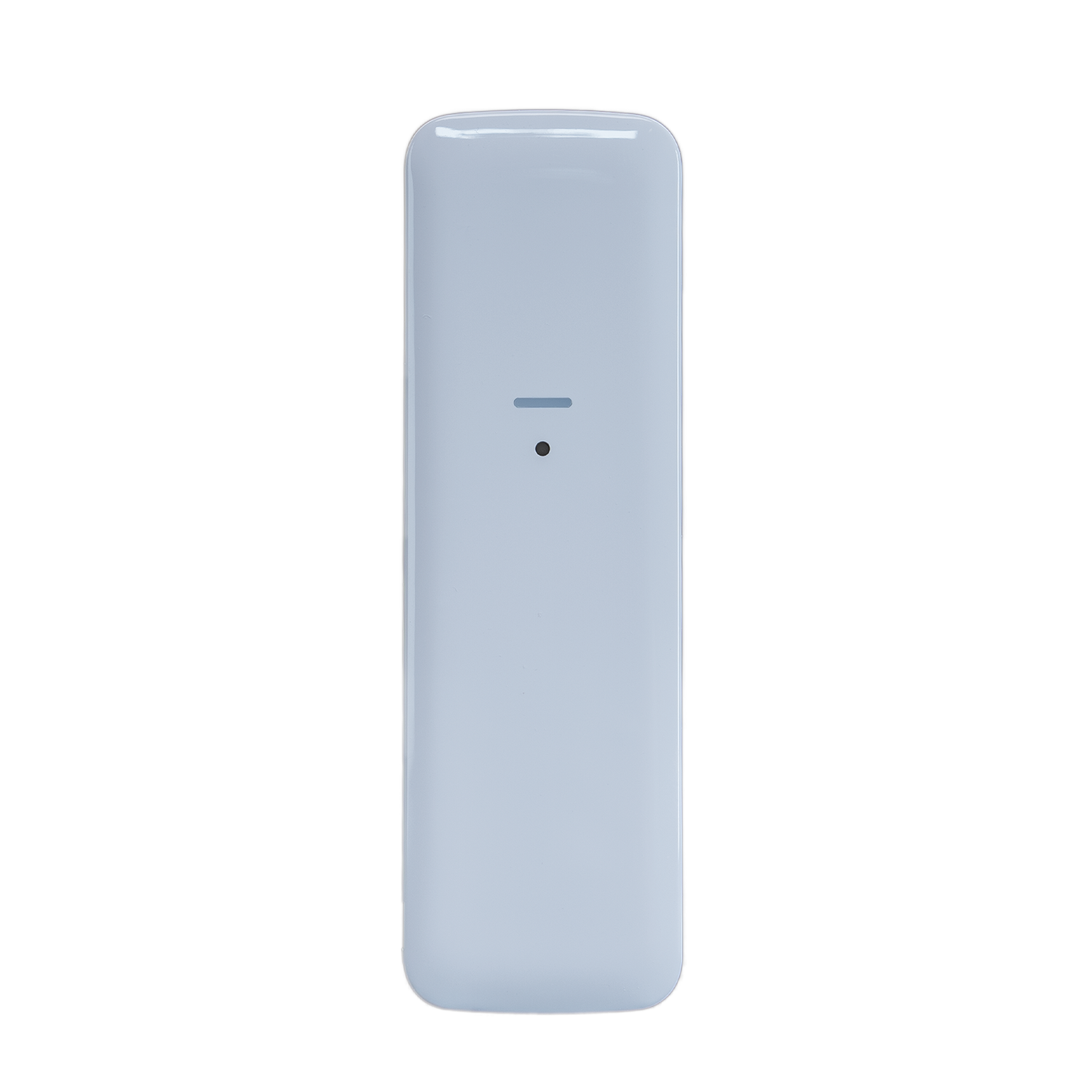

ASSET-WE

Product Features
  • Two sensitivity settings

  • Home Position allows for any orientation or angle

  • Easy relocation of Home Position

  • Notification via HomeControl2.0

  • Signal strength and battery test

  • Two-way wireless

  • Dual frequency

  • One-push-to-learn

  • Compatible with any Enforcer or wireless ZEM with HUB version 3.54 or later

  • Grade 2 compliant

Two sensitivity settings

The device has two sensitivity settings, low and high. The high sensitivity setting is ideally suited to stationary items, whereas the lower sensitivity option is designed for protecting items which are subject to environments that could cause movement, like vibration and loud sound.

Home Position allows for any orientation or angle

The Home Position is the device’s installation position. If the device is left stationary for 10 seconds, it will recalibrate the accelerometer to its new position. This allows for any orientation, at any angle.

Easy relocation of Home Position

The device can be relocated wherever the user sees fit when the system is disarmed (providing the zone is not programmed as 24 hour or day alarm). The device will calibrate its Home Position after a period of 4 seconds once the case tamper is closed or after a period of 10 seconds after the device has been triggered.

Notification via HomeControl2.0

HomeControl2.0 allows notifications to be delivered directly to the user’s device. Events can be viewed in the app, showing a log of what’s happened on the system, giving the user added visibility over their system.

Signal strength and battery test

To test the device, the system can be put in walk test and the device activated. Whilst in walk test, the system will chime when the device is triggered.

Two-way wireless

This multi-award-winning technology delivers easy installation and superior security, with full supervision, anti-jamming and 128-bit wireless protocol encryption to maximise reliability and ensure the signals transmitted by the system are protected and any code-grabbing is prevented. Each Pyronix two-way wireless device is both a transmitter and a receiver, providing a wealth of installation benefits.

Dual frequency

The control panel has the capability to switch wireless frequencies if the one it is using is jammed. In order for the installation to switch frequency, every wireless device must be dual frequency enabled.

One-push-to-learn

The Enforcer two-way wireless protocol allows easy learning of all its peripherals – with the push of a button you can add any of the detectors or sensors to the Enforcer V11.

Other technical specifications

Dimensions and weight

30 x 95 x 10mm, 30g

Casing / Colour

2mm polycarbonate-ABS, white

LED Colours

Red, blue and green

Transmission frequency

868MHz FM transceiver narrow band

Transmission method

Fully encrypted rolling code

Tilt alarm threshold

High: ~4° Low: ~2°

Battery

2 x lithium CR2450R, 3V, 500mAh with a 50mA pulse

Low battery threshold

2.2V +/-5% @ 25°C

Tamper switches

Front and rear

Temperature

Storage:- 20°C to 50°C Operating:- 10°C to 40°C

Certifications and warranty

Standards

EN50131-2-6-2008, EN50131-2-8-2016

RoHS directive

2014/35/EU

RE directive

2014/53/EU

Emissions

EN55032:2015+A11:2020 Class B

Immunity compliance

EN50130-4:2011+A1:2014

Environmental class

II

Grade

2
