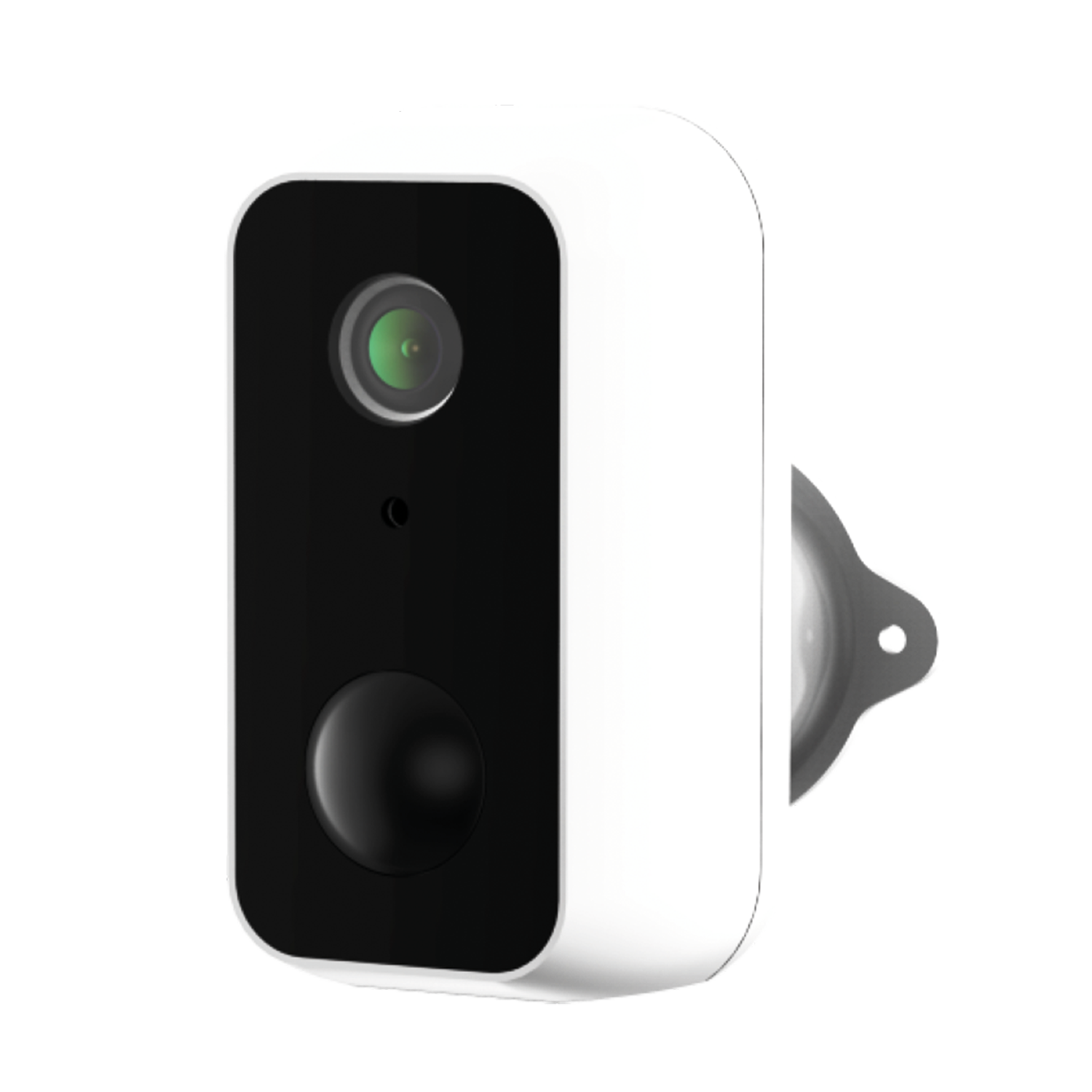

BatteryCam

Product Features
  • Easy installation

  • Motion alerts

  • Maintain battery life

  • Wide-angle view

  • Snapshot, capture video and playback record

  • HomeControl BatteryCam kit with SD Card and SolarPanel

Indoor and outdoor video monitoring

Add video surveillance, anywhere with the BatteryCam. Its wireless design allows it to be placed wherever it’s required and moved whenever it’s needed. Indoor or outdoor, place it or mount it, it’s up to you.

With 130° wide-angle view, motion detection, real-time notifications and push-to-talk function, users are always connected to home and able to see exactly what’s happening 24/7.

What’s more, the BatteryCam connects with our SolarPanel for continuous charge, so it’ll never run out of power, and adding our 32GB SD Card allows users to record up to a few-thousand one minute video clips in local storage!

Home is in your smart phone

Users receive real-time alerts from the BatteryCam to their mobile device via HomeControl2.0, keeping them connected to home 24/7.

Easy installation

Installation couldn’t be easier, with the full set up completed in just a few steps. All fixtures and fittings are included with the product, so it can be installed wherever needed.**

**To maximise performance, do not angle lens directly into sunlight.

Motion alerts

Detect the presence of unwanted strangers around the property and mask out nuisance alarms triggered by pets and other movement with the BatteryCam’s inbuilt PIR detector. It works up to 9m and is configurable to ten different levels of sensitivity for custom settings depending on environment.

Maintain battery life

There’s no need to regularly charge the BatteryCam. Its large 9600 mAh battery ensures it lasts up to 12 months on standby and around four months with wake up 10 times a day. Low battery notifications can be set to preference.

The battery level can be maintained continuously with our supplementary SolarPanel – there’s no need to manually remove and charge the BatteryCam, so users are always protected.

Wide-angle view

The BatteryCam offers 130° field of view and crisp 1080p HD video footage – even in low light with our automatic Night Mode.

Snapshot, capture video and playback record

Users can playback videos and capture video footage to examine, save and share the things that catch their attention.

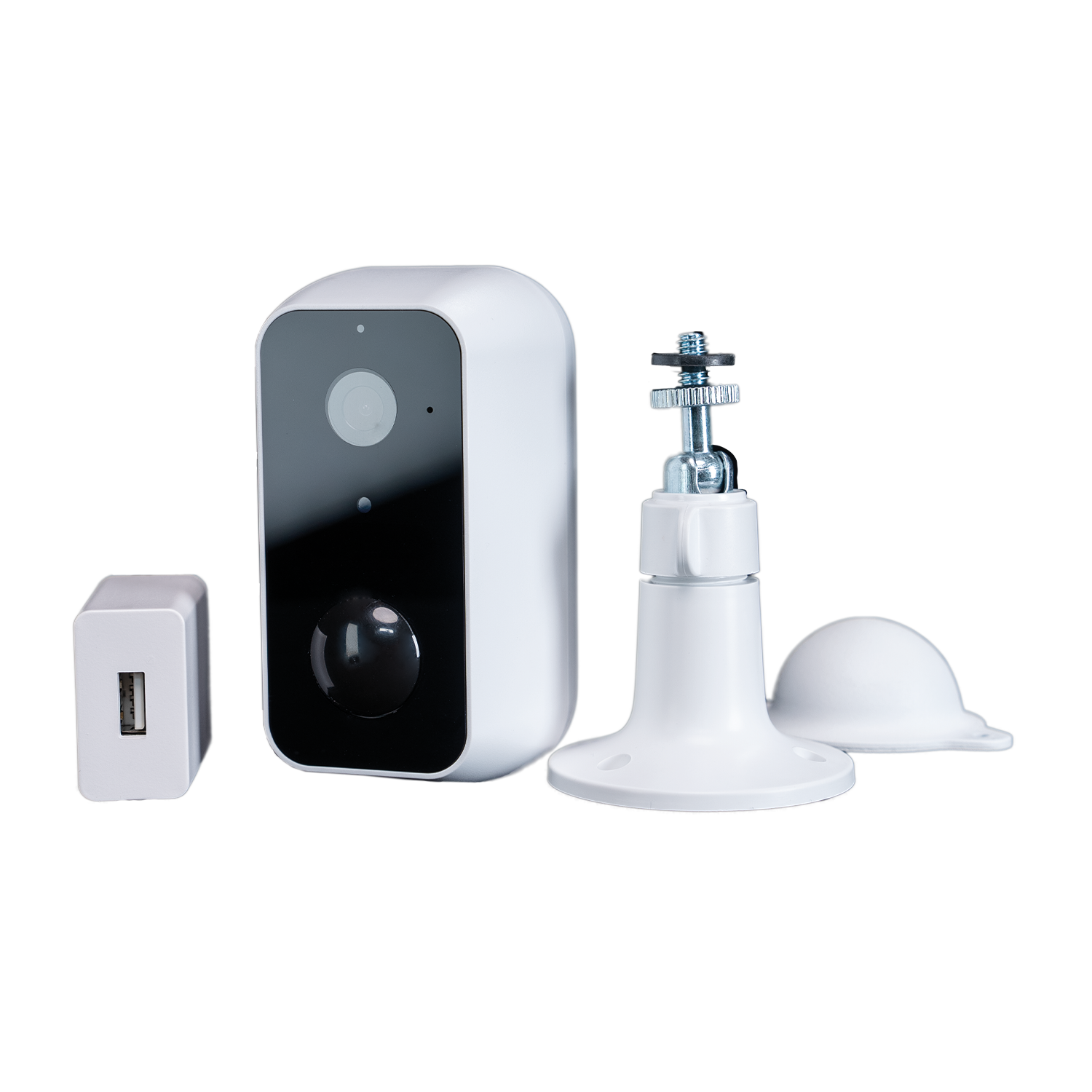

HomeControl BatteryCam kit

The BatteryCam, SolarPanel and 32GB SD card can be purchased in one handy kit – partcode: BATTERYCAM/KIT-SDSOL.

The smart home

With our range of smart home products, like the SmartPlug, the BatteryCam can be integrated to make life easier with helpful scenes and automations. Set up the home to automatically switch a light on if the BatteryCam detects motion, highlighting and deterring potential intruders.

Product Features

Camera

Image Sensor

1/2.9'' 2Megapixel CMOS

Effective Pixels

1920(H) x 1080(V)

Shutter

1/15~1/10,000s

Min. Illumination

Colour 0.1Lux@F2.0, Black/White 0.01Lux@F2.0

IR Distance

Night visibility up to 10m

Day/Night

Auto(ICR)/Color/B&W

WDR

DWDR

Lens&FOV (H/V/D)

3.2mm@F2.0, 106°/57°/130°

Video & Audio

Compression

H.264

Bit Rate

32Kbps~2Mbps

Frame Rate

1~25fps

Dual Stream

Yes

Audio Input/Output

Built-in mic/speaker

Network

Alarm Trigger

PIR human-body detection

Wireless Security

64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Communication Protocol

HTTP, DHCP, DNS, TCP/IP

Interface Protocol

Private

Wireless

2.4G Wi-Fi (IEEE802.11b/g/n)

Security

AES128

Battery & PIR

Capacity

9600mAh rechargeable Li batteries

Stand-by Current

200-800 µA (average)

Working Current

150-200 mA (IR off)

PIR Detection Range

Max. 9m

PIR Angle

120°

General

Operating Temperature

-20 °C to 50 °C

IP Rating

IP65

Power Supply

DC 5V/1A

Power Consumption

Max. 2W

Optional Accessory

SolarPanel

Installation

Magnetic bracket included

Storage

SD card (Max.128GB)

Dimensions Camera

57 x 100 x 57mm

Stand

67 x 50 x 24mm

Net Weight

310g

Product Codes & Options

BatteryCam
BATTERY/CAM
SolarPanel
SOLARPANEL
