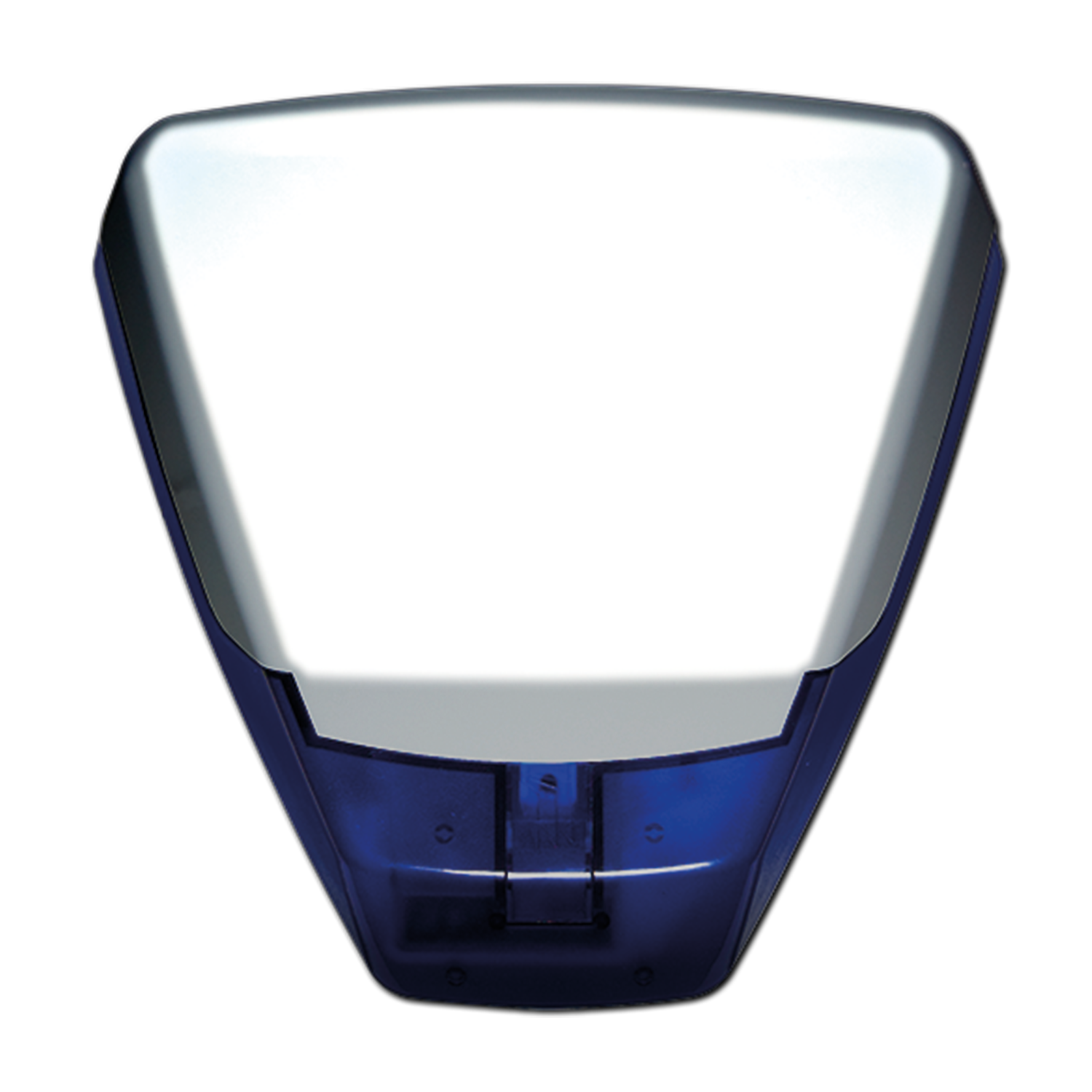

Deltabell-X with Lightbox

Product Features
  • Outdoor sounder with backlight

  • Twin piezo sounder technology

  • Full backlit base with superior illumination

  • Visual alarm warning feature

  • 3 Way tamper action

  • Universal triggering inputs

  • IP65 rated

  • Various colour combinations available

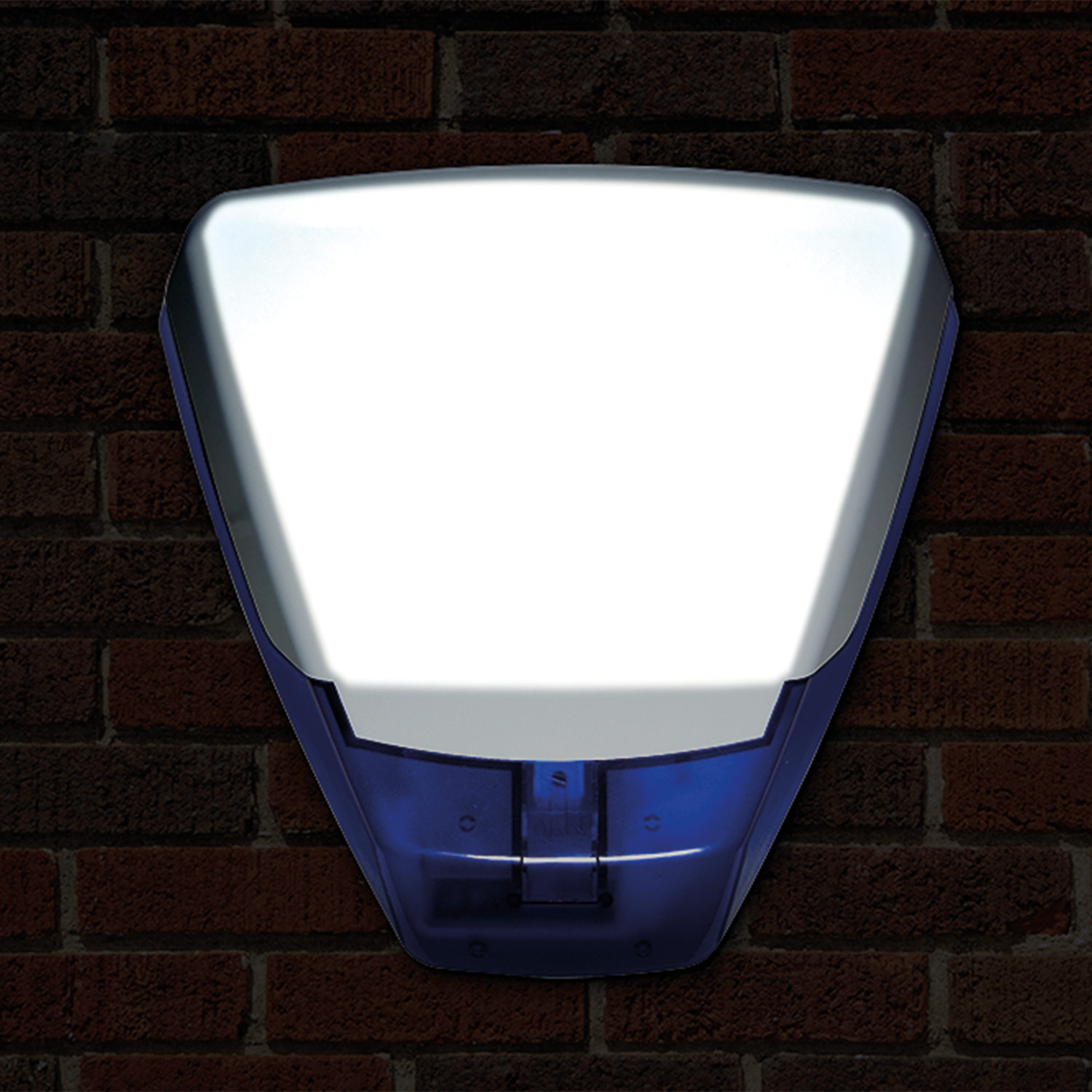

Excellent deterrent - day or night

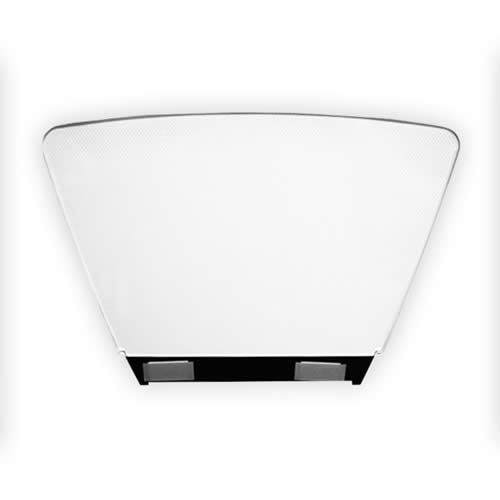

The Deltabell-X with optional light box provides an excellent deterrent day or night. The Lightbox provides superior lighting to the front of the sounder while the backlit feature shines through the base.

Not to be tampered with

Featuring cover, base and power tamper protection, you can be assured that you will be alerted to any attempts to disable your bell, and with engineer features applied on your control panel, you will not have any unwanted activation while your external bell is being fitted or under maintenance.

Style and substance

With twin piezos, covered electronics, tamper protection backlight and front light options, the Deltabell X provides excellent performance and with its unique patented style, will look great on any style of building.

Twin piezo

Twin piezo sounders with high decibel output.

3 Way tamper action

Activation from front, back and power supply cut-off ensures protection from sabotage attempts. In this situation, the siren will activate independently from the control panel.

Universal triggering inputs

Can be connected to any output on a manufacturers control panel: positive applied, negative applied, positive removed, negative removed.

Revolving guide holes

Unique levelling mechanism including in-built spirit level and revolving guide holes.

Supplied with battery

Complete with a backup battery so that even in the event of an intruder sabotage, the bell box will still operate and protect the property.

Siren cut-off timer

The cut-off timer is defaulted to 15 minutes to meet industry regulations.

3mm Poly housing

Enables a panoramic strobe effect – illuminating the full bell box.

Engineer hold off facility

When first powered with the tamper switch open, the sounder will not activate.

Remote engineer hold off

It is possible to disable the bell box tamper when a control panel is in the Engineers Menu.

EN50131-4:2009 | EN50130-4:2011 PD6662:2010



Sounders technical characteristics

Loudness

104 dB(A)

Sound and light indication on alarm

Yes

Engineer hold off

Yes

Number of Piezos

2

Flashing LED

Yes

Comfort LED

Yes

Back-lit

Yes

Tamper protection

Yes

Strobe duration and frequency

10ms, 1Hz

Sounder maximum duration

15 mins

Available with or without a lightbox

Yes

SAC (self actuating bell) / SAB (self activating bell) option

Yes

Self levelling

Yes

Environmental and operating features

Certified operating temperature

-25°C to 60°C

Nominal operating temperature

-30°C to 60°C

Physical dimensions (H x W x D)

290 x 285 x 50mm

Electrical & battery

Battery type

NiMH 7.2V, 250mAh

Battery life

2 - 5 years

Operating voltage

9-16V

Alarm current

300mA

Quiescent current consumption

90mA

Certifications and warranty

Security Grade

Grade 2 and 3

Environmental class

IV

EN Certificate

EN50131-1

Electrical conformity

CE

Warranty

2 Years

Product Codes & Options

Deltabell X Lightbox
FPDELTAX-LIGHT

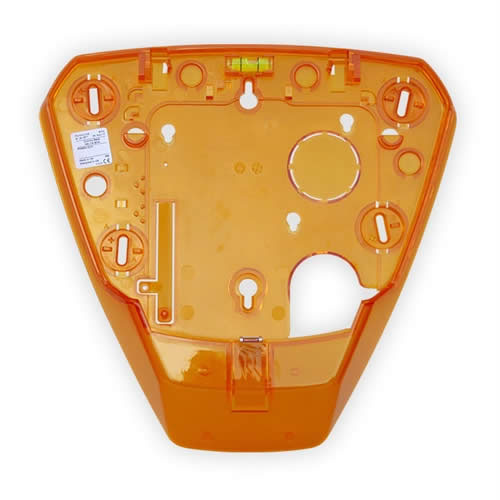

Deltabell Amber Dummy Base
FPDELTA-BDA

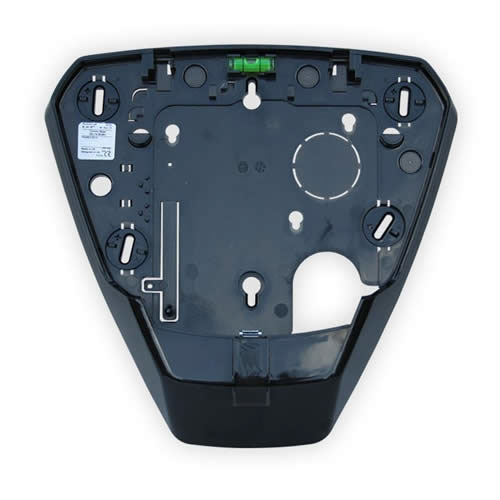

Deltabell Black Dummy Base
FPDELTA-BDBK

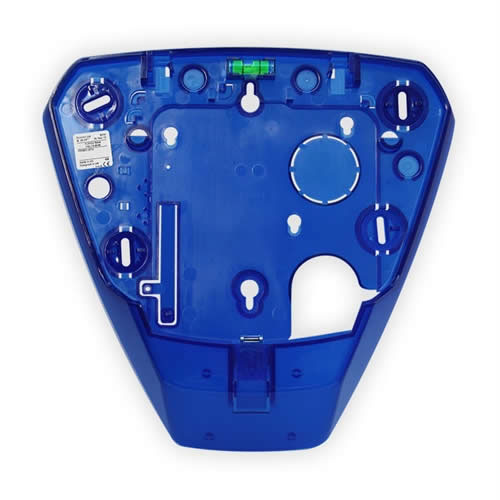

Deltabell Blue Dummy Base
FPDELTA-BDB

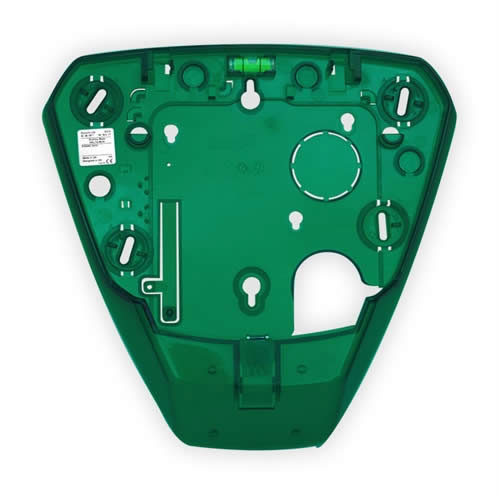

Deltabell Green Dummy Base
FPDELTA-BDG

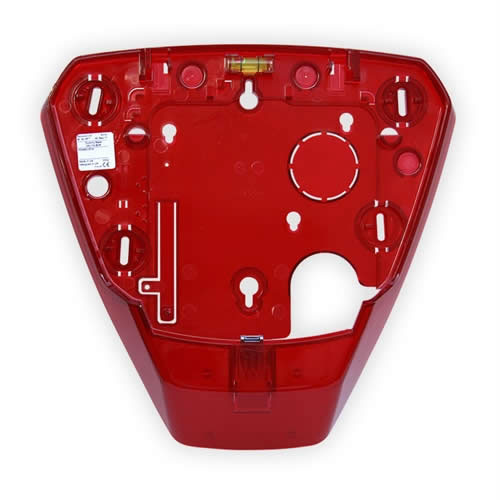

Deltabell Red Dummy Base
FPDELTA-BDR

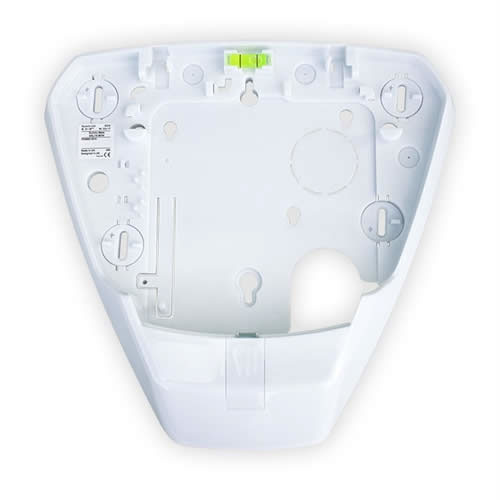

Deltabell White Dummy Base
FPDELTA-BDW

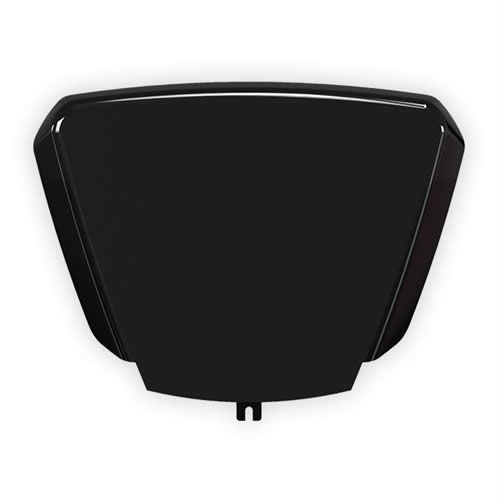

Black Deltabell Cover
FPDELTA-CBK

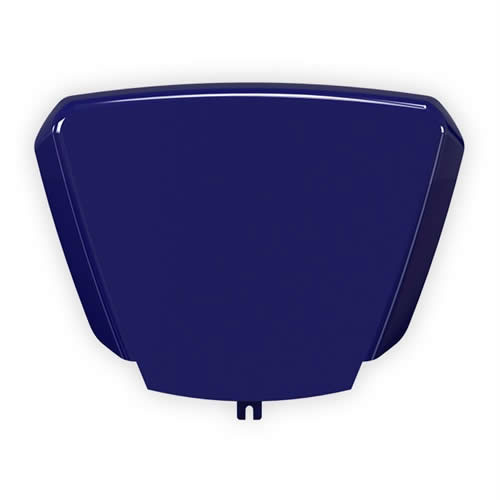

Blue Deltabell Cover
FPDELTA-CB

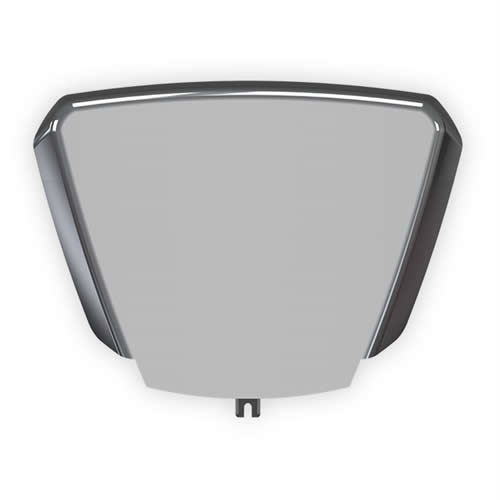

Chrome Deltabell Cover
FPDELTA-CC
Red Deltabell Cover
FPDELTA-CR

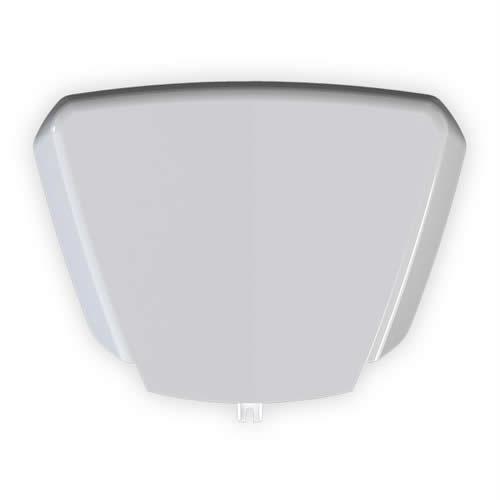

White Deltabell Cover
FPDELTA-CW

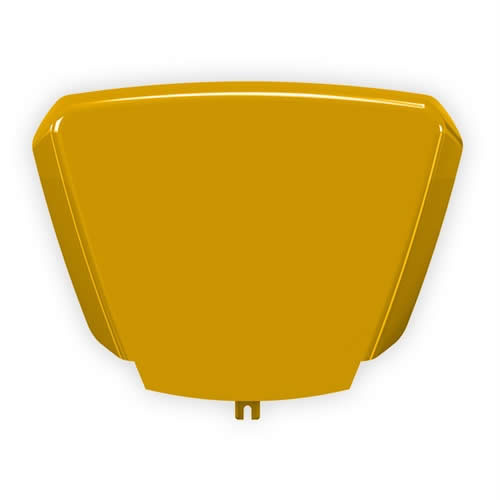

Yellow Deltabell Cover
FPDELTA-CY
