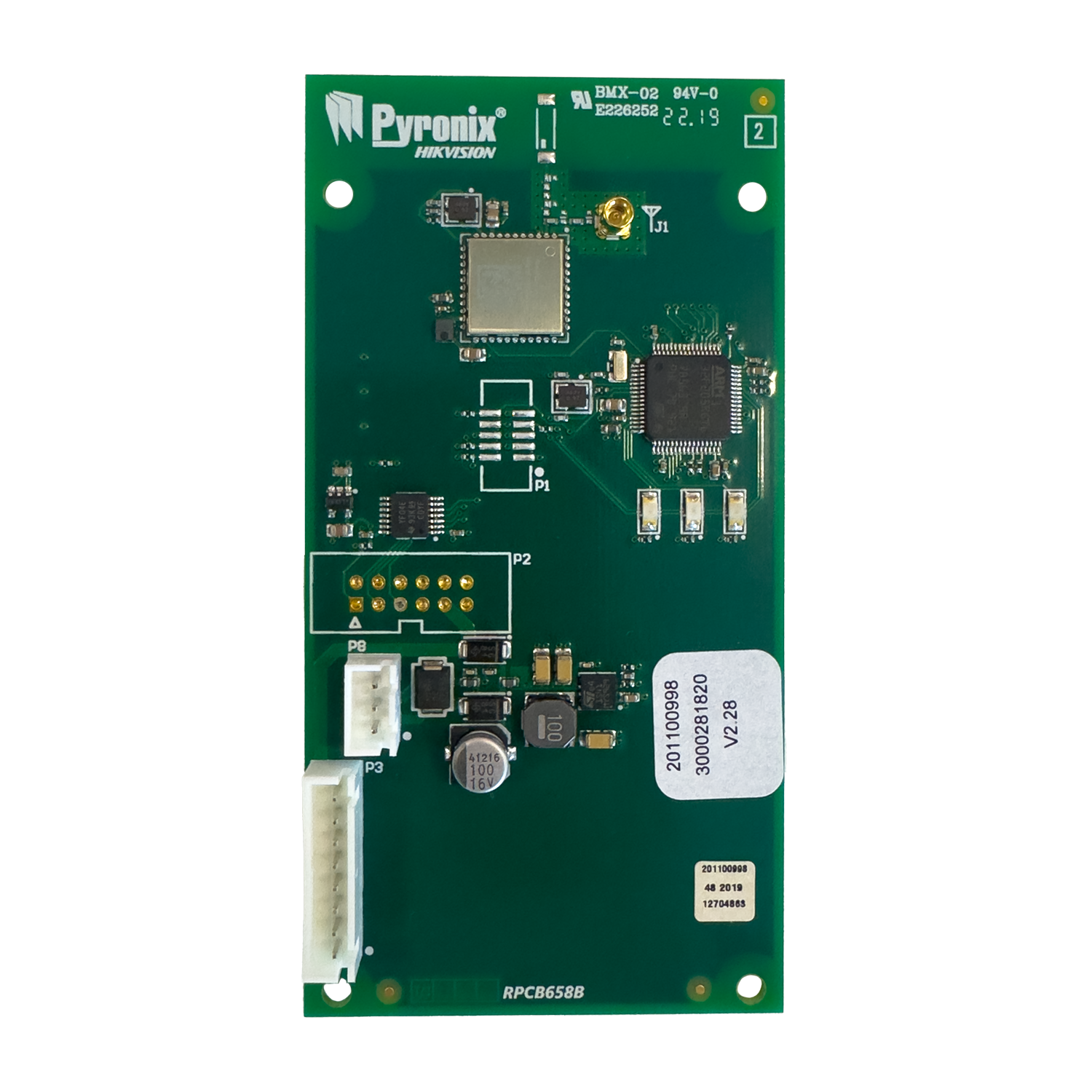

DIGI-WIFI/XA

Product Features
  • WiFi Network communication module for the Pyronix IP control panels

  • Uses existing broadband

  • Communicates via the PyronixCloud, so no complicated port forwarding setup is required

  • Low cost installation with no additional costs other than the existing broadband connection

  • Send push notifications directly to the user’s smartphone via the HomeControl+ App

  • Easy setup by DHCP or manual IP configuration

  • Fully secure IP connection

  • Compatible with InSite programming software

  • Supplied with an antenna (1m cable)

Fast, efficient & cost-effective communication

The DIGI-WIFI/XA is a single path communicator that enables remote control of the system via the HomeControl+ App and PyronixCloud platforms, as well as InSite UDL software and Alarm Receiving Centre (ARC) connection. As the DIGI-WIFI/XA connects directly to the property’s existing internet via Wi-Fi into the router, there is no need to worry about additional data usage, monthly contracts or keeping it topped up.

Benefits:

• Uses existing broadband.
• Communicates via the PyronixCloud, so no complicated port forwarding setup is required.
• Low cost installation with no additional costs other than the existing broadband connection.
• Can send push notifications directly to the user’s smartphone via the HomeControl+ App.
• Easily programmed using automatic or manual settings.
• Fully secure IP connection.
• Compatible with InSite programming software.
• Requires no cable to the panel and does not need mounting near a phone line.
• Supplied with an antenna.

CSL ARC Signalling
Allows alarm messages to be sent to a central Alarm Receiving Centre (ARC) via common protocols Fast Format and SIA.

Communications and modems

Formats

Fast Format IP (UK Only), Contact ID IP, SIA IP, supports upload/downloading

Electrical & battery

Operating voltage

+12VDC

Quiescent current consumption

30mA

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN 50131-1: 2006

Environmental class

II

Warranty2 years

2 years

Product Codes & Options

DIGI-WIFI/XA
DIGI-WIFI/XA
