The Invincibell PLUS features a fully back-lit cover to provide around the clock visual deterrent. A number of engineer friendly features; the unique levelling mechanism and modular components now make simple sounder installation a reality for you.
Activation from front, back, and power supply cut off ensures protection from sabotage attempts. In this situation, the siren will activate independently of the control panel.
An incorporated LDR will turn the Lightbox off automatically during daylight hours.
The cut off timer is defaulted to 15 minutes to meet industry regulations.
Unique levelling mechanism including in-built spirit level and revolving guide holes.
Complete with a backup battery so that even in the event of an intruder sabotage, the bell box will still operate and protect the property.

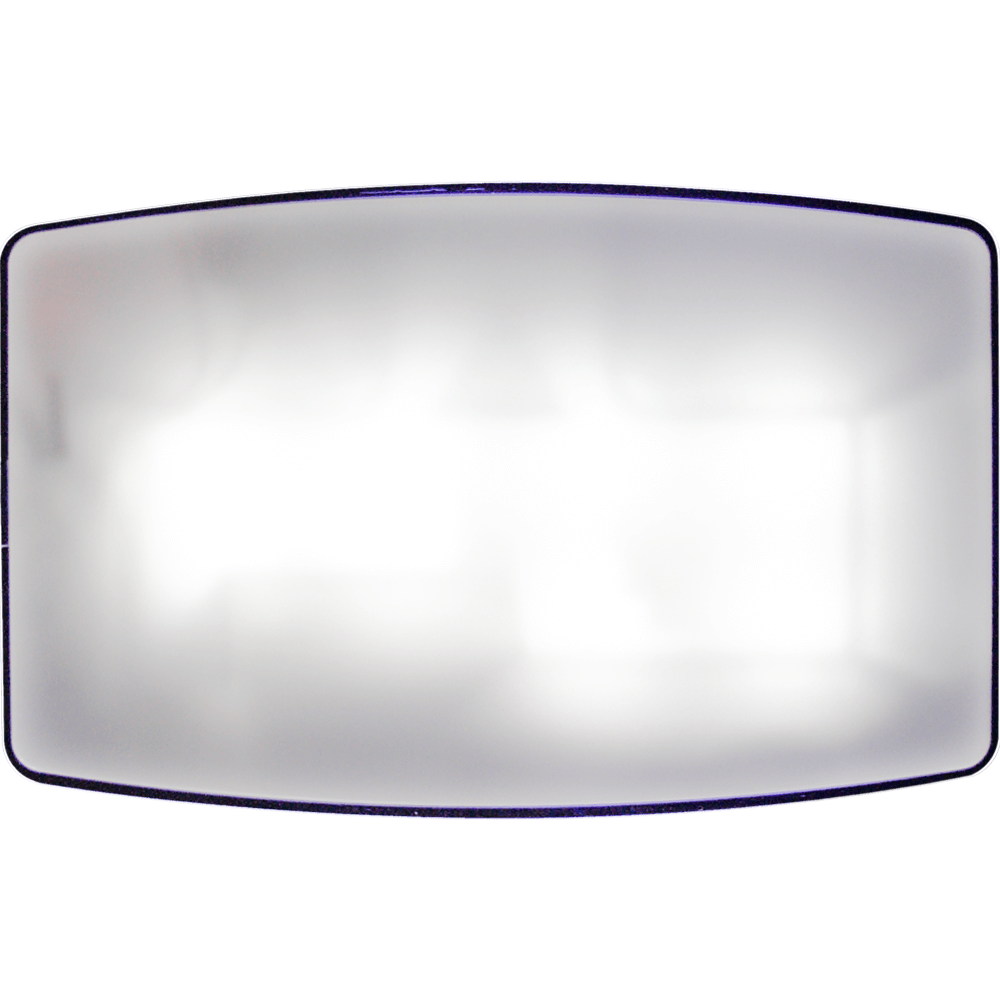

The cover of the Invincibell Plus is backlit during hours of darkness, providing a round the clock visual deterrent.
In addition to the strobe LED’s, the backlight will also strobe when the alarm is activated.
Disables the bell box tamper when the control panel is in the engineers mode.
Loudness |
104 dB(A) |
Sound and strobe indication on alarm |
Yes |
Engineer hold off |
Yes |
Number of Piezos |
1 |
Flashing LED |
Yes |
Comfort LED |
Yes |
Back-lit |
Yes |
Tamper protection |
Yes |
Strobe duration and frequency |
10mS, 1Hz |
Sounder maximum duration |
15 mins |
SCB (self contained bell) / SAB (self activating bell) option |
Yes |
Self levelling |
Yes |
Certified operating temperature |
-25C to 60C |
Nominal operating temperature |
-30C to 60C |
Physical dimensions (H x W x D) |
314.5 x 198.8 x 53.3 mm |
Battery type |
NiMH 7.2V, 250mAh |
Battery life |
2 - 5 years |
Operating voltage |
13.8V dc |
Alarm current |
300mA |
Quiescent current consumption |
<73mA |
Security Grade |
Grade 3 |
Environmental class |
IV |
EN Certificate |
EN50131-4:2009 PD6662:2010 |
Certification type |
Self Certified |
Electrical conformity |
CE |
Warranty |
2 years |
