KX10DP-WE

Product Features
  • 10m pet tolerant detection up to 20kg

  • Secure two-way wireless

  • Dual element pyro-electric sensor

  • Blue Wave Technology

  • Digital temperature compensation

  • Sealed optics

  • Signal Strength Indicator (SSI)

  • One Push to Learn Button

  • 868MHz transceiver FM technology

  • Pyronix High Security Wireless Protocol Encryption

  • Complies with EN50131-1

The ideal detector for homes with pets

With two-way wireless technology this pet tolerant detector is the ideal choice if you have dogs or cats but still want extra peace of mind that your home is protected. Using the KX intelligent sensor technology, the KX10DP-WE can identify the difference between your prized pet and an intruder.

Easy installation and arm/disarm options

Being wireless there is minimal disruption on installation and with a choice of using keyfob, proximity tag, code or your smartphone or tablet with the HomeControl+ System, arming or disarming your system couldn’t be easier.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Blue Wave Technology

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises several key components:

  • The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
  • Digital temperature compensation digitally adjusts the detectors sensitivity to ensure intruder catch performance is maintained.
  • Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor.

The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

10m Pet Immune detector

The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range.

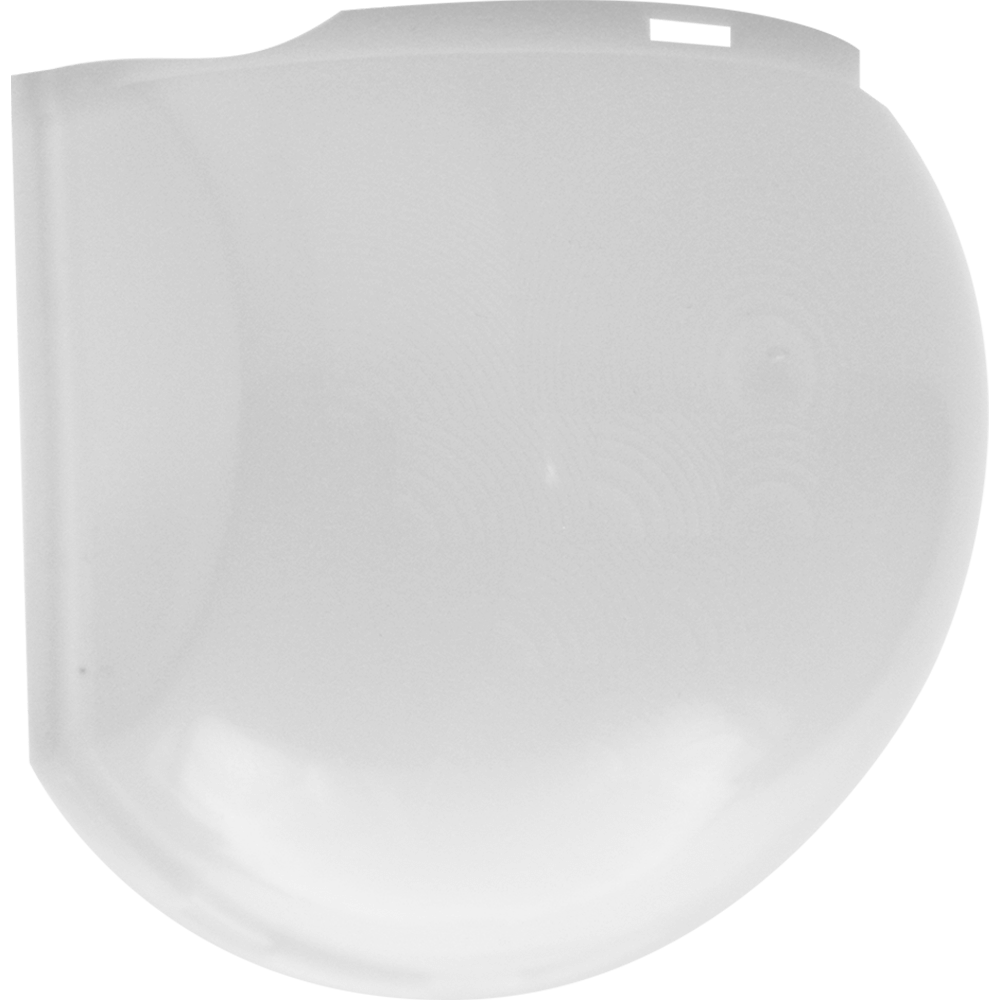

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2010



Detectors technical characteristics

Blue Wave technology

Yes

Automatic sensitivity

Yes

Digital temperature compensation

Yes

Tamper protection

Front and rear

Signal Strength Indicators (SSI)

Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Tranmission method

Fully encrypted rolling code

Transmission range

1.6km in open space

Detectors technical characteristics

Maximum range

10m

Animal immunity

25kg

Detection zones

52

Detection planes

5

Mounting

Optimum coverage height

1.8 - 2.4m

Certified mounting height

1.8 - 2.4m

Environmental and operating features

Storage temperature

-20C to 50C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to 50C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Electrical & battery

Battery type

1 x CR123A

Battery life

up to 2 years

Battery voltage

3.0V

Low battery threshold

2.5V +/- 5% at 25C

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-5-3: 2005 + A1: 2008, EN50130-4: 1995 + A1: 1998 + A2: 2003, EN61000-6-3: 2007

Certification type

IMQ

Certificate number

CA12.01426

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

KX10DP-WE
KX10DP-WE
SAP: 361301133
