KX10DTP-WE

Product Features
  • Pet immunity up to 20kg

  • Enforcer two-way wireless technology

  • SSI (Signal Strength Indicators)

  • Longer battery life with instant two-way device control (ITDC)

  • Highly secure 868MHz transceiver FM technology

  • ABS plastics & sealed optics

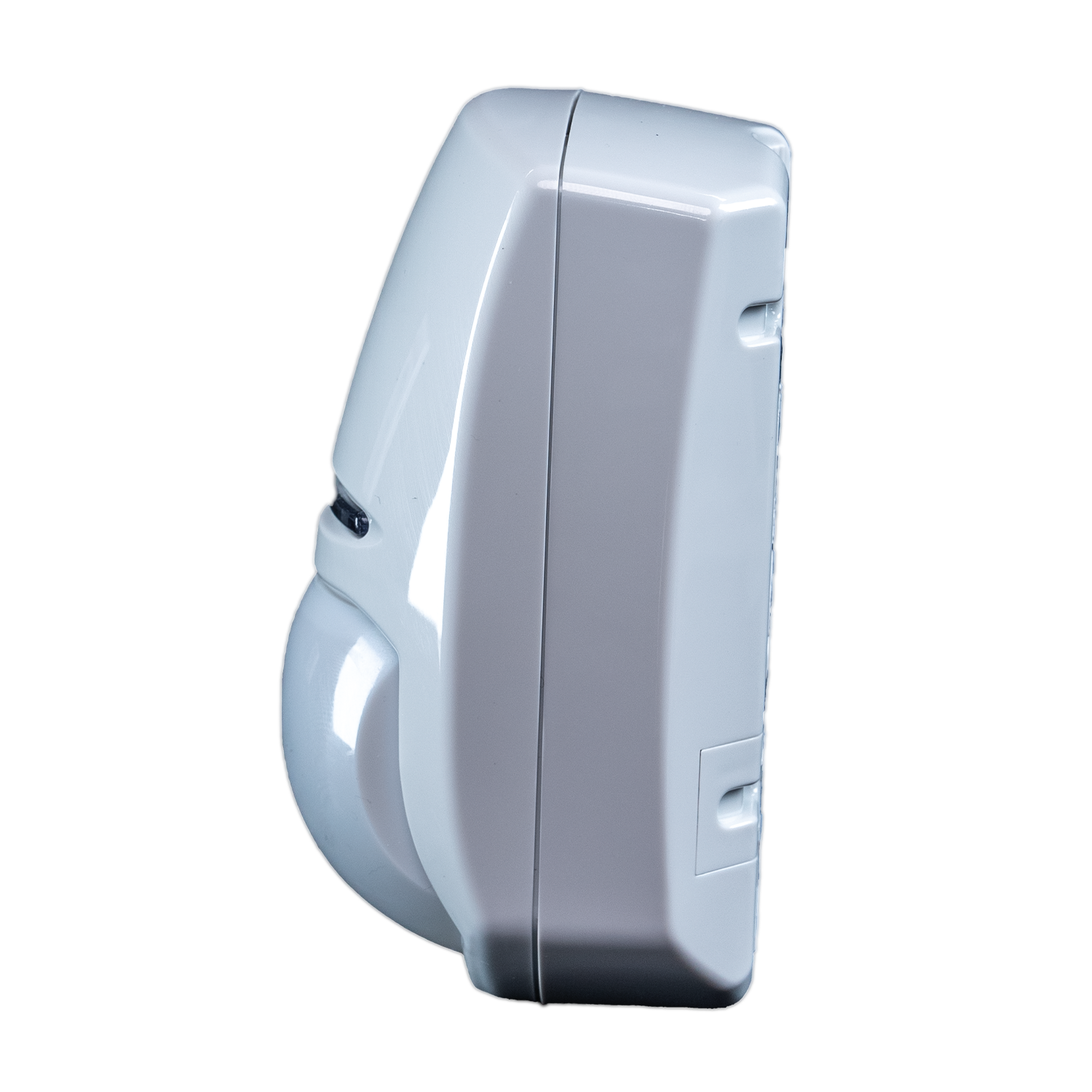

The KX10DTP-WE is a flexible two-way wireless detector that utilises microwave and PIR technology to ensure intruder catch performance is maintained even when the environment is hostile and there are fluctuations in temperature.

The dual technology system needs both sensors inside the KX10DTP-WE to be triggered before the alarm is sounded reducing the risk of false alarms. It is a pet immune detector, meaning that animals less than 20kg can roam around the property without fear of the alarm being triggered.

Two Way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market due to its advanced and innovative features.

Instant two way Device Control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.
– Ensuring that all wireless detection devices know when the system is armed and disarmed.
– Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics 3mm

Polished finish, reduces electrostatic interference on the PIR sensor.

Blue wave technology

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detectors sensitivity to maintain performance in fluctuating environments.
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2010



Detectors technical characteristics

Two-way wireless technology

Yes

Blue Wave technology

Yes

Automatic sensitivity

Yes

Digital temperature compensation

Yes

Tamper protection

Front and rear

Separate LED indication

Microwave, PIR, Alarm

Signal Strength Indicators (SSI)

Yes

3 microwave frequencies to avoid interference

Yes

Detectors technical characteristics

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Tranmission method

Fully encrypted rolling code

Transmission range

1.6km in open space

Detectors technical characteristics

Maximum range

10m

Dual technology

Yes

Animal immunity

25kg

Detection speed

0.3- 3.0m/s

Detection zones

52

Detection planes

5

Mounting

Wall mounted

Optional brackets available

Ceiling mounted

Optional brackets available

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-20C to 50C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to 50C

Physical dimensions (H x W x D)

117 x 69 x 59mm

Electrical & battery

Battery type

2 x 3.0V CR123A

Battery life

Up to 2 years

Battery voltage

3.0V

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-4:2008, EN50131-5-3:2005+A1:2008, PD6662:2010

Certification type

IMQ

Certificate number

CA12.01484

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

KX10DTP1-WE
KX10DTP1-WE
SAP: 361300017
KX10DTP2-WE
KX10DTP2-WE
SAP: 361300018
KX10DTP3-WE
KX10DTP3-WE
SAP: 361301134
