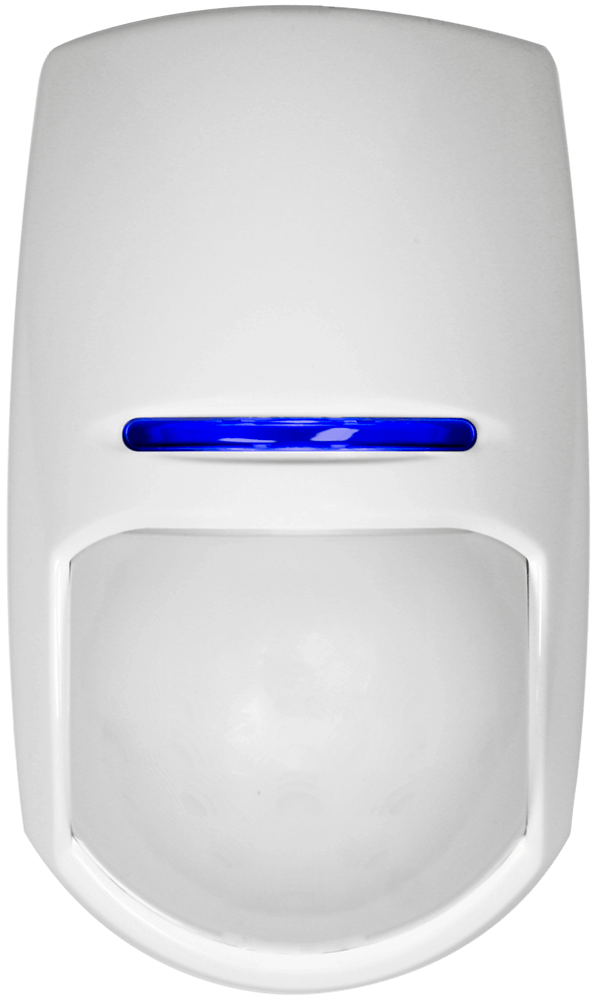

The KX15DC-WE gives curtain PIR coverage of any corridor or long area in front of windows or doors. With 15m digital curtain coverage, the KX15DC-WE is ideal for internal intruder detection.

Key Features
  • Instant Two Way Device Control (ITDC)
  • Signal Strength Indicator (SSI)
  • Digital temperature compensation

Product Features

The KX15DC-WE gives curtain PIR coverage of any corridor or long area in front of windows or doors.

Two-Way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors, is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

ABS plastics 3mm

Polished finish, reduces electrostatic interference on the PIR sensor.

Instant Two Way Device Control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.
– Ensuring that all wireless detection devices know when the system is armed and disarmed.
– Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

Blue wave technology

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detectors sensitivity to maintain performance.
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017


Detectors technical characteristics

Two-way wireless technology


Blue Wave technology


Automatic sensitivity


Digital temperature compensation


Tamper protection

Front and rear

Signal Strength Indicators (SSI)


Enforcer two-way wireless technology

Signal Strength Indicators (SSI)


Instant two way device control (ITDC)


Pyronix high security two way wireless data encryption protocol (TDE)


Pyronix intelligent jamming detection


Programmable wireless supervision time


868MHz transceiver FM technology


One push to learn


Tranmission method

Fully encrypted rolling code

Transmission range

300m in open space

Detectors technical characteristics

Maximum range


Curtain coverage


Detection speed

0.3- 3.0m/s

Coverage angle

20 degree

Detection zones


Detection planes



Wall mounted

Optional bracket available

Ceiling mounted

Optional bracket available

Optimum coverage height

2.4m or 4m

Environmental and operating features

Storage temperature

-20C to 50C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to 50C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Electrical & battery

Battery type

1 x CR123A

Battery life

up to 2 years

Battery voltage


Low battery threshold

2.5V +/- 5% at 25C

Certifications and warranty

Security Grade

Grade 2

Environmental class


EN Certificate

EN50131-2-2:2008, EN50131-5-3:2005+A1:2008, PD6662:2017

Certification type


Certificate number


Electrical conformity



2 years

Product Codes & Options

SAP: 361301138
