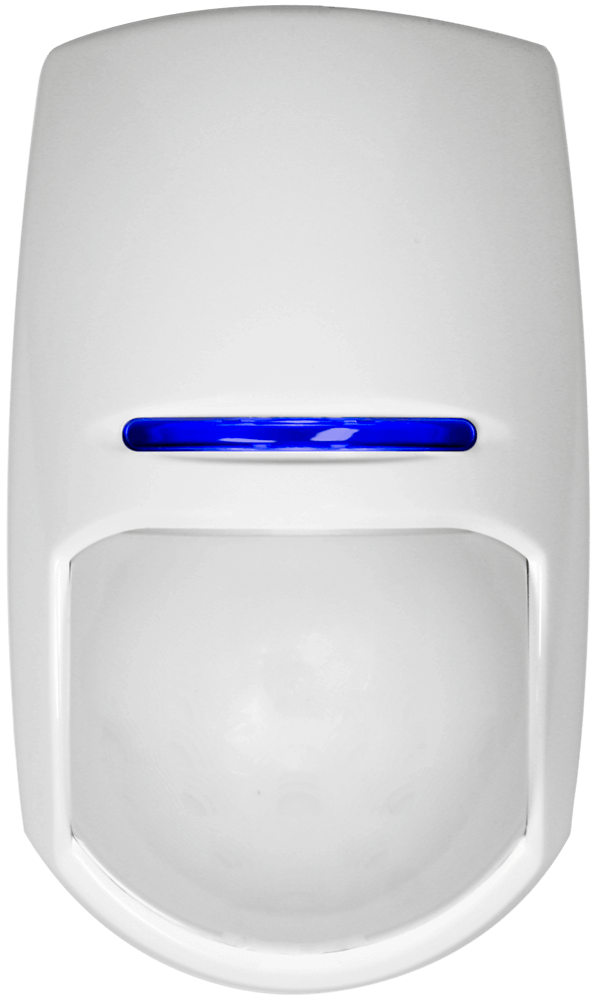

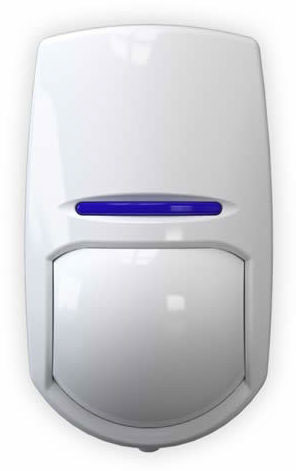

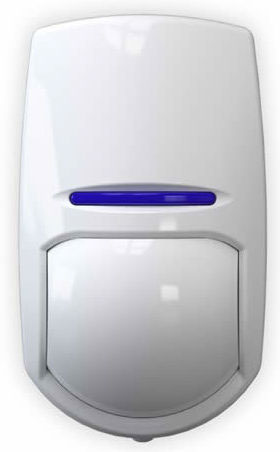

KX15DQ

Description

The KX15DQ is a dual element pyro-electric sensor that ensures accurate and reliable detection while reducing false alarms. The KX15DQ automatically adjusts to environmental changes, making it suited for diverse environments and security needs.

Key Features
  • 15m volumetric coverage
  • Auto sensitivity feature
  • Digital temperature compensation

Product Features

With Blue Wave Technology, and digital temperature compensation the KX15DQ will automatically recognise any environmental changes and adjust accordingly.

15m Volumetric detector

15m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Selectable EOL resistors

The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Blue Wave Technology (BWT)

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Auto Sensitivity Feature

Depending on the environment condition, the detector will automatically adjust the sensitivity.

Digital Temperature Compensation

When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC).

Tamper proof brackets

Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

EN50131-2-2:2008 | EN50130-4:2011 | EN50130-5:2011 | PD6662:2017



Detectors technical characteristics

Blue Wave technology

Yes

Automatic sensitivity

Yes

Set sensitivity

Auto, High or Low

Digital temperature compensation

Yes

Optical quad

Yes

DEOL resistor on board

Yes

Tamper protection

Front and rear

Optical, lens and detection characteristics

Maximum range

15m

Detection speed

0.3- 3.0m/s

Coverage angle

85 degree

Detection zones

60

Detection planes

7

Protection of area under the detector (creep zone)

Yes

White light filter

6500 Lux

Protection

3 dimensional

Lens

Ultraviolet light filter

Optics

Sealed optics

Detection method

Digital Quad signal processing

Mounting

Wall mounted

Bracket included

Ceiling mounted

Bracket included

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to 80C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-30C to 70C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Weight

125g without bracket

Electrical & battery

Operating voltage

9-16V DC 13.8V DC typical

Quiescent current consumption

13mA @ 12V (Min), 16mA @ 12V (Max)

Contact Resistance

<10 ohms

Relay outputs

50mA 60 VDC, 42 VAC (RMS)

Tamper switch

12V 50mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-2:2008, EN50131-1, PD6662:2017

Certification type

IMQ

Certificate number

CA12.1172

Electrical conformity

CE

Warranty

5 years

Product Codes & Options

KX15DQ
FPKX15DQ
SAP: 361300084
KX15DQ - Configured (UK only)
FPKX15DQC
SAP: 361301086
