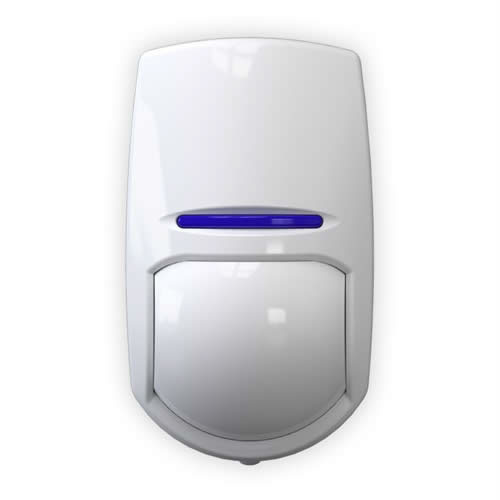

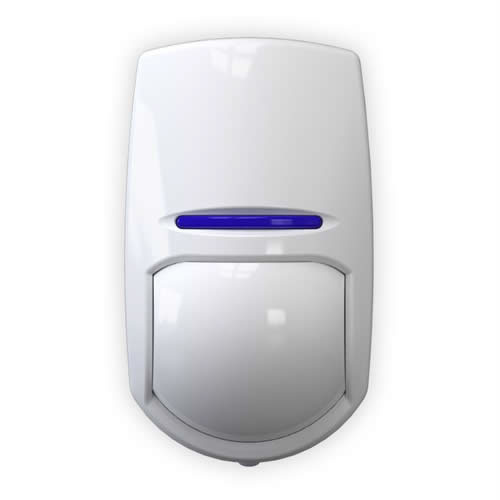

KX15DT

Product Features
  • Dual technology detector using PIR and Microwave sensors

  • Selectable EOL (End Of Line) resistors

  • AND/OR technology

  • Patented Independent Floating Thresholds (IFT)

  • Blue Wave Technology

  • Auto sensitivity feature and digital temperature compensation

  • Triple LED indication

  • Different frequency options avoiding microwave crosstalk

  • Sealed optics

  • Tamper proof brackets included

  • Complies with EN50131-1

The KX15DT features Dual element pyro-electric sensor with X-band DRO based microwave both of which need to be triggered to set off the Alarm, this reduces the risk of false alarms.

With Blue Wave Technology (BWT) and digital temperature compensation the detector will adjust its sensitivity, further enhancing the detectors immunity to false alarms and environmental disturbance.

15m Volumetric detector

15m Volumetric detection coverage. Ideal for protection of rooms and offices in commercial environments.

Selectable EOL resistors

The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

AND/OR technology

‘AND’ mode operates as a standard dual technology detector, where both technologies need to active to cause the alarm. ‘OR’ mode will switch the sensors activation of the alarm input to be either the PIR ‘OR’ Microwave. This can be useful in  environments where there is a risk of PIR detection being blocked.

Active self test

If there is no activation after a 5 hour period it will actually self test both the PIR and microwave.

Blue Wave Technology (BWT)

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detectors sensitivity to ensure performance is maintained
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Auto Sensitivity Feature

Depending on the environment condition, the detector will automatically adjust the sensitivity.

Triple LED indication

Microwave – orange, PIR – green, alarm – blue

Microwave Frequencies Bands

3 different frequency bands to avoid interference between detectors are installed in the same room.

Related products & accessories
Detectors & Sensors

EN50131-2-4:2008, EN50131-1, PD6662:2010



Detectors technical characteristics

Blue Wave technology

Yes

Automatic sensitivity

Yes

Set sensitivity

Auto or high

Digital temperature compensation

Yes

DEOL resistor on board

Yes

Tamper protection

Front and rear

Separate LED indication

Microwave, PIR, Alarm

3 microwave frequencies to avoid interference

Yes

Optical, lens and detection characteristics

Maximum range

15m

Volumetric coverage

Yes

Dual technology

Yes

Detection speed

0.3 - 3.0 m/s

Coverage angle

85 degree

Detection zones

74

Detection planes

7

Anticloaking technology

Yes

Protection of area under the detector (creep zone)

Yes

White light filter

6500 Lux

Protection

Ultraviolet light filter

Lens

3 dimensional

Optics

Sealed optics

Detection method

Low noise dual element pyroelectric sensor and Microwave Doppler Sensor

Mounting

Wall mounted

Bracket included

Ceiling mounted

Bracket included

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-30C to +60C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Weight

125g without bracket

Electrical & battery

Operating voltage

9-16V DC 13.8V DC typical

Quiescent current consumption

24mA @ 12V (Min), 30mA @ 12V (Max)

Contact Resistance

<10 ohms

Relay outputs

50mA 60 VDC, 42 VAC (RMS)

Tamper switch

12V 50mA

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-2-4:2008, EN50131-1, PD6662:2010

Certification type

IMQ

Certificate number

CA12.01175

Environmental class

II

Warranty

5 years

Security Grade

Grade 2

Product Codes & Options

KX15DT - 9.90GHz
FPKX15DT1
SAP: 361300075
KX15DT - 10.525GHz
FPKX15DT2
SAP: 361300108
KX15DT - 10.587GHz
FPKX15DT3
SAP: 361301087
KX15DT - 10.587GHz - Configured (UK only)
FPKX15DT3C
SAP: 361301088
