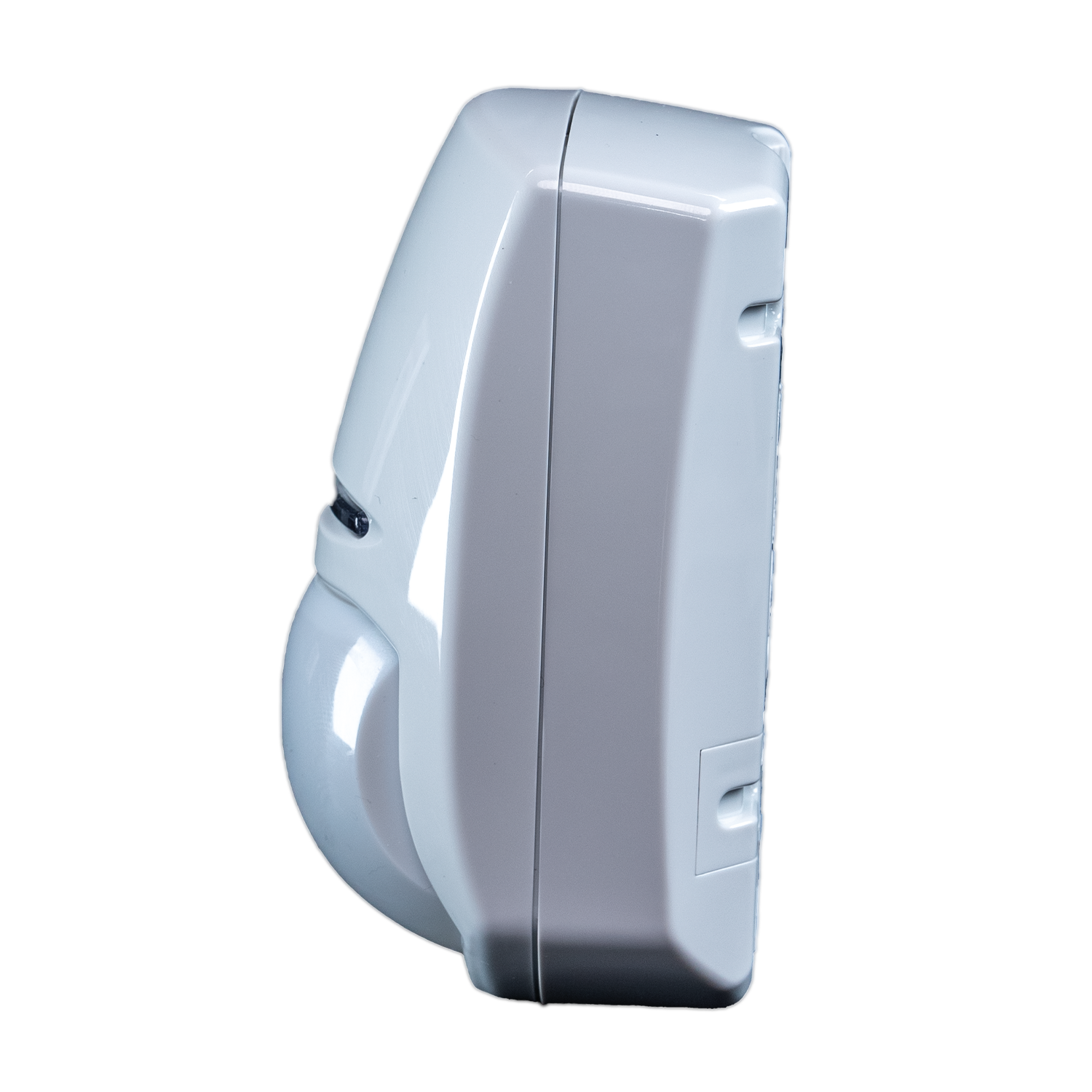

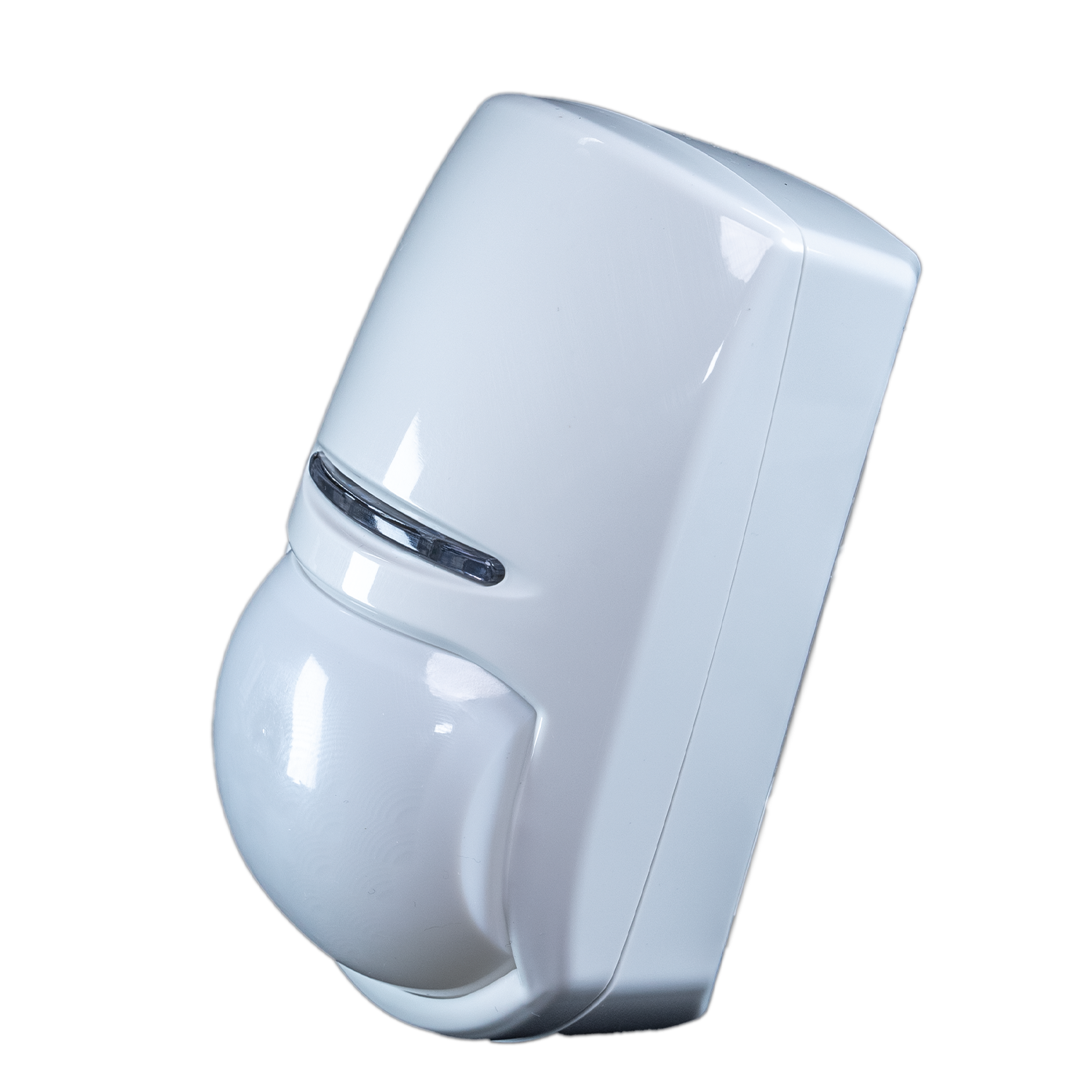

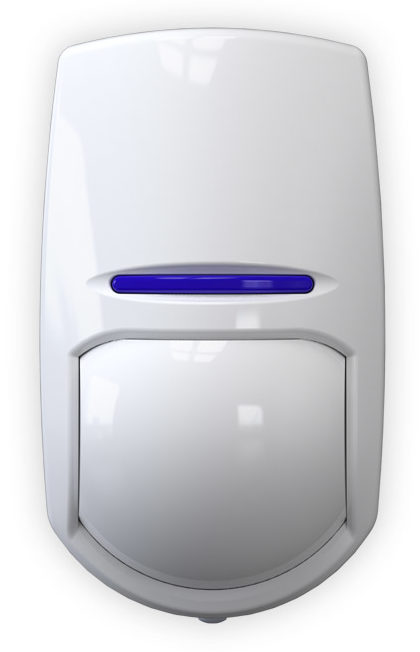

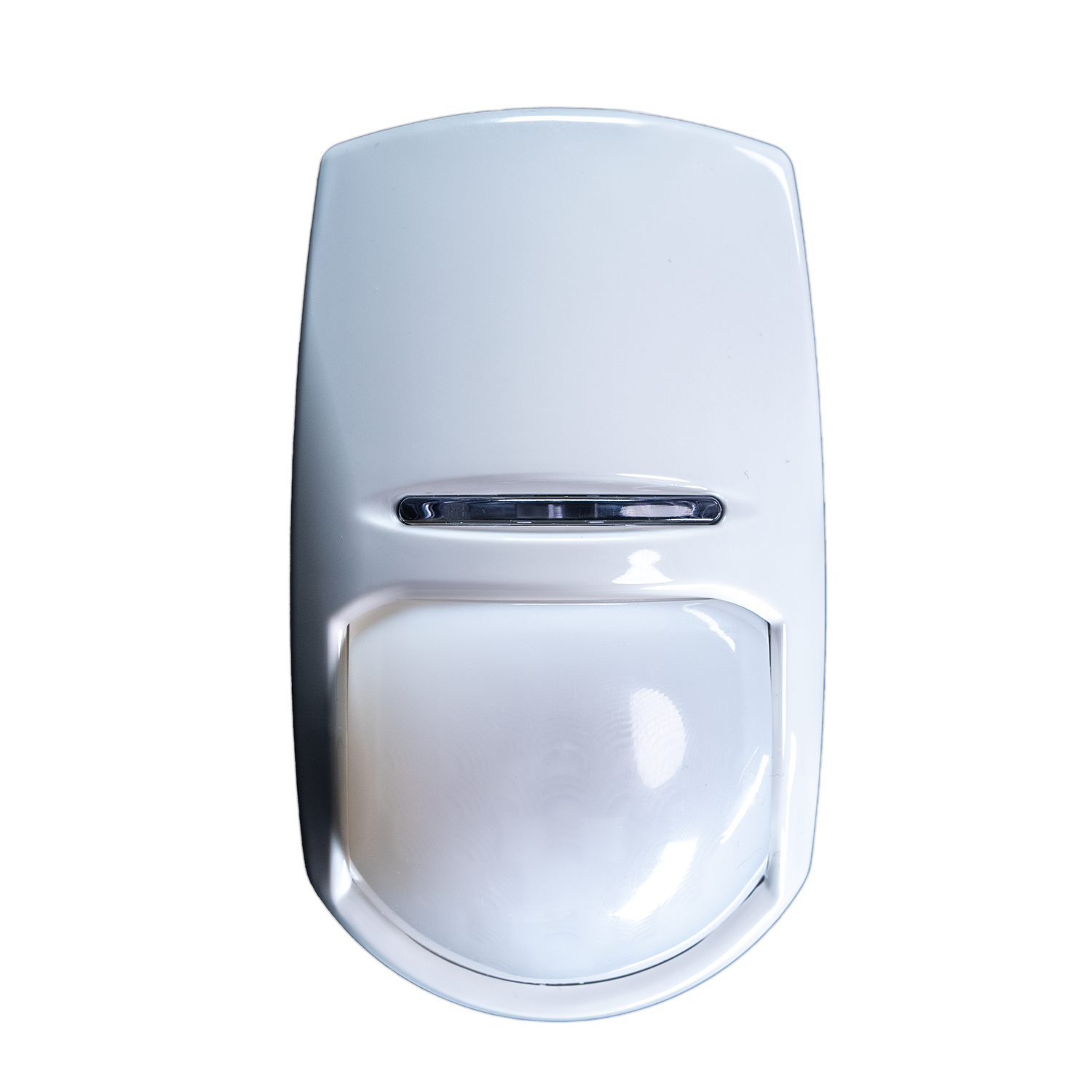

KX25LR-WE

Product Features
  • Long range coverage pattern

  • Selectable sensitivity

  • Blue Wave Technology

  • Digital temperature compensation technology

  • Sealed optics

  • Electrostatic reducing ABS plastic shell, 3mm

  • Signal Strength Indicator

  • 868MHz FM transceiver technology

  • Two-way wireless technology

  • Grade 2 Complies with EN50131-1

Two Way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

Signal Strength Indicator (SSI)

One of the key advantages of implementing the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.ABS plastics 3mm polished finish, reduces electrostatic interference on the PIR sensor.

Blue wave technology

This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detector to ensure performance is maintained.
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017



Detectors technical characteristics

Two-way wireless technology

Yes

Blue Wave technology

Yes

Automatic sensitivity

Yes

Digital temperature compensation

Yes

Tamper protection

Front and rear

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Transmission method

Fully encrypted rolling code

Transmission range

1.6km in open space

Optical, lens and detection characteristics

Maximum range

25m

Long range coverage

Yes

Detection speed

0.3 - 3.0 m/s

Coverage angle

20 degree

Detection zones

24

Detection planes

6

Mounting

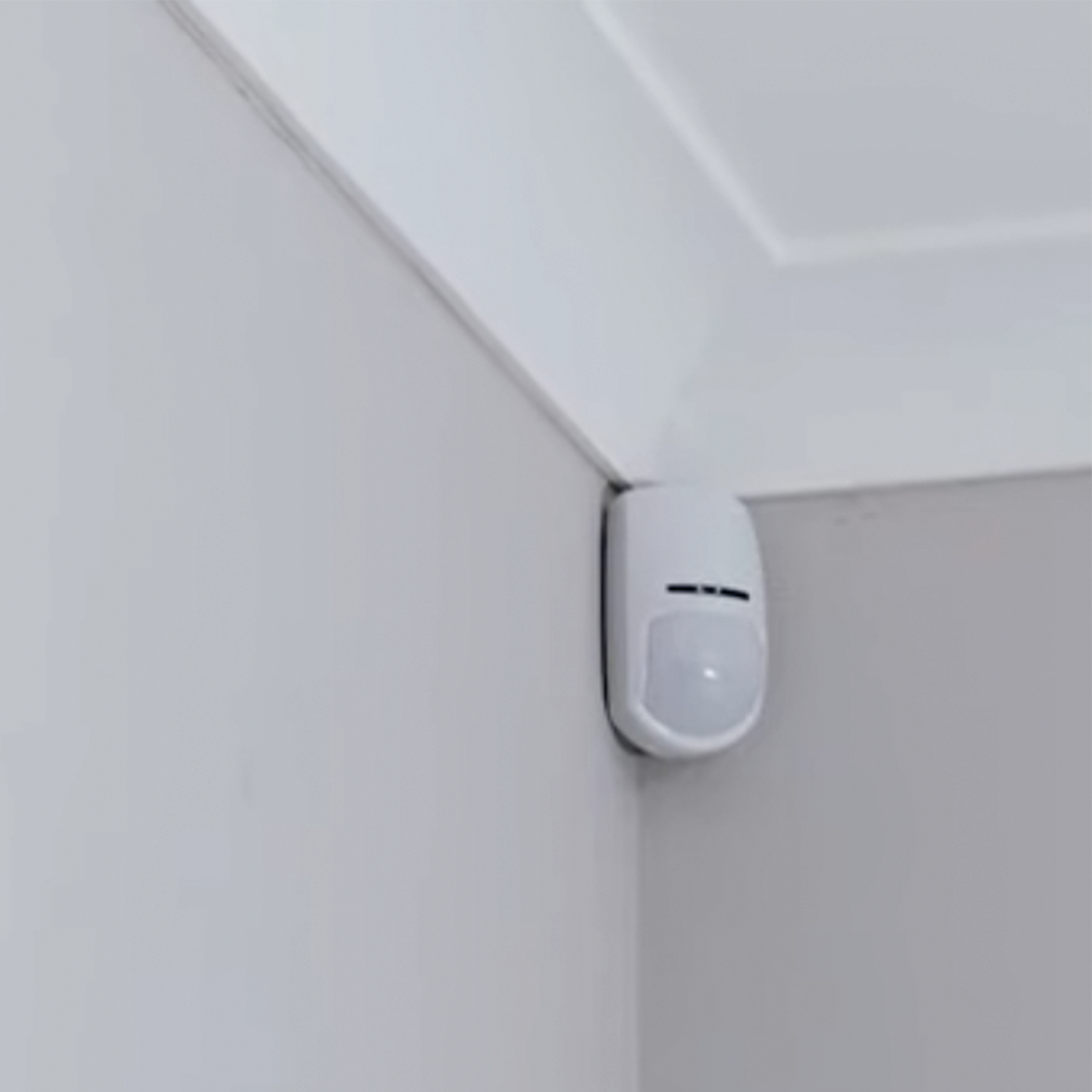

Wall mounted

Optional bracket available

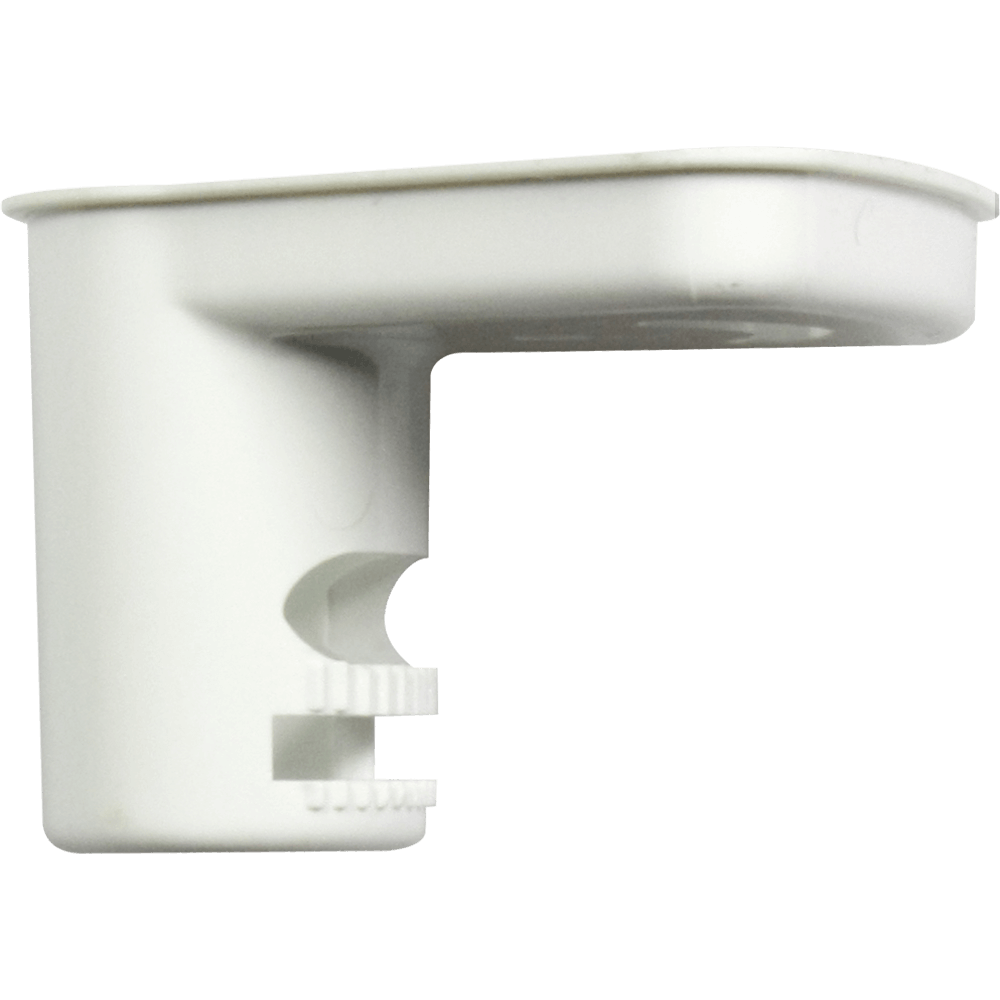

Ceiling mounted

Optional bracket available

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-20C to 50C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to 50C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Electrical & battery

Battery type

1 x CR123A

Battery life

up to 2 years

Battery voltage

3.0V

Low battery threshold

2.5V +/- 5% at 25C

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-2:2008, EN50131-5-3:2005+A1:2008, PD6662:2017

Certification type

IMQ

Certificate number

CA12.0428

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

KX25LR-WE
KX25LR-WE
SAP: 361301139
