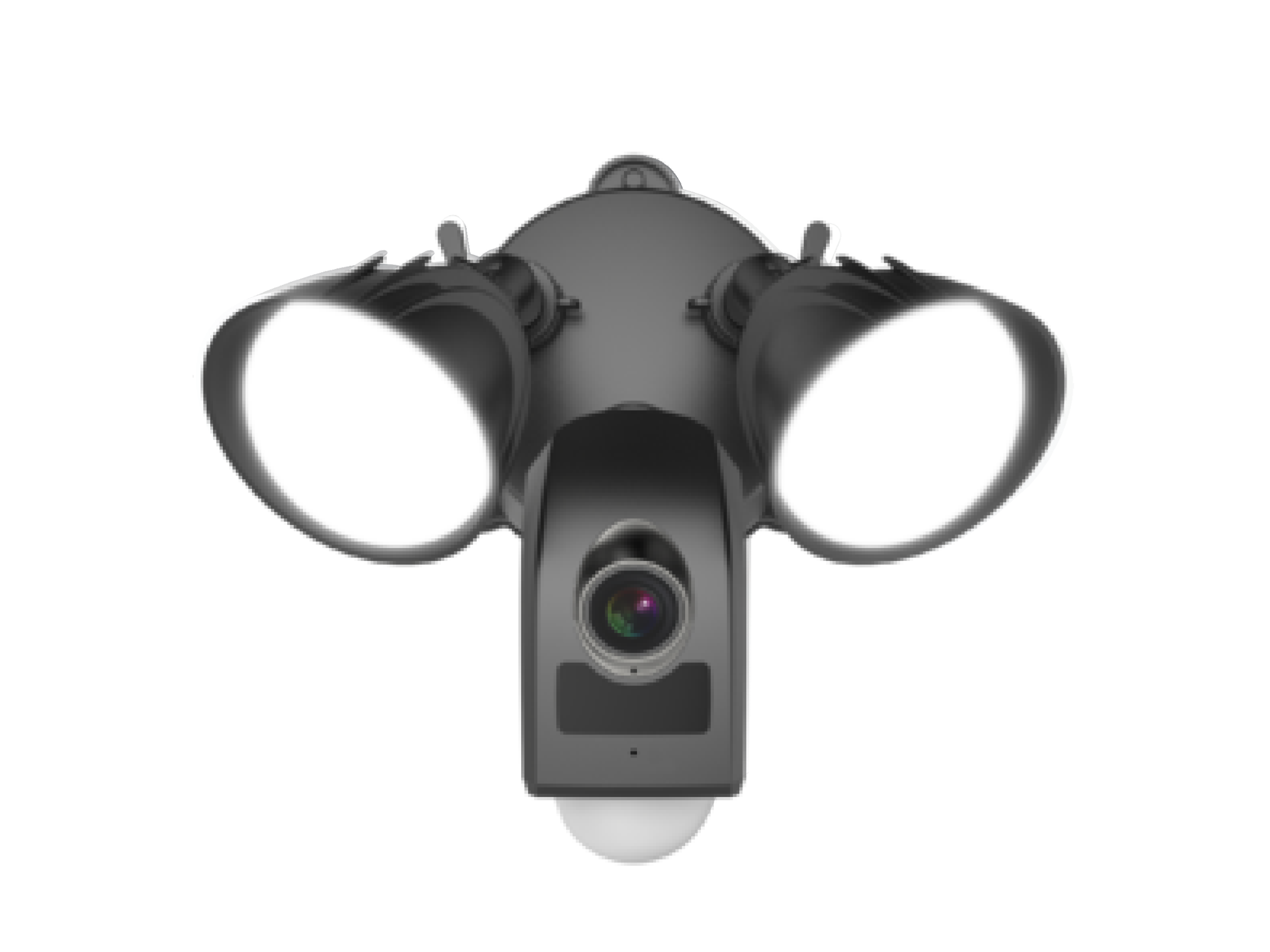

LightCamera
Product Features
-
Link with external detectors for Video Verification
-
Professional Installation required*
-
Two-way speak
-
Built-in siren
-
Flexible installation and configuration
-
Full-HD 1080p video
-
Two bright LED lights (2500 Lumen)
-
Automatic day/night mode
-
Built-in IR light, range up to 18m
-
Wi-Fi compatible
-
IP65 dust and water protection
Video Verification
Link with external detectors through the PyronixCloud for advanced video verification of alarm events direct to the smartphone app. Receive pre and post alarm footage to reduce false activations and act when you need to.
Omnidirectional protection
Fitted with 270 degree PIR sensor, it provides every property with constant omnidirectional protection, whilst 1080p Full-HD video provides clear and crisp images day and night.
Fully customisable active defence
The LightCamera is equipped with customisable detection areas that ensure false alarms are kept to a minimum, as well as adjustable motion sensitivity and custom alarm response for notifications of events.
Real-time HD video on the move
No matter where you are, you can watch live and recorded video from your smart device, as well as control your entire Pyronix security system with the same app.
Dual lights
Equipped with dual lights that activate with the detection of motion, they produce a powerful combined brightness of 2500 lumens to illuminate the area and put any potential intruders in the spotlight.
Up to 18m IR range
The LightCamera utilises invisible IR light via its in-built IR LED to deliver optimum and discreet coverage of outdoor spaces up to 18m, even in complete darkness.
Two-Way Audio
The LightCamera’s built-in speaker and microphone allows you to listen and talk to visitors on the move with the always connected app.
Weatherproof
The LightCamera boasts IP65 weatherproof rating, which means that it is capable of withstanding severe weather conditions. It is dust tight and even protected against projected water.
Micro-SD card compatible
Supports Micro-SD card (Up to 128GB) and local recording. With an 8GB Micro-SD Card, you can achieve around 15.5 hours of continuous recorded footage.
*Professional Installation Required
The LightCamera requires a professional installation and is only sold through professional security distributors. It’s a time efficient up-sell on maintenance or initial installation visits, giving more value to the installer and end user.
Training on Demand Course
View the training video now via Training on Demand. Register as an Installer on PyronixCloud.com and when approved access a wealth of training materials.
Request your own branded LightCamera video!
View our training video now
Camera technical characteristics
Resolution |
1080p |
Field of view |
140° (Diagonal), 115° (Horizontal) |
Max. resolution |
1920 x 1080p (25fps) |
Frame rate |
50Hz @ 25fps, Adaptive frame rate of network transmission |
Video compression |
H.264 |
IR range |
Up to 18m |
Back light compensation (BLC) |
✓ |
DNR |
3D DNR |
Motion detection (by camera) |
✓ |
PIR Sensor parameters
PIR motion detection distance |
✓ |
PIR detection distance |
9m |
PIR detection range |
270° |
Light parameters
Lights |
2 |
LED |
SMD LED |
Brightness |
2500LM (-10%) |
Other technical specifications
Audio input & output |
Built-in omni-direction microphone |
Audio output |
Built-in loudspeaker |
Local storage |
Supports Micro-SD card (Up to 128GB) |
Storage capacity |
Up to 15.5 hours with an 8GB SD Card |
Alarm |
1 alarm input, 1 alarm output |
Siren |
100-decibel alarm |
Network parameters
Wireless |
Wireless 802.11 b/g/n @2.4GHz only (2T2R, Dual-antenna) |
Network configuration |
Soft AP configuration |
Minimum network requirement |
2.0 Mbps |
Environmental and operating features
Operating conditions |
-30°C to +50°C |
Power supply |
Hardwired (110V-240V) |
Power consumption |
≤2W (normal),≤8W (max) |
Dimensions (W x H x D) |
196mm x 211mm x 227mm |
Weight |
1757g |
Certifications and warranty
Electrical conformity |
CE |
Warranty |
1 year |
Product Codes & Options
White option
Light-CAM/wht
SAP: 361301832
Black option
Light-CAM/blk
SAP: 361301833
