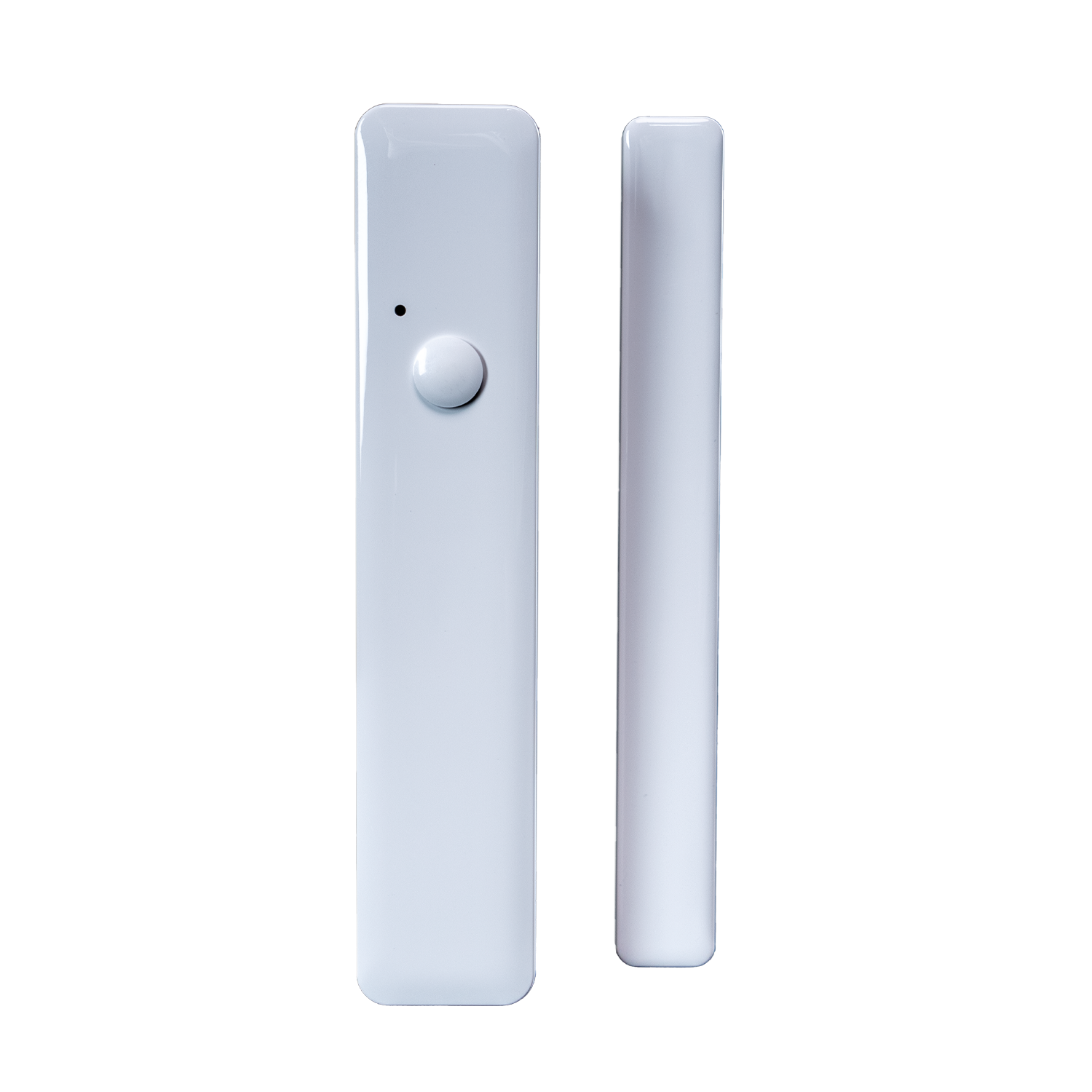

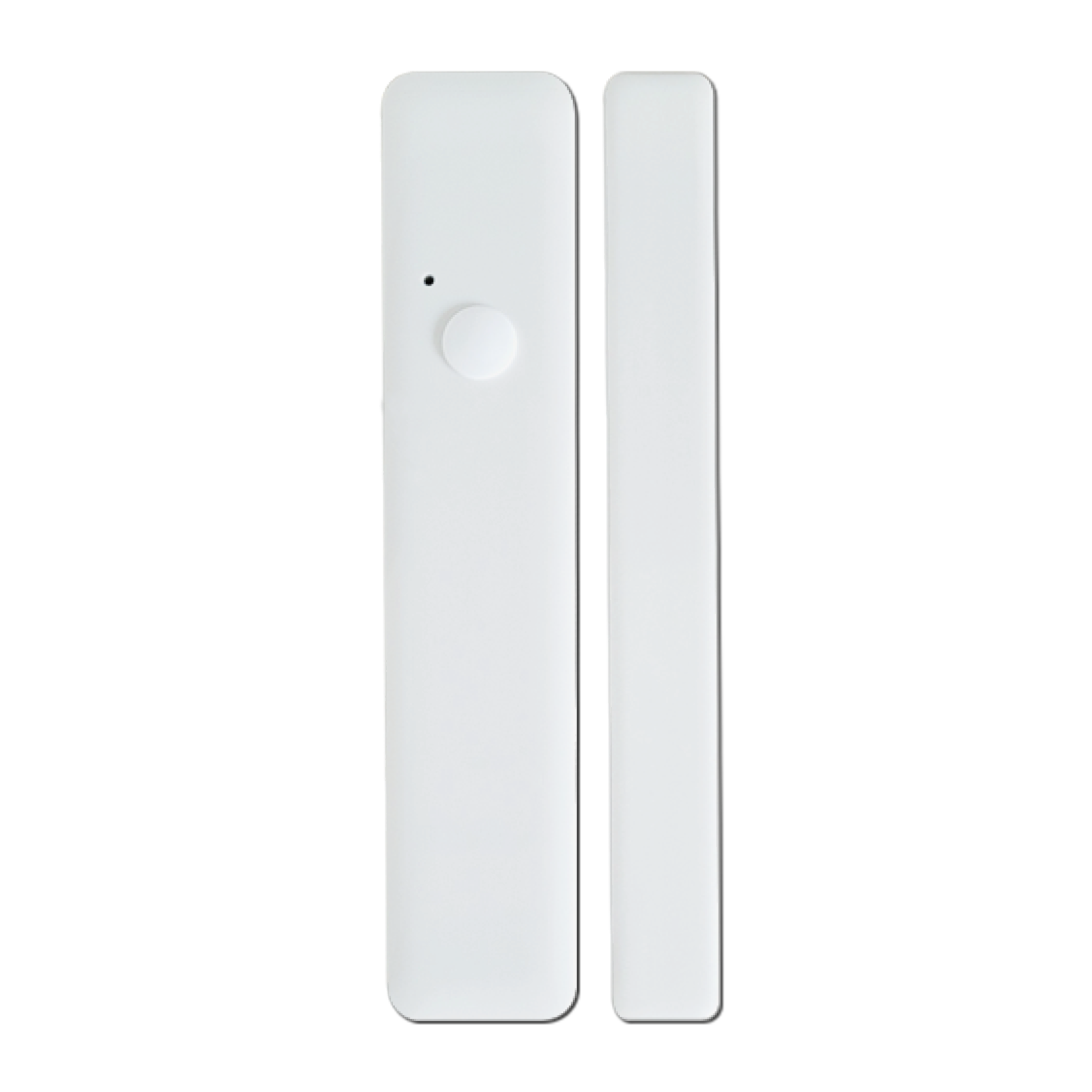

MC1Z1-WE

The wireless contact with zone and tamper inputs

Introducing the Z1Contact; our new, compact wireless magnetic contact with additional zone and tamper inputs for added flexibility.

The easy-to-install Grade 2 device is designed to work with Enforcer or EURO (with a ZEM). Designed for internal use, the MC1Z1-WE is available in white, brown and anthracite for an aesthetically pleasing finish.

Central reed location

The new, central location of the reed optimises installation by removing any chance of mispositioning the magnet.

Universal Transmitter

The device features an additional zone and a tamper terminal for external device connection via double pole wiring, when not using the device as a magnetic contact. The MC1Z1-WE is compatible with any device that has a volt free relay that switches state when the device is triggered or tampered. External devices could include anything from water leak sensor to wired alarm devices, like a wired roller shutter contact or panic alarm buttons.

300m Transmission Range

The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

Two-way Wireless Technology

The MC1Z1-WE features two-way wireless technology, offering a highly secure and reliable wireless system, using 128-bit wireless protocol encryption and advanced jamming detection.

Signal Strength Indicator (SSI)

The MC1Z1-WE can be optimally positioned during installation, without the need to refer back to the panel, using our SSI technology. View the wireless transmission signal strength on both the control panel and wireless devices in real time.
