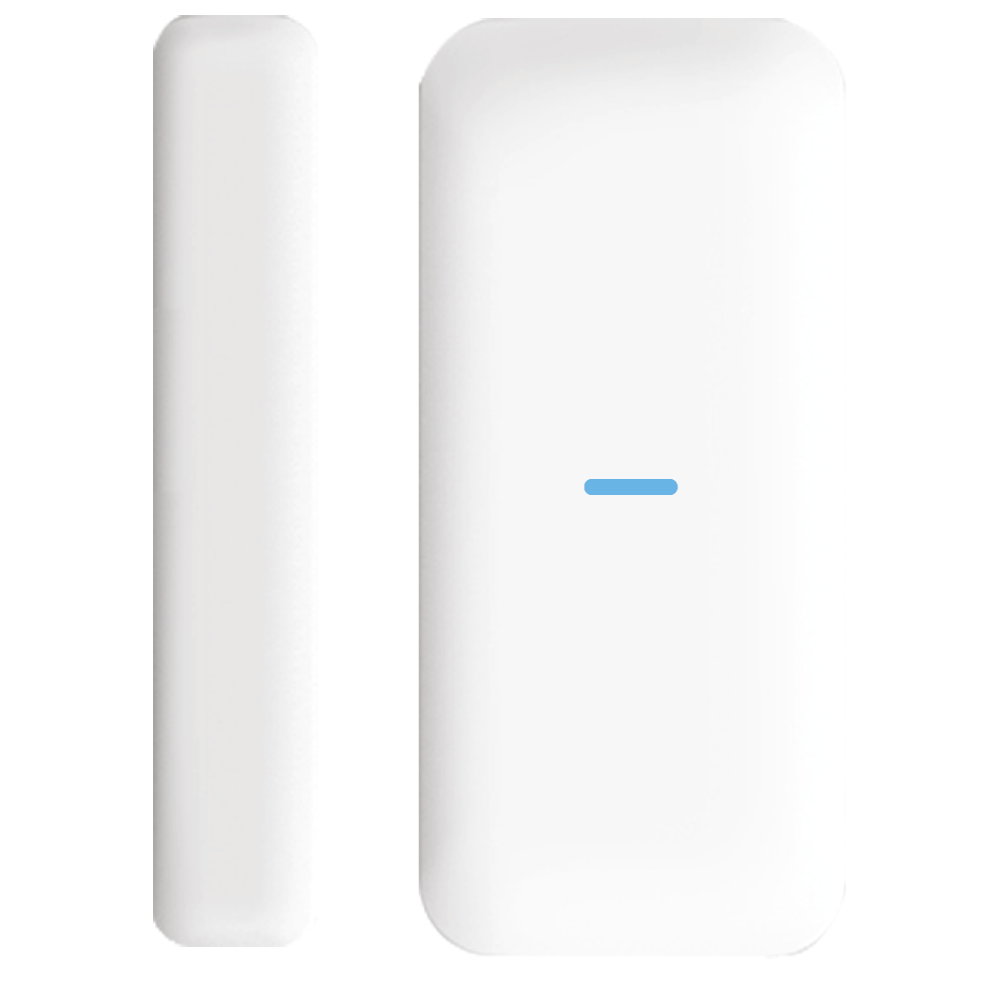

MCNANO-WE

Product Features
  • Smaller size - 66% smaller than MC1MINI-WE

  • Compact and aesthetic design

  • Multiple security use cases

  • No wires, no fuss

  • Two-way Wireless Technology

  • Signal Strength Indicator (SSI)

  • Pyronix High Security Wireless Encryption Protocol

  • One-Push-To-Learn Button

Out of sight, security in mind

The Nano-sized contact delivers exceptional long-life security performance that’s designed to disappear with out-of-sight installation.

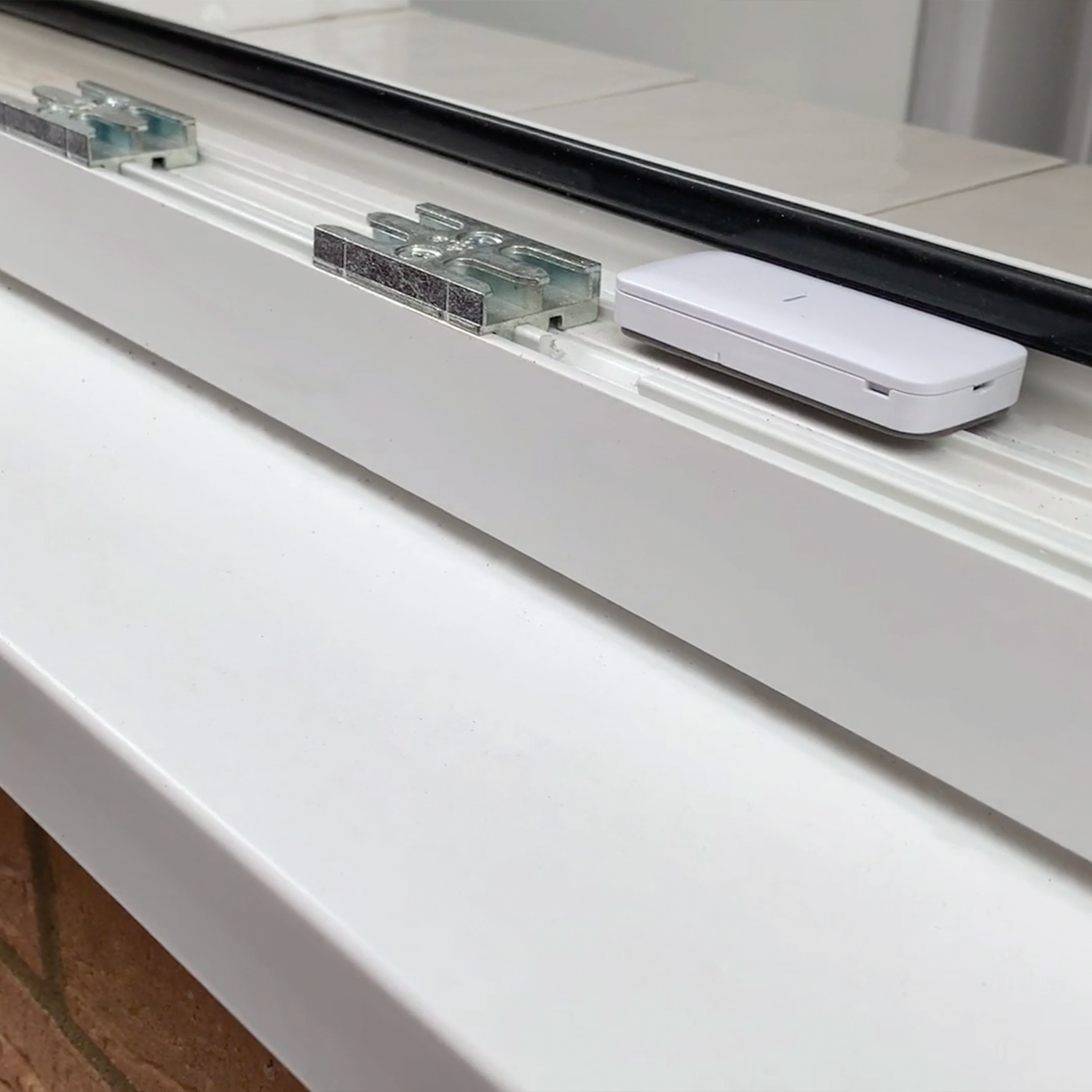

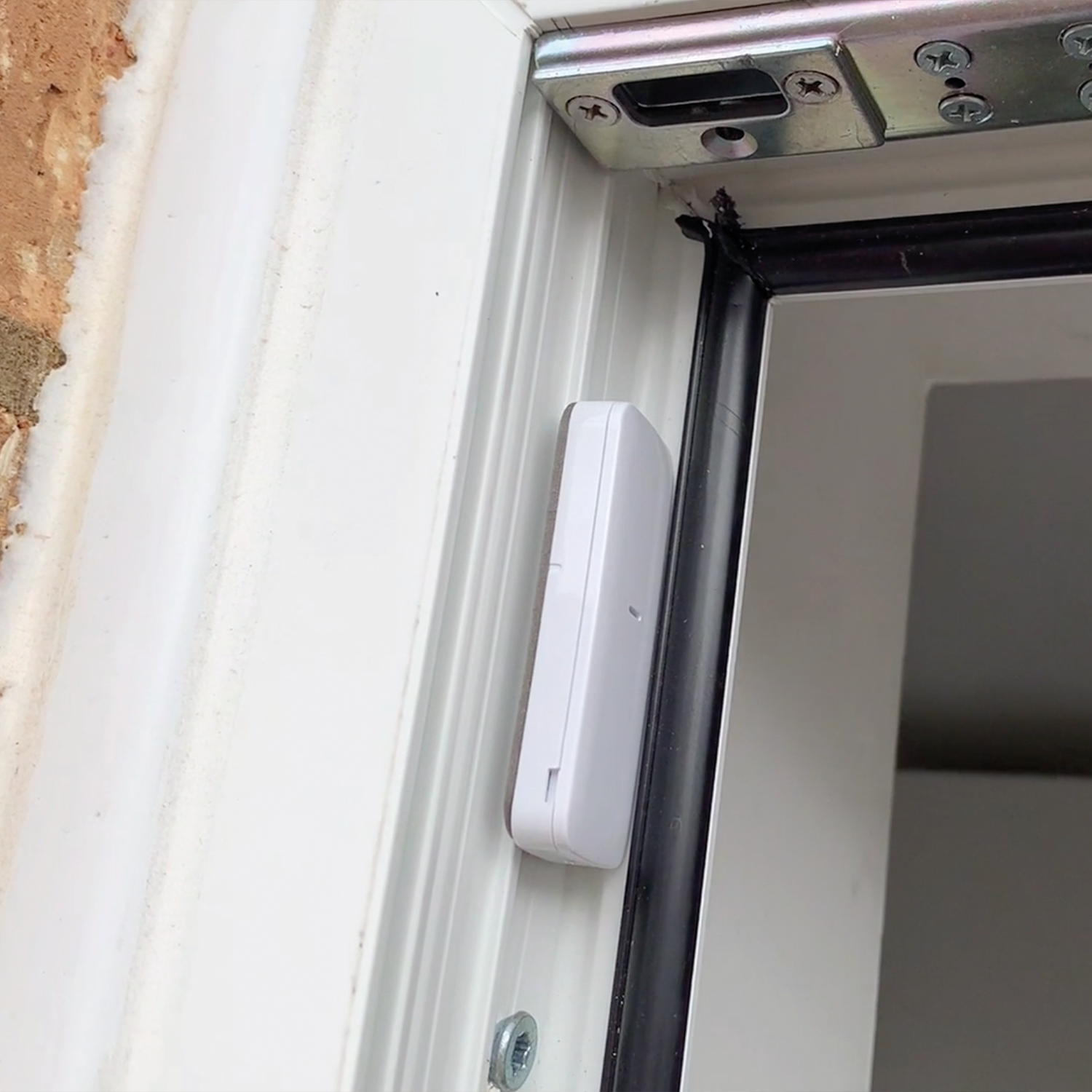

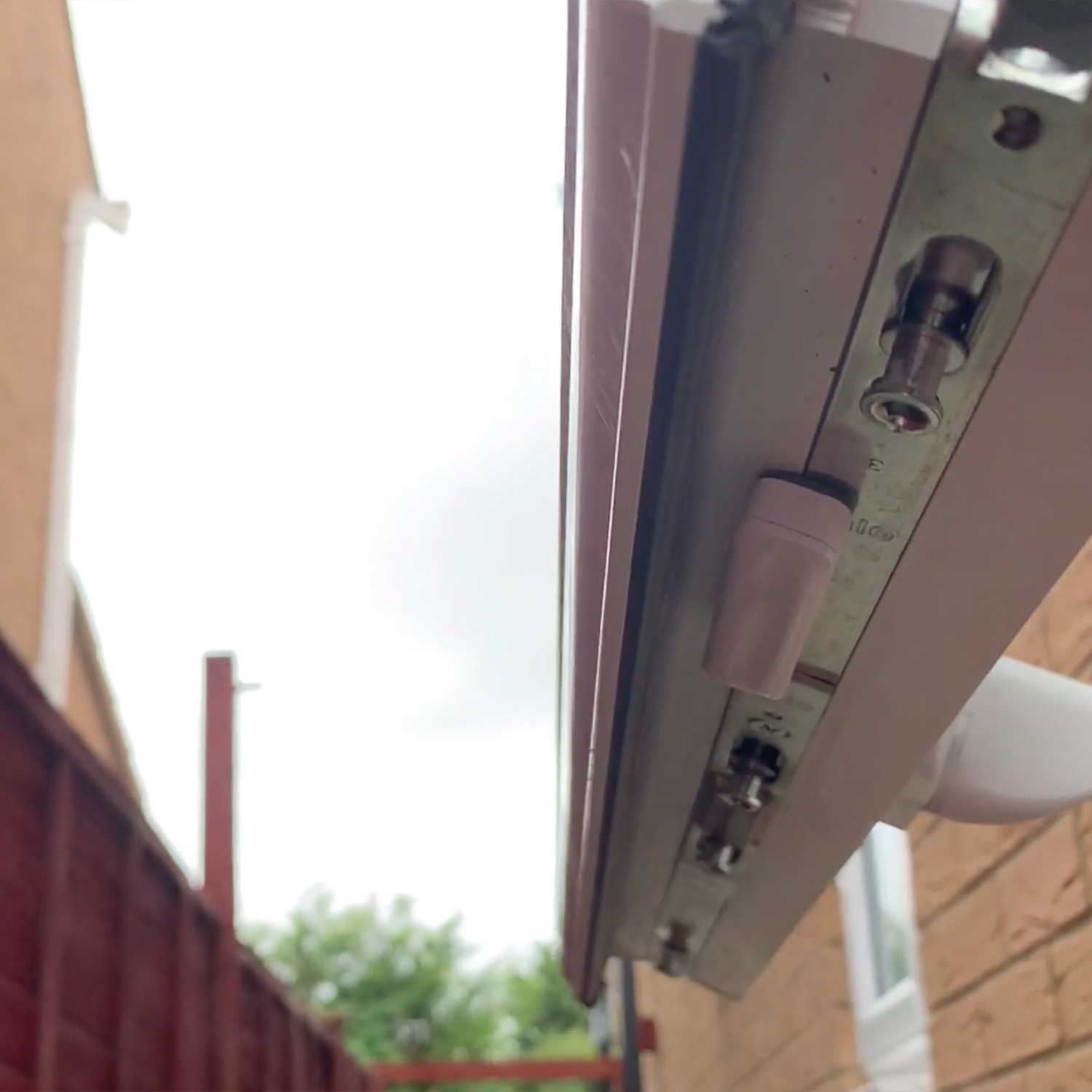

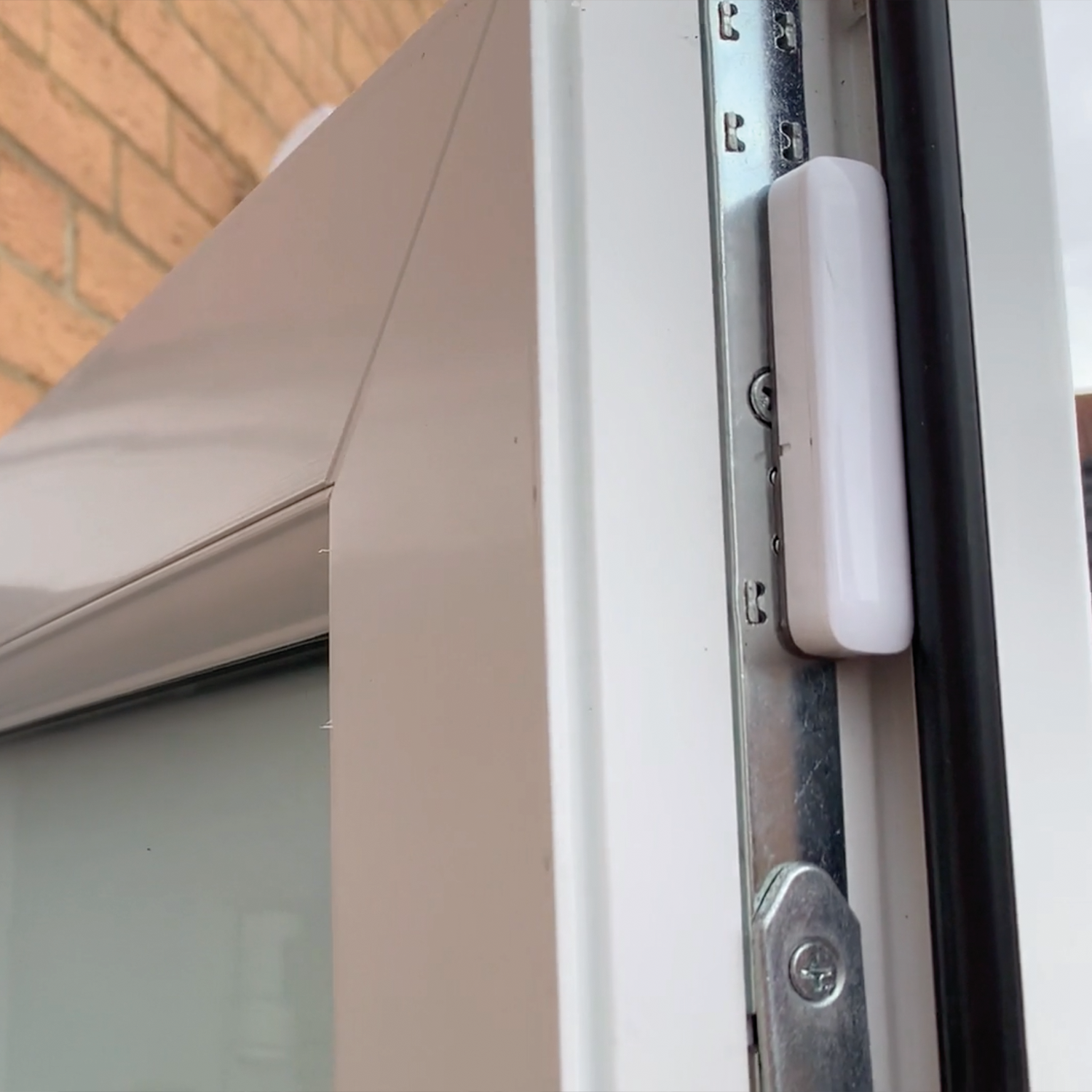

Fitting inside the frame of a uPVC door, the MCNANO-WE is a simple-to-fit and highly convenient solution for any residential or small-commercial installation.

Nano size, giga performance

Don’t let its size deceive you, the MCNANO-WE offers a  superior wireless performance even within uPVC frames, with an outstanding 2-year battery life; providing installation flexibility for any residential or small commercial property.

Fit for (multi)-purpose

The MCNANO-WE can protect entrances and exits, as well as secure multiple use cases, from medicine and cleaning cupboards to rooms, desk drawers and windows. Make every property secure and safe.

Smaller doesn't mean less secure

Providing optimum security that’s almost 66% smaller than the MC1MINI-WE. The MCNANO-WE offers the same level of security protection, in a much more modern and flexible package.

Maximum security, maximum style

Although the MCNANO-WE has been developed to fit out of sight, its aesthetic design gives it a premium and stylish finish that can both blend-in and complement any property.

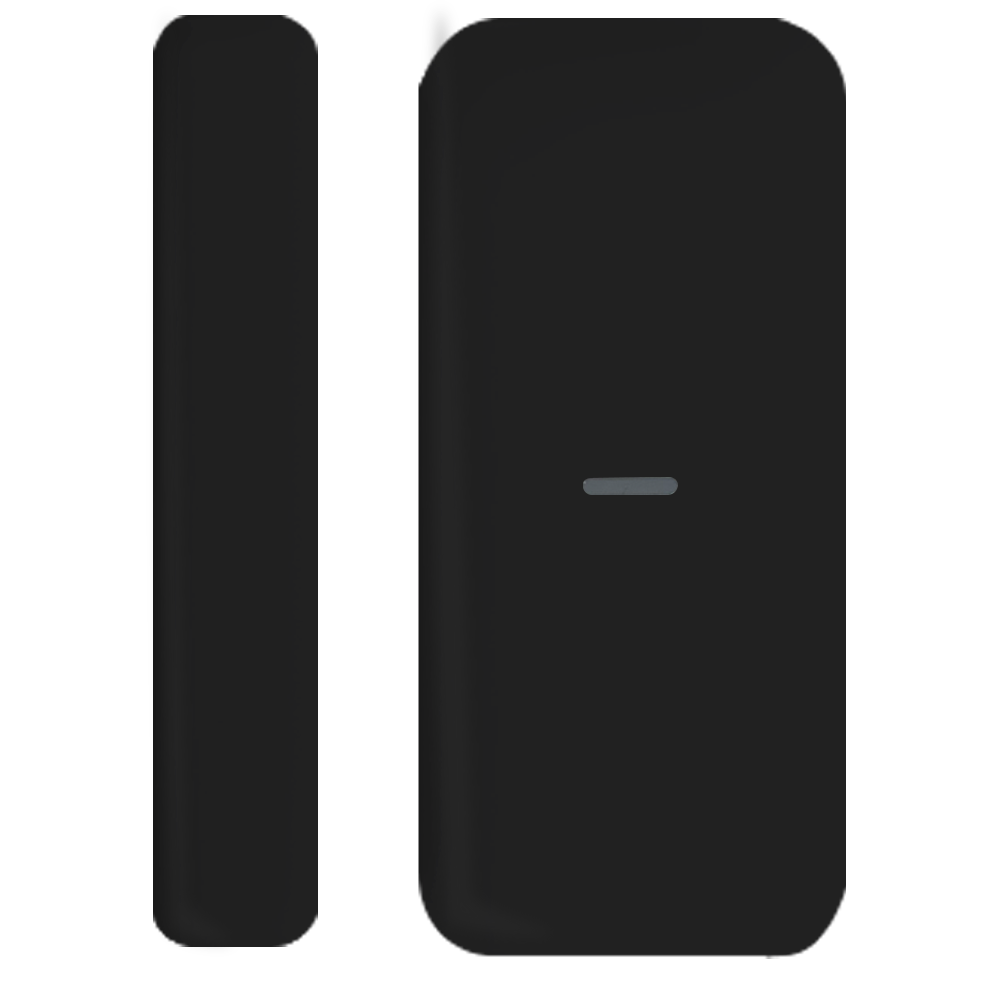

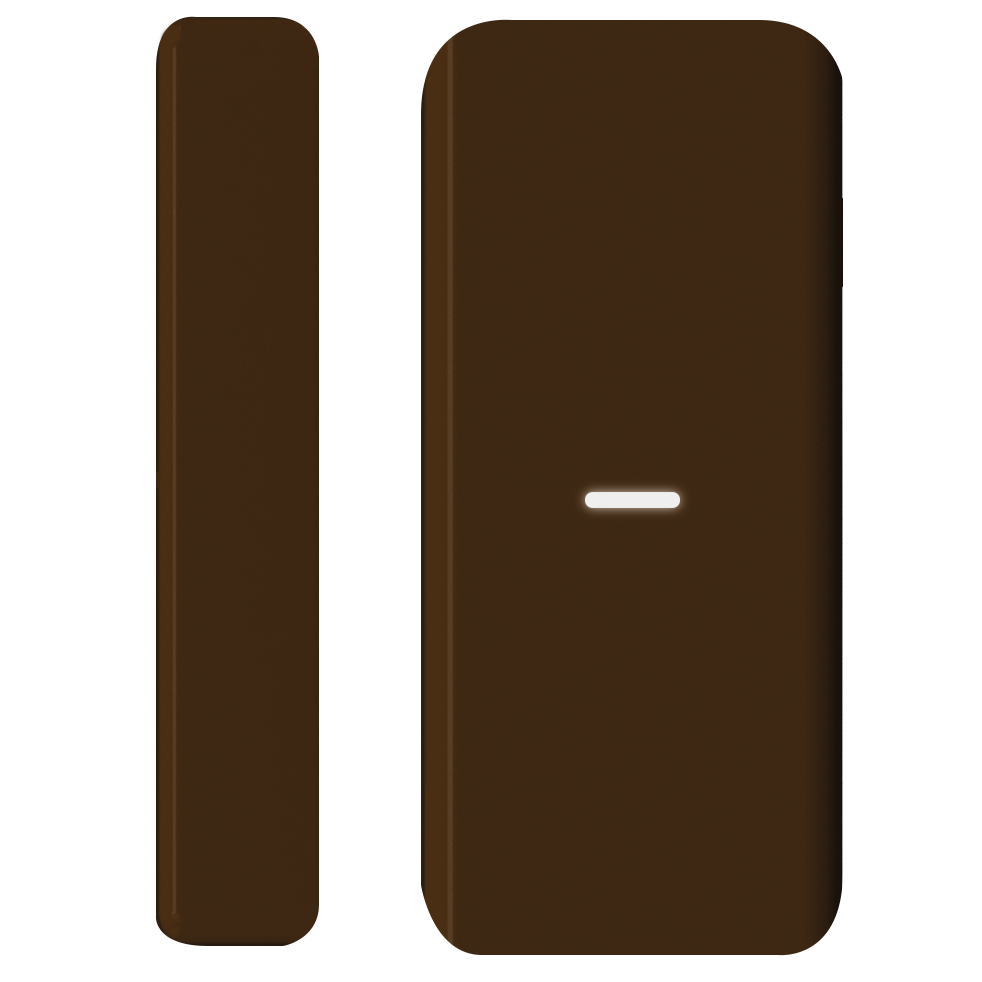

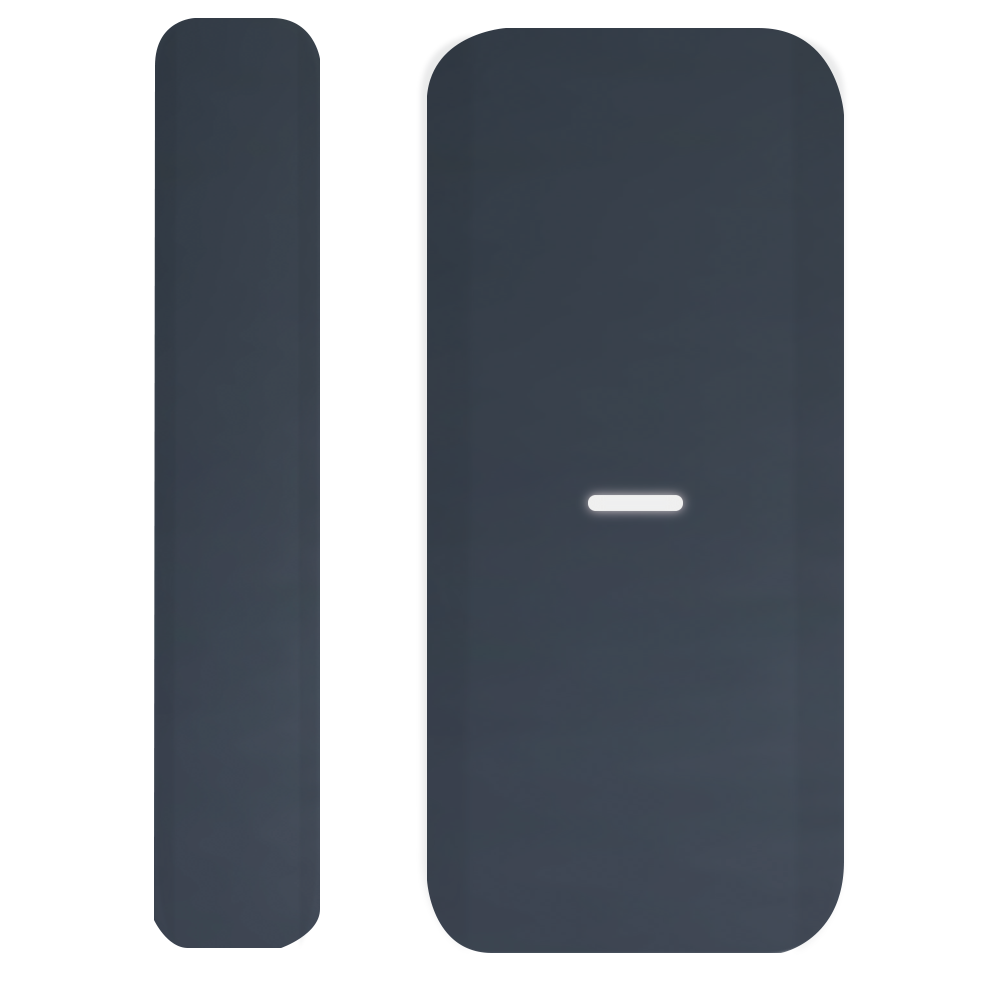

The MCNANO-WE comes in white as standard, but you can switch this up by purchasing plastic kits to turn it brown (MCNANOBR-KIT) or anthracite (MCNANOGR-KIT) to match the installation décor.

One-Push-To-Learn

The Enforcer two-way wireless protocol allows easy learning of all its peripherals – with the push of a button you can add any of the detectors or sensors to Enforcer wireless compatible control panels.

Pyronix High Security Wireless Encryption Protocol

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components are encrypted.

Two-way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

Instant Two-way Device Control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.
– Ensuring that all wireless detection devices know when the system is armed and disarmed.
– Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)

SSI in all Enforcer wireless devices allow them to be optimally positioned during installation, without the need to refer back to the panel.

Security and safety sensors technical characteristics

Magnetic contact

Yes

Tamper protection

Front and rear

LED sensor test

Signal, Alarm

Magnet included

Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One-Push-To-Learn

Yes

Transmission method

Fully encrypted rolling code

Environmental and operating features

Storage temperature

-20ºC to 50ºC

Certified operating temperature

-10ºC to 40ºC

Nominal operating temperature

-10ºC to 50ºC

Physical dimensions (H x W x D)

29 x 69 x 10mm, 21g I 14 x 69 x 10mm, 19g

Electrical & battery

Battery type

CR2450R 3V lithium battery

Battery threshold

2/2V+/-5%

Certifications and warranty

Security Grade

Grade 2

Electrical conformity

CE

Product Codes & Options

Nano magnetic contact
MCNANO-WE
SAP:361301828
