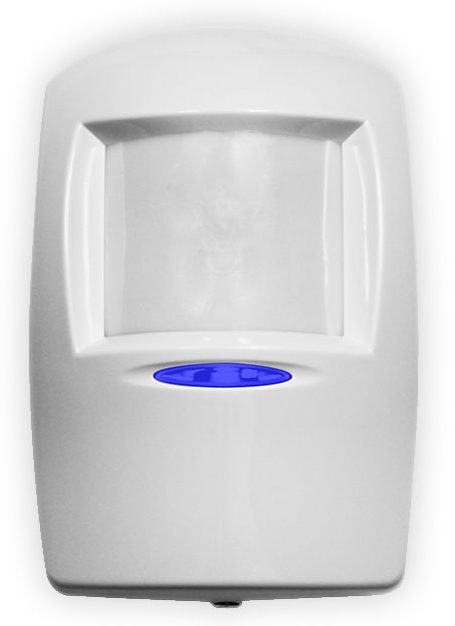

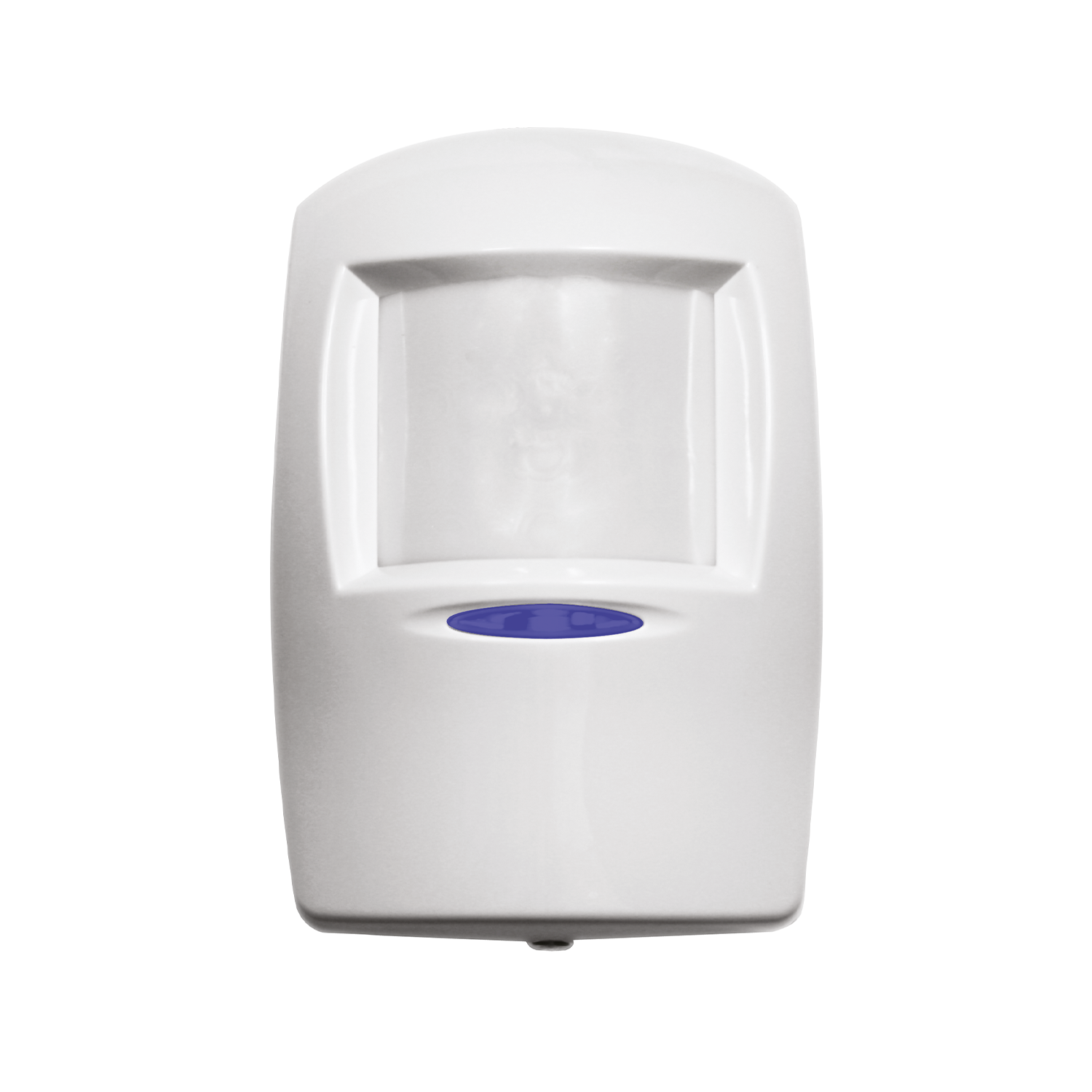

MEQ Blue

Product Features
  • Dual element pyro-electric sensor

  • 12m PIR detector

  • Patented Independent Floating Thresholds (IFT)

  • Adjustable sensitivity settings

  • Automatic temperature compensation

  • Sealed optics

  • ABS plastics

  • Contemporary blue LED

Stylish and secure detection

The MEQ blue is a passive infra-red (PIR) detector which works by constantly monitoring the infra-red energy levels around a room and recognising a change caused by the entry of an intruder. The detector will then inform the panel which will initiate the alarm condition.

The MEQ blue offers superb false alarm immunity and is ideal for most commercial or domestic applications, with proven excellence in terms or reliability and value for money. The revolutionary blue LED is stylish and modern and a great addition to any interior. This subtle and contemporary detector complements any décor.

Superior false alarm immunity

The MEQ Blue provides superior false alarm immunity by filtering out sunlight and car headlights using a White Light filter. In addition, Pyronix has developed a system known as IFT which adjusts the sensitivity thresholds of the device to compensate for varying background temperatures. The sensitivity of the MEQ Blue can also be adjusted by installers to suit the environment by using the Pulse Count feature.

State of the art production methods at Pyronix include a process known as SMT. This ensures a consistently high quality of product and protects against problems caused by radio frequencies. This means that potential false alarms as a result of radio waves such as those emitted from emergency service transmitters are minimised.

12m PIR

12m volumetric detection coverage. Ideal for protection of rooms, offices etc.

30m long range lens

Optional 30m long range detection coverage lens Ideal for long narrow areas or corridors.

Patented Independent Floating Thresholds (IFT)

This technology, patented by Pyronix, allows the detector to respond to environmental changes by automatically adjusting sensitivity thresholds of the device to compensate for varying background temperatures.

Adjustable sensitivity settings

Adjustable sensitivity settings for installations in any environment (Pulse Count 1,2,3).

Automatic temperature compensation

When the product is used in a hot environment this technology automatically adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 34°C.

Sealed optics

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

EN50131-1:2006+A1:2009 | EN50131-2-2:2008 | PD6662:2010



Detectors technical characteristics

Digital temperature compensation

Yes

Dual element pyro-electric sensor

Yes

Tamper protection

Front and Rear

Adjustable sensitivity

Yes

Detectors technical characteristics

Maximum range

12m (Volumetric Lens) 30m (Optional Long Range Lens)

Volumetric coverage

Yes

Detection speed

0.3 - 3m/s

Coverage angle

90 degree

Detection zones

108

Detection planes

3

White light filter

6500 Lux

Protection

Ultraviolet light filter

Lens

Fresnel array

Optics

Sealed

Mounting

Wall mounted

Optional bracket

Ceiling mounted

Optional bracket

Optimum coverage height

1.8-2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-30C to +70C

Physical dimensions (H x W x D)

88 x 60 x 42mm

Weight

80g

Electrical & battery

Operating voltage

9 - 16V DC 13.8V DC typical

Quiescent current consumption

11mA @ 12V (Min), 12mA @ 12V (Max)

Relay outputs

SELV limits; 60V DC, 50mA (42.4V AC Peak)

Tamper switch

12V 50mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-2:2008 | EN50131-1:2006+A1:2009 | PD6662:2010

Certification type

Self-certified

Electrical conformity

CE

Warranty

5 years

Product Codes & Options

MeQ Blue
FPMEQBL
SAP: 361301093
MeQ Blue Configured
FPMEQBLC
SAP: 361301094
