PyronixCloud Connect

Description

Unlock app control and notifications for older wired systems with PyronixCloud Connect. Quick to install, cost-effective, and ready in just 15 minutes. Enable recurring revenue and services like Guard Response—no panel replacement needed.

Key Features
  • 15-minute install with pre-wired leads and app setup.
  • Compatible with a wide range of Pyronix and third-party panels.
  • Compact design with external antenna for strong Wi-Fi.

Product Features

Seamless integration

PyronixCloud Connect works with a wide range of third-party panels, not just Pyronix systems. Its flexible input and output options bring PyronixCloud and HomeControl2.0 smart features to legacy and non-Pyronix alarms alike.

Smarter control

With PyronixCloud Connect, customers can arm their system, monitor status remotely, and receive instant alerts, all through our user-friendly HomeControl2.0 app. This adds modern convenience without complicated changes or disruptions.

Simple installation

Pre-wired leads with clear colour coding, plus app-based setup via Bluetooth Low Energy (BLE), mean installers can fit PCC in as little as 15 minutes. No special tools or complex steps required.

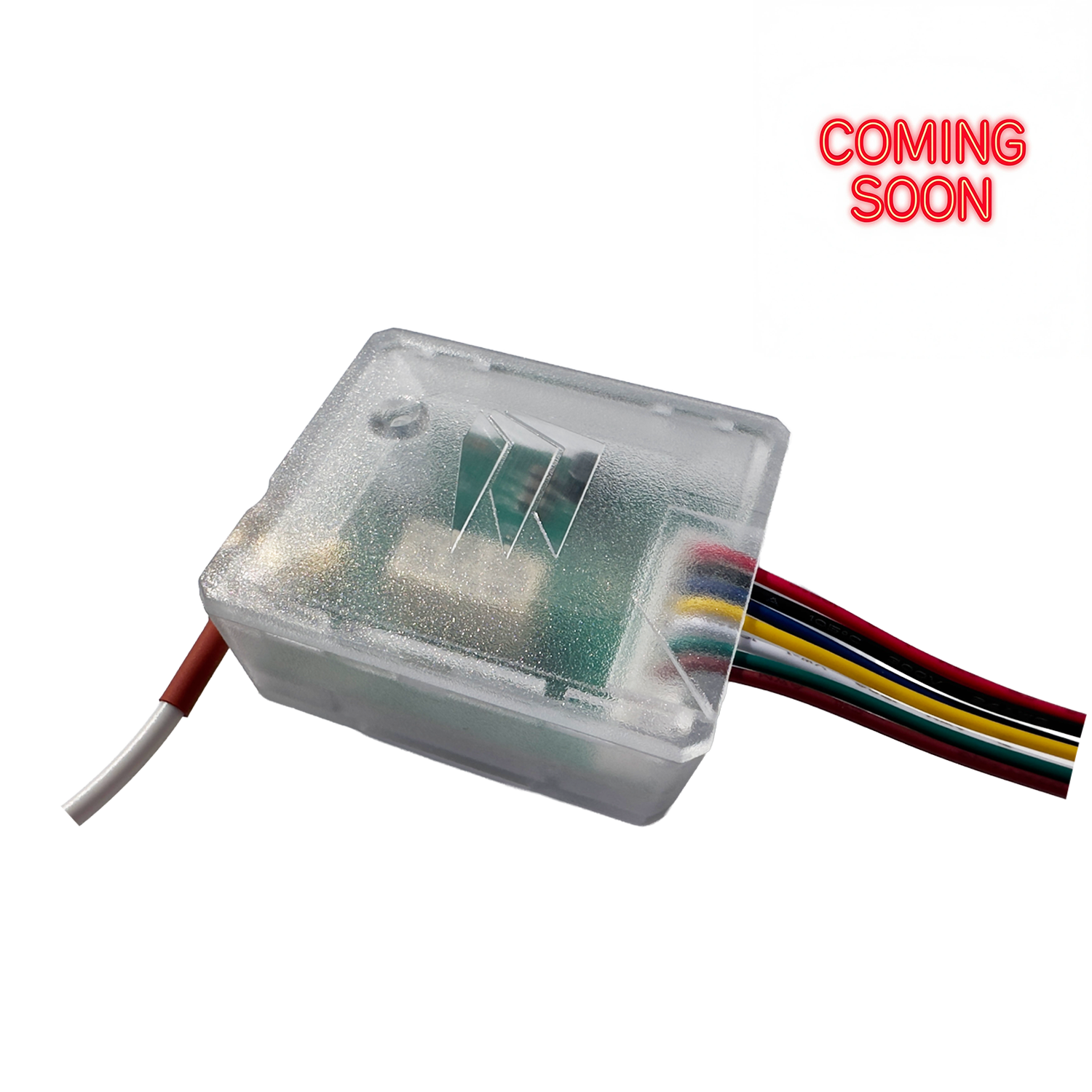

Compact size

The small size allows PyronixCloud Connect to fit neatly inside many existing control panels, enabling a quick and non-intrusive upgrade to legacy systems.

Reliable connectivity

An external antenna keeps the Wi-Fi signal strong even inside metal enclosures, and utilising BLE speeds up pairing and setup, making installation hassle-free.

Wireless flexibility

PyronixCloud Connect accesses the internet via Wi-Fi, removing the need for Ethernet cables or hardwiring. This gives you flexibility in device placement and access to full cloud functionality, even where wired connections aren’t available.

Monitor and control

PyronixCloud Connect monitors activity in real time, sending updates via the app. It also supports keyswitch-style arming and disarming, adding remote control to older panels.

Smart upgrade

Designed to be an affordable upgrade, PCC makes modernising legacy security systems financially viable for a wider range of customers.

Future-proof

Beyond upgrading systems, PyronixCloud Connect helps you add value to installations and unlock services like Guard Response. It’s a simple, effective way to grow your business, generate recurring revenue and keep customers connected and protected into the future.

Product Features

Dimensions and weight (W x H x D)

51 x 45 x 20mm, 70g

Casing

Clear, 3mm ABS polycarbonate

Status LED colours

Orange, white, yellow, green, blue, cyan, and magenta.

Operating voltage

9-15VDC

Storage temperature

-40°C to +80°C

Operating temperature

-10°C to +40°C

Transmission method

Wi-Fi

Transmission frequency

2.4GHz

Transmission range

Up to ~30m

Inputs & outputs

Inputs

2

Outputs

1A @ 30VDC relay

Contact resistance

100mΩ max.

Certifications and warranty

Environmental class

II

Standards

LVD (Low Voltage Directive)
• EN 62368-1: 2024+ A11:2024
• EN IEC 62311: 2020
EMC (Electromagnetic Compatibility)
• EN301-498-17 V3.3.1
RED (Radio Equipment Directive)
• EN 300 328 V2.2.2
RoHS (Restriction of Hazardous Substances)
• EN IEC 63000:2018
