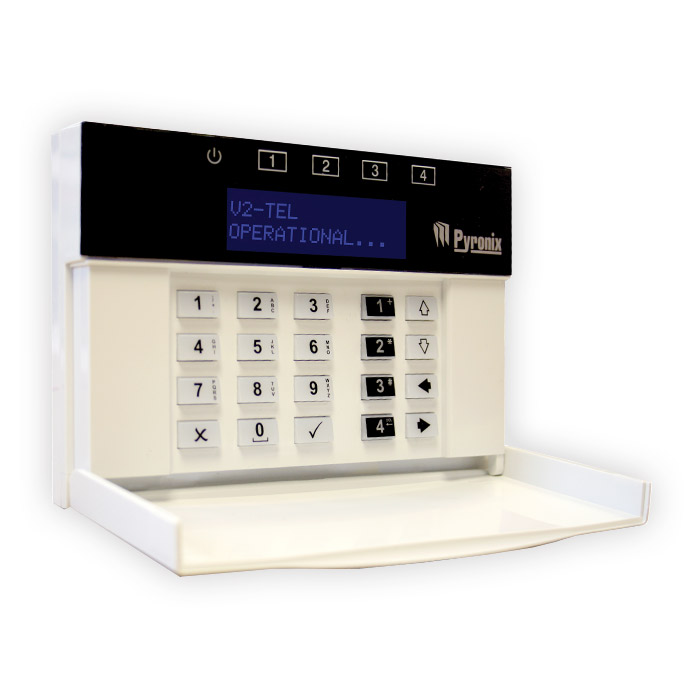

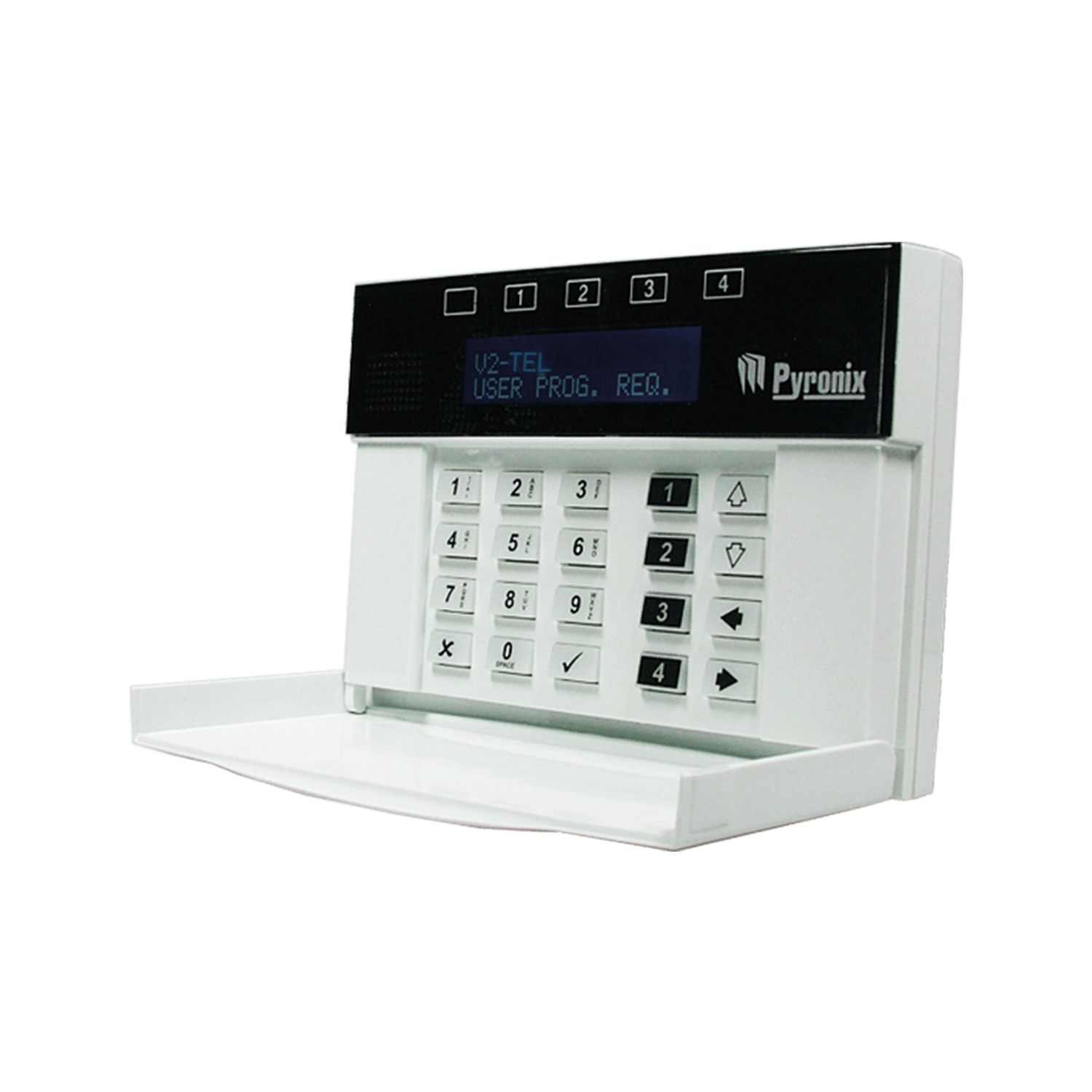

V2 TEL Speech Dialler

Product Features
  • Half duplex hands free

  • Can be used as a fully operational phone

  • Onboard microphone and speaker

  • Remote microphone and speaker outputs

  • Full remote control via DTMF tones

  • Output remote control

  • Automatic Phone Number Recognition (CLIP)

  • 6 onboard programmable inputs

  • 4 onboard programmable outputs

  • 9 destination phone numbers

  • Voice messages to each input

  • 256 event memory log, time and date stamped

Flexible, convenient and programmable speech dialler

The V2 TEL Speech Dialler can send out alarm voice messages after an activation to an input, all of which are programmable. The diallers may also be used as a normal telephone if required.

Boasting 6 inputs and 4 controllable outputs, it’s the ideal solution for customers who would like total control and monitoring of their home or workplace, from anywhere in the world.

Inputs & outputs

Inputs can be programmed to activate following an input state or voltage change.

Outputs can be used to control external devices such as vending machines, engines, emergency equipment, home alarms, gates, lighting etc. The outputs can be controlled by the keypad (V2GSM,V2TEL only), SMS CLIP (V2GSM only) or DTMF commands.

Alarm voice messages

10 second voice messages may be recorded for each alarm input. A common message of 20 seconds may also be recorded. This message will be sent together with each alarm input voice message after activation following an input alarm.

Remote control voice menu

Access the voice menu to listen in, speak in, control outputs, check the status of equipment, etc.

Sign of life test calls

This function can save the user costs on regular test calls as they will only be sent if the V2 has not made a call in a pre-programmed time frame.

Event log

The memory log will hold the following number of events (256).

Microphone/ Speaker

Discreetly positioned microphones and speakers allow you to listen in to your property to verify the cause of an activation and talk back if necessary.

Telephone numbers

Has the ability to dial up to four telephone numbers upon an alarm activation – including mobile numbers which enables you, a relative or neighbour to be informed immediately of an intrusion so that the appropriate action may be taken (9).

Listen in & Speak in

An easy to use listen in option allows you to silently monitor your property wherever you may be. An added two-way speech feature also enables you to speak into the property through discreetly placed speakers (half duplex).

Make outgoing voice calls

The keypad of the V2 TEL Speech Dialler can be used as an outward calling phone.

Related products & accessories

Speech dialers technical characteristics

Listen in & speak in - Duplex

Half duplex

Intergrated microphone and speaker

Yes

Intergrated keypad

Yes

Automatic phone number recognition (CLIP)

No

Can be used as a telephone

Yes

Date and time stamp

No

Event log

30

Alarm voice messages

6

Alarm and restore SMS messages

None

Sign of life test calls

Yes

Jamming detection

No

Automatic forwarding of service provider SMS messages

No

Microphone and speaker

Yes

Inputs & outputs

Onboard wired inputs

6

Outputs on board

4

Communications and modems

Modem type (included)

PSTN

Remote control via a telephone

Yes

Telephone numbers

9

Remote speaker and microphone

Yes

Environmental and operating features

Nominal operating temperature

-20 to +40'C

Physical dimensions (H x W x D)

147 x 100 x 28mm

Electrical & battery

Operating voltage

10-14.9V DC

Quiescent current consumption

200mA

Certifications and warranty

Environmental class

CE

Warranty

2 years
