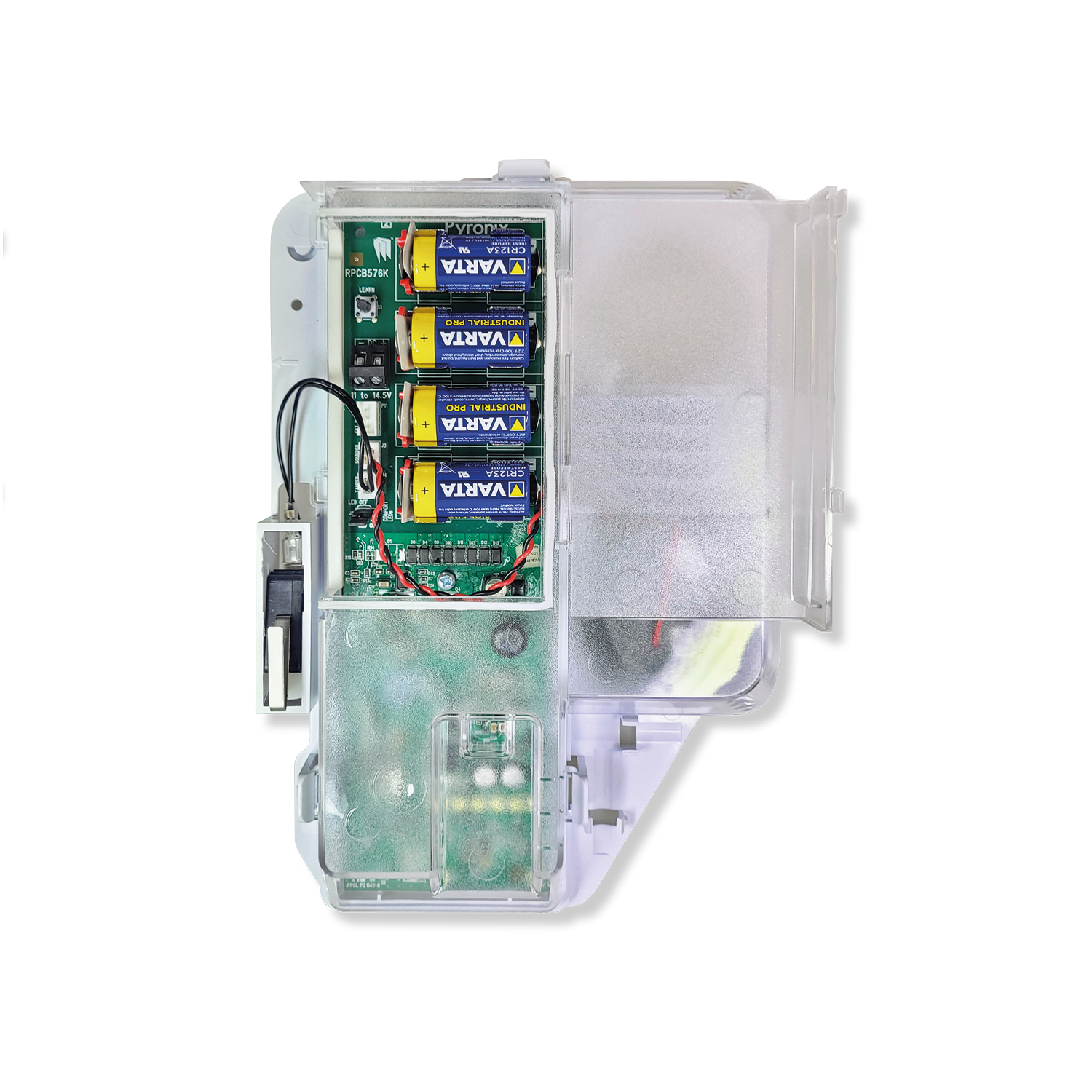

Wireless Deltabell Module

Product Features
  • Piezo sounder technology

  • Various colour combinations available

  • Watertight polycarbonate plastics

  • Pyronix High Security Wireless Protocol Encryption

  • 868MHz transceiver FM technology

Attractive deterrent

The Deltabell range of security sounders provides a visual deterrent whilst being aesthetically appealing and available in a choice of base and lid colours.

Clean and easy to fit

The wireless Deltabell-WE can be fitted to the exterior of your property with no need to run wires to the control panel, making it quicker and easier to fit with less mess left in your home or business.

Superior performance and security

Enforcer two-way wireless technology is designed to ensure high security protection for users with easy installation and maintenance for installers.

With anti-jamming, high security protocol and tamper protection the Enforcer two-way wireless Deltabell sounder provides peace of mind for users and installers alike.

6 colour choices in bases and covers (sold separately)

Expert security with two-way wireless technology

Enforcer two-way wireless technology is designed to ensure high security protection for users and easy installation and maintenance for installers, utilising award winning features such as signal strength indication (SSI) and jamming detection.

Signal strength indicator (SSI) & jamming detection

Award-winning features on wireless devices such as Signal Strength Indication (SSI) and jamming detection combine to provide a system which is simple to install, while maintaining a reliable and secure wireless connection.

Highly secure wireless encryption

128-bit encryption provides effective protection of signals being transmitted by the system and prevents code grabbing. This gives the wireless bus a very high level of security protection.

300m transmission range

The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

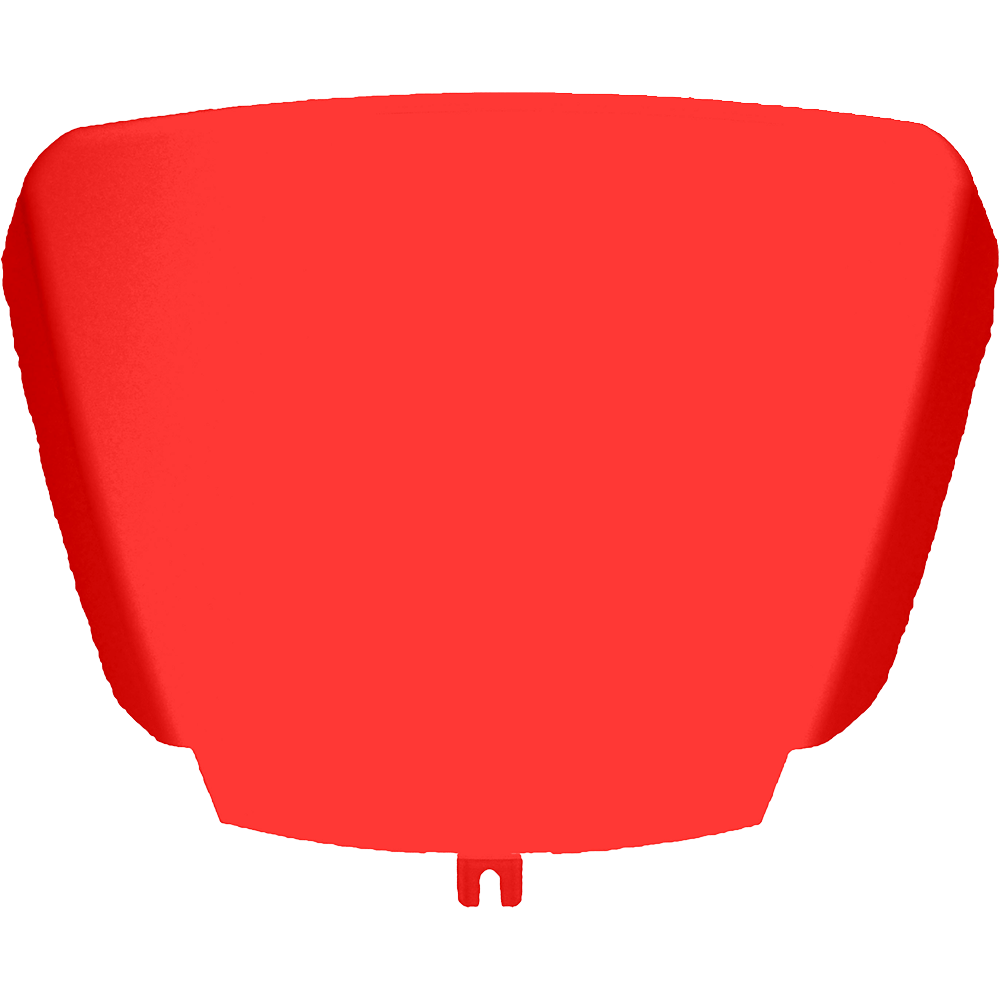

Customise your Deltabell covers (covers sold separately)

Customise the look of your Deltabell covers with your logo or design of your choice.*

*only available for installers with a minimum order of 40

Sounders technical characteristics

Sound Output

94 dB(A)

Sound and light indication on alarm

Yes

Engineer hold off

No

Flashing LED Strobe

Yes

Comfort LED

Selectable Enabled/Disabled

Back-lit

No

Tamper protection

Yes

Strobe duration and frequency

10ms, 1Hz

Sounder maximum duration

15 mins

SAC (self actuating bell) / SAB (self activating bell) option

Yes

External Remote 12 Volt DC Input

Yes

Built in Spirit Level

Yes

Levelling aid

Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Transmission range

300m in open space

Environmental and operating features

Certified operating temperature

-25C to 60C

Nominal operating temperature

-30C to 60C

Physical dimensions (H x W x D)

290 x 285 x 50 mm

Electrical & battery

Battery type

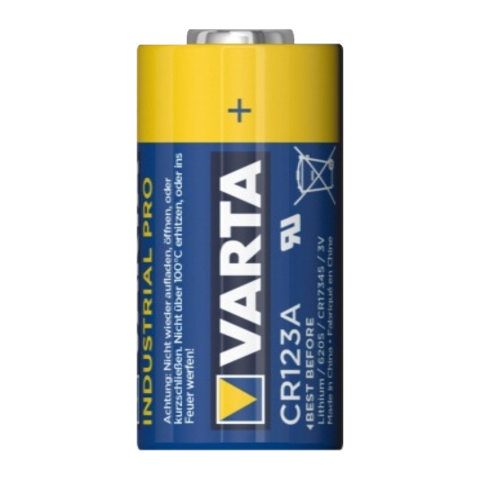

2x 3V 4700mAh Lithium battery packs (BATT-ES1)

Battery life

Up to 2 years

Battery low voltage protection

Yes

Operating voltage

9-16 v

Certifications and warranty

Security Grade

Grade 2

Environmental class

IV

EN Certificate

EN 50131-5-3: 2005 + A1: 2008 | EN 50130-4: 1995 + A1: 1998 + A2: 2003 | EN 61000-6-3: 2007

Certification type

IMQ

Certificate number

CA12.01330

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

DELTABELL MODULE WE
DELTA/MOD-WE
SAP: 361300049
