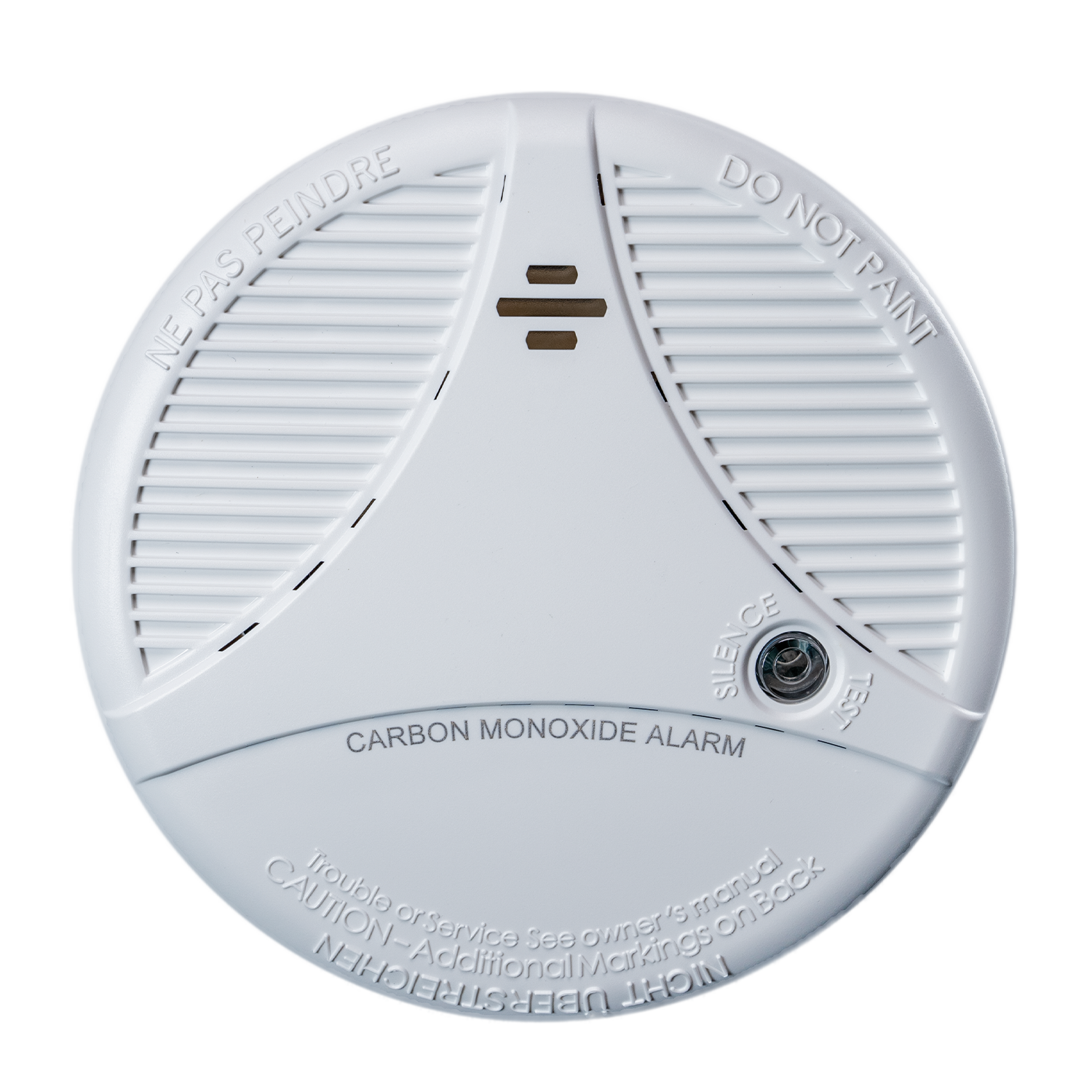

CO-WE (2nd Generation)

Product Features
  • Two-way wireless CO sensor

  • Detects harmful odourless carbon monoxide (CO)

  • Loud and obvious alarm

  • Low-battery supervision

  • Signal Strength Indicator

  • Pyronix High Security Wireless Encryption Protocol

  • No wires, no mess

  • One-Push-To-Learn Button

Detect and protect from carbon monoxide with the new and improved CO-WE (2nd Generation). Be CO safe.

The CO-WE (2nd Generation) is an essential lifesaving device, which protects homes and families against this danger; raising the alarm locally via its 85dB sounder and remotely via connected Pyronix smart device apps, if CO is present.

Electrochemical detection for optimum performance

The CO-WE (2nd Generation)’s specially designed chamber allows CO into it. Once inside, a chemical reaction occurs that emits an electrical current as a by-product; the amount of electricity generated is directly proportional to the concentration of CO gas present in the atmosphere. The CO-WE (2nd Generation) determines the concentration by monitoring the electrical current; triggering the alarm if this is too high.

Loud and obvious alarms

The CO-WE (2nd Generation) has a built-in 85dB local sounder which works independently from the alarm panel, as well
as flashing LED lights when CO is detected. Alongside this, a detection alarm will be sent to the control panel to trigger an alarm, as well as send a voice push notification remotely to the user via connected Pyronix smart device apps. Providing an obvious alarm when CO is detected.

Be in control with full low-battery supervision

The main detection element of the detector features a fixed L91 lithium battery, continuously detecting within a property and providing peace of mind for 10 years – when running low, this is signalled as a fault on the control panel. The radio module itself has a CR123A battery, providing the usual lifespan of up-to 2 years. When the battery is running low on the radio module, the detector will send a signal to the control panel and the user will receive a push notification via their connected smart device app, to report the issue.

No wires, no fuss

Fully wireless means there is no need to run wiring by lifting floorboards or moving furniture; saving time and money.

Pyronix High Security Wireless Encryption Protocol

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components are encrypted.

One-Push-To-Learn Button

A feature in all Enforcer wireless devices that means learning them onto the system can be done in seconds. A simple one-button learning feature for easy installation. Once in commissioning mode, the external test button of the CO-WE (2nd Generation) becomes the one-push-to-learn button, making installation quick and simple.

Signal Strength Indicator (SSI) on the Device

SSI in all Enforcer wireless devices allow them to be optimally positioned during installation, without the need to refer back to the panel.

Security and safety sensors technical characteristics

CO sensor

Yes

Button sensor test

Yes

LED sensor test

Yes

Sound level

85dBA

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Tranmission method

Fully encrypted rolling code

Environmental and operating features

Certified operating temperature

-10°C to +50°C

Humidity

5 - 90%

Sensitivity range

EN 50291-1: At 50ppm, the unit must alarm within 60 - 90 minutes At 100ppm, the unit must alarm within 10 - 40 minutes At 300ppm, the unit must alarm within less than 3 minutes

Physical dimensions (ø x D)

120 x 37mm

Weight (including battery)

195g

Electrical & battery

RF power supply

1 x 3V CR123A (replaceable)

RF battery life

2 years

Sensor power supply

2 x 1.5V AA (non-replaceable)

Sensor battery life

10 years

Sensor low voltage alert

2.6 - 2.7VDC

RF low voltage alert

2.5V +/-5% @ 25C

Certifications and warranty

Environmental class

II

Electrical conformity

CE

Standards

EN50291-1:2010+A1:2012

Product Codes & Options

CO detector
SAP:361301851
