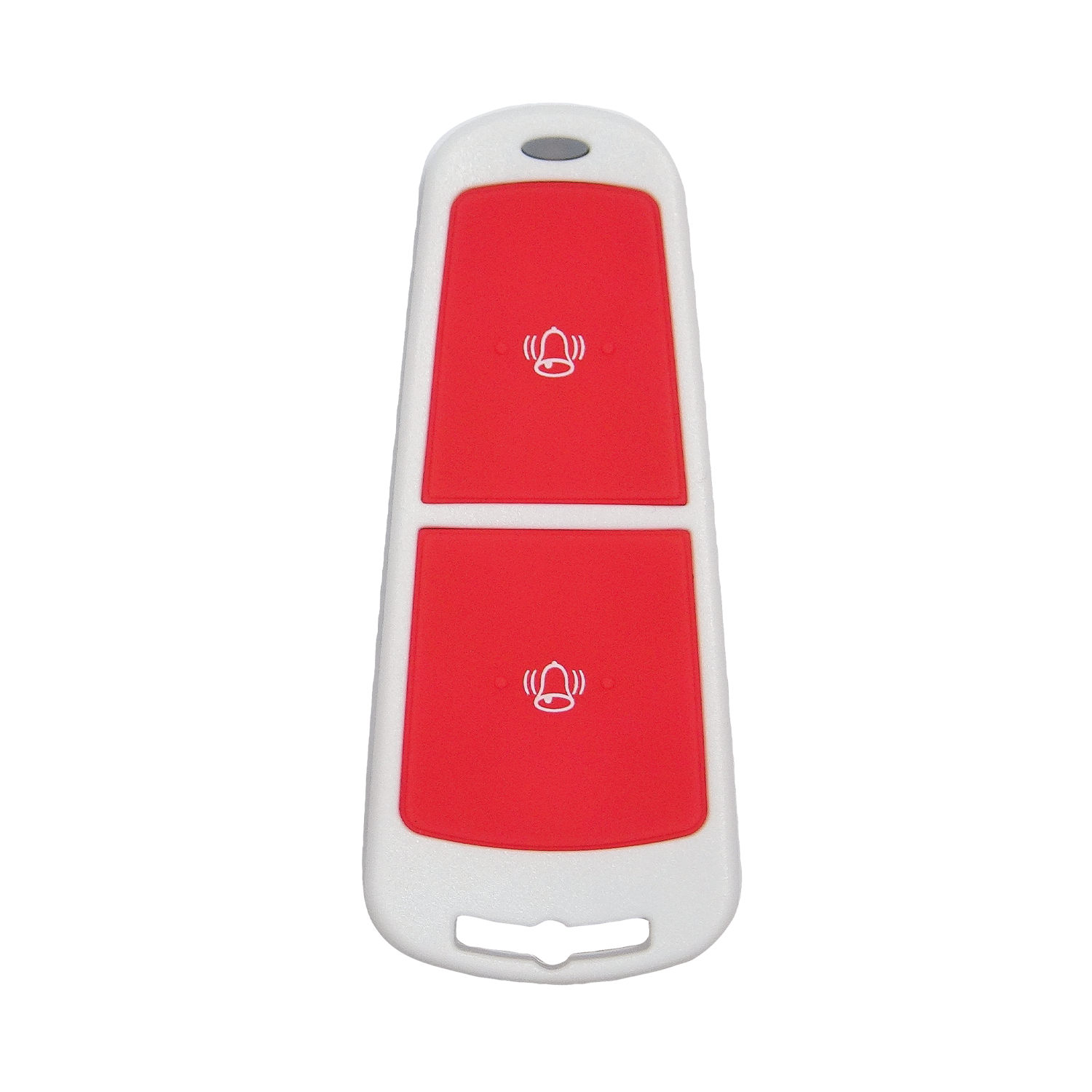

HUD/MED-WE

Description

The HUD/MED-WE is a two-way wireless Hold Up Device that comes with lanyard, keyring, belt clip and wall mount options for ultimate flexibility. With a wireless range of up to 300m in open space, the device is suitable for a wide range of use cases, including medical, industry, schools, banks, offices and more. Simply press the centre of both buttons down for two seconds to activate an alarm in an emergency.

Key Features
  • Raise the alarm in an emergency
  • 300m wireless range
  • Battery easily replaced

Product Features

Two-way wireless Hold Up Device

With a wireless range of up to 300m in open space, press the centre of both buttons down for two seconds and the alarm is activated. Furthermore, if the system is connected to an Alarm Receiving Centre (ARC) they will be alerted immediately.

Loaded with great features and extras, including: one-push-to-learn, LED signal strength indicator, an easily replaceale battery, positional press marks and the option to modify it to a Medical Alert (MED).

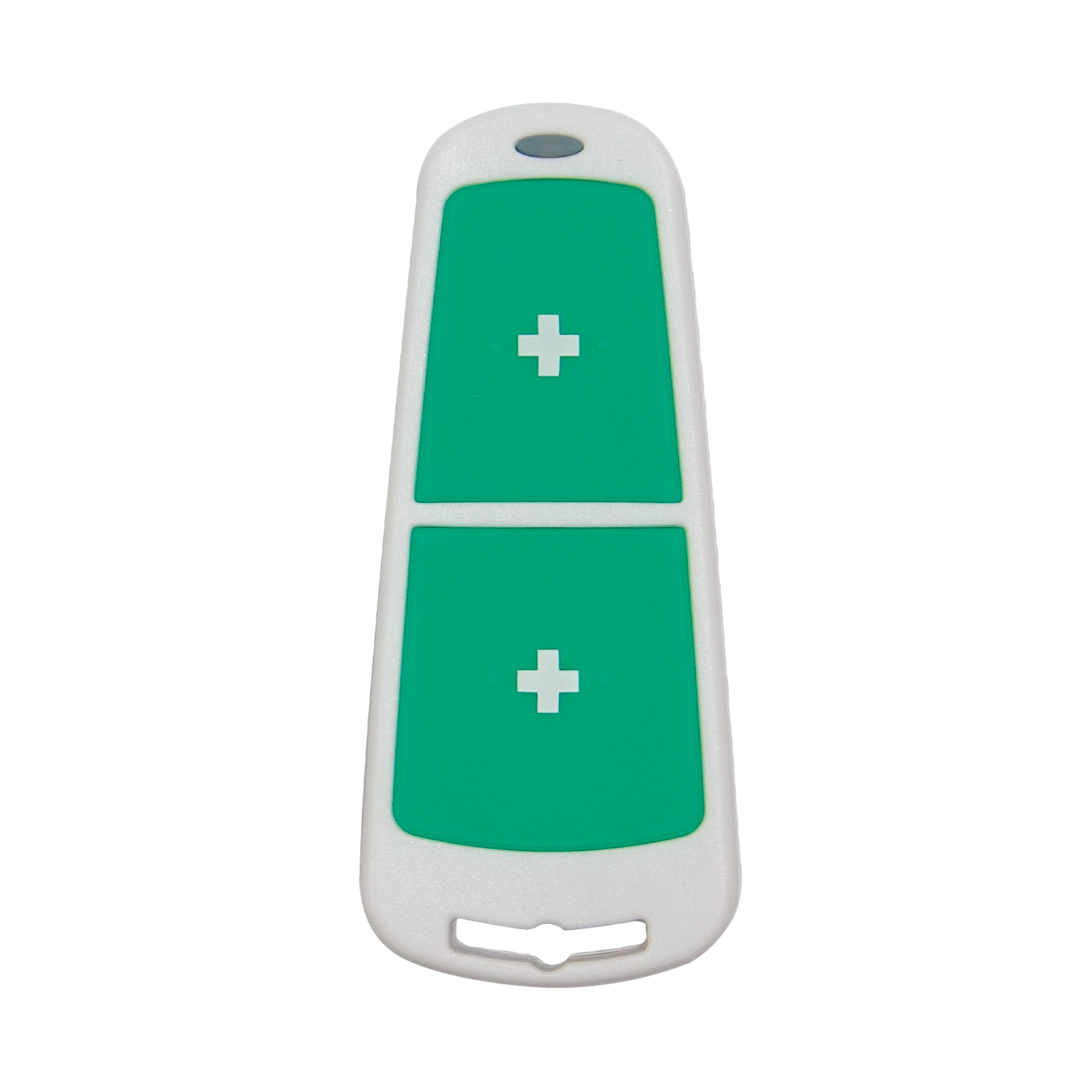

Medical/elderly

Whether in a nursing home or a hospital, there could be a MED next to every bed, in every ward or worn by staff. This could provide much needed reassurance to families or patients, as well as deliver an immediate alert of any incidents, such as falls, faints or other medical emergencies.

Banks, offices, shops

As the HUD is subtle in design and wireless, with multiple wearing options, it can be easily positioned in various locations to raise an alarm, such as: under desks, on a keyring or on a safety lanyard. So, should there be any danger or need, such as witnessing an intruder breaking in, being confronted or vandalism taking place, the user can inconspicuously activate an alarm condition.

Industrial

If the user works in warehousing, shipping or any other dangerous environment, this device could be used as a compulsory part of the uniform to signal for help. So, should any employee become trapped or injured, help can be signalled quickly and effectively.

Other

The new HUD can also be used in schools for teachers to wear, in nurseries or playschools, leisure centres, arenas, city halls or even prisons. Whether worn directly by individuals, subtly positioned or obviously positioned, the HUD/MED can be utilised to raise an alarm to generate the desired reaction, whether medical help or a direct police response.
(Depending upon programming – please speak to your engineer regarding this).

Setting devices technical characteristics

Hold-up function

Yes

LED indication

Red, Amber, Green

Two-way wireless technology

Yes

Enforcer two-way wireless technology

SSI (Signal Strength Indicators)

Yes

One push to learn

Yes

Transmission method

Fully encrypted rolling code

Environmental and operating features

Storage temperature

-20°C to +50°C

Certified operating temperature

-10°C to +40°C

Nominal operating temperature

-10°C to +50°C

Dimensions (H x W x D)

72 x 30 x 20 mm

Electrical & battery

Battery type

CR1/3N

Battery voltage

3V

Threshold

2.1V +/- 5%

Certifications and warranty

Security grade

Grade 2

Environmental class

II

EN Certificate

EN50131

Electrical conformity

CE

Warranty

2 years
