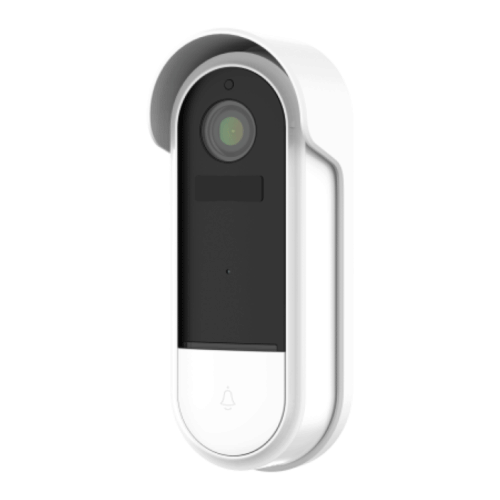

DoorbellCam

Product Features
  • Full-HD, wide-angle view

  • Long-lasting battery life

  • Record, playback and save video footage

  • Live snapshot and capture

  • Hear real-time notifications at home with the DoorbellChime

  • HomeControl2.0 compatible

Welcome visitors and direct deliveries

Receive real-time alerts from the front door straight to your mobile device and stay connected to home; never missing a visitor or delivery again. With the DoorbellCam’s inbuilt mic and speaker, welcoming visitors and directing deliveries has never been easier, whether home or away.

Hear real-time notifications at home

Localised alerts are made possible with the DoorbellChime. The battery-powered (3 x AA – so no PSU required), audible chime has been designed for full audio coverage throughout the property, offering four levels of volume.

Up to four Chimes can be positioned within a property, so homeowners can remain assured they’ll always hear a caller.

Designed to make life safer and easier

Detect the presence of unwanted strangers around the property and mask out nuisance alarms triggered by pets and other movement with the doorbell’s inbuilt PIR detector, which is configurable to five different levels of sensitivity for custom settings depending on environment.

HomeControl2.0 compatible

Monitor, see and speak with visitors straight from our HomeControl2.0 app. Experience seamless integration in properties with an existing Pyronix system or install as a stand-alone product.

The HomeControl2.0 app offers quick and easy to set up via WiFi. Simply pair the devices and set up is complete.

Long-lasting battery life

There’s no need to regularly charge the DoorbellCam with its large 6700 mAh battery. It can last up to six months on standby and between two and three months with wake up 10 times a day. Low battery notifications can be set to preference and the battery can be recharged using the included cable.

Full-HD, wide-angle view

See, speak with and welcome guests with a 130 degree field of view and crisp 1080p HD video footage – even in low light with our automatic Night Mode.

Live snapshot and capture

Capture high-quality, Full HD live photos and videos with the DoorbellCam

Record, playback and save video footage

With an SD card inserted, attention-catching videos and capture photos can be saved, played back and examined. Our 32GB SD card, which can be purchased separately, allows users to record up to a 3000 minutes of footage in local storage.

Easy installation

As the DoorbellCam doesn’t require a 240VAC supply, it offers huge flexibility with installation. All fixtures and fittings are included with the product, so it can be installed wherever needed. It also features fast pairing with the DoorbellChime, operating through its own RF channel.

DOORBELL/KIT-SDC

The DoorbellCam, Chime and SD card can be purchased separately or as a convenient, ready-to-install kit, saving you time on individual product ordering.

Related products & accessories
Software & Services

Camera technical characteristics

Image Sensor

1/2.9'' 2Megapixel CMOS

Effective Pixels

1920(H) x 1080(V)

Shutter

1/15~1/10,000s

Min. Illumination

Color 0.1Lux@F2.0, Black/White 0.01Lux@F2.0

IR Distance

Night visibility up to 10m

Day/Night

Auto(ICR)/Colour/B&W

WDR

DWDR

Lens & FOV(H/V/D)

3.2mm@F2.0, 106°/57°/130°

Compression

H.264

Bit Rate

32Kbps~2Mbps

Frame Rate

1~25fps

Dual Stream

Yes

Audio Input/Output

Built-in mic/speaker

Network parameters

Alarm Trigger

Button triggering, PIR detection

Wireless Security

64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Communication Protocol

HTTP, DHCP, DNS, TCP/IP

Interface Protocol

Private

Wireless

2.4G Wi-Fi (IEEE802.11b/g/n)

Mobile Phone OS

iOS 9 or later, Android 5 or later

Security

AES128

Max. User Access

4

Other technical specifications

Capacity

6700mAh rechargeable Li batteries

Stand-by Current

200-800 µA (average)

Working Current

150-200 mA (IR off)

Stand-by Time

10 months

Working Time

3 months (10 times wake up per day)

PIR Detection Range

Max. 5m

Operating Temperature

-20 °C to 50 °C

IP Rating

IP65

Power Supply

DC 5V/1A, AC 12~24V

Power Consumption

Max. 2W

Storage

SD card(Max.128GB)

Optional Accessory

Wireless Chime

Dimensions

57 x 41 x 145 mm

Net Weight

200g

Product Codes & Options

DOORBELL/CAM
DOORBELL/CAM
