Enforcer V11

Product Features

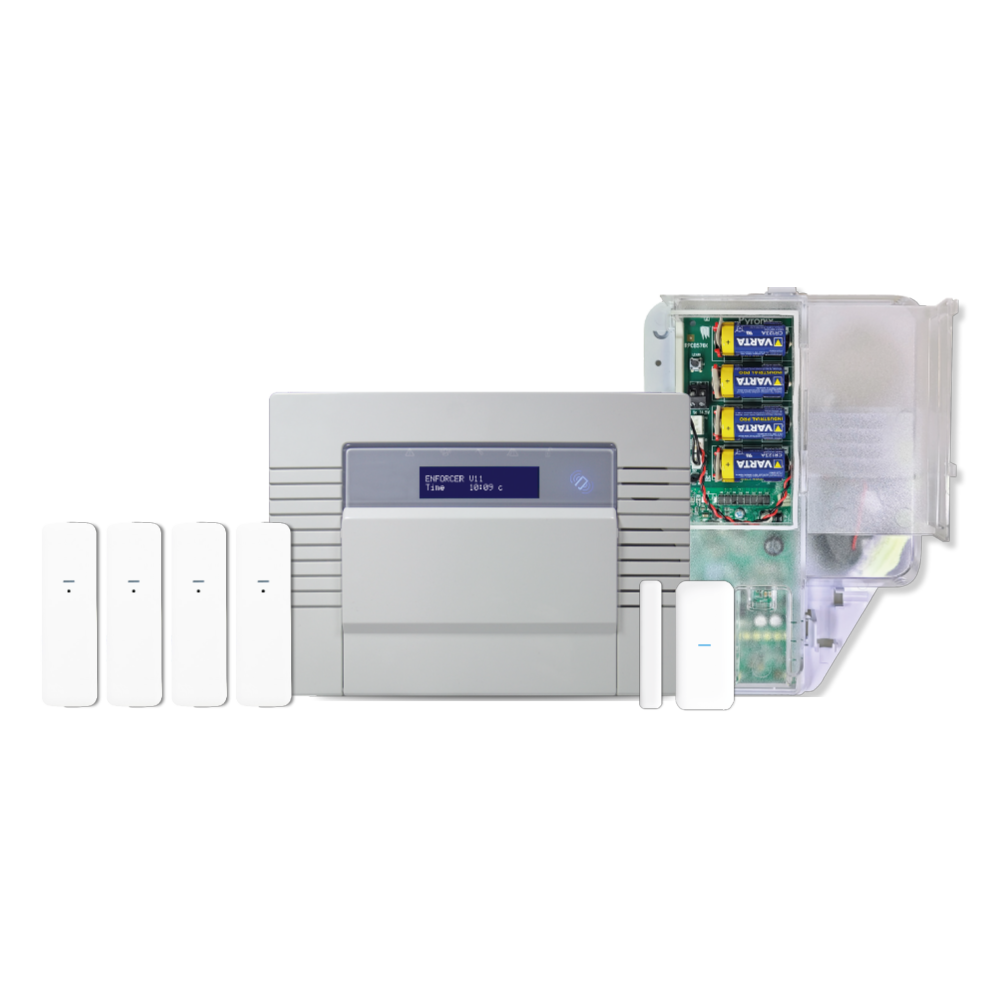

  • Enforcer V11 all-in-one two-way wireless control panel

  • Wi-Fi now built onboard the main PCB

  • HomeControlHUB and AndroidTablet compatible

  • Multiple simultaneous communication channels and flexibility

  • Selectable supervision per zone

  • Occupancy detector zone attribute and timers

  • Digital WPS button for quick WIFI setup

  • Maximum total zones 66 - 32 wireless zones expandable to 64 - 2 wired zones expandable to 34

  • 3 programmable wired outputs expandable to 38

  • 80 user codes, 32 wireless keyfobs with individual user ID

  • Inbuilt proximity reader (set/unset with tag)

  • Wide range of two-way wireless peripherals available

  • Security Grade 2, Environmental Class II

  • Customisable push and voice notifications

  • PyronixCloud is a yearly subscription service*

Wi-Fi module now onboard

The Wi-Fi Modem is now onboard! Meaning there is no additional Wi-Fi modem in the modem slot. The panel is Wi-Fi out of the box, PLUS you can have an additional communicator on the Enforcer V11, giving you even more communications options.

Your all-in-one security platform

Enforcer V11 expands and enhances system application capabilities further than ever before, with a range of new and innovative features that practically covers any installation requirements.

The most advanced Pyronix system released to date delivers real added value with every installation; security, video and automation that can be tailored, controlled, scheduled and delivered for any user preferences. This system is all you need.

HomeControlHUB and AndroidTablet compatible

Control the Enforcer V11 security system with the all new AndroidTablet and HomeControlHUB app for Android, giving unparalleled control over security, video and automation.

Multiple communications

With Wi-Fi communications on board as standard, the Enforcer V11 delivers app compatibility straight out of the box, with fast and efficient connectivity to the user’s existing router.

Additional communication paths can then be added for simultaneous messaging to both the app and an Alarm Receiving Centre (ARC) via separate paths; maximising coverage for maximum peace of mind.

Digital WPS button

The installation of the Enforcer V11 has been enhanced with the addition of a WPS button. By pairing the system with the router with the push of the WPS button, valuable time is saved; maximising efficiency and convenience.

Selectable supervision per zone

Delivering unprecedented security coverage, unsupervised zones can be set up with the Enforcer V11 to add security peripherals on cars, vans and caravans.

Provide additional peace of mind to what’s parked outside the property, without risking false alarms when they’re away.

Occupancy detector zone attribute

A new care feature of the Enforcer V11, occupancy timers on zones can be set up to protect elderly family members. By setting timers to generate a specific response such as an SMS, push notification, or even a notification to an ARC, if no movement has been detected, provides added value, peace of mind and confidence to the whole family.

Recurring revenue & retention

Streams of recurring revenue can be established by offering PyronixCloud management services; managing this or passing access to users. This increases customer retention and makes the system more profitable.

No on-site IT configuration

The Enforcer V11 is connected through a cloud server, so there is no need to set up static IP addresses or configure the network connection on site; instead you simply set up an account on PyronixCloud.com.

HD monitoring on HomeControlHUB

View up to 16 cameras on the HomeControlHUB app for live monitoring of the property. Connect existing cameras through logging in using a ProControl+ or Hik-Connect account.

Complete control from anywhere in the world with HomeControl2.0

Set and unset the system, get system status and receive custom push and voice notifications from any event.

*Please Note: The PyronixCloud platform is a yearly subscription service and charges do apply. For more information please contact your installer or your dedicated account manager.

Control panel technical characteristics

Two-way wireless technology

Yes

Independent areas

4

Part sets

4

Tamper protection

Front and rear

LCD keypad with integrated proxmity reader

Yes

User codes and prox tags

80

Guard codes

10

Reporting formats

WIFI / DIGI-LAN: Contact ID IP, Fast Format IP, SIA IP, Push Notifications. | DIGI-GPRS / DIGI-GPRS+SIM: Contact ID IP, SIA IP, Push Notifications and SMS (SMS not with DIGI-GPRS+SIM). | DIGI-1200 / DIGI-GSM: Contact ID, Fast Format, SIA and SMS.

System logs

750

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Transmission method

Fully encrypted rolling code | (4294967295 combinations)

Transmission range

300m in open space

Inputs & outputs

Zone type

Wireless and Wired

Channels

2

Two-way wireless zones

64 (maximum with additional wireless expander)

Onboard wired zones

2 (wired to I/O board)

Wired EOL zones

34 (maximum with additional wired expanders)

Wired double pole zones

32 (must use EOL mode 4k7/2k2 and wired expanders)

Total zones

66

Outputs on board

3 (PGM1, STB, BELL)

Two-way wireless keypads

4

Output modules

1

Maximum outputs

38

Two-way wireless keyfobs

32

Two-way wireless sirens

2

Wired keypads

4 (Including the Enforcer control panel)

Readers and entry control

3

Input expansion layout

Onboard

1 - 34

ZEM 0

35 - 42

ZEM 1

43 - 50

ZEM 2

51 - 58

ZEM 3

59 - 66

Communications and modems

Modem type (included)

Wi-Fi onboard

GPRS modem (optional)

Yes

LAN modem (optional)

Yes

PSTN modem (optional)

Yes

Supports PyronixCloud & App

Yes

SMS numbers

10

Event signalling to Insite

Yes

Formats

Contact ID, Contact ID IP, Fast Format, Fast Format IP, SIA, SIA IP, Push notifications and SMS

SIA

Yes

Contact ID

Yes

ARC compatibility

Yes

Compatible with UDL software

Yes

Voice modem / PSTN speech dialler (optional)

Yes

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +50C

Alarm period

15 mins maximum

Physical dimensions (W x H x D)

220 x 160 x 50mm

Weight

1025g

Electrical & battery

Battery type

NiMH 8 cell 2200mAh rechargeable battery

Battery life

3 - 5 Years

Battery capacity

2200mAh

Battery voltage

11V (with no mains and battery fully charged)

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN 62368-1:2014 + A11:2017 | EN 50131-1: 2006 + A1: 2009 +A2:2017 | EN 50131-3: 2009 | EN 50131-6: 2017 | EN 50131-5-3: 2017 | EN 50130-5: 2011 | EN 50130-4: 2011 + A1: 2014 | PD 6662: 2017

Certificate number

CA12.01328

Electrical conformity

CE

Warranty

2 years
