Euro 280 PCB

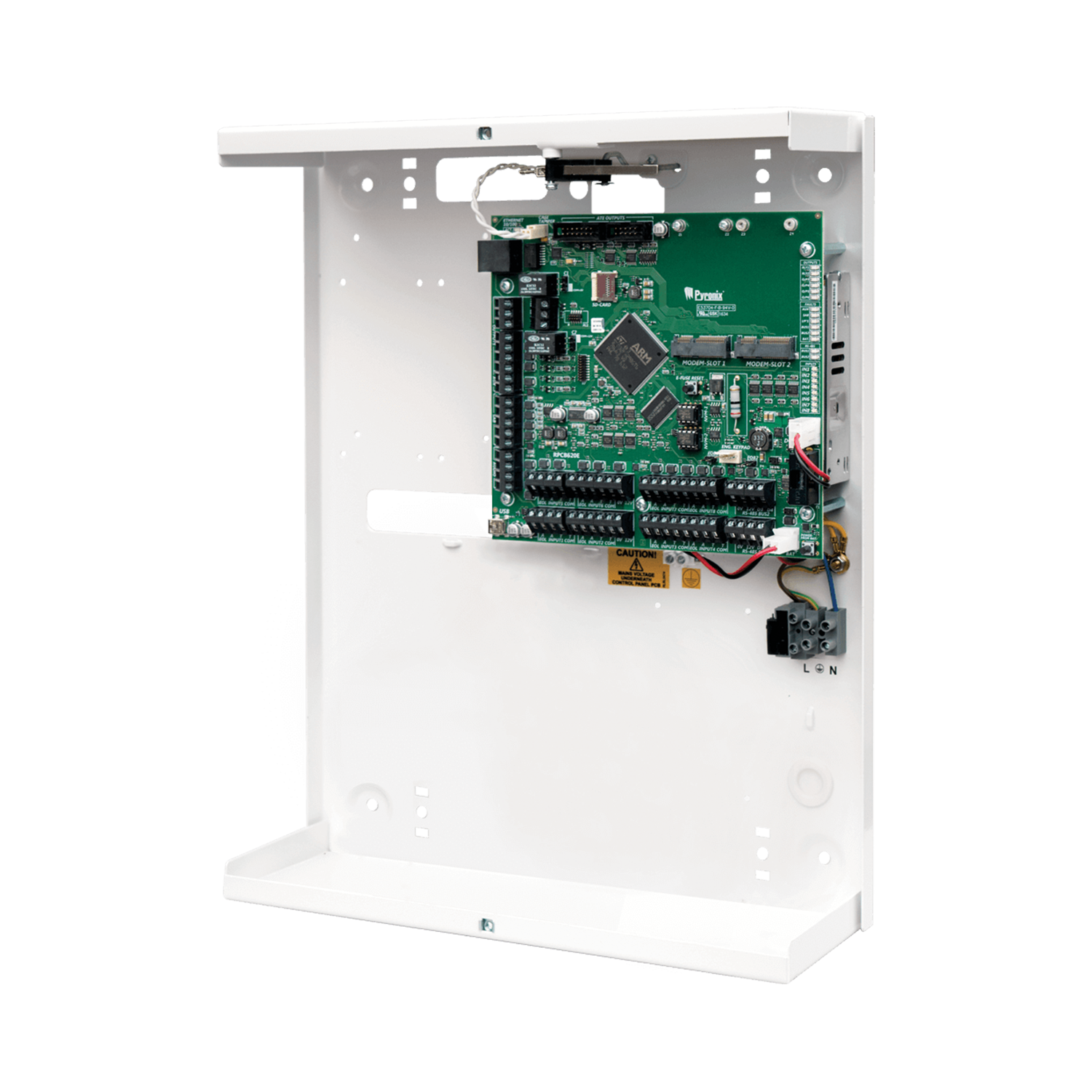

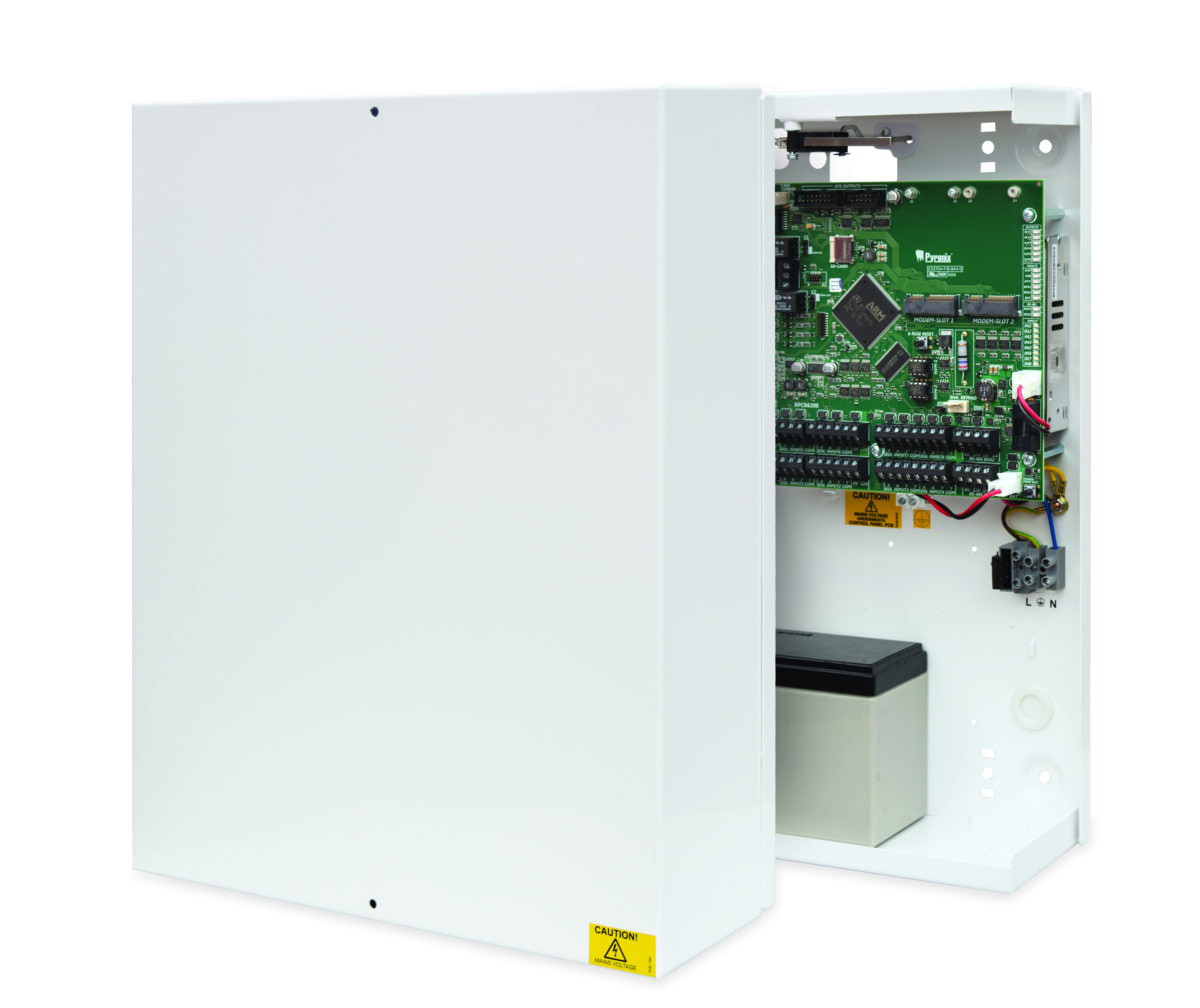

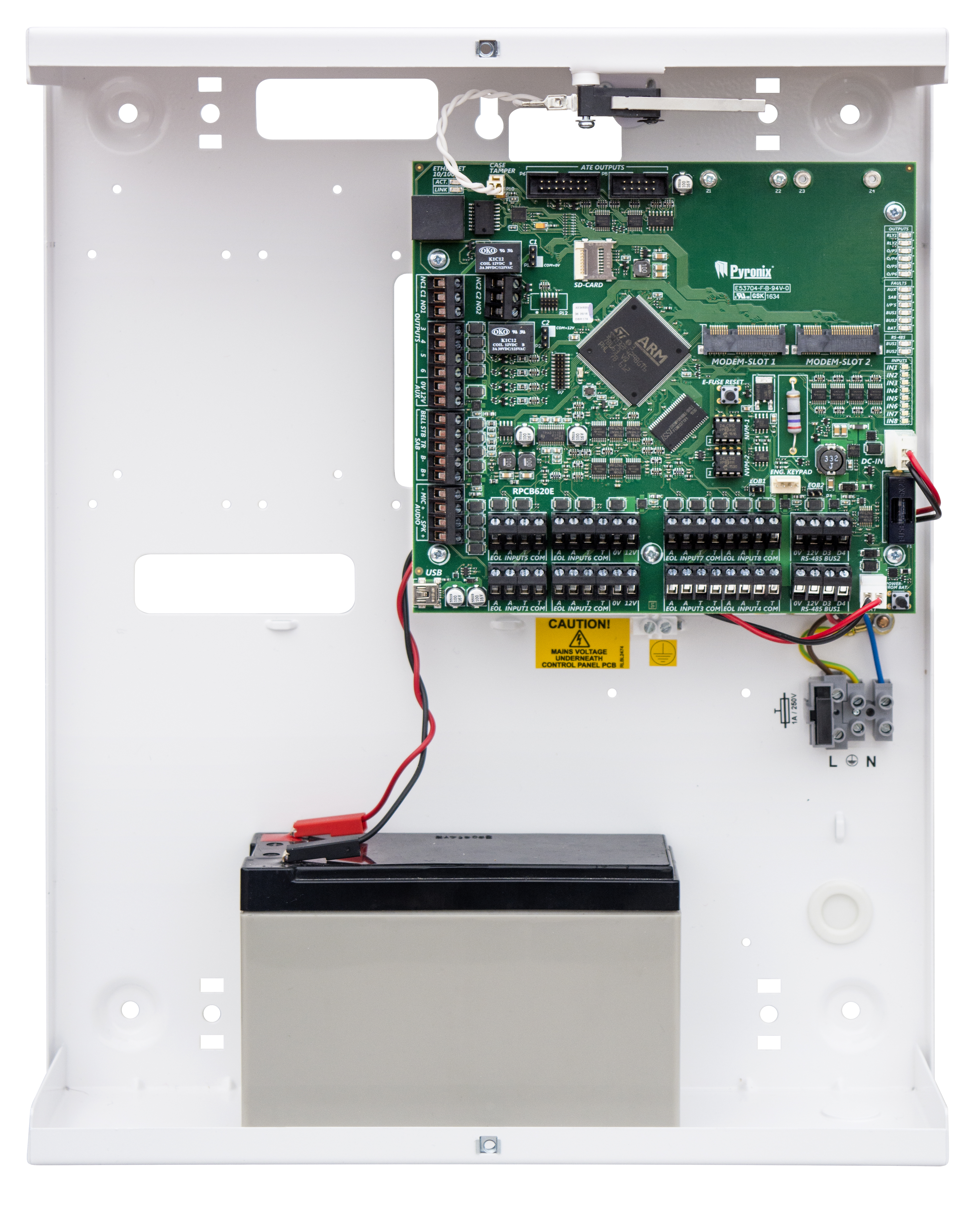

EURO 280


The Grade 3 compliant EURO 280 offers superior security. Featuring an upgraded processor for faster data transmission, a dual RS-485 bus system allowing devices in separate areas, and resettable electrical fuses to protect the control panel from current surges, the panel ensures heightened security, convenience, and contingency in any building.

Key Features
  • Hybrid 280 zone, 14 area control panel
  • Endstation diagnostic LEDs
  • 3A switch mode power supply

Product Features

Grade 3 compliant

The next generation of control panel is here and it’s better than ever! Providing maximum choice and flexibility to deliver the ultimate security solution for any building, the all new EURO 280 is the premium panel for any Grade 3 installation.

New processor

Much more powerful than ever before, the new processor delivers much faster and more accurate data messages between the control panel and its connected devices.

Dual BUS

Enables devices to be added in two separate areas to deliver greater security, convenience and contingency.

Diagnostic LEDs

Provides local indication as to whether the input wired in is in a healthy, alarm or fault state. These also indicate whether an input is active or inactive and if it has a healthy BUS state.

3AMP switch mode power supply

Much smaller and more energy efficient than before, this power supply is positioned more conveniently within the control panel to allow room for additional equipment to be installed inside.

Electrical fuses

Rather than having glass fuses that need to be manually changed, the new electrical fuses have the ability to be manually reset. They protect the control panel from any surges of current and while glass fuses break, electrical fuses can be put back into a ready state again. So, if there is any burst of current or voltage, the fuse takes the hit and can be easily and conveniently reset, rather than having to be totally replaced.

New buying structure

The new generation EURO 280 does not come with a keypad or modem. This delivers a much more adaptable purchase, with the same overall price as the old EURO 162M. Now, when purchasing the EURO 280, you get to pick the keypad and communication modem to fit the installation needs of the property – purchased separately, but all for the same price** as the old EURO 162M! A lot more for the money!

**When using a EUR-064 keypad

Inputs & outputs

Wired inputs (NC/DEOL) (max)

8 (280)

Two-way wireless inputs (max)

0 (96)

Outputs (max)

8 (426)

Wired expanders


Wireless expanders


Output expanders


ATE Outputs on board


Control panel technical characteristics

Independent areas


Two-way wireless key fobs (max)

0 (32)

User codes and prox tags


Guard codes


Two-way wireless sounders

0 (2)

Keypads (max)

16 (wired) 4 (wireless)

Reporting formats

Fast Format, Contact ID, SIA, WebWayOne, SMS & Chiron

Communications options


Internal power supply

Switch mode 3.4A

Current consumption


AUX output voltage

13.6 VDC

Input resistors (default; more are available)

4k7 (alarm) 2k2 (tamper) 6k8 (mask)

Battery capacity


AUX fuse

800mA (resettable)

Siren fuse

800mA (resettable)

Operating | storage temperature

-10°C/ +40°C | -20°C / +60°C

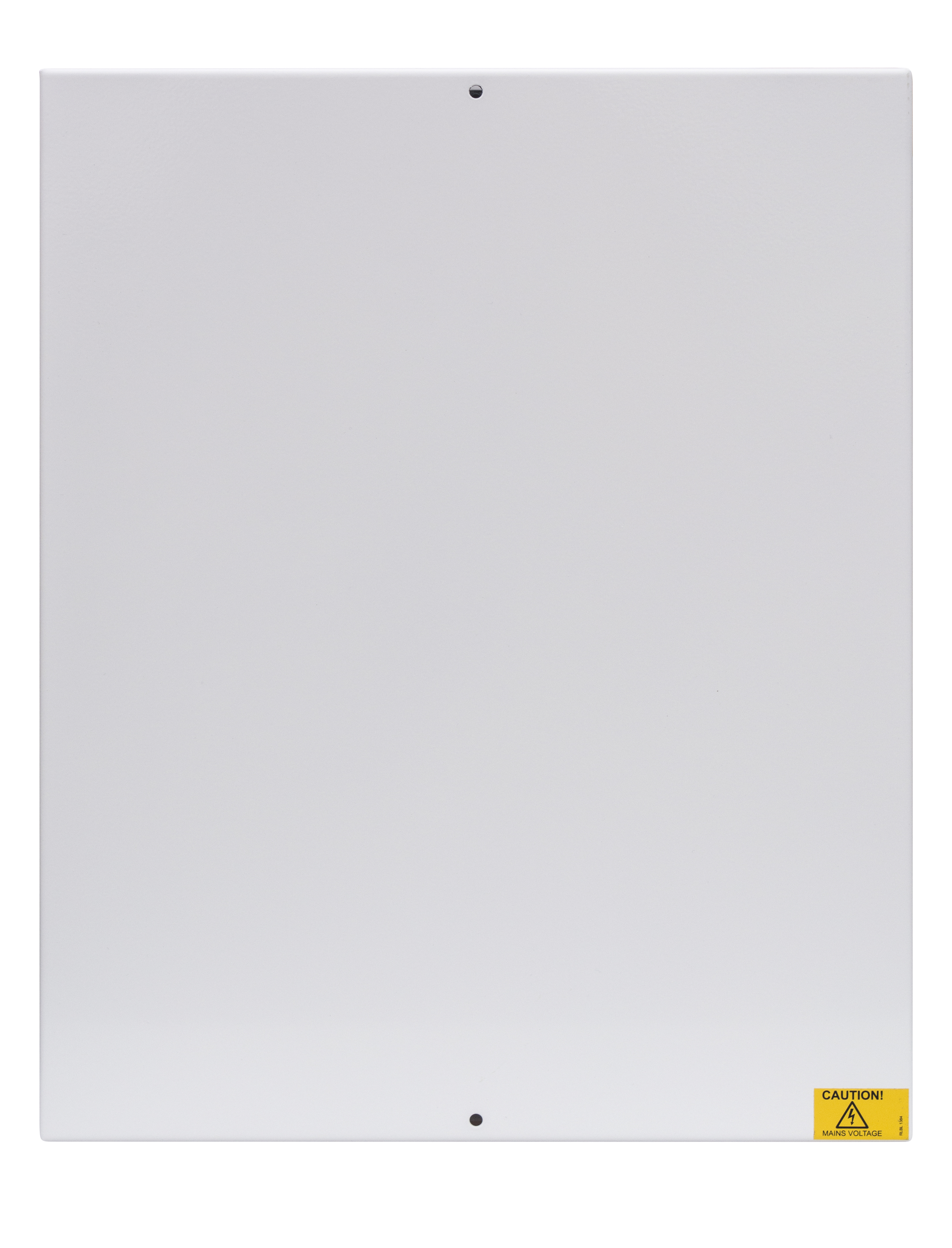

305 x 390 x 100 mm



Certifications and warranty

Security Grade

Grade 3

Environmental class


Electrical conformity



2 years

Product Codes & Options

EURO 280 Control Panel
SAP: 361301058
