MC1MINI-WE

Description

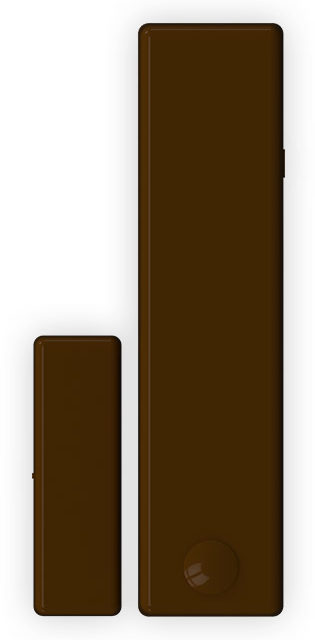

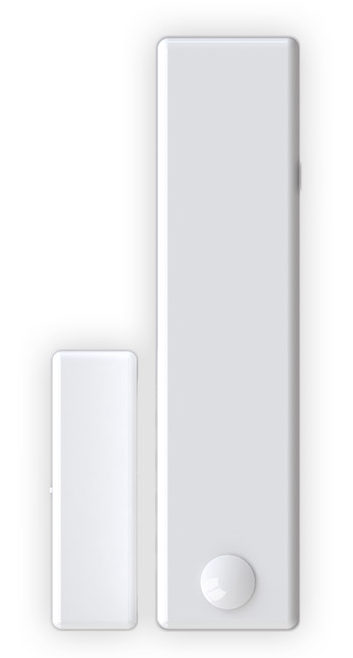

The MC1MINI-WE is a wireless, magnetic contact. Featuring one-push-to-learn, the MC1MINI-WE is quick and easy to install with no need to run wires to set up. High-security wireless encryption secures device communication using a Two Way wireless protocol, offering both reliability and flexibility. The device is available in white, brown and anthracite grey to perfectly complement property aesthetics.

Key Features

1 Reed Switch (side)
868MHz Transceiver FM technology
Instant Two Way Device Control (ITDC)

Features
Certification
Technical Specification
Codes & Options
Downloads
Videos
Enquire

Features

Product Features

With One-Push-To-Learn and no wires to run around the property, the MC1MINI-WE wireless magnetic contact is quick and simple to install.

The high security Enforcer two-way wireless protocol, using 128 bit Pyronix advanced encryption and instant two-way device control (ITDC), will give you the peace of mind that your system will remain as secure and reliable as a wired system while offering you the flexibility in installation of wireless security products.

Pyronix High Security Wireless Device Encryption

The Two Way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level.

One-Push-To-Learn

Assigning wireless devices to the system is made simple and quick by the One-Push-To-Learn feature.
1. Choose an input to learn the device to
2. Remove the plastic insulator between the battery and positive contact and press LEARN button
3. Input learnt
Quick, Simple and Efficient!

Instant Two Way Device Control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.
– Ensuring that all wireless detection devices know when the system is armed and disarmed.
– Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Two-way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

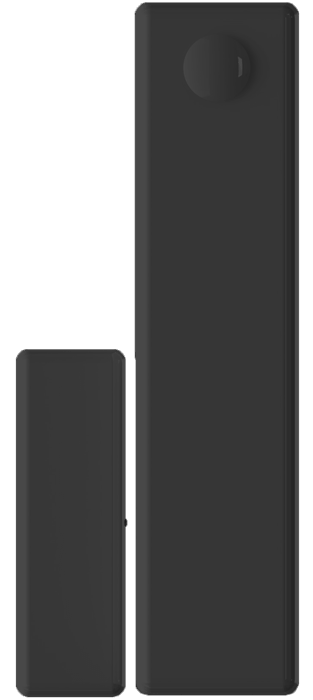

NEW Anthracite grey plastic kit now available

Modernise your product offerings with the brand-new anthracite grey plastics. Listening to your feedback, we’re really pleased to add the new plastic kit to the range; matching the colour of door and window frames used in modern new builds. Now, you can choose from white, brown and anthracite grey to perfectly complement your customer properties.

MC1/SHOCK-WE

View Product

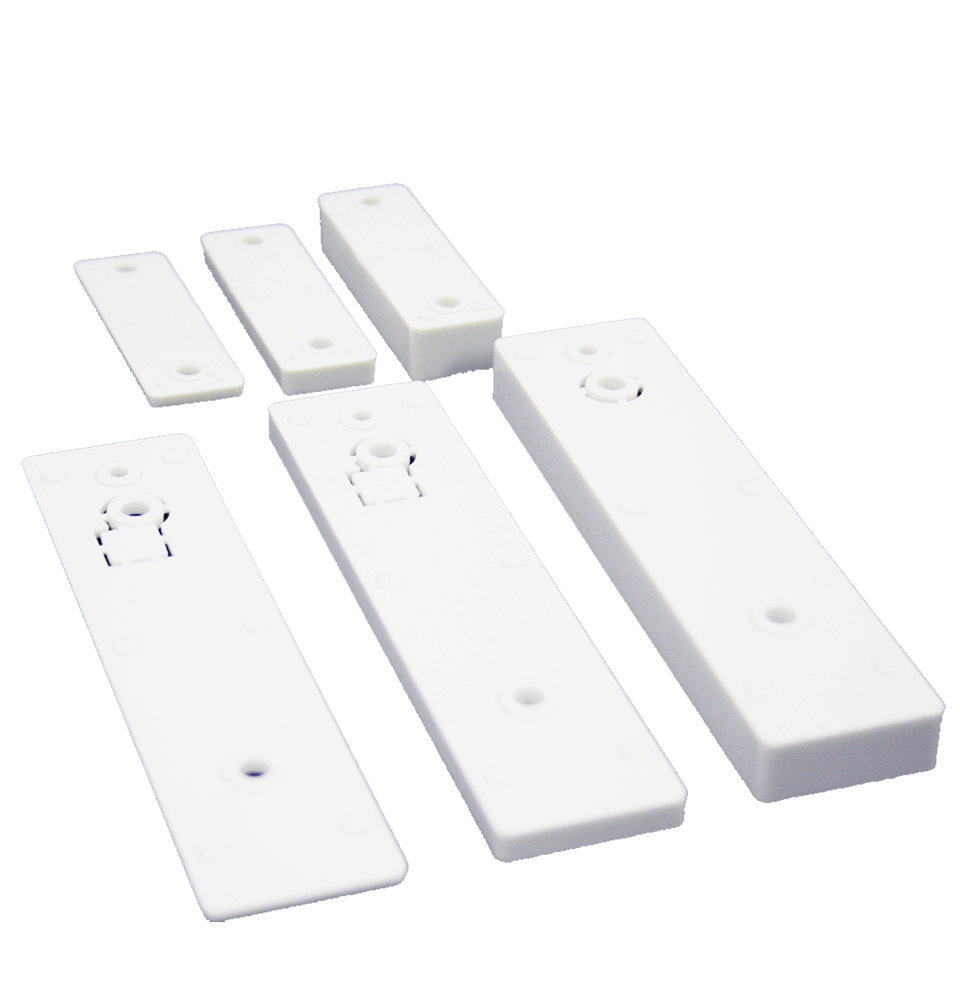

Spacers for MC1MINI-WE

View Product

Certification

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017

MC1MINI-WE - Declaration of Conformity

MC1MINI-WE - IMQ Certificate (CA12.01482)

Technical Specification

Security and safety sensors technical characteristics

Magnetic contact	Yes
Tamper protection	Front and rear
LED sensor test	Signal, Alarm
Magnet included	Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)	Yes
Instant two way device control (ITDC)	Yes
Pyronix high security two way wireless data encryption protocol (TDE)	Yes
Pyronix intelligent jamming detection	Yes
Programmable wireless supervision time	Yes
868MHz transceiver FM technology	Yes
One push to learn	Yes
Tranmission method	Fully encrypted rolling
Transmission range	300m in open space

Environmental and operating features

Storage temperature	-20C to 50C.
Certified operating temperature	-10C to 40C
Nominal operating temperature	-10C to 50C
Physical dimensions (H x W x D)	27 x 104 x 25mm \| Magnet: 14 x 49 x 16mm

Electrical & battery

Battery type	1 x CR123A 3V lithium battery
Battery life	up to 2 years
Threshold	2.5V +/- 5% at 25C

Certifications and warranty

Security Grade	Grade 2
Environmental class	II
EN Certificate	EN50131-2-6:2008 \| EN50131-5-3:2005+A1:2008 \| PD6662:2017
Certification type	IMQ
Certificate number	CA12.01482
Electrical conformity	CE
Warranty	2 years
