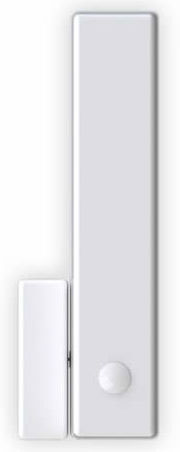

MC1/SHOCK-WE

Description

The MC1/SHOCK-WE is a wireless, combined shock and magnetic contact. Designed for various positions like walls or door frames, the internal sensors can both be learned separately to the panel allowing separate shock and magnetic contact transmissions of alarm signals to be sent to the panel. They can also be learned individually if ither the shock or the magnetic contact is not required.

Key Features
  • External zone input option
  • Adjustable shock sensitivity
  • Available in white, brown or anthracite

Product Features

This product is specifically designed to be placed in positions where it is necessary for a shock sensor alone or shock sensor and magnetic contact to be present, such as walls, ceilings, door and window frames; two sensors in one.

The sensors can both be learned separately to the panel allowing separate shock and magnetic contact transmissions of alarm signals to be sent to the panel. They can also be learned individually, if for some reason either the shock or the magnetic contact is not required.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Two Way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

One-Push-To-Learn

Assigning wireless devices to the system is made simple and quick by the One-Push-To-Learn feature.
1. Choose an input to learn the device
2. Remove the plastic insulator between the battery and positive contact and press LEARN button
3. Input learnt
Quick, Simple and Efficient!

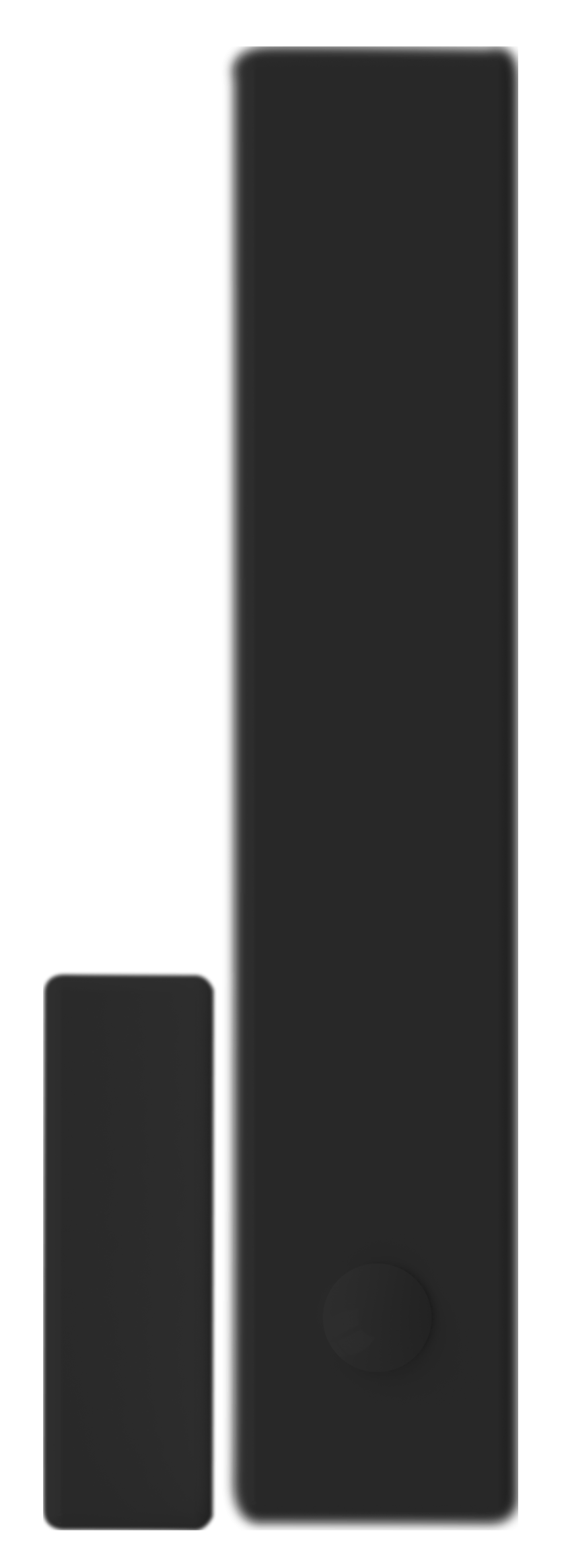

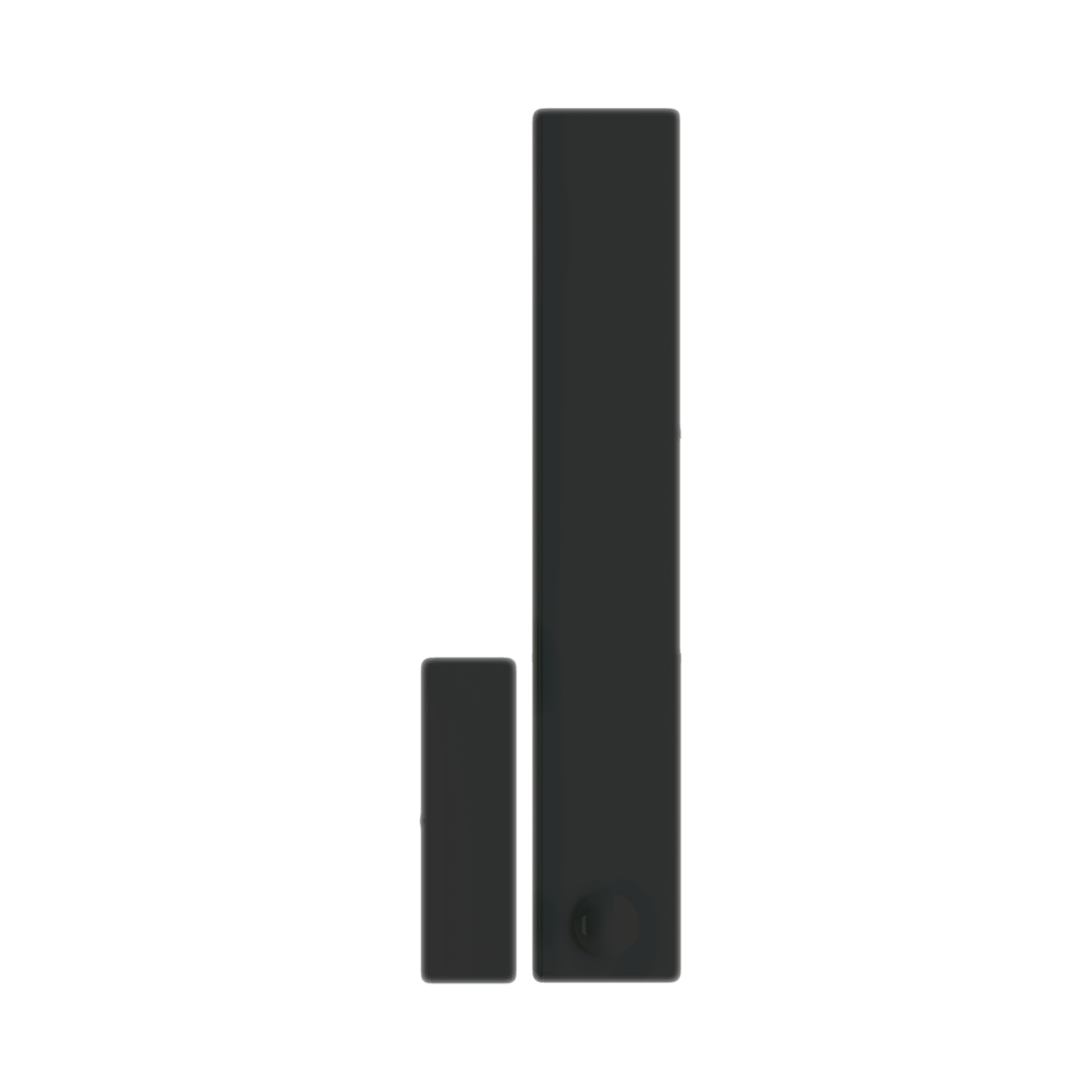

NEW Anthracite grey plastic kit now available

 Modernise your product offerings with the brand-new anthracite grey plastics. Listening to your feedback, we’re really pleased to add the new plastic kit to the range; matching the colour of door and window frames used in modern new builds. Now, you can choose from white, brown and anthracite grey to perfectly complement your customer properties.

ABS plastics

2mm polished finish, reduces electrostatic interference.

Please note that the dual functionality (magnetic contact AND shock sensor) is only compatible with Enforcer V9.13 (Week code 1914) and above and the EURO-ZEM32-WE V2.36 (Week Code 2414) and above.
Should you wish to install this device on systems that do not meet this version requirement, then only the shock sensor aspect of the device can be used.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017



Security and safety sensors technical characteristics

Magnetic contact

Yes

Shock sensor

Yes

Tamper protection

Front and rear

LED sensor test

Signal, Battery, Alarm, Tamper

Terminal for N/C input and reed switch

Yes

Magnet included

Yes

Tamper input

Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)

Yes

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

One push to learn

Yes

Tranmission method

Fully encrypted rolling code

Transmission range

300m in open space

Environmental and operating features

Storage temperature

-20C to 50C

Certified operating temperature

-10C to 40C

Nominal operating temperature

-10C to 50C

Physical dimensions (H x W x D)

30 x 130 x 35mm | Magnet: 17 x 56 x 12.7mm

Electrical & battery

Battery type

3.0V CR123A lithium battery

Battery life

up to 2 years

Threshold

2.5V +/- 5% at 25C

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017

Certification type

Self certified

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

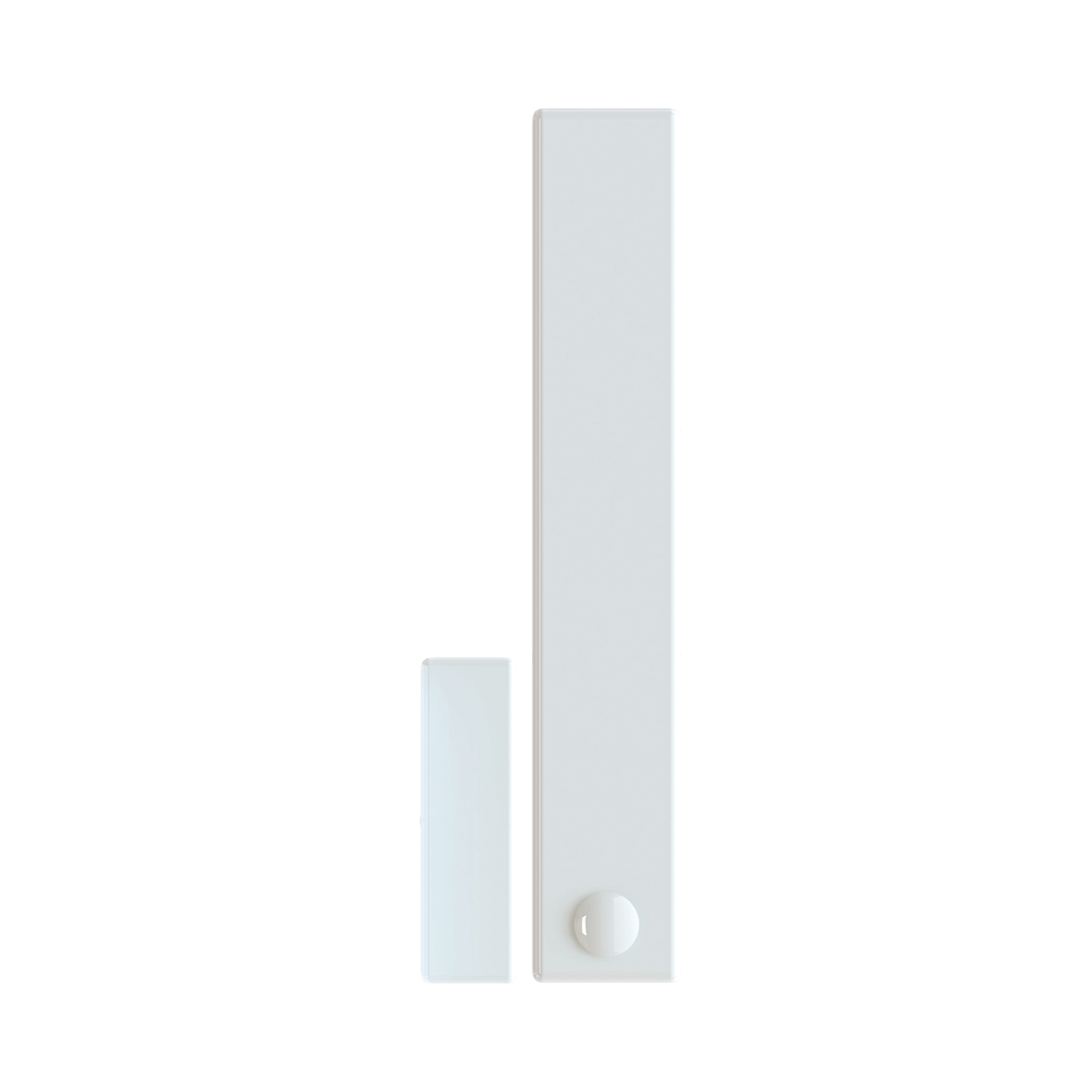

Two-Way Wireless Magnetic Contact and Shock Sensor - White
MC1/SHOCK-WE

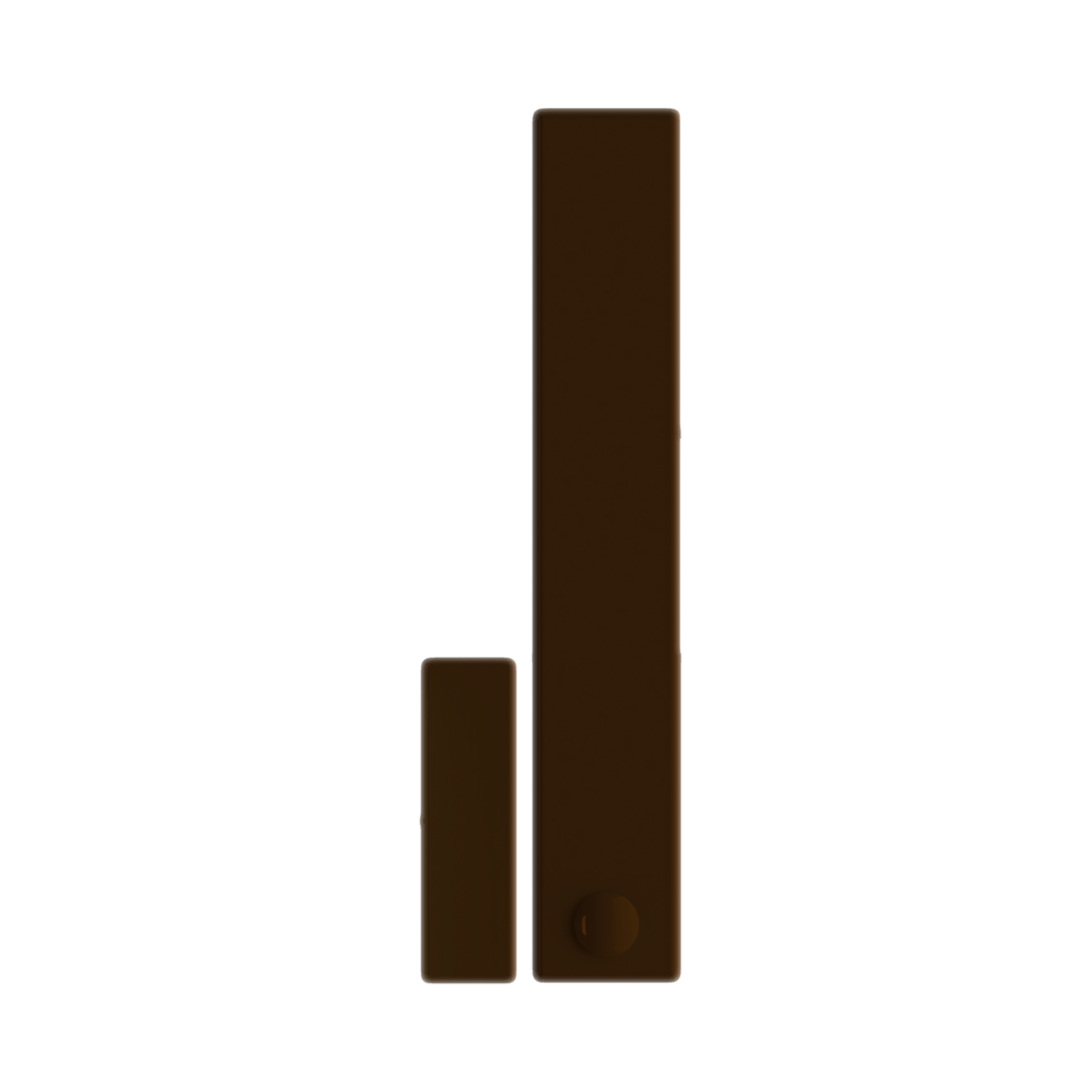

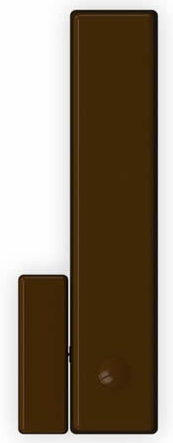

Two-Way Wireless Magnetic Contact and Shock Sensor - Brown (Only available in UK)
MC1/SHOCKBR-WE
Anthracite 5 x fronts and 5 x backs for MC1/SHOCK-WE and 5 x magnet plastics
MC1/SHOCKGR-KIT
