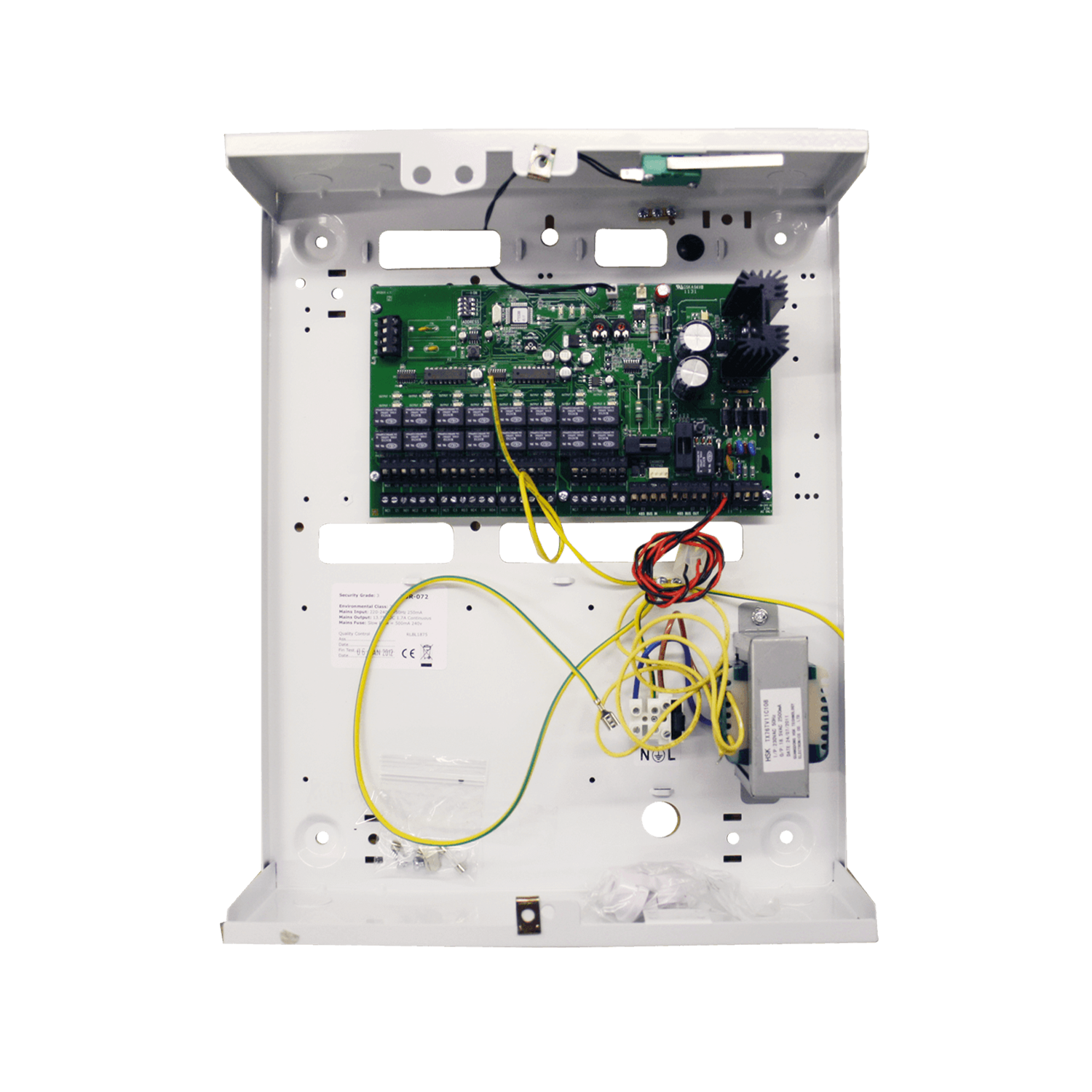

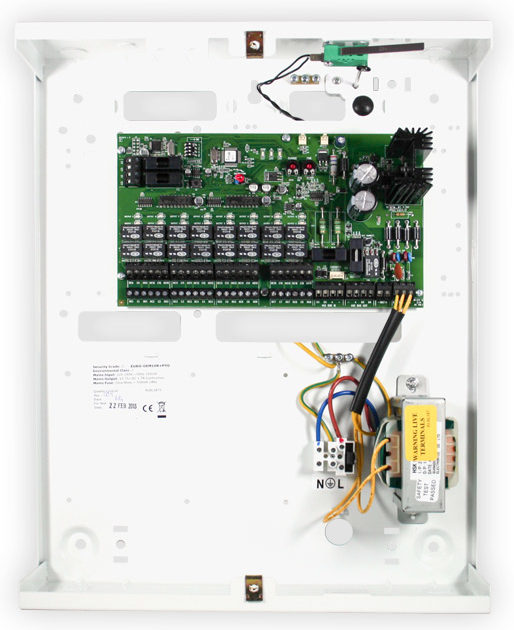

EURO OEM16R PSU

Product Features
  • 16 relay outputs (NO or NC)

  • LED indications on each output

  • Wired direct to RS-485 BUS

  • Integrated Intelligent PSU

  • Complies with EN50131-1

16 relay outputs (NO or NC)

The 16R+PSU adds an additional 16 relay outputs to your system and features an intergrated intelligent power supply.

LED indications on each output

LED will light adjacent to the relay location will indicate if relay is triggered for test purposes.

Wired direct to RS-485 BUS

Integrated Intelligent PSU

When the Output Module is plugged onto an Intelligent Power Supply, all connections are automatically made to draw current from the power supply, and to use the system diagnostic capabilities to control the power supply.

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Input and output expanders technical characteristics

Metal housing

Yes

Tamper protection

Yes

Inputs & outputs

Relay outputs

16

Environmental and operating features

Certified operating temperature

-10C to +50C

Nominal operating temperature

-10C to +50C

Physical dimensions (H x W x D)

390 x 305 x 100mm

Weight

4.8kg inc battery

Electrical & battery

Intergrated power supply

2.5A

Battery capacity

700mA (8A to 17A)

Battery supply protection

Reverse polarity protected

Battery low voltage protection

10.5v low voltage cut off

Internal battery charger

800mA Continuous, 13.68V nominal (fold-back current limited)

Recharge time

<24 hours

Mains supply

230v (220-240v) AC Max 250mA

Operating voltage

11-15v DC

Current limit

400mA

Certifications and warranty

Security Grade

Grade 3

Environmental class

II

Certification type

PCX-ROX16R+PSU; IMQ | EURO-OEM16R+PSU; Self-certified

Certificate number

PCX-ROX16R+PSU; CA12.01432

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

EURO OEM16R PSU
EURO-OEM16R+PSU
