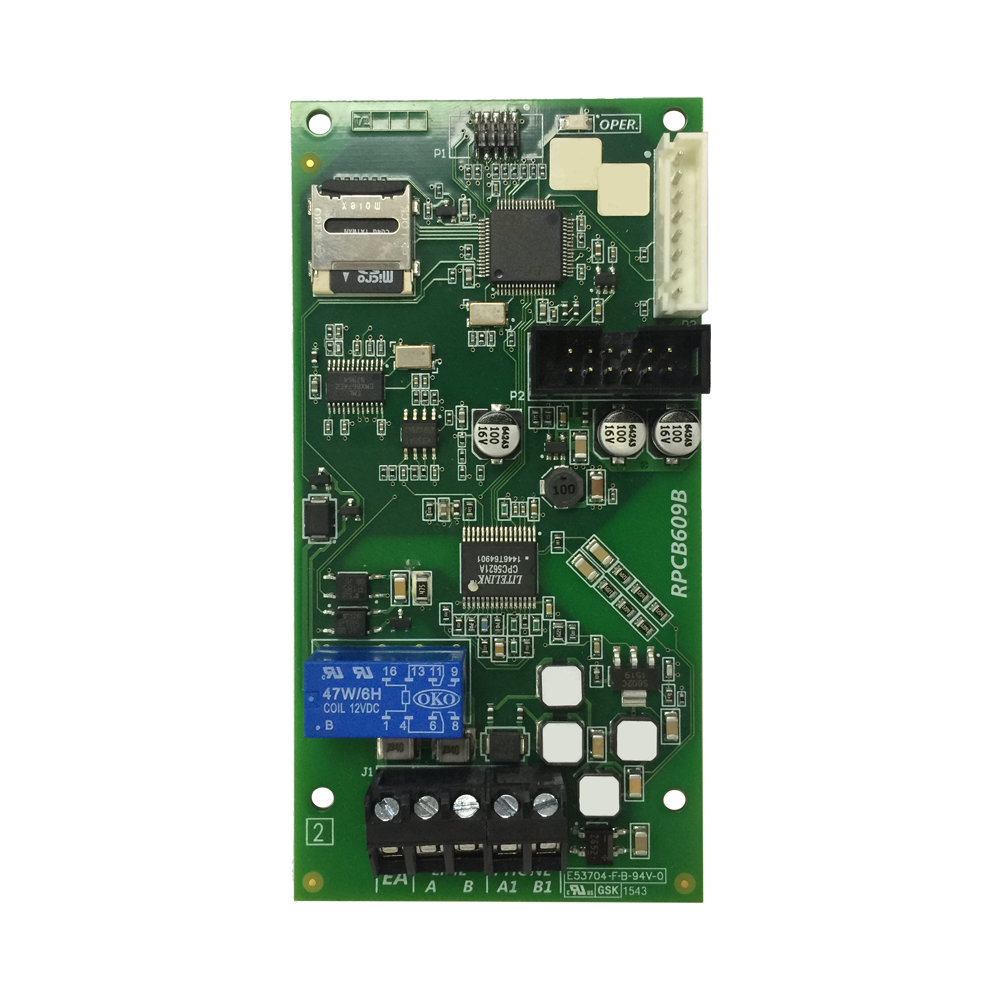

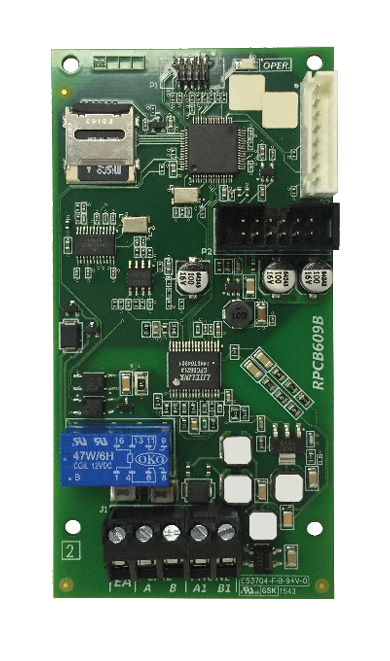

DIGI-PSTN/VOICE

Product Features
  • Voice call functionality for Enforcer and Euro 46 panel

  • Delivers pre-recorded messages

  • Supports CID/SIA/Fast Format signalling formats

  • Setup via menu structure

  • 3 pre-defined trigger sets and 1 custom trigger set

  • Compatible with upload/download software

  • Only compatible with UK Enforcer and Euro 46 V10

Clear pre-recorded voice messaging

Enables pre-recorded voice messages to be sent to a mobile or landline telephone number from the control panel. This can notify the user with clear, easily-understandable messages of activity, such as setting, unsetting and alarm activations.

InSite UDL

Enables Pyronix control panels to upload/download data to a PC running InSite version 9.51f or above software.

Communication formats

Contact ID, Fast Format, SIA and SMS.

Communications and modems

Signalling formats

Contact ID, Fast Format, SIA and SMS
Supports voice calling functions and upload/downloading via InSite

Baud rate

1200bps

Dimensions (W x H x D)

109 X 56 X 13mm

Electrical & battery

Voltage

~12VDC

Quiescent current consumption

~20mA

Maximum current consumption

~40mA

Certifications and warranty

Declaration of operation mode

Pass-through

Compliance


EN 61000-6-3:2007 + A1: 2011
EN 50130-4: 2011
EN 60950-1:2006 + A12: 2011
ETSI ES 203 021-1 V2.1.1/-2 V2.1.2/-3 V2.1.2
EN 50136-1: 2012
EN 50136-2: 2013

ATS level

SP2

Environmental class (EC)

II

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

PSTN voice communications module
DIGI-PSTN/VOICE
SAP: 361300204
