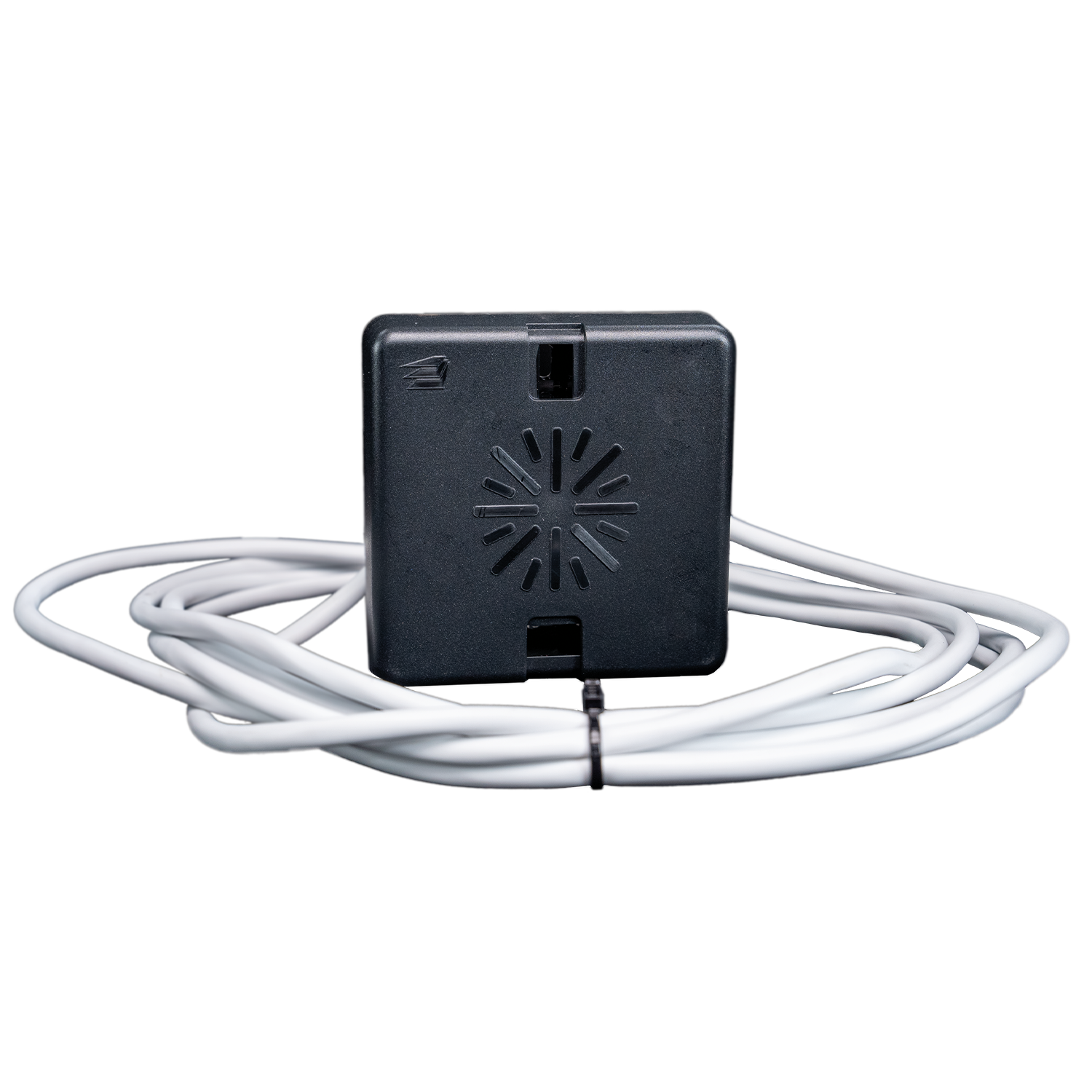

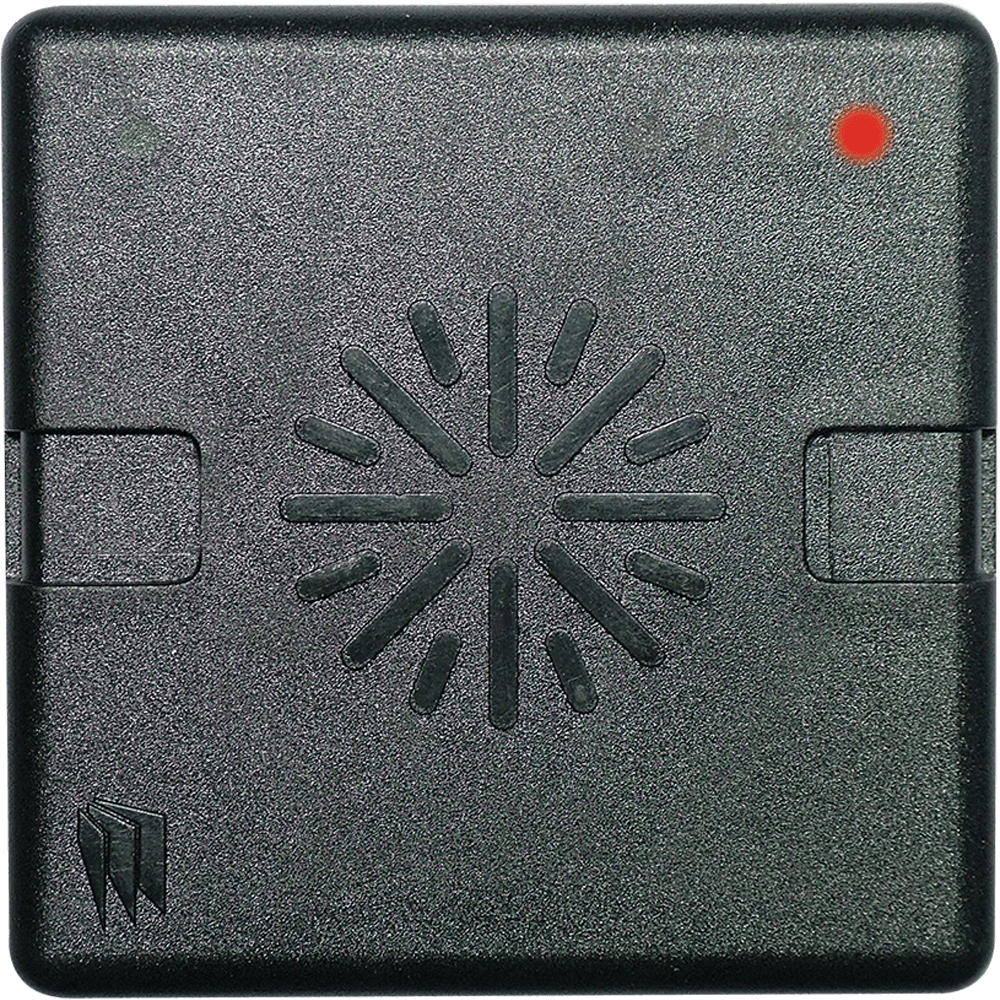

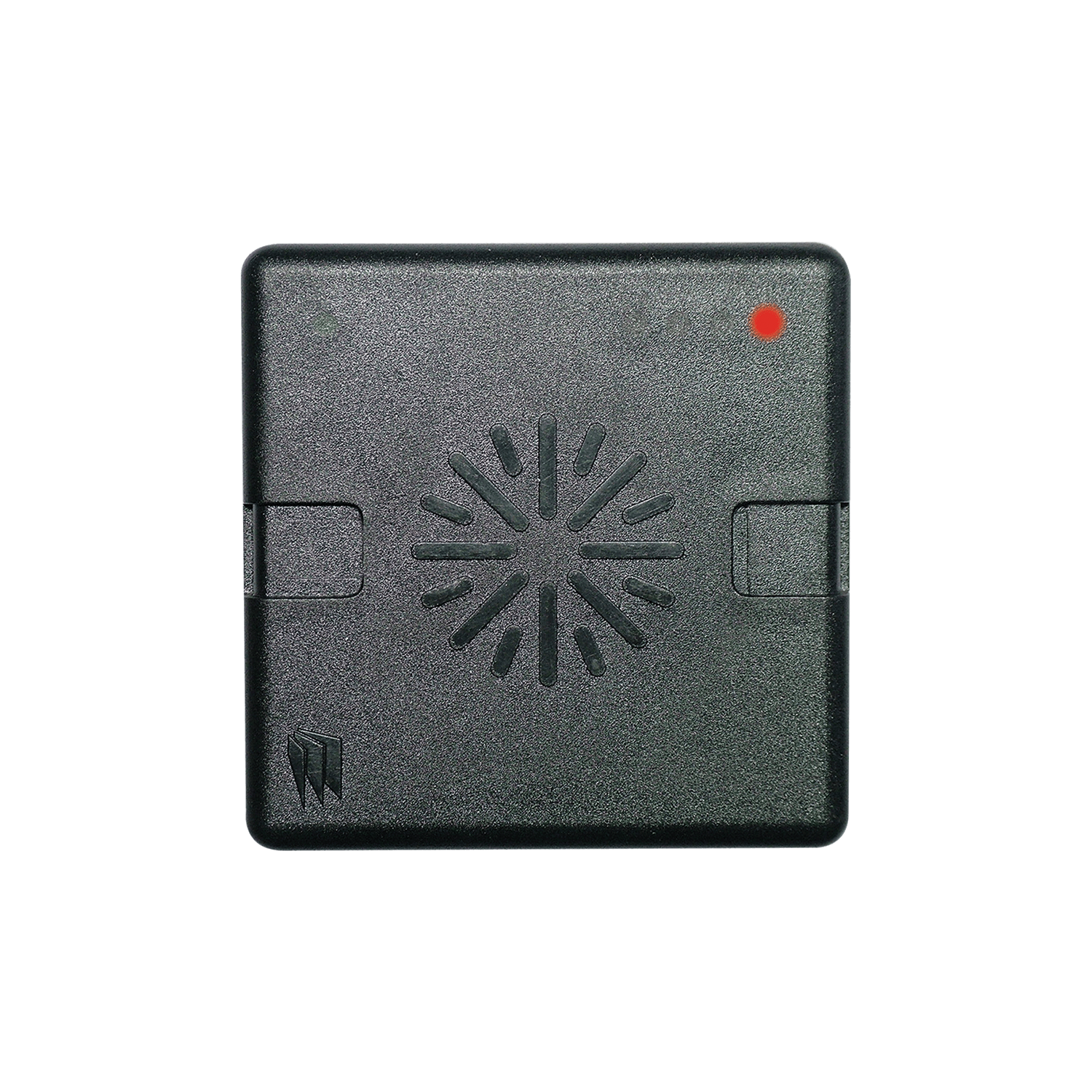

EURO External Prox Reader

Product Features
  • Can be used as entry control

  • Green and red LEDs indicate system status when valid tag/card is presented

  • IP65 rated external proximity reader

  • Wires directly to the RS-485 BUS

  • Proximity tag or card reader

  • Switched negative for relay magnetic lock control

  • Can be used to set/unset (arm/disarm) controller

  • Complies with EN50131-1

Set Point

Can be used with either proximity tags or cards to easily set/unset the system. Green and red LEDs indicate system status when a valid tag/card is presented.

Integrated Access Control

Can be used for internal or external doors to deny unauthorised entry.

Entry Control

Need a reader to both act as a set point and access control? Entry control solves this, combining both from a single reader; using the same Pyronix proximity tags used to set and unset the system.

Weatherproof

Rated IP65,  the weatherproof external proximity reader does not need to be positioned under cover therefore can be used on any external entry.

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Setting devices technical characteristics

Intergrated prox reader

Yes

IP 64 rated external prox reader

Yes

Inputs & outputs

Onboard wired inputs

1

Outputs on board

1

Environmental and operating features

Certified operating temperature

-10 to +50C

Nominal operating temperature

-10 to +50C

Physical dimensions (H x W x D)

85 x 85 x 21mm

Electrical & battery

Operating voltage

13.8V (9-16V range)

Supply current

Max. 90mA @ 13.8V

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-1 | PD6662

Certification type

Self-certified

Environmental class

IV

Warranty

2 years

Security Grade

Grade 3

Product Codes & Options

EURO External Prox Reader
EURO-108X
