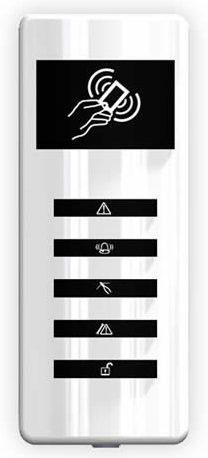

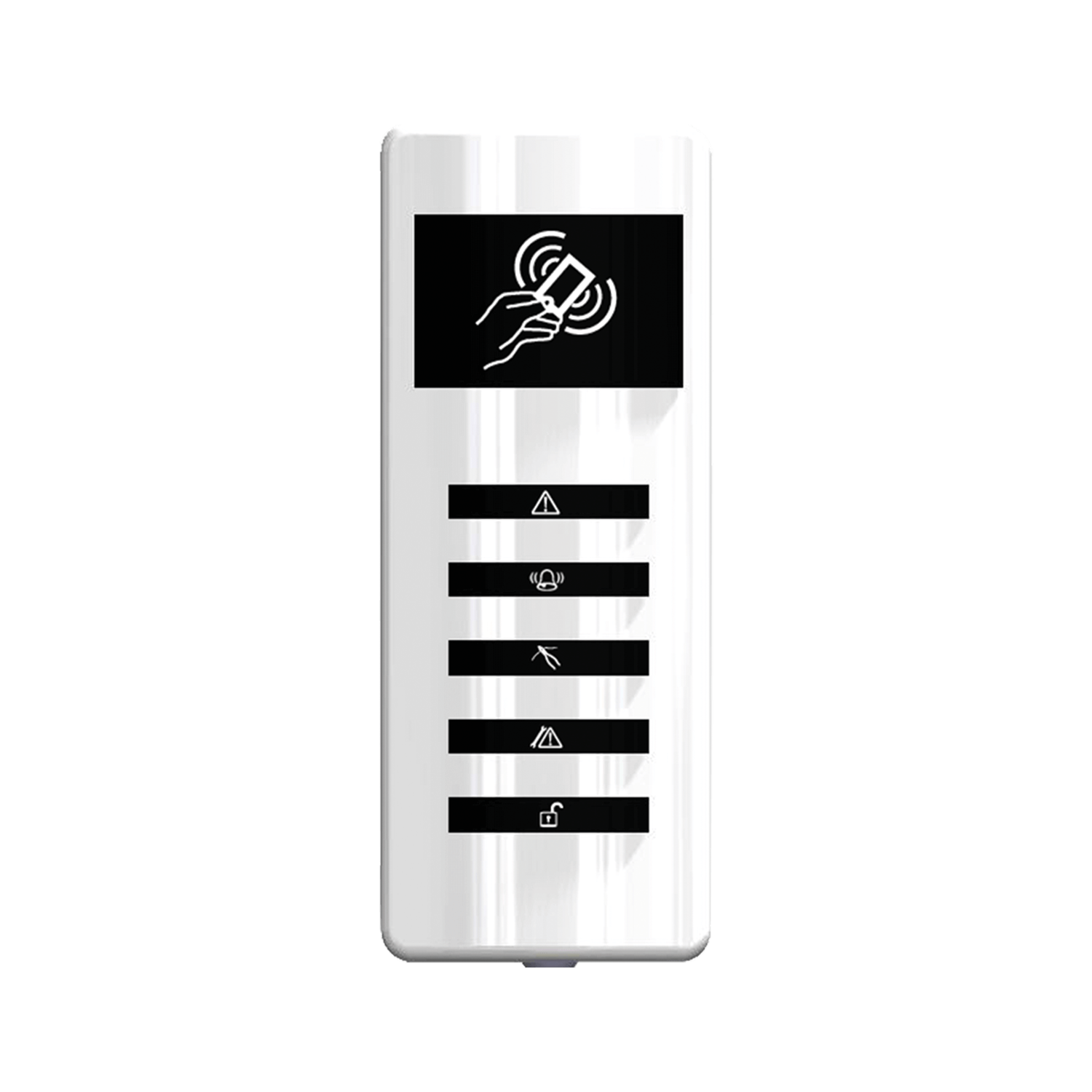

EURO Internal Prox Reader

Product Features
  • Proximity tag reader to set/unset the system

  • Works as set/unset controller

  • Proximity Tag or Card Reader

  • Backlit symbol indications for alert, alarm, tamper, fault and unset

  • 2 inputs or 2 outputs, or 1 input and 1 output

  • Complies with EN50131-1

Quick and easy

The internal proximity reader is a quick and easy way to allow multiple people to set and unset a system away from the main security control panel.

Setting and unsetting

Use the prox reader to set and unset the system.

Choice of setting option

You can use a choice of cards or proximity tags.

Easy identification

LED’s light up on the respective areas to indicate alert, alarm, tamper, fault and unset.

Input and output flexibility

Can be set up to have two inputs, or two outputs, or one of each.

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Setting devices technical characteristics

Intergrated prox reader

Yes

System status display

Yes

Tamper protection

Front and rear

Inputs & outputs

Onboard wired inputs

2

Outputs on board

1

Environmental and operating features

Storage temperature

-20C to +60C

Nominal operating temperature

-20C to +60C

Physical dimensions (H x W x D)

97 x 40 x 23mm

Electrical & battery

Operating voltage

12Vdc Nominal (9-15 Volt DC Range)

Quiescent current consumption

<30mA Quiescent. <90mA Maximum

Supply protection

Reverse polarity protected

Certifications and warranty

Security Grade

Grade 3

Environmental class

II

EN Certificate

EN-50131-1

Certification type

Self-certified

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

Euro ProxI Internal Proximity Reader
EUR-107
